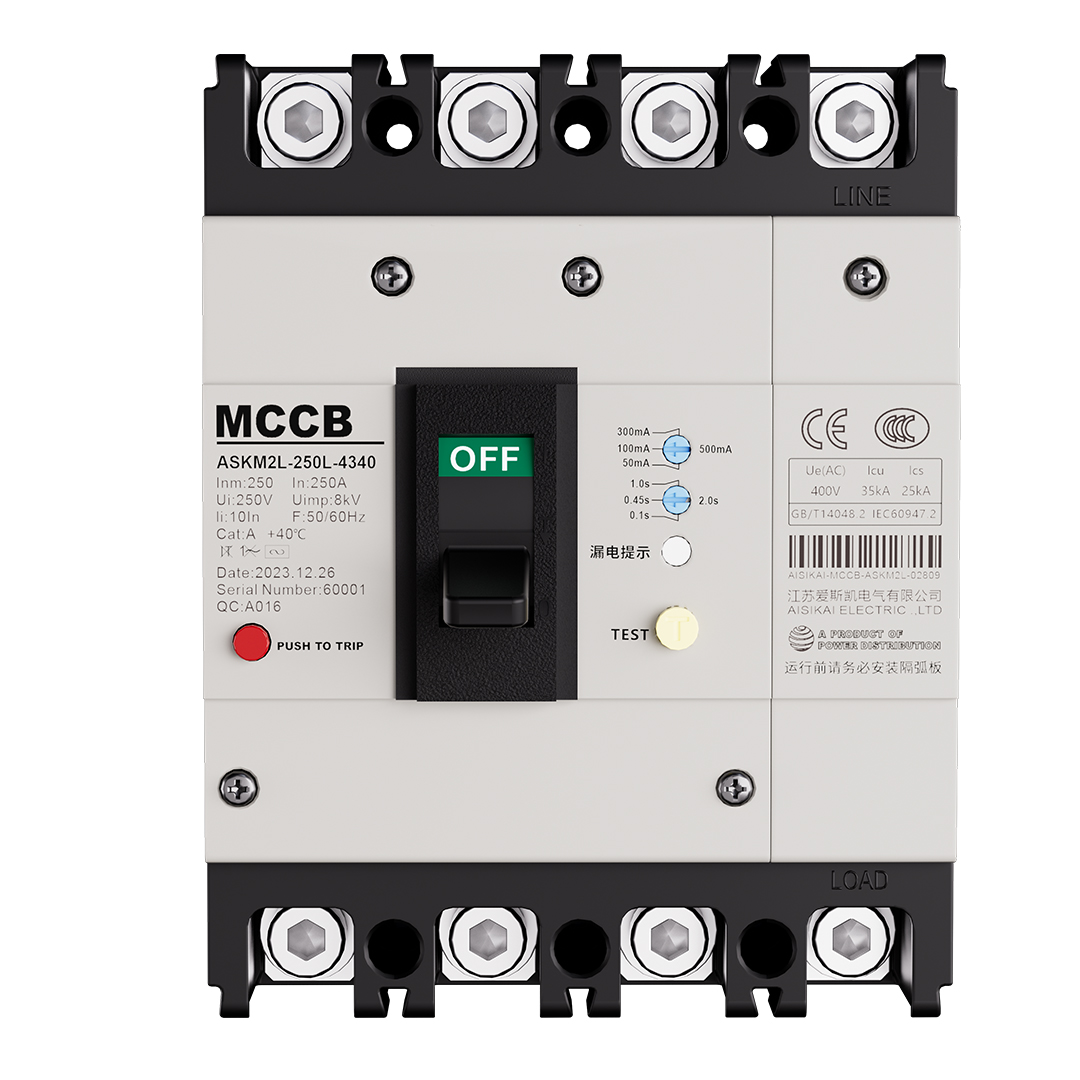

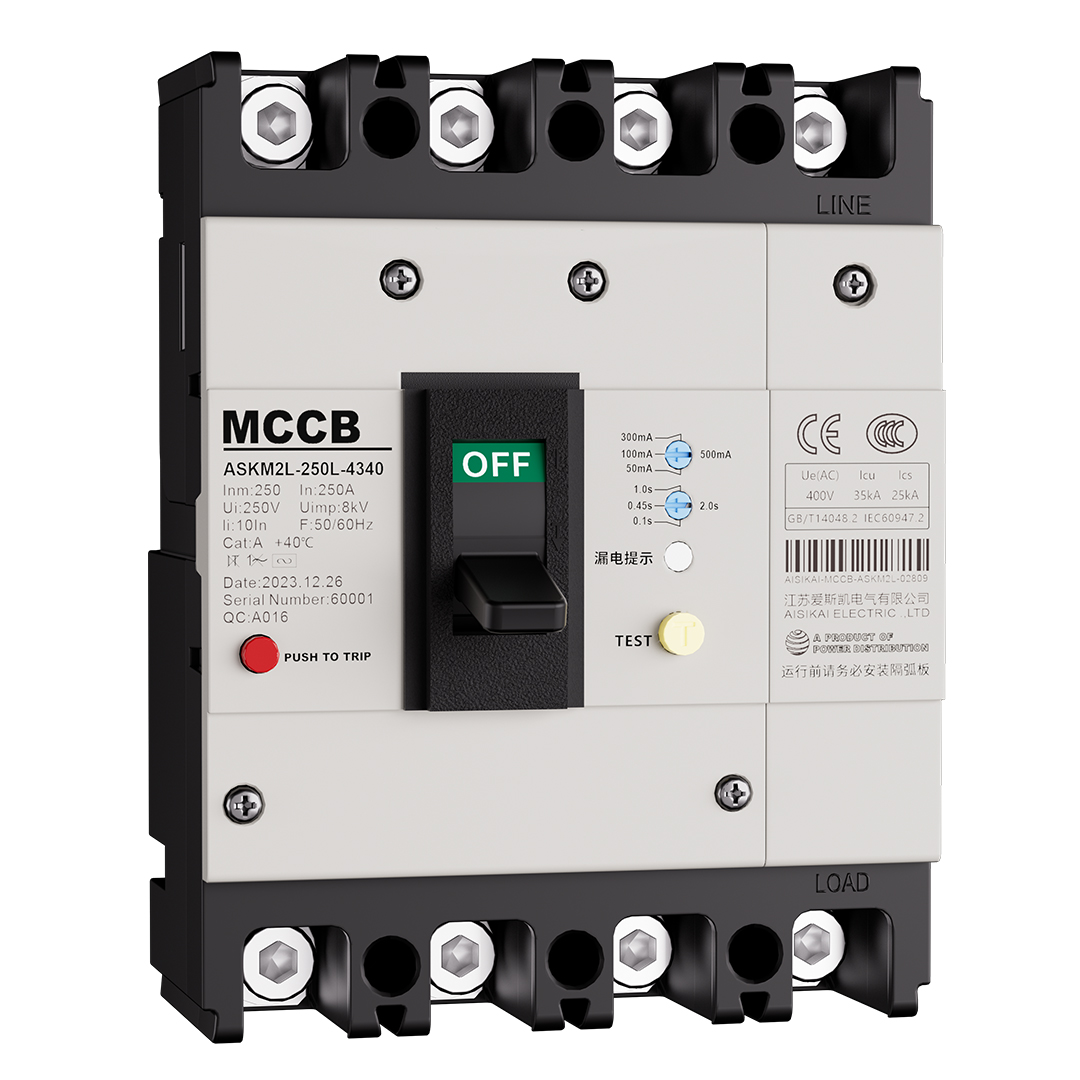

ASKM2L Thermal-Magnetic Molded Case Circuit Breaker for General Protection

ASKM2L Thermal-Magnetic Molded Case Circuit Breaker for General Protection

ASKM2L thermomagnetic leakage protection intelligent molded case circuit breaker(hereinafter referred to as MCCB) is a new type of circuit breakerdesigned and developed by our company using international advanced technology. MCCB is suitable for the distribution network of AC 50Hz, ratedinsulation voltage 1000V, rated voltage 400V and rated current up to1250A. MCCB can be used for infrequent switching of lines and infrequent startingof motors.

MCCB has overload, short-circuit and under-voltage protection, can protect the line and power supply equipment from damage. Protection can alsobe provided against fire hazards that may be caused by long- standing ground faults that cannot be detected by over-current protection.

Quantity:
Availability:





Inquiry

ASKM2L High Breaking Capacity Short Circuit Protection Adjustable Trip Range

Product Description

Download

FRAME

1b49d29b-df2c-4dc0-8f4f-86f5cda6d8c2

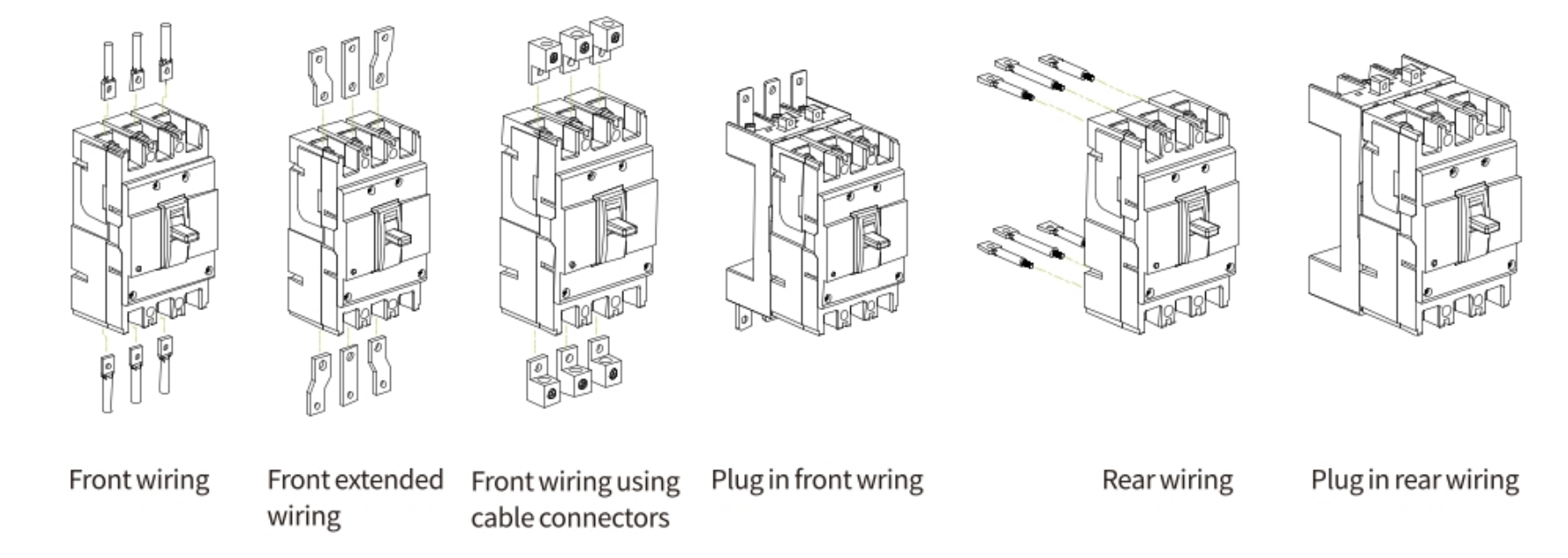

WIRING METHOD

413b8c2a-75c0-4bb0-b16a-99ca35c9308a

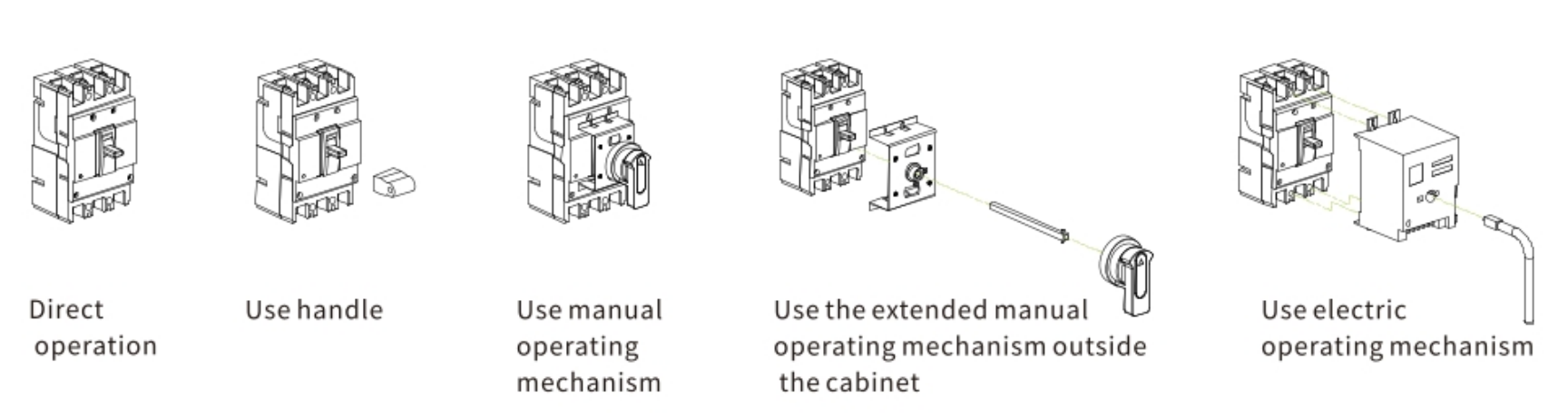

OPERATION METHOD

945c48cd-bd0f-4120-a12b-17913df9e027

APPLICABLE STANDARDS

GB14048.2、IEC60947.2

20501395-cc30-4680-8c77-1079022038bf

FEATURES

Small volume, high breaking capacity, short flying arc,vibration resistant;

Reasonable structure,reliable performance,easy installation;

Extensive optional accessories,can installed on-line,meet the technical requirements of different power distribution systems.

TECHNICAL DATASHEET OFASKM1 THERMOMAGNETICNORMAL PROTECTION MOLDED CASE CIRCUIT BREAKER

Model			ASKM2L-160			ASKM2L-250			ASKM2L-630			ASKM2L-800			ASKM2-1250
Frame rating current Inm(AF)			125			250			630			800			1250
Rated current In(A)			10 16 20 32 40 50 63 80 100 125			125 140 160 180 200 225 250			800 315 350 400 500 630			500 630 700 800			1000 1250
No.of poles			4			4			4			4			4
Rated insulation voltage Ui(V)			AC800V
Rated impulse withstand voltage Uimp(V)			8000V
Rated operational voltage Ue(V)			AC400V
Arc distance(mm)			≯50(0)**			≯50(0)**			≯50(0)**			≯100(0)**			≯100(0)**
Breaking capacity level			C	L	M	C	L	M	C	L	M	C	L	M	L	M	H
Ultimate short-circuit breaking capacity Icu(kA)		AC400V	25	35	50	25	35	50	35	50	75	35	50	75	35	50	75
Service short-circuit breaking capacity Ics(kA)		AC400V	18	25	35	18	25	35	25	35	75	25	35	75	25	35	75
Rated residual action current In(A)	AC type residual current protection	Utype current tripper, non-delay time	0.3/0.1/0.3/0.5			0.03/0.1/0.3/0.5			-			-			-
		V type current tripper,switchable between non-delay and delay	1.0/0.3/0.5/			0.1/0/3/0.5			0.1/0.3/0.5			0.3/0.5/1			0.3/0.5/1
		W type current tripper,switchable between non-delay and delay	0.3/1/3/10			0.3/1/3/10			1/3/10/30			1/3/10/30			1/3/10/30
	A type reidual current protection	VA type current tripper,switchable between non-delay and delay	0.1/0.3/0.5			0.1/0.3/0.5			0.1/0.3/0.5			0.3/0.5/1			0.3/0.5/1
Use category			A			A			A			A			A
Rated residual non-action current Ino(mA)			1/2 In
Rated residual short-circuit making(breaking)capacity Im(kA)			1/4 Icn
Electrical service life(times of operation)			3000			3000			2000			1500			1500
Mechanical service life(times of operation) without maintenance with maintenance			7000			7000			4000			4000			4000
			20000			20000			20000			20000			20000
Outline dimensions (mm)		W(4P)	120			140			185			280			280
		L	155			165			257			276			275
		H(includinghandle)	76.6			77			113.3			114			105
