ASKM3EL Thermal-Magnetic Molded Case Circuit Breaker for General Protection

ASKM3EL Thermal-Magnetic Molded Case Circuit Breaker for General Protection

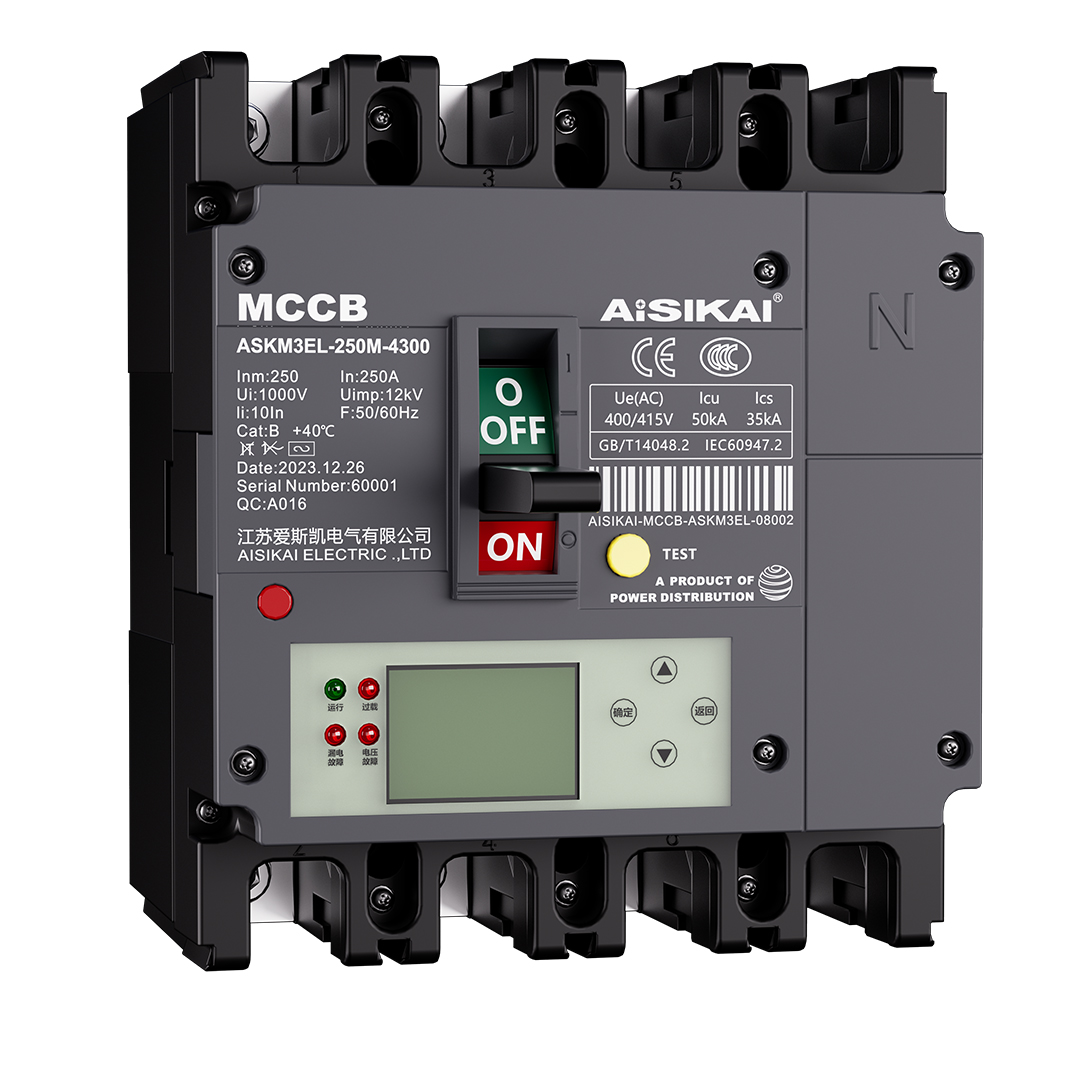

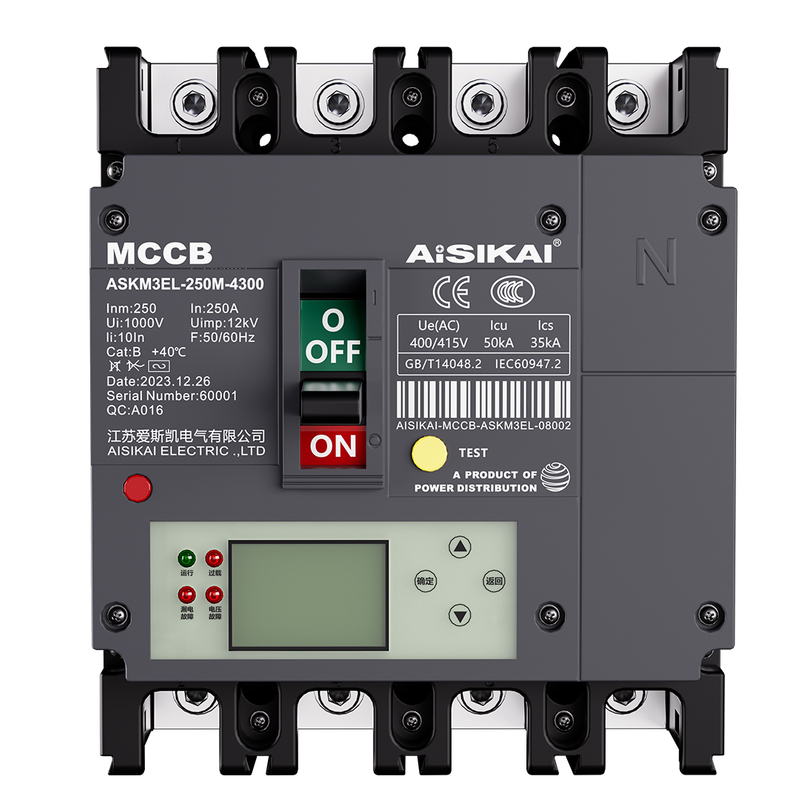

Basing on the ASK3EL MCCB, we integrate the residual current protection function, we produce a new LCD intelligent electronic leakage protectiontype circuit breaker ASKM3EL (MCCB for short). MCCB can display real-time three phases currents, voltages and residual currents and upload datathrough communication network, realizing four remote functions and meeting the requirements of Low-voltage molded case circuit breakercommunication protocol

MCCB have protections for overload, short-circuit, under-voltage, over-voltage, phase-loss, zero-loss, can protect circuits and equipment fromdamage. MCCB also have residual current protection, providing protection against dangerous voltage exposure to people due to insulation damage.The selective protections ofACB have high accuracy, which can improve the reliability of power supply and avoid unnecessary power outages.

MCCB is suitable for the distribution network of AC 50Hz, rated insulation voltage 1000V, rated voltage 400V and rated current up to 800A. MCCB can beused for infrequent switching of lines and infrequent starting of motors. Special places can use leakage alarm non tripping module to avoid majorlosses caused by power outages. MCCB meet the requirements of Article 4.6 of GB13955-2005.

Quantity:
Availability:





Inquiry

ASKM3EL High Breaking Capacity Short Circuit Protection Adjustable Trip Range

Product Description

Download

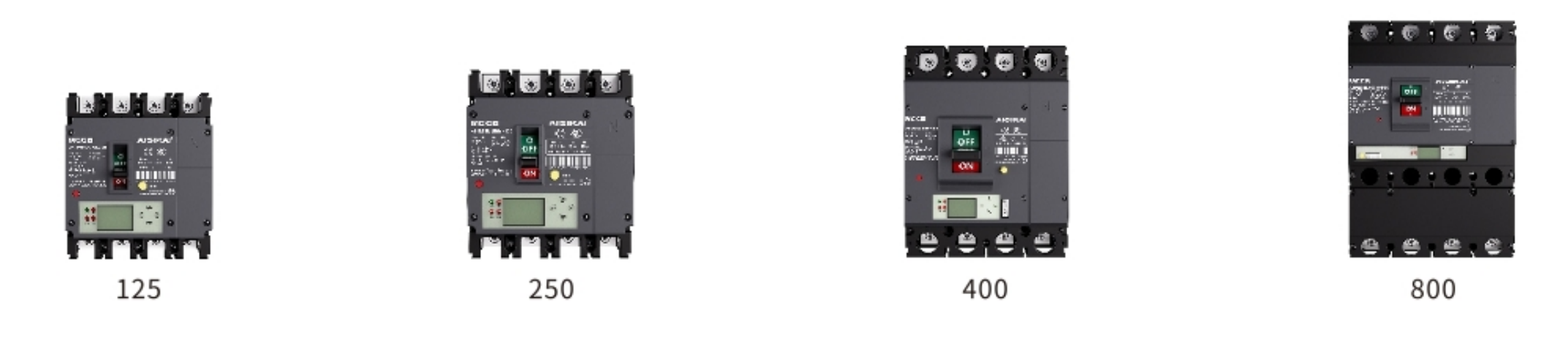

FRAME

b9884ed2-6126-4179-bdbb-e2085d0668f6

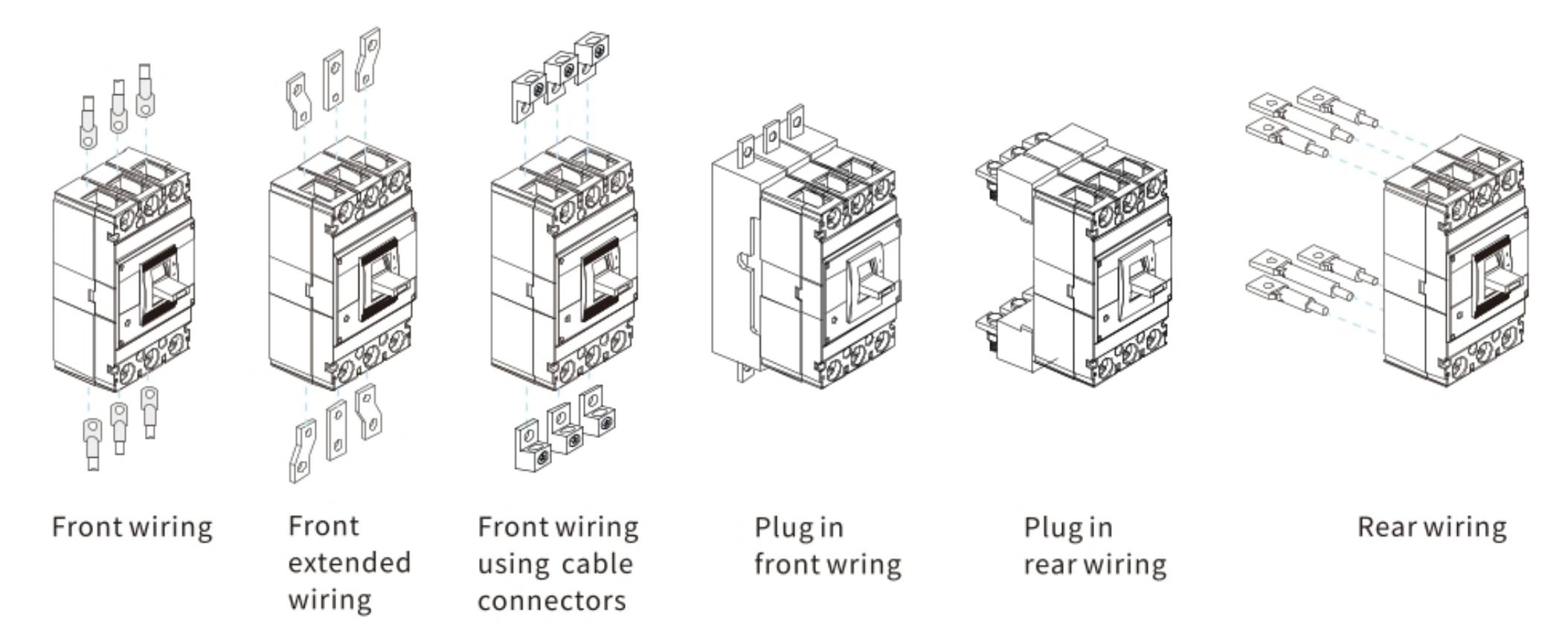

WIRING METHOD

1bffd990-eaad-497d-a061-71c1071ab40d

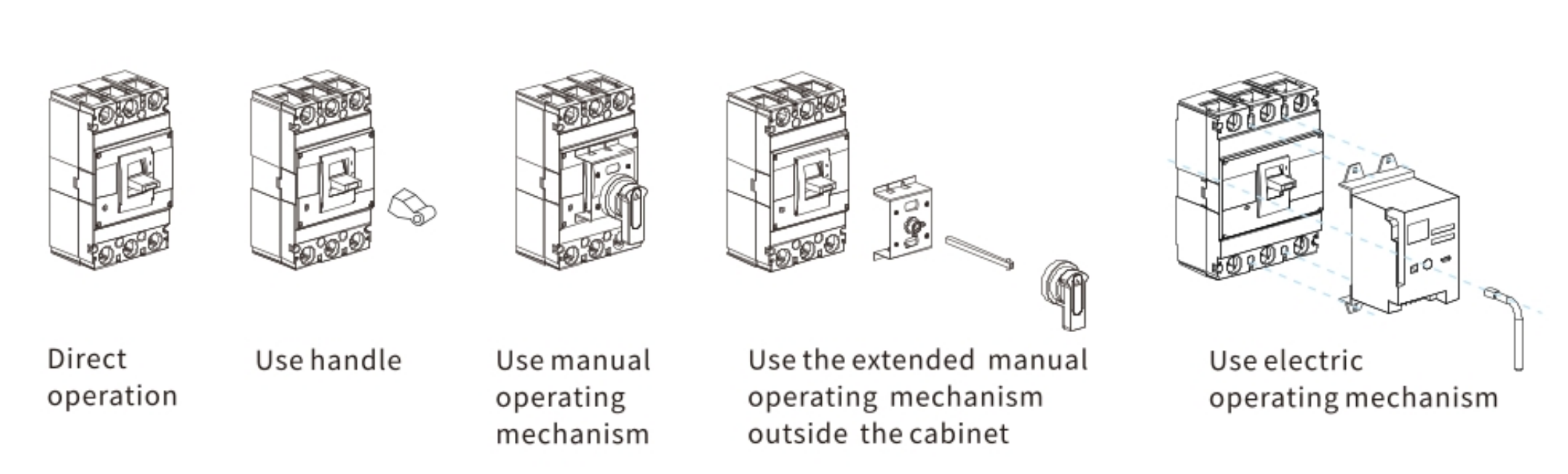

OPERATION METHOD

333402f0-7dcc-4922-b041-e8a7c4cfda2c

APPLICABLE STANDARDS

GB14048.2、IEC60947.2

90097d8a-2d78-4150-8070-18732215ca9b

FEATURES

Small volume, high breaking capacity, short flying arc,vibration resistant;

Reasonable structure,reliable performance,easy installation;

Extensive optional accessories,can installed on-line,meet the technical requirements of different power distribution systems.

TECHNICAL DATASHEET OFASKM1 THERMOMAGNETICNORMAL PROTECTION MOLDED CASE CIRCUIT BREAKER

Model		ASKM3EL-160		ASKM3EL-250		ASKM3EL-400		ASKM3EL-800
Frame rating current Inm(A)		125		250		400		800
Rated current In(A)		40-125		100-250		160-400		630(250-630)/ 800(315-800)
No.of poles		3/4		3/4		3/4		3/4
Rated insulation voltage Ui(V)		AC1000V
Rated impulse withstand voltage Uimp(V)		12
Rated operational voltage Ue(V)		AC380/AC400/AC415
Arc distance(mm)		≯50(0)**		≯50(0)**		≯100(0)**		≯100(0)**
Breaking capacity level		M	H	M	H	M	H	M	H
Ultimate short-circuit breaking capacity Icu(kA)	AC380V/AC400V /AC415V	50	85	50	85	70	85	70	100
Service short-circuit breaking capacity Ics(kA)		35	65	35	65	50	65	50	65
Rated short-time withstand current Icw(KA)/1s		10		10		10		10
Use category		B		B		B		B
Over-current tripper type/residual current tipper type		Electronic/Electronic AC type
Rated residual action current In(A)		50/100/150/200/300/500/1000
Rated residual non-action current Ino(mA)		1/2 In
Rated residual short-circuit making(breaking)capacity Im(kA)		1/4 Icn
Electrical service life(times of operation)		8000		8000		7500		7500
Mechanical service life(times of operation) without maintenance		20000		20000		10000		10000
Mechanical service life(times of operation) with maintainable		40000		40000		20000		20000
Outline dimensions (mm)	W(4P)	107/142		107/142		150/198		210/280
	L	165		165		257		400
	H(includinghandle)	105		105		110		114.5
