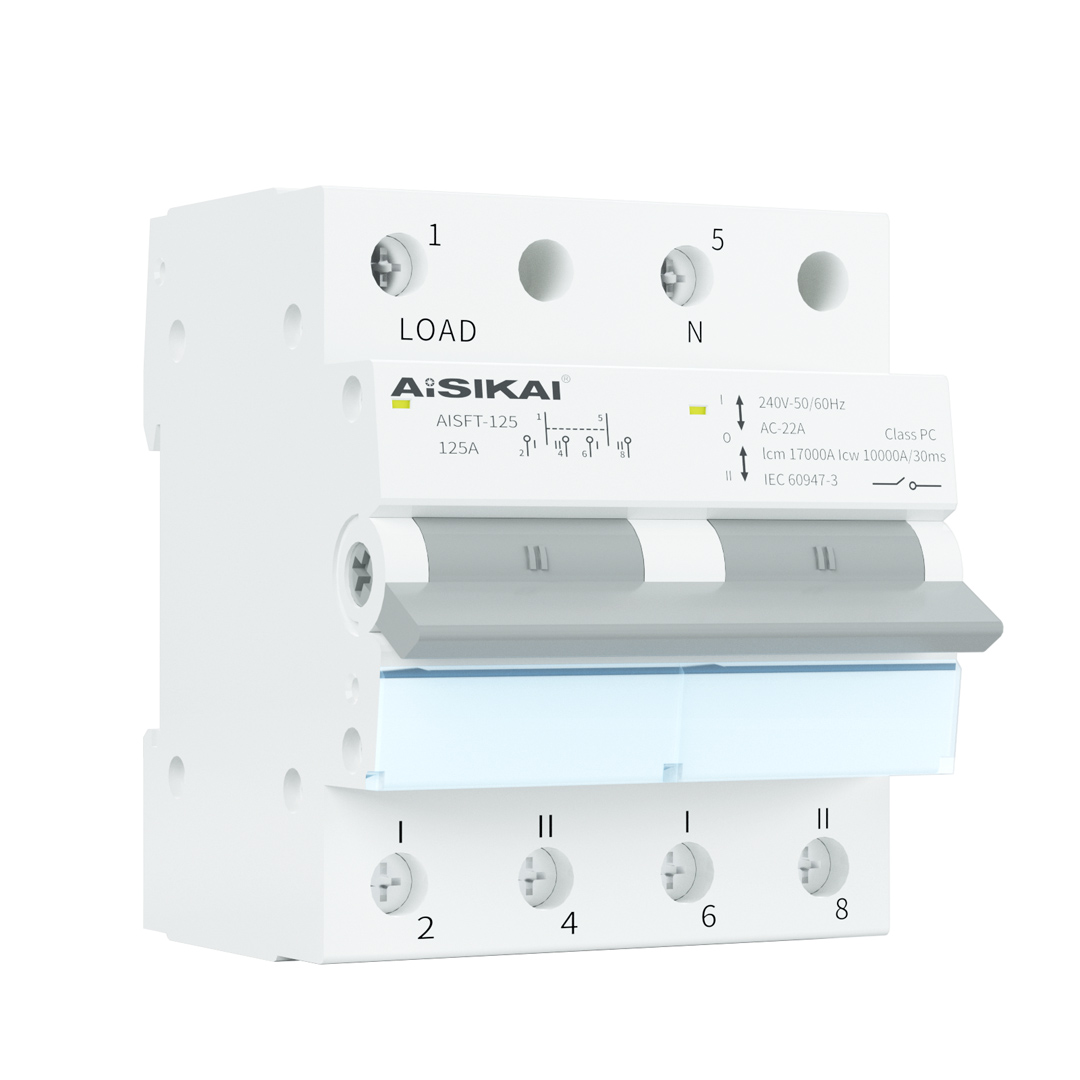

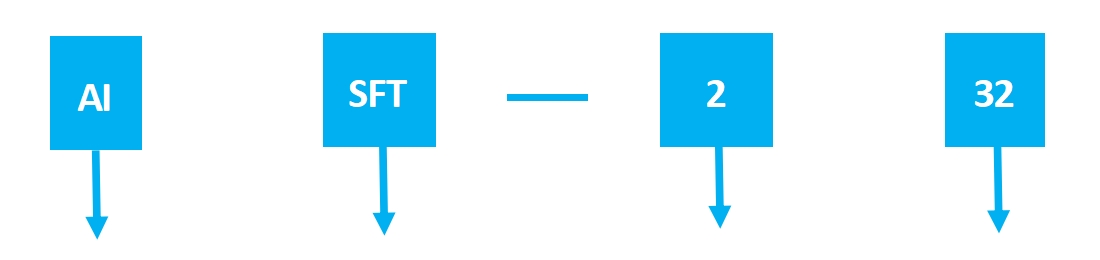

Type Designation
Company Code | Product Code: | No. of Poles: | Rated Current: |
Modular Changeover Switches | 1: 1P 2: 2P 3: 3P 4: 4P | 16:16A 32:32A 125:125A |
General Information
Base Temperature | 30 |
Working Environment Temperature | -35 - +70 |
Storage Environment Temperature | -35 - +80 |
Applicable Altitude | 2000 |
Shell Flame Retardant Grade | V0 |
Incoming Wiring Method | Top or Bottom |
Installation Method | TH35-7.5 type standard guide rail |
Contamination Level | 3 |
Protection Class | IP208(Direct Install) |
Technical Parameters
Product Model | AISFT SERIES | ||
rated current(A) | 16A,20A,25A | 50A,63A | |
rated voltage(V) | 230/400 | 230/400 | |
rated frequency(Hz) | 50/60Hz | 50/60Hz | |
poles | 1P,2P,3P,4P | 1P,2P,3P,4P | |
mechanical life (times) | 10000 | 10000 | |
electrical life(times) | 6000 | 6000 | |
rated insulation voltage Ui(V) | 690 | 690 | |
rated impulse withstand voltage(1.2/50)(kV) | 6 | 6 | |
anti-vibration(IEC/EN60068-2-6) | no significant | no significant | |
wiring | terminal block form | column type | column type |
minimum connectable | 1(mm2) | 6(mm2) | |
maximum connectable | 16(mm2) | 50(mm2) | |
standard connection torque | 1.2(N-m) | 2.5(N-m) | |
maximum torque | 2(N-m) | 3(N-m) | |
wire Insertion Depth | 13(mm) | 20(mm) | |

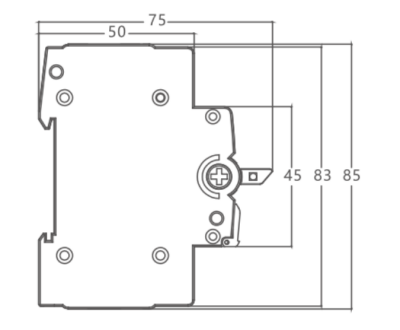

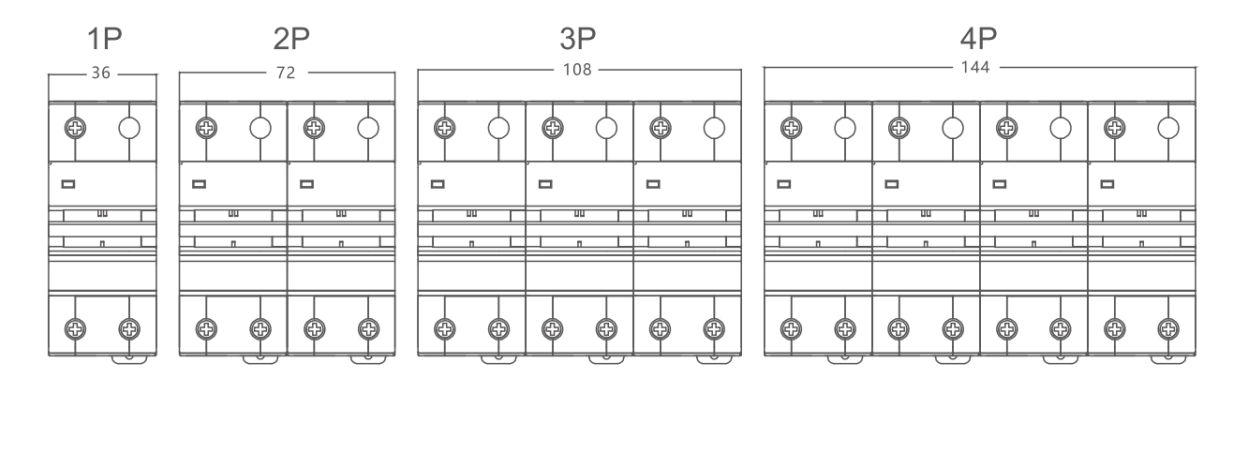

Installation Dimensions

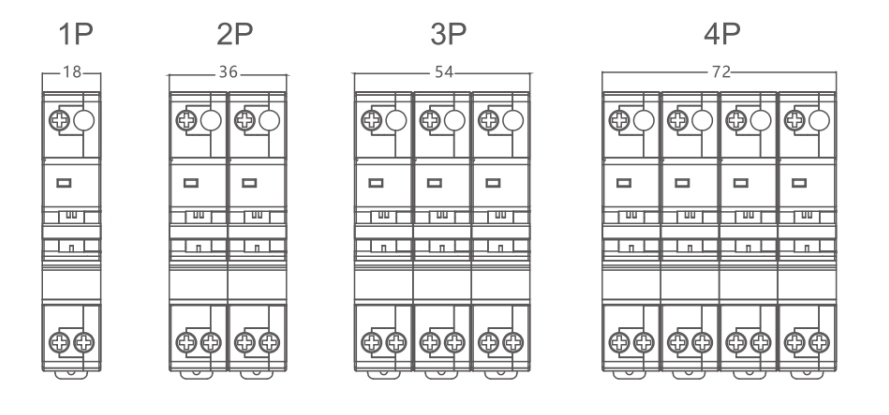

16 -- 63 A |
|
|
| ||

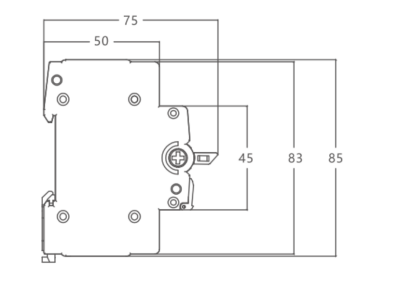

50 -- 125A |
|
|
| ||

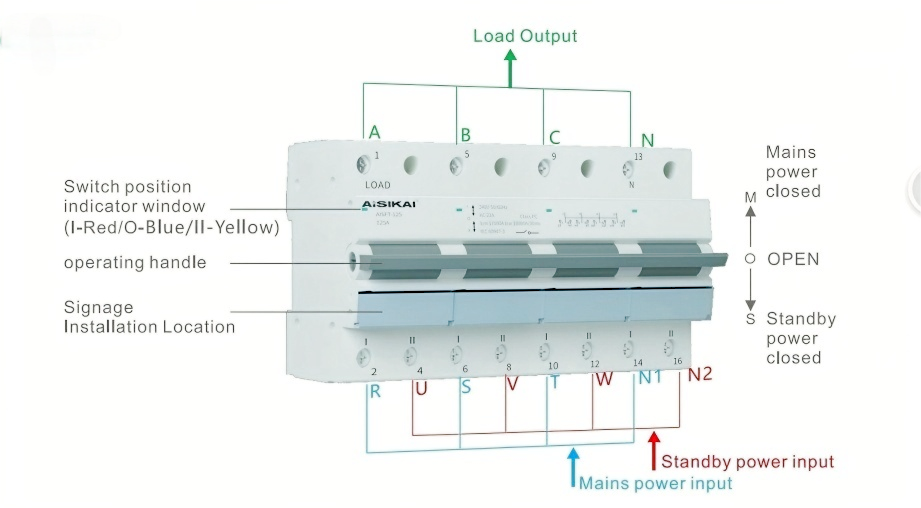

Wiring Schematic

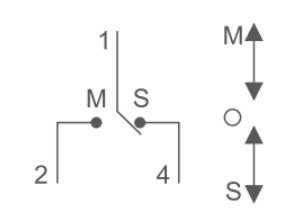

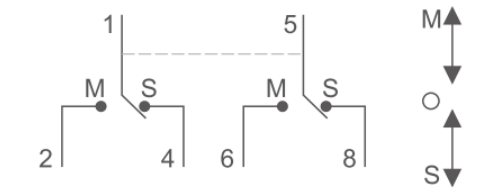

1P |
|
2P |
|

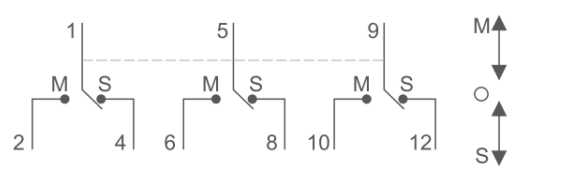

3P |
|

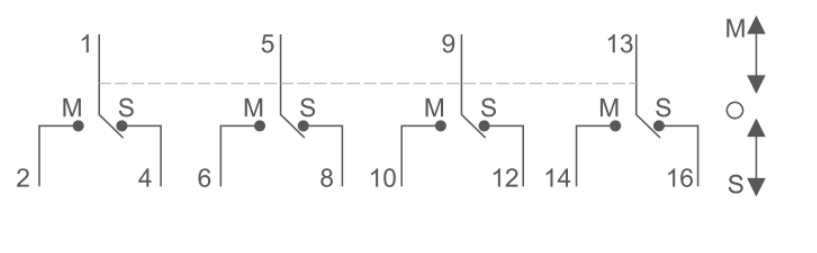

4P |
|

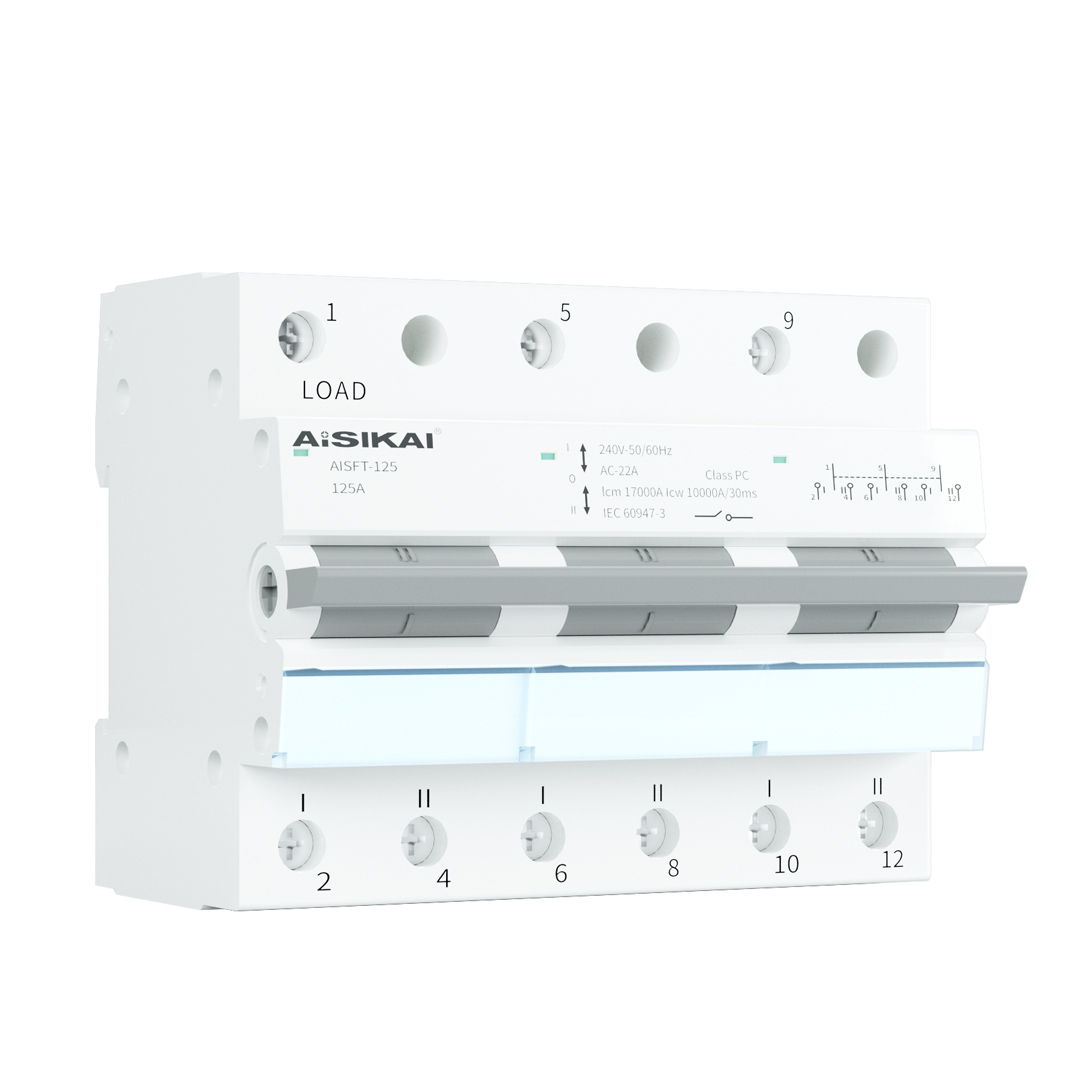

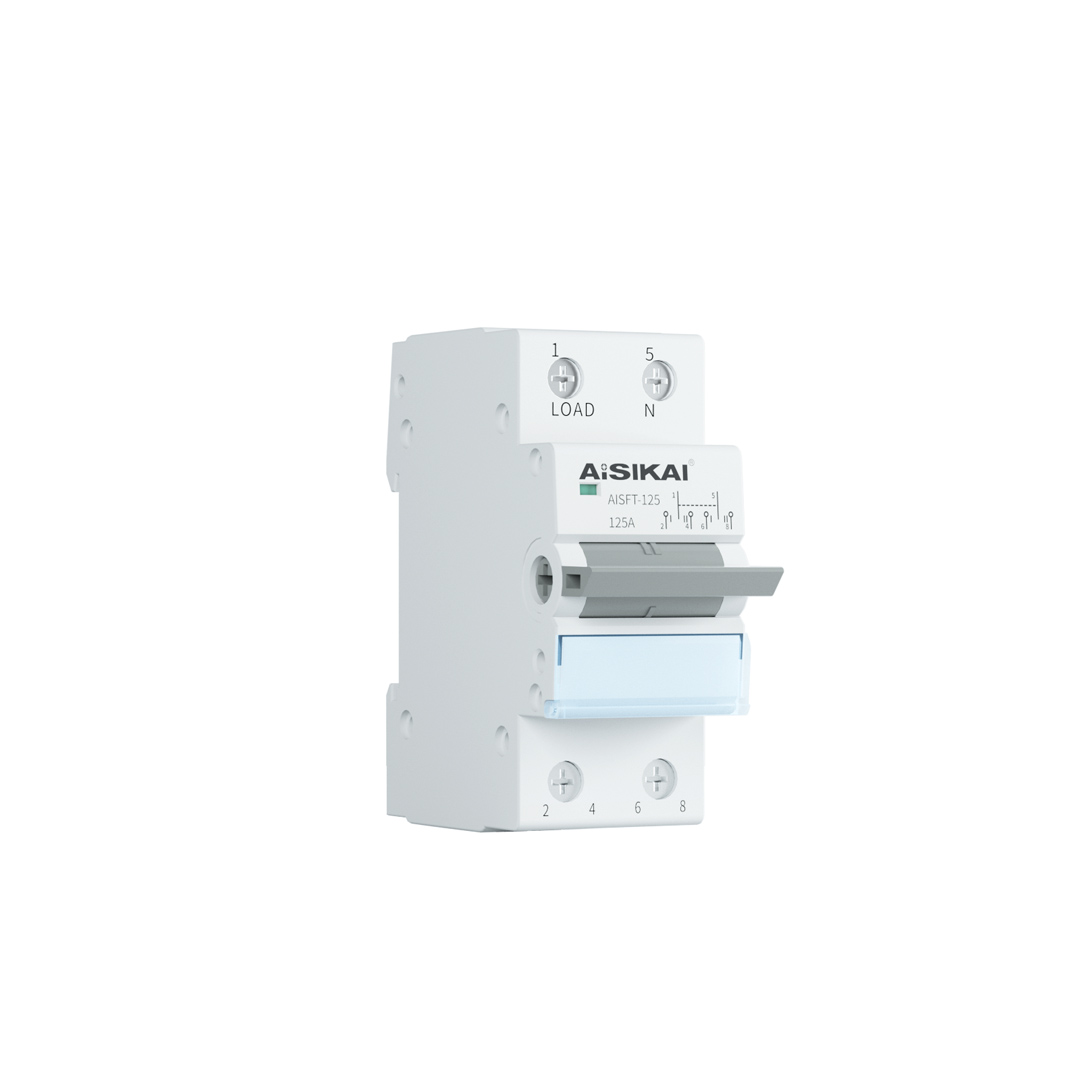

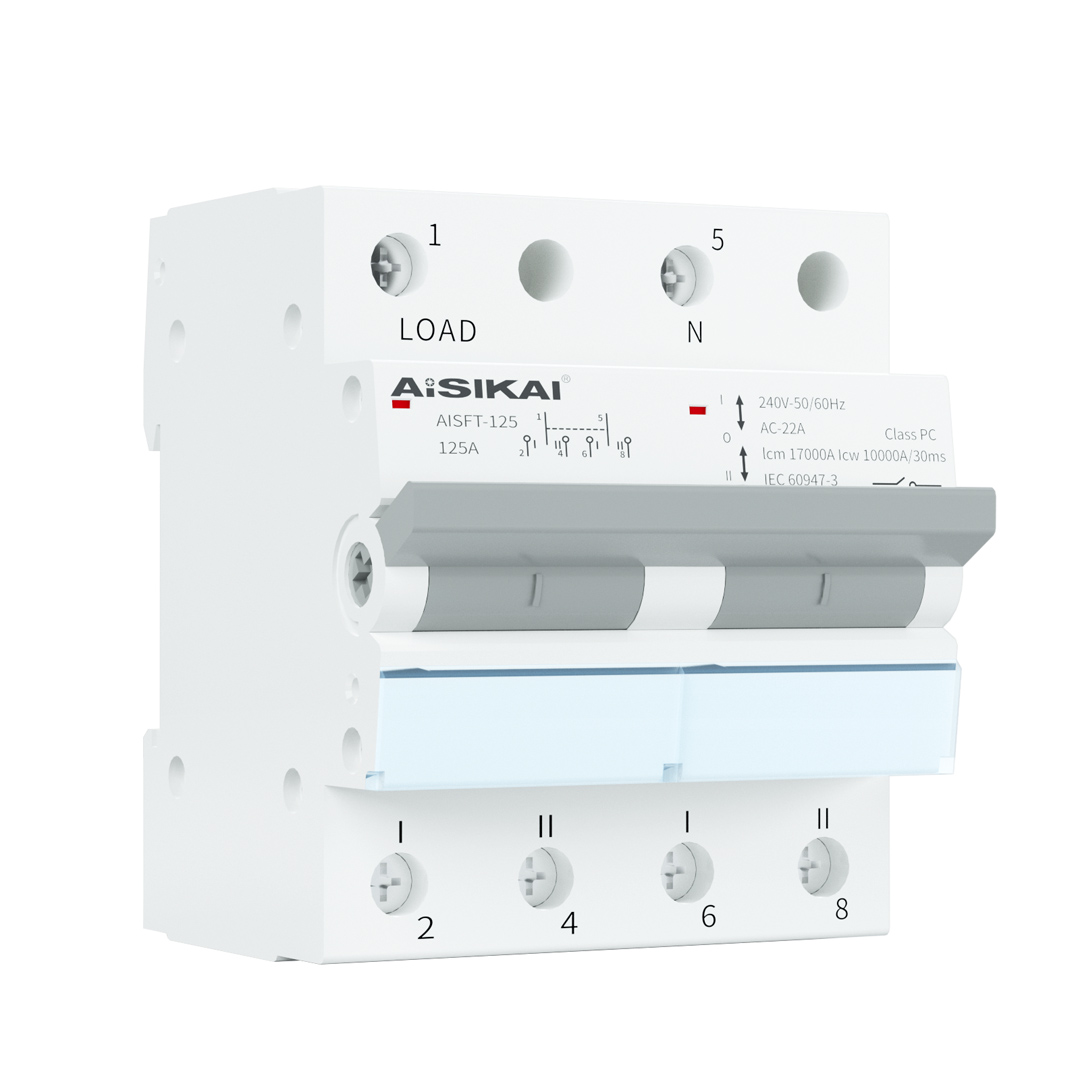

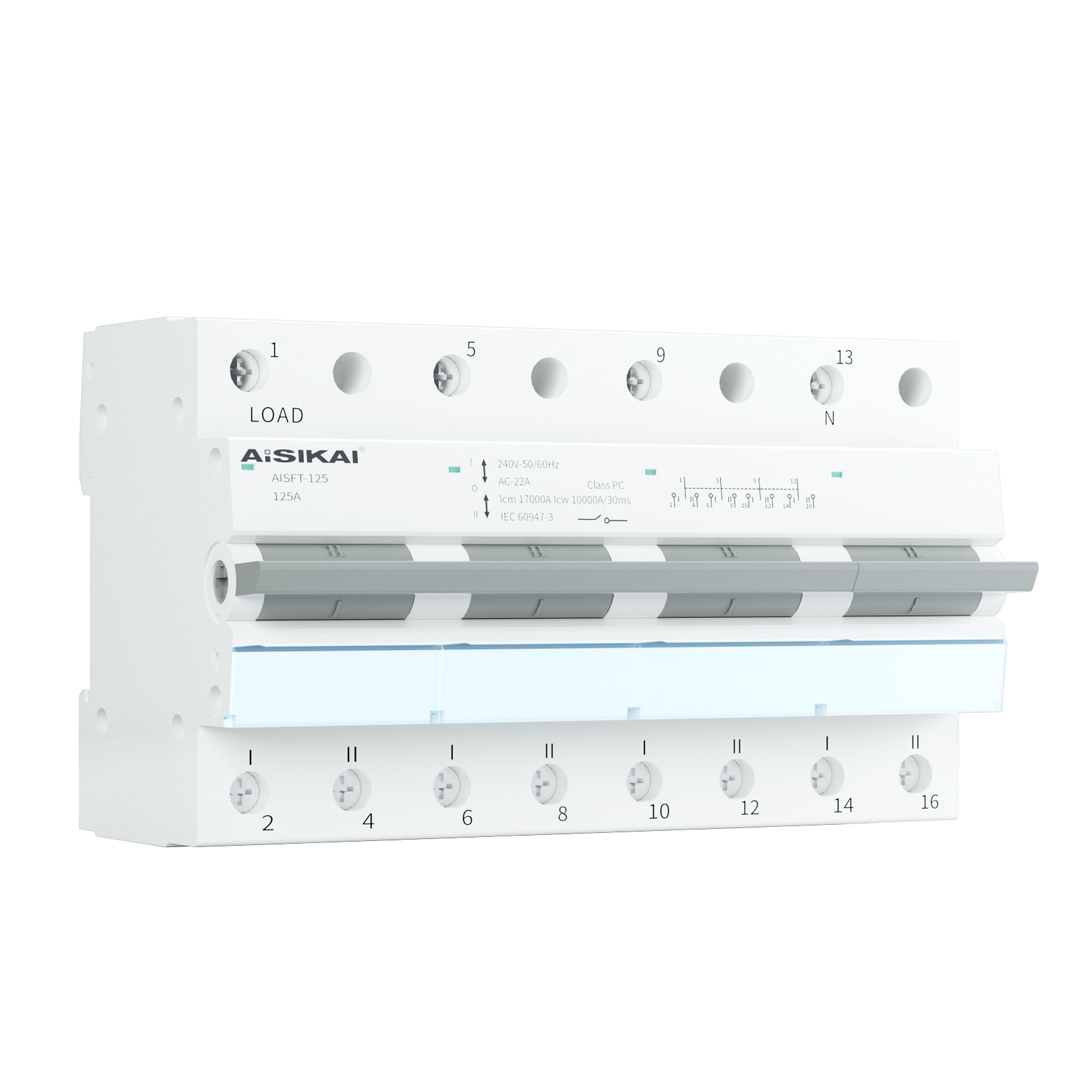

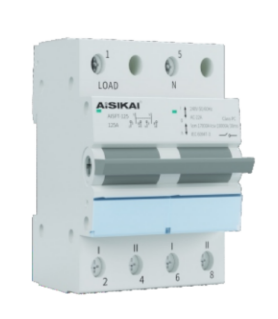

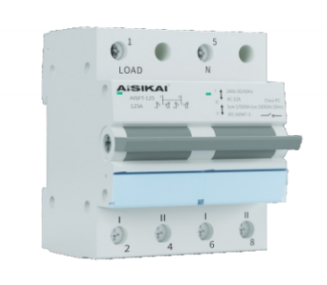

Shape Introduction
