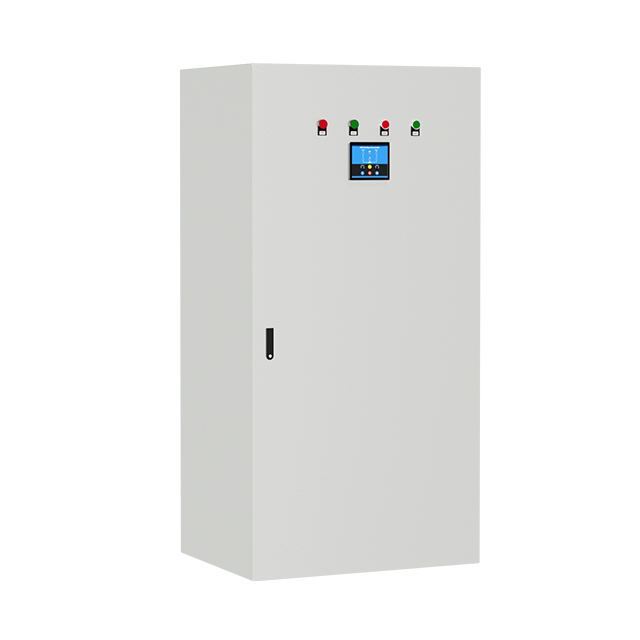

Advantages and features
The voltage input range of AC 176V-265V (and DC 8V~35V optional) enable it to flexibly adapt to various power supply environments.
The ATSC series has a minimum response time of 3 seconds, enabling it to quickly react to input signals or commands.
Equipped with an RS485 communication interface, it has strong anti-interference capabilities.
The ATSC (SKR2-A series/SKR2-B series) is installed on the outside of the cabinet, enabling convenient and straightforward operation in case of special circumstance.
With strong selectivity, Users can choose wall-mounted cabinets or floor-standing cabinets according to the current.
Technical data
| AC 176V-265V |
DC power(Optional) | (8-35)V |
Material | Steel, electrostatic powder coating |
Switch | ATS series |
Transfer time | Minimum 3 seconds |
Control module | ATSC series |
| RS485 |
| Installation | Wall mount, Floor stand |
Language | English |
Ambient temperature | (-25~+70)ºC |
Humidity | (20~90) % |
Altitude | ≤5000 m |

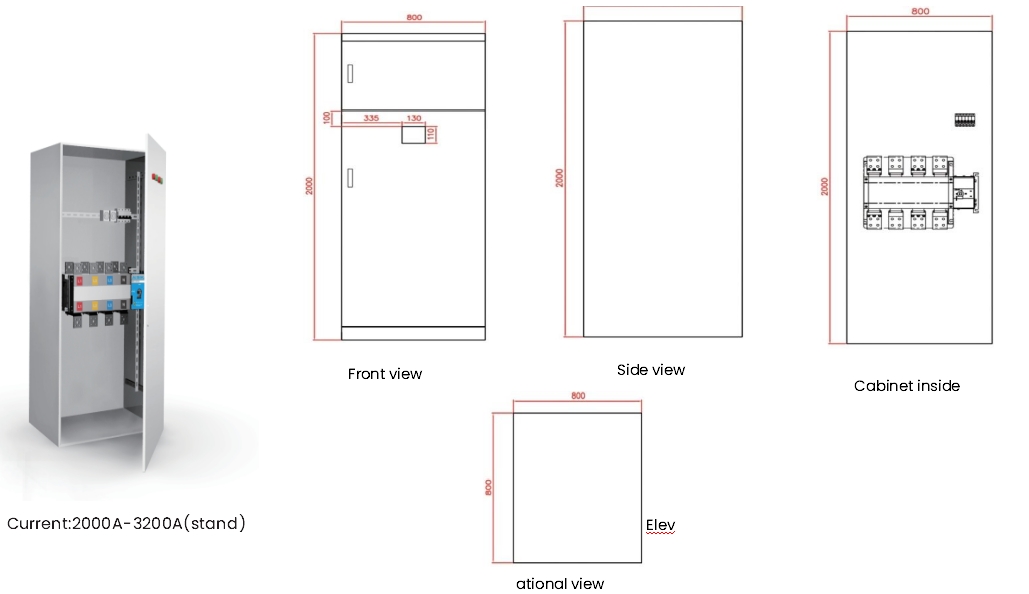

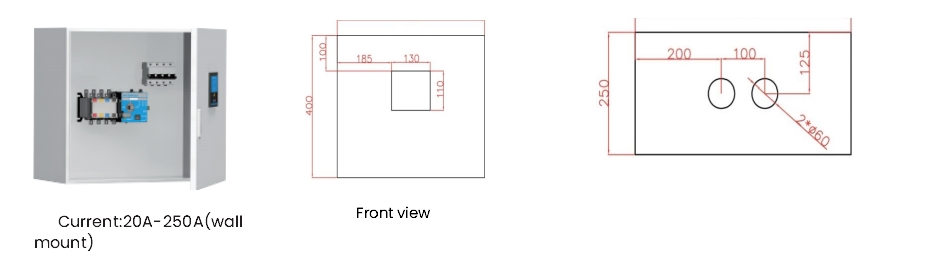

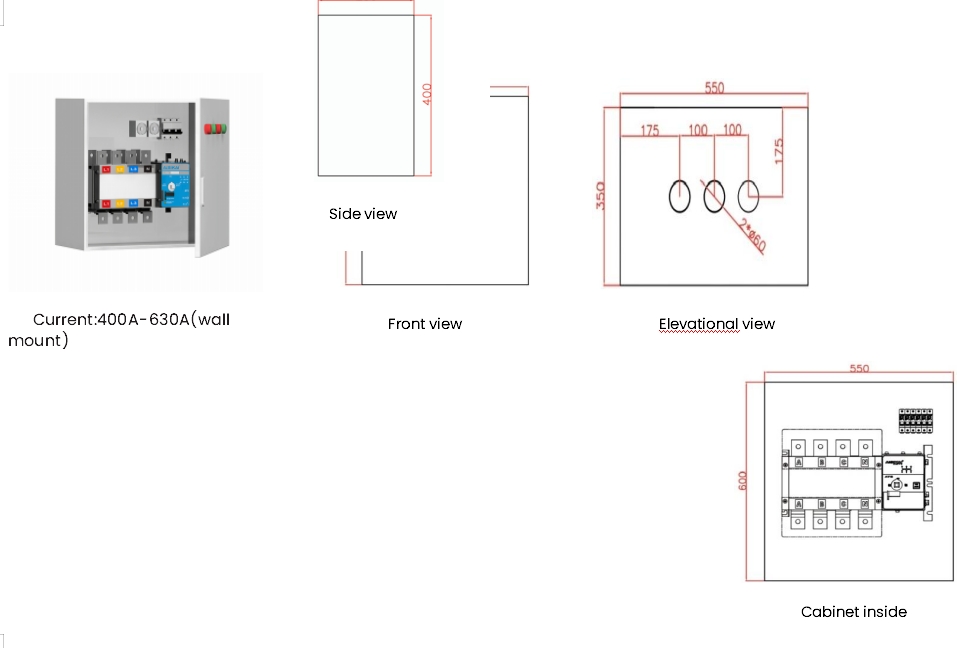

OUTLINE AND CLASSIFICATION
current | 20A-100A | 125A,160A,250A | 400A 630A
| 400A 630A | 800A,1000A 1250A,1600A | 2000A,2500A,3200A |
Dimensions(mm) |
500*400*250 | 500*600*250 | 550*600*350 | 1200*600*500 | 1600*800*600 | 2000*800*800 |
Cable outlet side | Bottom | Bottom | Bottom | Bottom | Bottom | Bottom |
Weight(kg) | 19 | 28 | 42 | 95 | 150 | 285 |
SKR2-A | SKR2-B | |
Main functions | Three-phase sampling, protections against power failure, overvoltage, undervoltage and phase-loss | Three-phase sampling, protections against power failure, overvoltage, undervoltage, phase-loss, overfrequency, underfrequency and reverse phase sequence |
Human-machine interface | LED status display
| LED status display+LCD electric parameter display
|
Parameter setting method | Knob adjustment | Digital adjustment |
Timed start generator function | No | Yes |
Historical records | No | 50 |
Display language | No | Chinese / English |
Power detection and display | No | No |
Communication | RS485 | RS485 |
Mount type | Wall Mount | Floor Standing |
FAQ
Q1: What is the rated voltage range of this product?
The rated voltage of the product is AC 176V - 265V. Additionally, it has an optional DC power range of (8 - 35) V.
Q2: What material is used for the product and what surface treatment process is applied?
The product is made of steel and undergoes an electrostatic powder coating process, which provides good corrosion - resistance, rust - prevention and wear - resistance.
Q3: What is the minimum transfer time of the ATS series switch?
The minimum transfer time of the ATS series switch is 3 seconds.
