Title: Parallel Diesel Generators: Mastering the 5 Golden Rules for Flawless Synchronization and Unbreakable Power Resilience
In the high-stakes world of critical power infrastructure, synchronizing multiple diesel generator sets (gensets) isn't merely a technical checkbox—it's the cornerstone of zero-downtime reliability. This guide distills decades of field-tested engineering wisdom into five unbreakable golden rules:

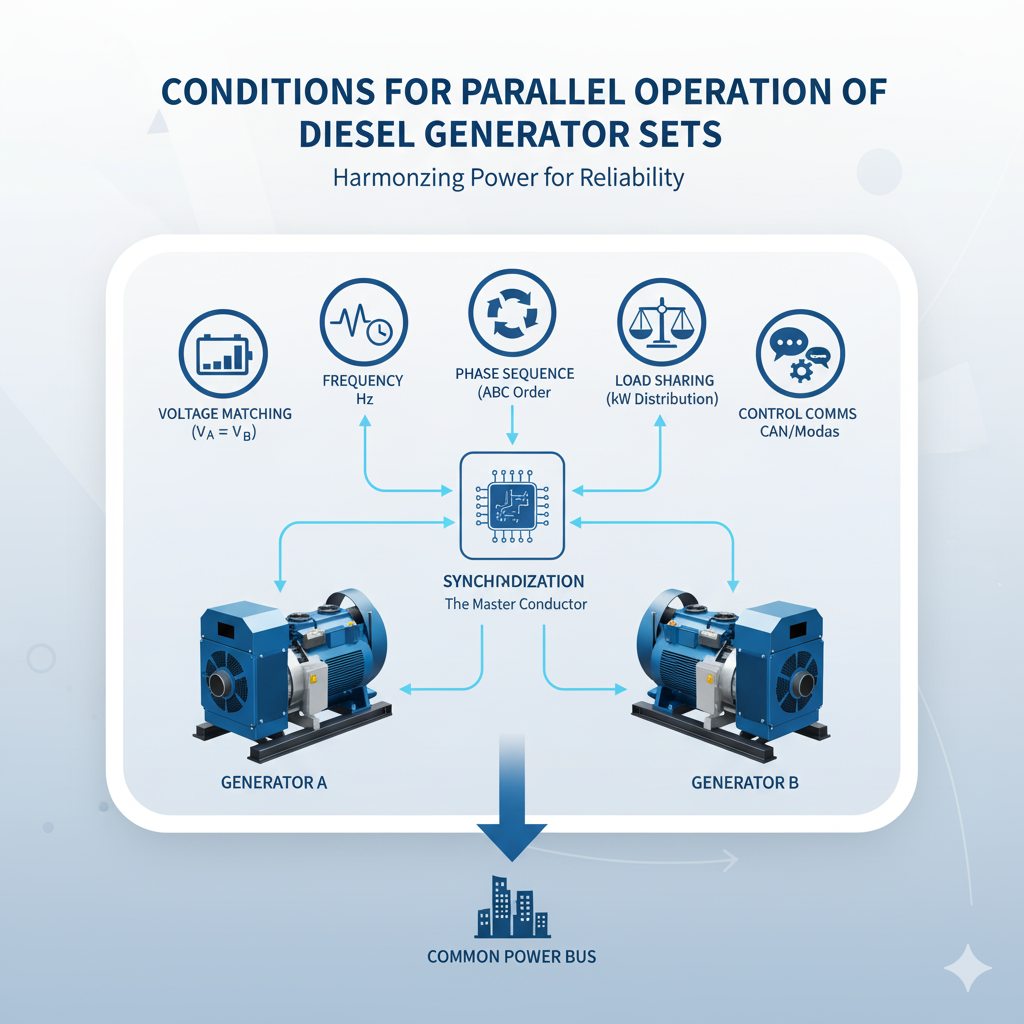

Voltage Matching, Frequency Alignment, Phase Sequence Verification, Proportional Load Sharing (kW/kVAR), and AI-Enhanced Intelligent Automation. Tailored for power engineers, facility managers, and decision-makers in hospitals, data centers, and industrial operations, we deliver actionable insights to sidestep costly failures, optimize fuel efficiency, and future-proof your systems against emerging challenges like grid instability and renewable integration.
Experience the transformation: From chaotic "power swings" to seamless scalability, these principles unlock N+1 redundancy and maintenance without interruption. Ready to elevate your parallel operations from good to mission-critical?
Let's cut to the chase: Paralleling diesel generators is like orchestrating a symphony where every instrument must hit the exact note at the precise moment. Miss the beat? You're facing blackouts, equipment meltdown, or skyrocketing repair bills. Nail it? You gain scalable power that adapts to demand, slashes operational costs, and ensures your facility hums through storms, surges, or scheduled service.

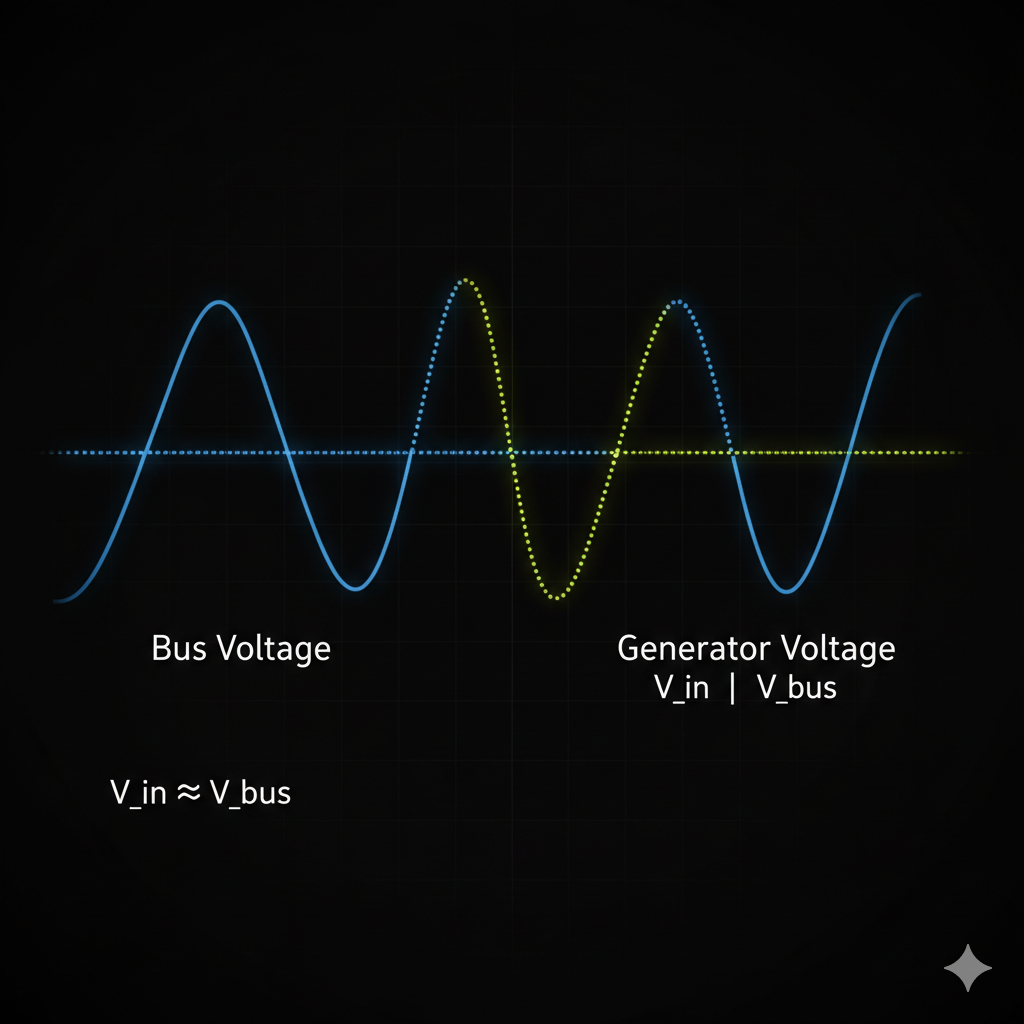

Rule 1: Voltage Matching – Harmonize the Waves Before the Clash (V incoming ≈ V bus, ΔV < 1%)
The busbar is your power orchestra's conductor—steady and authoritative. Your incoming genset? An eager soloist that must match pitch perfectly before joining.
Field-Tested Alert: A mere 5V mismatch triggers "circulating currents" (I circ), turning your fuel into wasted heat and mechanical stress. Per Ohm's Law (I circ = ΔV / Z machine), this phantom load can spike temperatures by 20-30°C in minutes, eroding windings and AVR lifespan.
Masterstroke Tip: Leverage your Automatic Voltage Regulator (AVR) for real-time fine-tuning. Target an absolute difference of <1% (|V incoming - V bus| / V bus < 0.01). Modern auto-sync modules with oscilloscope integration visualize this as overlapping sine waves—aim for traces that "kiss" without ripple. For legacy systems, a quick AVR calibration loop (raise/lower excitation until steady-state alignment) prevents 90% of initial surges.
Frequency is the heartbeat of your system—tied directly to engine RPM (e.g., 60 Hz = 1800 RPM for 4-pole gensets). A 1505 RPM incoming unit against a 1500 RPM bus? That's discord in motion.
Field-Tested Alert: Non-zero slip frequency (Δf = |f incoming - f bus|) unleashes "power swings" upon breaker closure, scaling with inertia mismatch. These oscillations can trip protections in seconds, as seen in a 2023 data center incident where a 0.2 Hz delta caused a 15-second brownout.
Masterstroke Tip: Your engine Governor is the tempo-keeper, modulating fuel for speed control. Advanced sync panels "walk" frequency via closed-loop feedback, closing the circuit only when Δf < 0.1 Hz and phase angle (Δφ) nears 0° (slip rate dφ/dt < 0.5°/s). Pro move: Enable predictive Governor presets for varying loads, reducing sync time by 40%.

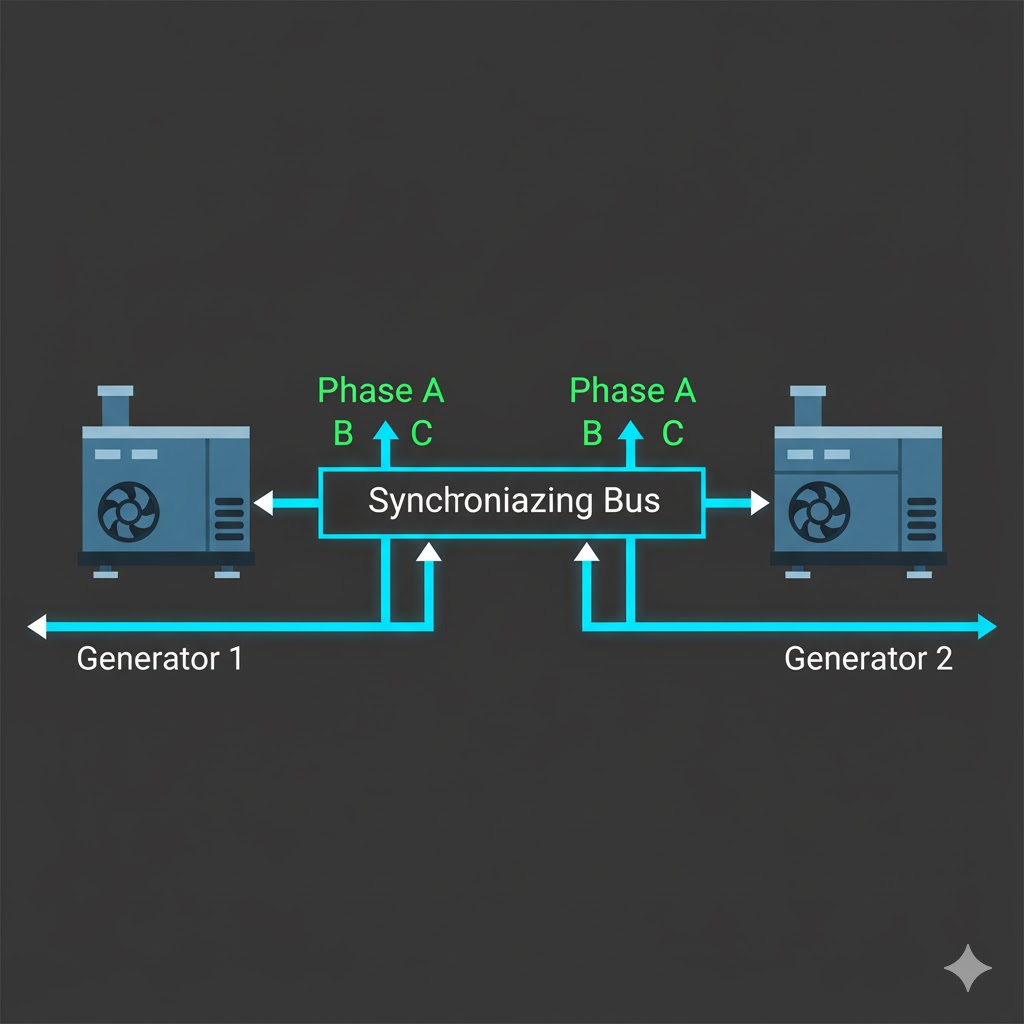

Phase sequence is the directional blueprint: A-B-C clockwise for all units, or chaos ensues during commissioning.
Field-Tested Alert: Reversed rotation creates a 120° vector offset, amplifying ΔV by √3 and surging fault currents to 10x nominal—enough to vaporize busbar joints in under 10 seconds. An infamous 2024 hospital failover highlighted this: One reversed phase turned a routine test into a $500K rebuild.
Masterstroke Tip: Commission with a dedicated Phase Sequence Indicator (e.g., LED rotary meters) and lock it into your switchgear schematics. For multi-site fleets, standardize wiring protocols (e.g., always black-red-blue for A-B-C). Never assume—verify annually with a rotation tester.
Synchronization gets you connected; load sharing keeps the ensemble balanced. Each genset must shoulder its proportional slice based on rated capacity (S rated).
Active Power (kW) Sharing: Governor droop (3-5% typical) ensures frequency dips signal load pickup. For a 1 MW + 2 MW pair, expect 1/3 and 2/3 splits of P total. Imbalance? Overloaded units overheat, underloaded ones wet-stack.
Reactive Power (kVAR) Sharing: AVR voltage droop compensates for Q, preventing VAR circulation that skews PF and stresses exciters.
Field-Tested Alert: Uneven sharing (e.g., one unit at 80% load, another at 20%) accelerates wear by 2x, per IEEE 1547 standards.
Forget manual sync lamps and gut-feel timing—today's Synchronization Control Panels (e.g., Woodward or DEIF easYgen) are AI-orchestrated maestros.
Core Function: They fuse V, f, and φ monitoring with machine learning to predict slip trajectories (dφ/dt via Kalman filters), closing breakers in a ±5° window for inrush <10% nominal. Integrated comms (Modbus/Ethernet) enable fleet-wide oversight.
Field-Tested Alert: Legacy analog systems fail 25% of auto-sync attempts; AI variants hit 99.9% uptime, as proven in 2025 Singapore data center retrofits.
Masterstroke Tip: Opt for panels with edge AI for anomaly detection (e.g., flagging AVR drift pre-failure). For renewables integration, enable microgrid modes that dynamically rebalance amid solar fluctuations. The payoff? True "hot standby" with predictive maintenance alerts via app notifications.
Ironclad Resilience: N+1 redundancy weathers single-point failures—load transfers in <10 ms.
Operational Efficiency: Run optimal unit counts to peak the efficiency curve (up to 15% fuel savings).
Seamless Evolution: Offline one unit for upgrades without a flicker, while AI paves the way for hybrid grids.
In an era of climate-driven outages and electrification booms, these principles aren't optional—they're your competitive edge. Global standards like NFPA 110 endorse them for Tier IV compliance.
