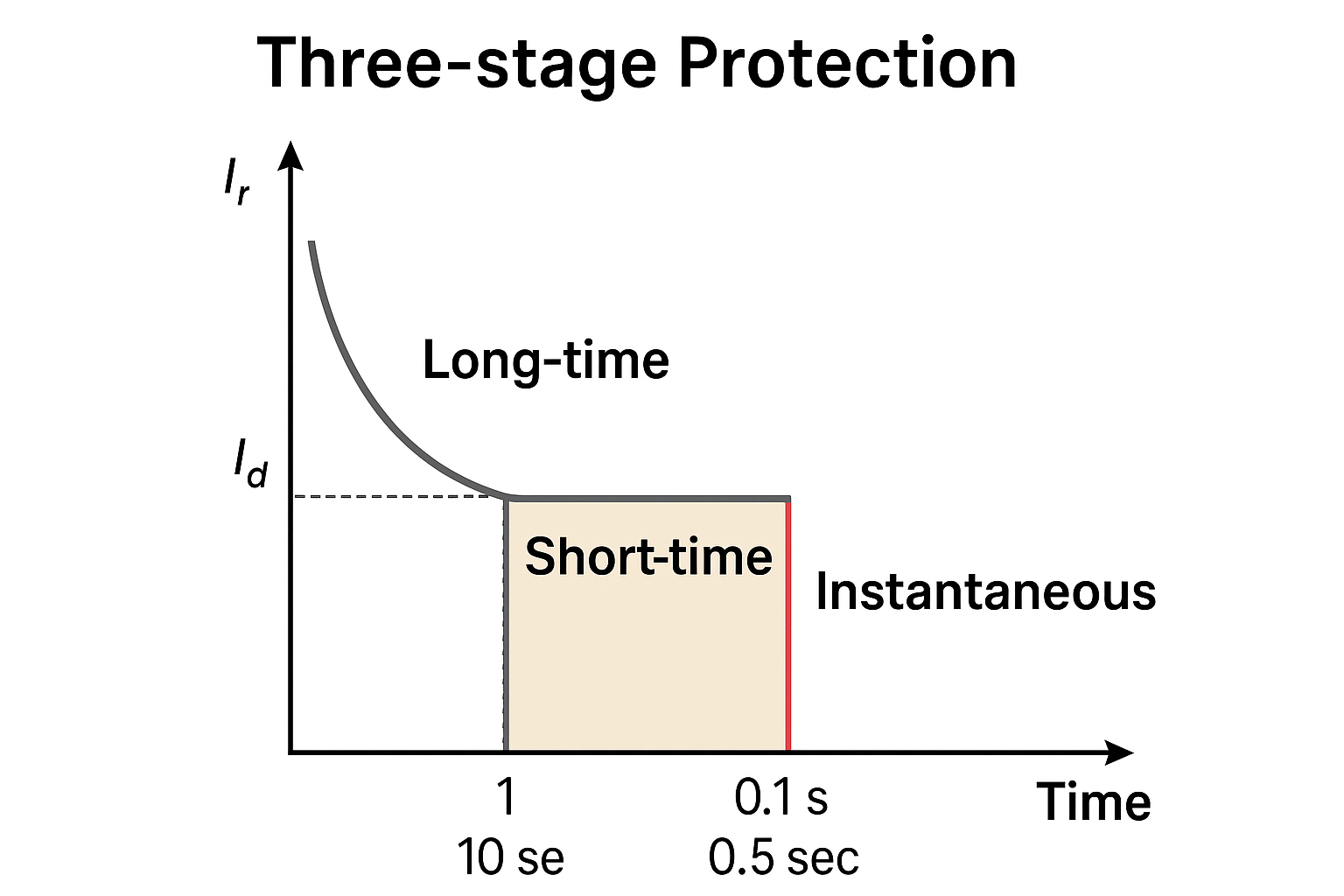

Three-stage protection is a common overcurrent protection strategy used in modern low-voltage circuit breakers (MCCBs, ACBs). Its core idea is to divide overcurrent faults into three levels, each handled according to its current magnitude and time delay, ensuring safe fault clearing while maintaining selectivity.
Objective: When overload or short-circuit occurs, isolate only the faulty branch without interrupting the continuity of power supply to the entire distribution system.
The long-time stage detects and clears sustained overcurrents that are not extremely high (typically within 1.0–1.3 × rated current). It usually follows an inverse-time characteristic: the higher the current, the shorter the operating time.
Typical applications include continuous overloads on motors or distribution circuits, or temporary current tolerance during equipment startup. The primary goal is to prevent insulation or equipment damage caused by overheating.
Example inverse-time formula (for reference):t = k × (I / Ir)−2
Short-time protection targets medium-level short-circuit currents, typically set at 4×–10× rated current, with a delay of 0.05–0.5 seconds. This intentional delay enables time selectivity, allowing downstream breakers to trip first.
In a distribution network, when a branch circuit experiences a short-circuit, the branch breaker or fuse should act first. If it fails, the upstream breaker—set with short-time delay—will trip after the delay, thereby protecting busbars and higher-level devices.
Instantaneous protection responds immediately to extremely high short-circuit currents (≥10× rated current), with operation time in the millisecond range (<10 ms). It serves as the final and fastest line of defense to prevent arc persistence, busbar damage, or cascading faults.
The instantaneous stage typically has no intentional delay, cutting off severe faults instantly.
Below is a typical example (for reference only; actual settings should follow short-circuit capacity, selectivity, and manufacturer guidelines):
Rated current: In = 400 A
Long-time: Ir = 1.0 × In = 400 A (inverse-time setting)
Short-time: Isd = 5 × In = 2000 A, delay = 0.3 s
Instantaneous: Ii = 10 × In = 4000 A (instant trip)
Operating example:
450 A → trips in several seconds (long-time);
2500 A → trips after 0.3 s (short-time);
5000 A → trips instantly (instantaneous).
When setting, consider bus short-circuit capacity, downstream protection characteristics, power continuity requirements, and thermal endurance of equipment.
The coordination rule can be summarized as: “Downstream fast, upstream slow.” Breakers closer to the load should act faster and be more sensitive, while those closer to the source should retain longer delays to maintain selectivity.
Commissioning and Verification Recommendations:
Perform selectivity analysis during design using Time-Current Characteristic (TCC) curves.
Conduct secondary injection tests or current injection tests to verify trip time and coordination.
Record and archive settings, test data, and site photos for acceptance documentation.
Modern intelligent circuit breakers often add a fourth stage—Ground Fault Protection—on top of the traditional three. Ground fault protection detects residual unbalanced current to ground and provides sensitive response, suitable for applications requiring enhanced personnel safety and equipment protection.
Acceptance tests should include, but not be limited to:
Verification of long-time operating curve (multi-point injection)
Short-time delay and pickup test
Instantaneous trip threshold test (high-current, below device limit)
Measurement and comparison of system short-circuit current to ensure setting values are appropriate
Safety Notice: High-current tests are hazardous and must only be performed by qualified personnel under de-energized or controlled conditions. Follow standard operating procedures and wear appropriate personal protective equipment (PPE).
