Background and Basic Principle
I.Industrial Demand
In the petrochemical, metallurgical, and other large-scale industrial sectors, production processes are highly dependent on stable power supply.
Petrochemical production
In petrochemical production, chemical reaction processes require precise control of parameters such as temperature and pressure. Even a brief power interruption of just a few seconds can lead to a runaway reaction, triggering safety incidents and causing significant economic losses.
For example, in a critical reactor vessel at a large petrochemical plant, complex polymerization reactions take place. During the reaction, the temperature must be maintained within a specific range, with deviations not exceeding ±2°C—a condition entirely dependent on a stable power supply to drive the cooling system and agitator. If power is interrupted, the reactor temperature rises rapidly, leading to an uncontrolled reaction. This not only results in the loss of an entire batch of product but may also cause an explosion, posing a severe threat to nearby facilities and personnel safety.
Metallurgical Industry
In the metallurgical industry, particularly in blast furnace iron making, any power supply abnormality can lead to the solidification of molten iron, causing severe equipment damage and incurring extremely high repair costs. As a result, these industries demand the highest levels of power supply continuity and reliability.
II.Limitations of automatic power transfer systems
Traditional Automatic Transfer Switching (ATS) Systems Have Multiple Limitations in Industrial Applications
1. Long Switching Time
The switching process is slow, typically requiring 1-2 seconds from power loss to complete transfer. In petrochemical and metallurgical industries, where motor loads dominate, back-emf from motors causes a gradual decline in bus voltage. The ATS must wait until the bus voltage drops to 20%-35% of rated voltage before activating. By this time, motors have already been affected, with reduced rotational speed, compromising production continuity.
2. Inrush Current Prevention Settings
To avoid high inrush currents caused by phase opposition or phase difference during backup power closure, traditional ATS systems often employ longer delays and lower voltage thresholds, further prolonging the switching time and failing to meet production demands.
Case Example:
During a grid failure at a metallurgical plant, interference from motor back-emf caused the traditional ATS to take 1.5 seconds to complete the transfer. This delay led to:
- Temperature drop in the blast furnace molten iron
- Altered chemical composition
- Severely non-compliant steel quality
- Near-total loss of the entire batch of molten steel
- Direct economic losses exceeding millions of RMB
III. Advantages of ASKVQC Solution
The ASKVQ HVATS series is specifically designed to address the aforementioned challenges.
Integrated Design & Advantages Featuring a unique integrated design combined with advanced hardware/software platforms, it delivers safety, flexibility, rapid response accuracy, and high reliability. During power transfer, it supports multiple switching modes to ensure fast and secure backup power engagement with minimal impact on motors. | Modular Design Featuring a unique integrated design combined with advanced hardware/software platforms, it delivers safety, flexibility, rapid response accuracy, and high reliability. During power transfer, it supports multiple switching modes to ensure fast and secure backup power engagement with minimal impact on motors. | |
Hardware & Control Superiority | ||
Equipped with a high-performance ARM processor and precision AD sampling chips for ultrafast switching (<400ms) and precise | Incorporates anti-interference design in both hardware and software, validated by third-party highest-grade EMC tests for stable operation in harsh industrial environments | 400ms switching time (vs.traditional ATS systems) dramatically reduces production disruptions |

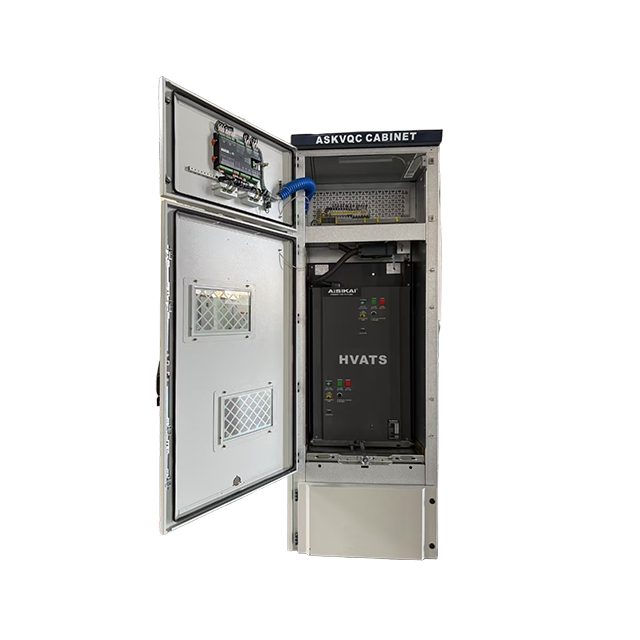

System Assembly & Structure

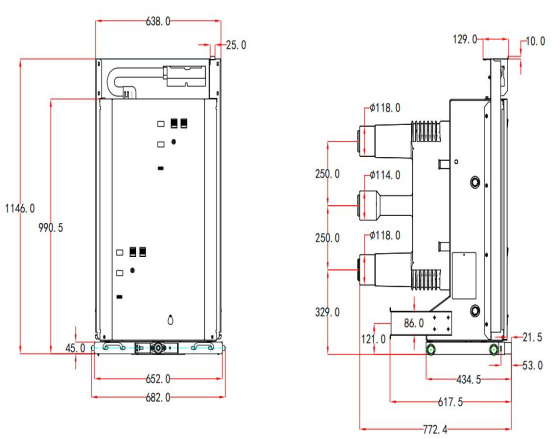

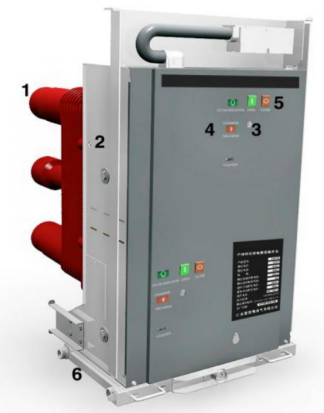

I. Structure of HVATS
For 12kV and lower voltage power switching, the ASKVQ HVATS provides seamless automatic transfer capability.
Fixed Sealed Insulation Pole Column The hermetically sealed insulated pole assembly utilizes a proprietary embedded casting process, integrating the vacuum arc-extinguishing chamber and current-carrying parts into epoxy resin for solid dielectric insulation, demonstrating 42kV power-frequency voltage endurance. |  | 1：Fixed seal insulation pole column 2：Mechanical interlock 3：Energy storage handle interface 4：Energy storage and split and closing status display 5：Manual switch button 6：Chassis car |
Mechanical Interlocking The mechanism employs positive mechanical interdiction to enforce single-source operation, with structural constraints that make electrically parallel connections physically impossible. |  |
Other Parts Manual charging handle for emergency or maintenance use. LED status display shows charging/switch position via color codes. Emergency manual button and dual-mode chassis trolley: -Manual: Hand-crank operation -Electric: Remote-controlled |  |
II. Controller
The ASKVQ CONTROLLER, built on embedded architecture, delivers multi-functional control capabilities.
Protection Function
Comprehensive protection features including:
Overcurrent protection
Zero-sequence protection (ground fault detection)
Overvoltage & undervoltage protection
PT (Voltage Transformer) disconnection detection
Operational Modes & Interface
Supports manual & automatic switching modes
User-friendly 8-inch smart touch LCD screen for intuitive control
Communication & Data Logging
Dual communication interfaces:
Ethernet (real-time monitoring)
RS485 (Modbus RTU/TCP compatibility)
Advanced event recording:
Timestamps, fault types, electrical parameters
Supports quick troubleshooting & maintenance
Application Scenario
 | Connected to the central power monitoring center via Ethernet • Real-time data transmission & instant fault logging • Enables rapid fault diagnosis & minimizes downtime |

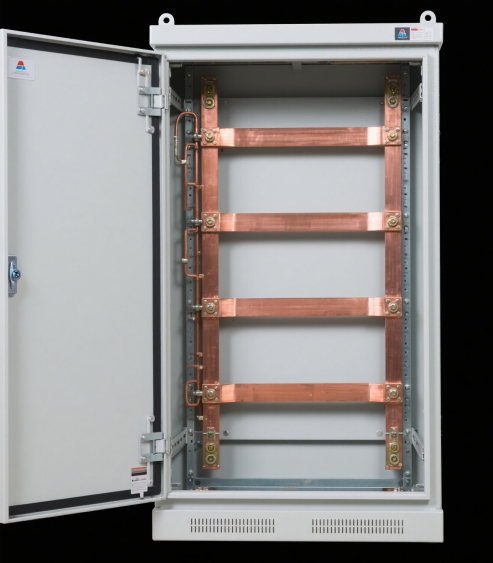

III.Specifications on Cabinet body Structure

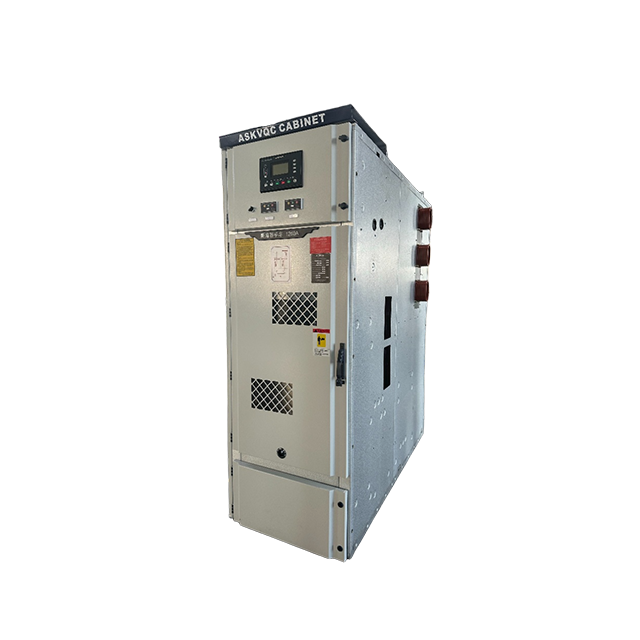

The purpose-built ASKVQ CABINET delivers mechanical mounting and power circuit connectivity for integrated HV switching systems.

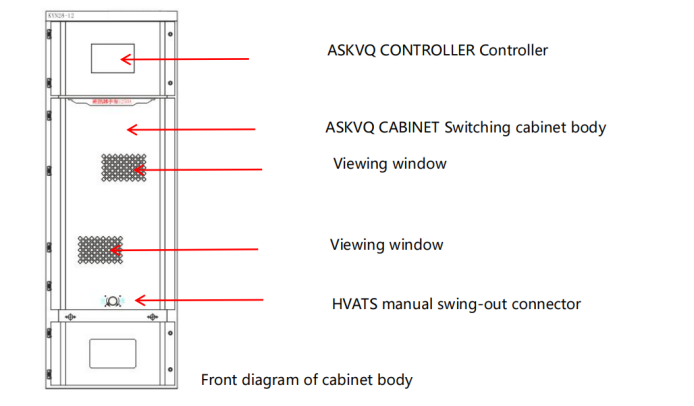

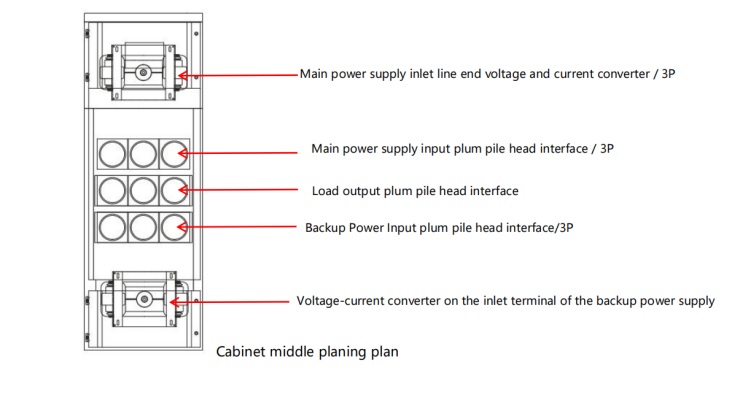

Design of Cabinet Body
The size of the cabinet is precise, and its internal layout is reasonable. It is equipped with a main power supply inlet terminal, a backup power supply inlet terminal, and a load output terminal. |  |
Electric Power Transmission
Reliable power transmission is achieved through a voltage-current converter and copper busbars. Installation space is reserved for the installation of HVATS switches and controllers to ensure the compact integration of the system. |  |
Material & Performance of Cabinet Body
 | The cabinet body is made of high-quality steel, which has good mechanical strength and electromagnetic shielding performance. The internal copper busbars are made of copper materials with high electrical conductivity. The cross-sectional area has been strictly calculated to meet the transmission requirements of the rated current. Moreover, under the condition of large current, the temperature rise of the copper busbars is controlled within a reasonable range, ensuring the stability of power transmission. |
Core Technology
I. Vacuum Circuit Breaker

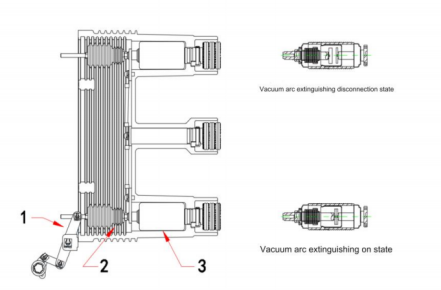

The vacuum arc - extinguishing chamber is a key component of the ASKVQ HVATS switch.
Arc - Extinguishing Principle It utilizes the high - insulation strength and rapid arc - extinguishing ability of the vacuum environment. During the opening process, the contact blocks inside the vacuum arc - extinguishing chamber separate, and the electric arc is quickly extinguished in the vacuum environment, effectively cutting off the circuit. |
|
Design and Service Life Advantages Special design and manufacturing processes ensure the high reliability and long service life of the vacuum arc - extinguishing chamber, which can withstand multiple closing and opening operations. The arc - extinguishing time of the vacuum arc - extinguishing chamber is extremely short, usually completing the arc - extinguishing process within a few milliseconds, greatly improving the switch's ability to interrupt fault currents. Its internal special contact material and structural design can effectively reduce the erosion degree of the contacts, extending the service life of the arc - extinguishing chamber. Under the rated short - circuit breaking current, more than 30 opening operations can be achieved. |  |
I. Busbar System
The busbar system is responsible for the distribution and transmission of electric power.
Material Performance: High-quality material is applied, featuring low resistance and high-current carrying capacity.
Design Consideration: In the design, factors such as current distribution, heat dissipation, and mechanical strength are fully considered to ensure stable operation under high - load conditions. At the same time, the bus-bar system closely cooperates with switches, cabinets, and other components to achieve efficient power transmission.
II. Mechanical Interlock
The mechanical interlock device is an important part of ensuring the safe operation of the system.
Interlock Principle
The operation of the switch is restricted through a mechanical structure to ensure that the two - way power supplies will not be closed simultaneously under any circumstances.
This interlock design is simple and reliable, preventing misoperation from the physical layer and improving the safety and stability of the system. The mechanical interlock adopts multiple sets of mechanical linkages and locking structures. When one - way power supply switch is in the closed state, the mechanical interlock will lock the operating mechanism of the other - way switch, preventing it from performing closing operations. Only when the closed switch is opened will the interlock device release the lock, allowing the other - way switch to perform closing operations, fundamentally eliminating the possibility of the two - way power supplies being closed simultaneously.
Specifications on Controller
I. Menu Function Interface

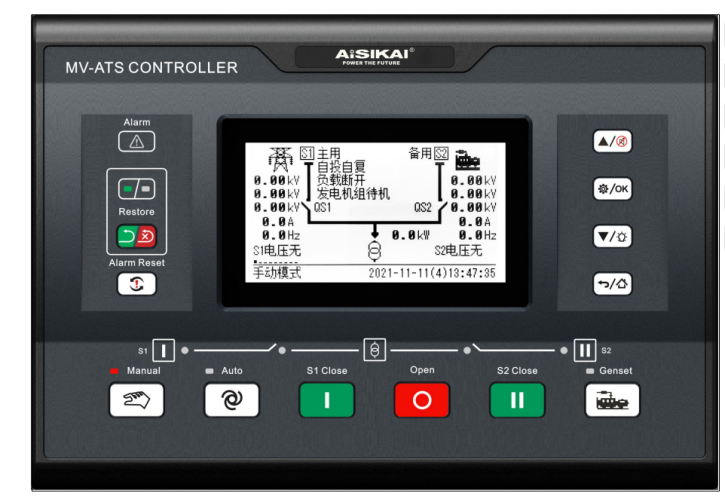

The controller's 8 - inch intelligent touch LCD screen provides an intuitive operation interface.
The main display interface shows the dual - power - supply transfer main wiring diagram, electrical operation parameters, and transfer status.
The main menu includes function options such as analog display, input display, clock setting, network setting, parameter setting, and event logging, facilitating user operation and equipment operation monitoring. On the main display interface, the real - time electrical operation parameters, including voltage, current, frequency, etc., are displayed with an accuracy of 0.5 level, providing accurate equipment operation information for operators. By clicking on different options in the main menu, operators can easily perform operations such as parameter setting and event record viewing. The operation interface is simple and clear, easy to use.
II. Communication Protocol
It supports Ethernet and RS485 communication interfaces, and is compatible with IEC60870 - 5 - 103 and Modbus communication protocols.
Advantage of Ethernet Interface The Ethernet interface is used for high - speed, long - distance data transmission, facilitating remote monitoring and management. | Advantage of RS485 Interface The RS485 interface has strong anti - interference ability, making it suitable for industrial field environments. It can connect multiple devices to achieve distributed monitoring. Support for multiple communication protocols ensures compatibility with equipment from different manufacturers. In the power supply system of an industrial park, the transfer cabinet is connected to multiple intelligent electricity meters through the RS485 interface, collecting electricity meter data in real - time and uploading the data to the park's energy management system via Ethernet, enabling real - time monitoring and management of power consumption. |
III. Trigger Logic
For manual transfer, the user initiates the transfer process through interface operation. Automatic transfer is carried out according to preset conditions.
In the dual - incoming - line mode, when the voltage of #1 line fails and the voltage of #2 line is normal, and the #2 switch is in the open position, the controller automatically delays tripping the #1 switch and then delays closing the #2 switch; when the voltage of #1 line recovers and the #1 switch is in the open position, it automatically performs the reverse transfer to ensure the continuity of power supply.
In the practical application of a certain factory, when the #1 power supply failed due to a fault, after detecting that the #2 power supply was normal, the controller quickly completed the transfer from the #1 power supply to the #2 power supply within 400ms according to the preset logic, ensuring the normal operation of the factory's production equipment and avoiding production interruptions caused by power outages.
Protection & Monitor
I. Overcurrent Protection
Three-stage phase overcurrent protection is configured, with each stage's settings independently controllable (enabled/disabled) via control words and equipped with software pressure plates.
Operating Principle: When the sampled current exceeds the set value, the protection triggers a time-delayed trip to effectively prevent equipment damage from overcurrent.
Characteristics of Each Stage
• Stage I (Instantaneous Overcurrent Protection)
| ◦ Purpose: Rapid clearance of severe short-circuit faults ◦ Setting: 3-5 times rated current ◦ Time delay: 0.1–0.3 seconds |
• Stage II (Time-Delayed Overcurrent Protection)
| ◦ Purpose: Backup for Stage I, covering wider over-current conditions ◦ Setting: Lower than Stage I ◦ Time delay: 0.5–1 second |
• Stage III (Long-Time Overcurrent Protection) | ◦ Purpose: Protection against prolonged overcurrent ◦ Setting: Lowest current threshold ◦ Time delay: 1–3 seconds |
II. Overcurrent Protection
Activation Conditions
When the phase voltage exceeds the set value and both the software pressure plate and control word are enabled, a time-delayed trip is initiated to protect insulation integrity.
Parameter Settings
Trip threshold: 1.1–1.2 times rated voltage
If voltage remains above the threshold for the set delay time, the controller issues a trip command.
III. Under Voltage Protection
When the phase voltage is lower than the set value and greater than 30V, and the conditions set by the control word are met simultaneously, tripping or alarming operations are performed.
Current Blocking Situation
If the control word is set for current - blocking tripping, when any value among the three - phase currents is greater than the low - voltage current - blocking value, the protection function exits to prevent abnormal operation of the equipment under low - voltage conditions.
Setting of Operating Voltage
The operating voltage for under - voltage protection is generally set at 0.7 - 0.8 times the rated voltage. When the phase voltage is lower than this value, the controller takes corresponding actions according to the settings of the control word, such as sending an alarm signal or directly tripping to protect the equipment from damage caused by low voltage.
IV. Temperature Protection
When the phase voltage is lower than the set value and greater than 30V, and the conditions set by the control word are met simultaneously, tripping or alarming operations are performed.
Current Blocking Situation
If the control word is set for current - blocking tripping, when any value among the three - phase currents is greater than the low - voltage current - blocking value, the protection function exits to prevent abnormal operation of the equipment under low - voltage conditions.
Setting of Operating Voltage
The operating voltage for under - voltage protection is generally set at 0.7 - 0.8 times the rated voltage. When the phase voltage is lower than this value, the controller takes corresponding actions according to the settings of the control word, such as sending an alarm signal or directly tripping to protect the equipment from damage caused by low voltage.
Installation & Commissioning
I. Preparation for Installation
Before installing the ASKVQ SERIES HVATS CABINET, a series of preparatory work needs to be carried out. First of all, it is necessary to ensure that the installation site meets the requirements of the equipment. The site should be dry, well - ventilated, and free of corrosive gases and flammable and explosive substances. At the same time, the flatness and bearing capacity of the installation foundation should be checked. The deviation of the foundation's levelness should not exceed the specified value, and the bearing capacity should meet the weight requirements of the equipment. In addition, tools and materials required for installation, such as wrenches, screwdrivers, and spirit levels, as well as materials like connecting cables and grounding flat steel, need to be prepared.
II. Cabinet Installation
When installing the cabinets, they should be positioned and fixed according to the requirements of the design drawings. First, move the cabinets to the installation location and use a spirit level to adjust the levelness of the cabinets to ensure they are in a horizontal state. Then, fix the cabinets to the installation foundation with bolts. The tightening torque of the bolts should meet the specified requirements. During the cabinet installation process, pay attention to the tightness of the connections between the cabinets to ensure good electrical connections between them.
III. Electrical Connection
Electrical connection is a crucial step in the installation process. When making electrical connections, you must strictly follow the electrical schematic diagram and wiring diagram.
First, connect the incoming lines of the main power supply and the standby power supply, ensuring that the connections are firm and well - insulated. Then, connect the load output terminals, paying attention to the phase sequence and polarity of the load. In addition, connect the control circuit, signal circuit, etc., to ensure that all circuit connections are correct.
When connecting cables, pay attention to the bending radius and fixing method of the cables to avoid damage to the cables.
IV. Commissioning Steps
After the installation is completed, commissioning work is required. Before commissioning, conduct a comprehensive inspection of the equipment. Check whether the electrical connections are secure, the insulation is in good condition, and all components are working properly.
During commissioning, first perform an insulation resistance test. Use an insulation resistance tester to measure the insulation resistance values of each circuit. The insulation resistance values should meet the specified requirements. Then, carry out a withstand voltage test to test the insulation performance of the equipment by applying a test voltage. Next, conduct a control circuit commissioning to check whether all functions of the controller are normal, such as manual switching, automatic switching, protection functions, etc. Finally, perform a load test. Under simulated load conditions, check the operation of the equipment to ensure that it can work properly.
Operation & Maintenance
I.Precautions during Operation
During the operation of the equipment, the following precautions need to be taken. First, pay close attention to the operating status of the equipment. Observe the display screen of the controller to check information such as the electrical parameters and switching status of the equipment. If any abnormal situation is detected, timely measures should be taken for handling. Secondly, regularly inspect the appearance of the equipment. Check whether the cabinet is deformed or damaged, and whether the connections of all components are secure. In addition, pay attention to the operating environment of the equipment. Keep the environment around the equipment clean and dry to avoid the influence of factors such as dust and moisture on the equipment.
II.Routine Maintenance Content
Routine maintenance work includes cleaning the equipment, checking electrical connections, and checking the working status of each component. Regularly clean the surface and interior of the equipment to remove dust and debris and keep the equipment clean. Check whether the electrical connections are loose, and if so, tighten them in a timely manner. Check the working status of each component, such as the opening and closing status of switches and the action of relays. If any abnormality is found, replace the component in a timely manner. In addition, regularly lubricate the equipment to ensure the normal operation of its moving parts.
III.Periodic Maintenance Items
In addition to routine maintenance, periodic maintenance is also required. Periodic maintenance items include checking insulation performance, checking protection functions, and checking communication functions. Regularly use an insulation resistance tester to measure the insulation resistance values of each circuit to check whether the insulation performance of the equipment is good. Check whether the protection functions are normal by simulating fault conditions to see if the protection device can act in a timely manner. Check whether the communication functions are normal by communicating with the host computer through the communication interface to check if the data transmission is normal. In addition, regularly calibrate the equipment to ensure its measurement accuracy and control accuracy.
Fault Diagnosis and Handling
I. Common Fault Types
Common fault types of the ASKVQ SERIES HVATS CABINET include electrical faults, mechanical faults, communication faults, etc. Electrical faults may manifest as abnormal opening and closing of switches, misoperation of protection devices, etc. Mechanical faults may show as cabinet deformation, jamming of the operating mechanism, etc. Communication faults may be presented as inability to communicate with the host computer, data transmission errors, etc.
II. Fault Diagnosis Methods
When diagnosing faults, methods such as the observation method, measurement method, and replacement method can be adopted. The observation method involves judging whether there are faults by observing the appearance and operating status of the equipment. The measurement method uses instruments and meters to measure the electrical parameters, insulation resistance, etc. of the equipment to determine whether the equipment is normal. Thereplacement method is to replace the components suspected of having faults with normal components to check if the faults can be eliminated.
III. Fault Handling Measures
Corresponding handling measures should be taken for different types of faults. For electrical faults, check whether the electrical connections are loose and whether the fuses are blown, etc. If there are any problems, repair or replace them in a timely manner. For mechanical faults, check whether the cabinet is deformed and whether the operating mechanism is jammed, etc. If there are problems, repair or adjust them. For communication faults, check whether the communication lines are normal and whether the communication parameters are set correctly, etc. If there are problems, repair or reset them.

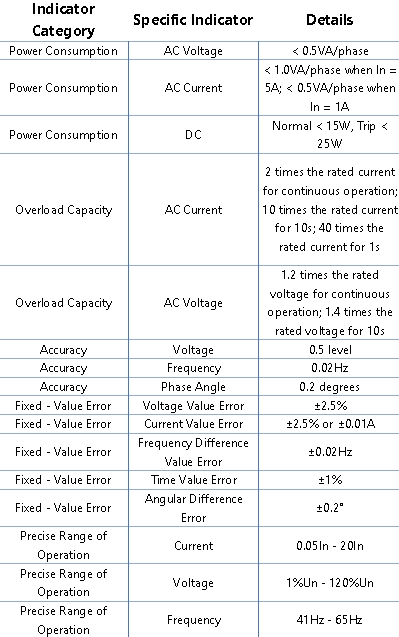

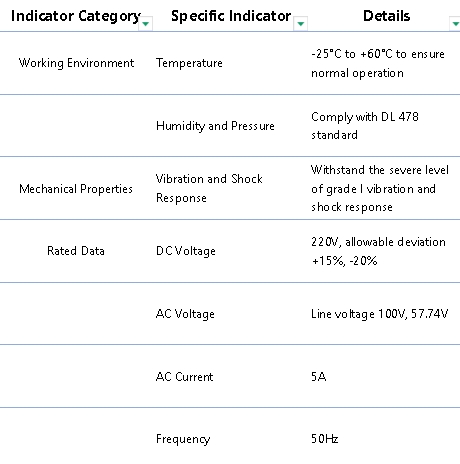

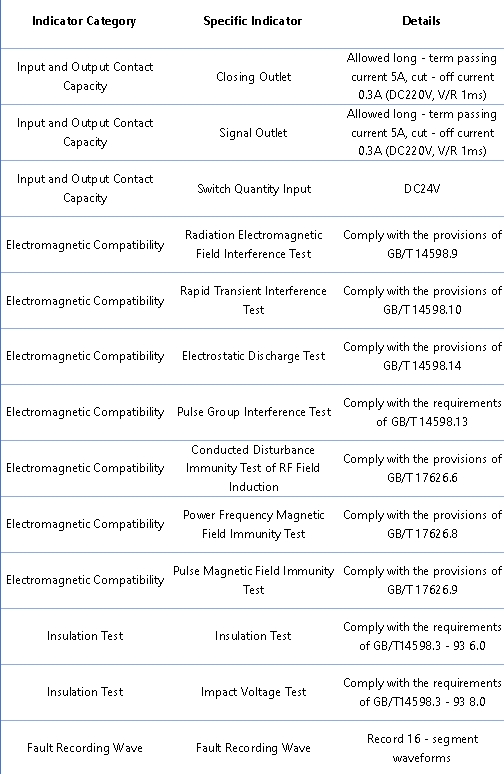

Technical Parameters
FAQs
FAQ 1: Is your high-voltage dual-power transfer switch compatible with 60Hz power grids?
Answer:
Our ASKVQ controller features wide-frequency design (50/60Hz auto-adaptation) with these key specifications:
Transfer time: <12ms (meets IEEE 446 standards)
Automatic sampling frequency adjustment
12/17.5kV dual insulation design
FAQ 2: How do you prevent false transfers caused by DC-side arcing in PV applications?
Answer:
The AISIKAI protection system provides:
UV arc detection (<2ms response)
Transfer lockout logic during arc faults
Dual-CPU redundancy
Field tests show reduction from 18 false operations/year to zero at 200MW plants.
FAQ 3: What protection is provided for humid environments?
Answer:
Key protective features include:
IP55 aluminum enclosure (salt fog tested)
Silver-plated contacts (95% RH tolerance)
15mm minimum creepage distance
Maintenance requires biannual cleaning with anhydrous ethanol (document P41).
