A Molded Case Circuit Breaker (MCCB) is often the “last dependable decision-maker” between an electrical fault and costly consequences—equipment damage, downtime, and, in worst cases, overheating that can escalate into fire hazards. Because MCCBs may sit for months without operating, the risk is not only overloads or short circuits, but also mechanical stiffness, contamination, or poor connections that prevent the device from performing when it is finally needed. A structured operation and maintenance program turns the MCCB from a passive component into a verified protective function.

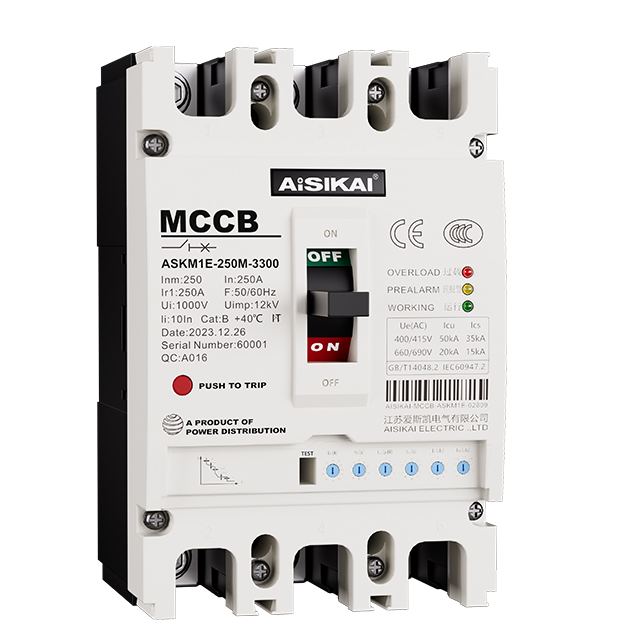

A Molded Case Circuit Breaker combines a protective trip function with a robust switching mechanism inside a molded insulating case. While designs vary by manufacturer and trip technology, MCCBs typically include:
Operating handle and mechanism: enables manual switching and resets after a trip.
Trip unit: detects abnormal current (overload and short-circuit conditions) and initiates tripping.
Contacts and arc control features: separate current safely and manage arcing during interruption.
Terminals: connect the breaker to conductors; the quality of these connections strongly affects temperature rise and reliability.
For maintenance planning, remember a practical reality: MCCBs are “electro-mechanical.” Electrical health (insulation, connections, heating) and mechanical health (movement, latching, reset) must both be verified.
Maintenance work on a Molded Case Circuit Breaker is never just “inspection.” It is electrical risk management. Before touching any enclosure or device, follow a strict safety workflow:
Qualified personnel only: MCCB work should be performed by trained technicians familiar with electrical hazards and local safety requirements.
Lockout/Tagout (LOTO): isolate the energy source, apply lock and tag controls, and prevent re-energization.
Verify absence of voltage: treat conductors as energized until verified de-energized using appropriate test equipment.
PPE selection: use arc-rated clothing, gloves, and face protection appropriate for the system voltage and available incident energy.
Controlled access: keep non-essential personnel away; maintain clear working space and lighting.
Important: do not “tighten a little” on live equipment. Many failures begin as loose connections, but correcting them under energized conditions can create a far more dangerous event.
Operation procedures are most effective when they are simple, repeatable, and tied to decision points. Use these best-practice steps for each Molded Case Circuit Breaker under your responsibility:
1) Pre-operation checks
Confirm the MCCB rating is appropriate for the application (current, voltage, interrupting capacity).
Inspect the enclosure: signs of overheating, unusual odor, moisture intrusion, dust buildup, or physical damage.
Check the handle position and labeling for accuracy (avoid “mystery breakers”).
2) Normal switching guidance
Switch with a steady, decisive motion—do not “feather” the handle.
If the equipment downstream shows abnormal behavior (smoke, heat, unusual noise), stop and investigate instead of cycling the breaker repeatedly.
For frequently switched loads, confirm the MCCB is suitable for the duty cycle and the environment.
3) What to do after a trip event
Do not reset immediately. Treat a trip as protective information, not inconvenience.
Identify and correct the cause (overload, short, ground fault, insulation breakdown, wiring error, equipment failure).
Inspect the MCCB and terminations for heat damage, odor, discoloration, and contamination.
Reset only after the root cause is addressed and the system is safe to re-energize.
4) Nuisance tripping vs. legitimate tripping
When a Molded Case Circuit Breaker trips repeatedly, avoid the common mistake of “turning up settings” without analysis. Nuisance tripping can be caused by starting currents, harmonics, poor connections, overheating, undersized conductors, or a breaker not matched to the load profile. Legitimate tripping indicates real risk. Your procedure should require evidence (measurements, logs, inspection) before changing any trip settings.
A maintenance program becomes scalable when it is risk-based. Start by categorizing each Molded Case Circuit Breaker by criticality:
Critical MCCBs: protect life safety systems, essential process equipment, data centers, pumps, emergency loads, or high-value assets.
Important MCCBs: support production continuity or protect costly machinery.
General MCCBs: non-critical loads where downtime impact is lower.
Then build a simple schedule that reflects environmental severity:
Clean, stable environments: standard inspection intervals may be sufficient.
Harsh environments (dust, humidity, chemicals, vibration, temperature extremes): increase inspection frequency and emphasize cleaning and connection checks.
High duty cycle switching: include more frequent mechanical exercising and connection inspections.
Finally, standardize documentation. A good program records “as-found” and “as-left” condition, trip settings, thermal observations, torque verification results, and test outcomes. These records are what turn maintenance into reliability.
Preventive maintenance aims to find early indicators of failure and correct them before a protective device becomes unreliable. The procedures below are organized from least invasive to more technical, so you can scale the work based on criticality and available resources.
1) Visual inspection (energized checks)
Look for localized heating signs at the enclosure or breaker face: discoloration, warping, or a burnt odor.
Note unusual sounds (buzzing, crackling) that could indicate arcing or loose parts.
Confirm labels and handle indication align with circuit status.
2) Visual inspection (de-energized checks)
Inspect for cracks in the molded case, missing hardware, or signs of moisture and contamination.
Check terminal areas for discoloration, corrosion, or insulation damage.
Verify conductor condition and routing: tight bends, strained lugs, and damaged insulation raise failure likelihood.
3) Terminations and torque verification
Loose terminations are among the most common contributors to overheating. Use manufacturer torque values where available and verified torque-wrench practices. Document the results. If you find repeat loosening, investigate vibration, conductor sizing, lug suitability, and installation workmanship rather than simply re-tightening.
4) Mechanical exercising (operability verification)
A Molded Case Circuit Breaker that never moves can become stiff. For critical circuits, periodic mechanical exercising is often recommended to confirm smooth operation of the mechanism. A practical exercise routine typically includes:
Switch OFF and ON decisively (with appropriate isolation and safety controls).
Use the trip function (where designed) to verify the tripping and reset sequence.
Confirm the handle indicates the correct state and the breaker resets normally.
Do not confuse “exercise” with “stress.” The intent is functional verification, not repeated aggressive cycling.
5) Cleaning and contamination control
Dust, debris, and moisture contribute to tracking, heating, and mechanical sticking. Cleaning should be performed with methods suitable for electrical equipment, following site rules and manufacturer guidance. In harsh environments, cleaning is not cosmetic—it is risk reduction.
6) Lubrication rules
Lubrication should never be applied casually. Many MCCBs are designed to operate without field lubrication, and incorrect lubricants can attract dust or interfere with the trip mechanism. If lubrication is permitted for a specific model, apply only what is recommended and only in the permitted locations.
7) Thermography (IR inspections)
Infrared scanning is a powerful predictive tool because it can reveal abnormal heating caused by loose terminations, overload conditions, or imbalanced phases. Establish a baseline under normal load, then trend over time. When you identify hotspots, do not treat the image as the final answer—use it as a trigger for deeper inspection and corrective action.
8) Electrical testing (risk-based selection)
Choose tests based on criticality, outage windows, and the type of risk you want to detect:
Insulation resistance testing: helps identify insulation degradation, moisture, contamination, and potential tracking paths.
Contact resistance / millivolt-drop checks: can indicate contact wear, contamination, or internal damage that increases losses and heating.
Trip testing: confirms the protective function. Select the method appropriate to your breaker type and testing capability.
Primary vs. secondary injection: primary injection tests more of the entire current path; secondary injection focuses on the trip electronics (if present). Use whichever aligns with your verification goal and minimizes unnecessary stress.
Document test conditions and results. A single data point is useful; a trend over time is powerful.
9) Settings verification and control
For MCCBs with adjustable trip settings, establish a controlled process for verification. Settings should match the coordination study and application needs. Any adjustment should be approved, documented, and justified with measured evidence, not guesswork.
Corrective maintenance begins when your inspection or testing reveals risk. Your procedure should define clear “stop and replace” conditions for a Molded Case Circuit Breaker, such as:
Cracked or compromised molded case.
Evidence of burning, severe discoloration, or persistent overheating at terminals or within the enclosure.
Mechanical failure: handle binding, inconsistent reset behavior, or unreliable switching feel.
Test results indicating unsafe insulation condition or abnormal resistance.
Post-fault concerns after severe short-circuit interruption—especially if the breaker shows heat damage or operational abnormality.
Replacement is often the safest option when condition evidence suggests internal damage. Remember: you are not maintaining a switch; you are maintaining a protective device.
Many MCCB “maintenance issues” are actually installation issues showing up later. To improve lifecycle performance of a Molded Case Circuit Breaker, your procedures should include installation verification items:
Correct sizing: proper ratings reduce nuisance tripping and prevent thermal overstress.
Sound termination practices: correct lug selection, conductor preparation, and torque values reduce heating and arcing risk.
Environmental protection: appropriate enclosures and ventilation reduce dust, moisture, and temperature-driven degradation.
Clear labeling: improves safety, speeds troubleshooting, and reduces human error during operation.
Use the following checklists to standardize work and improve audit readiness for every Molded Case Circuit Breaker.
Checklist A — Before Energizing
LOTO applied and verified; absence of voltage confirmed.
Breaker rating and application verified (current/voltage/interrupting capacity).
Enclosure condition acceptable (dry, clean, intact, properly grounded where applicable).
Terminations visually verified; torque verified where required.
Trip settings verified and documented (if adjustable).
Labels and circuit identification confirmed.
Checklist B — Routine Inspection (Quarterly/Semiannual/Annual Based on Risk)
Visual condition: cracks, discoloration, contamination, corrosion.
IR scan (if available): compare to baseline under similar load.
Mechanical exercise performed (per criticality and procedure).
Documentation updated: findings, photos/IR images, corrective actions.
Checklist C — After a Trip Event
Confirm safety and isolate the circuit.
Identify trip cause (load/fault investigation, measurements, equipment checks).
Inspect MCCB and terminations for heat damage and contamination.
Verify settings and coordination assumptions before re-energizing.
Document event details: date/time, load conditions, root cause, corrective action.
Maintenance Log Fields (Template)
Breaker ID / panel location / circuit description
MCCB model / rating / trip unit type
Trip settings (as found / as left)
Inspection findings (visual + IR)
Torque values verified (terminals and hardware as applicable)
Test results (IR, insulation resistance, contact resistance, trip test method)
Corrective actions / parts replaced / follow-up date
iALLway: highlights routine inspection, careful cleaning, settings verification for adjustable units, and emphasizes safe de-energized maintenance practices for MCCBs.
Eaton: stresses maintenance aligned to recognized standards and advocates condition-based decisions—using thermography and inspection evidence to determine corrective action or replacement.
Electrical Engineering Portal: emphasizes periodic mechanical exercising, scheduled testing intervals, and practical field tests that reveal insulation and connection issues.
TestGuy Electrical Testing Network: focuses on technician-friendly steps such as torque checks, IR scans, and insulation resistance testing while warning against unnecessary disassembly of molded-case devices.
Schneider Electric: promotes routine inspection frequency based on operating conditions, annual exercising, safe IR temperature checks, and clear replacement triggers for damaged cases or signs of overheating.
U.S. Bureau of Reclamation: supports a programmatic approach—prioritizing critical MCCBs, documenting condition findings, and using inspection criteria to guide repair versus replacement.
Idaho National Laboratory: emphasizes a balanced program that combines cycling/exercising with inspection and testing, choosing test methods that verify protection without introducing avoidable stress.
LS Electric: notes operational features that assist safe use, including clear status indication and using built-in functions to support functional checks where applicable.
Nuomak: connects reliability to correct installation and structured maintenance routines, reinforcing that terminations and environment control are core to MCCB longevity.
How often should a Molded Case Circuit Breaker be exercised?
Frequency depends on criticality, environment, and duty cycle. For critical circuits, many maintenance programs include periodic exercising (often annually) to confirm smooth mechanical function and reliable reset behavior.
Should technicians open the molded case for internal cleaning?
Typically, no. A Molded Case Circuit Breaker is designed as a sealed assembly. Maintenance focuses on external condition, terminations, functional checks, and approved testing methods.
What’s the most common maintenance finding for MCCBs?
Loose or degraded connections are frequent contributors to overheating. That is why torque verification, thermography, and careful inspection of terminations are foundational steps.
What should I do if an MCCB trips repeatedly?
Treat repeated trips as an investigation trigger. Confirm load conditions, check for faults, inspect terminations, review coordination and settings, and test the breaker as needed before changing any trip settings.
When should an MCCB be replaced?
Replace a Molded Case Circuit Breaker if the case is cracked, if there are signs of burning or persistent overheating, if mechanical operation becomes unreliable, or if testing indicates unsafe insulation/contact conditions—especially after severe fault interruption.
Effective operation and maintenance procedures for MCCBs are built on three pillars: safety discipline, consistent inspections, and evidence-based corrective action. When your Molded Case Circuit Breaker fleet is inventoried, prioritized, exercised appropriately, thermally trended, and documented, you reduce unexpected trips, limit thermal damage, and raise confidence that protection will work on demand. In the end, MCCB maintenance is not paperwork—it is operational resilience.
