Type Desigation
ASK | G | 2 | 800A | /4P |
|
|
|
|
|
Company Code | Miniature Circuit Breaker | Serial Code | Rated operating current | Number of Poles |

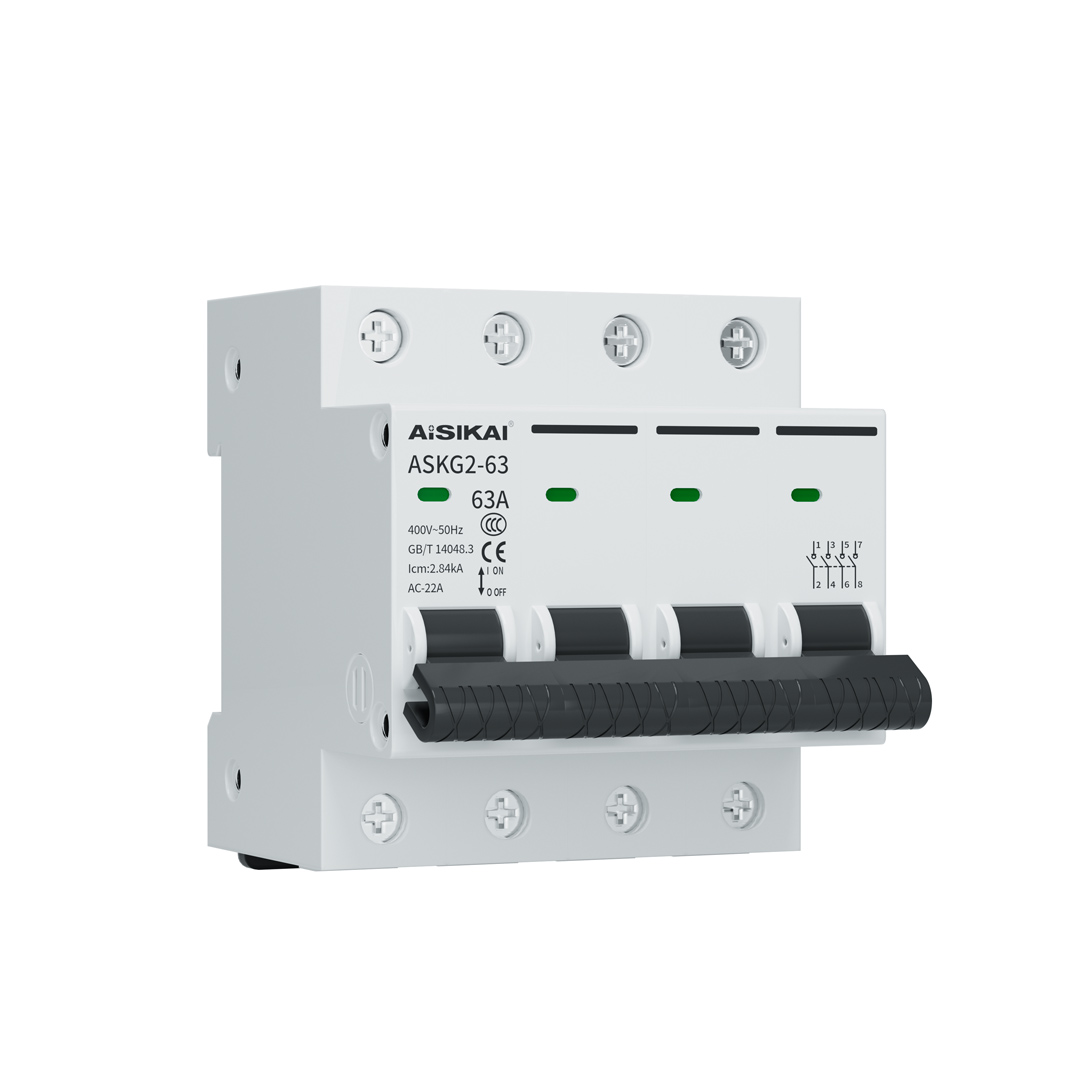

ASKG2 Series Miniature Circuit - Breaker - Type Isolating Switches
Category
By Rated Current le : - 16A | 20A | 25A | 32A | 40A | 50A | 63A | 80A | 100A | 125A
By Pole Numbers: - 1P | 2P | 3P | 4P
By Frequency f : - 50Hz
Technical Parameters
Rated Working Voltage Ue: | 230V (single - pole), 400V (multi - pole). |
Rated Working Current Ie | 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A. |
Rated Short - time Withstand Current Icw | 1.5kA/1s. |
Rated Short - circuit Making Capacity Icm | 2.5kA, with an energization time of 0.1s. |
Rated Making and Breaking Capacity | 3Ie, 1.95Ue, Cosφ = 0.65. |
Operating Performance | Mechanical life is 8500 cycles, and electrical life is 1500 cycles. |
Application Scenerio

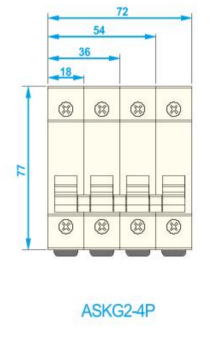

Shape & Size

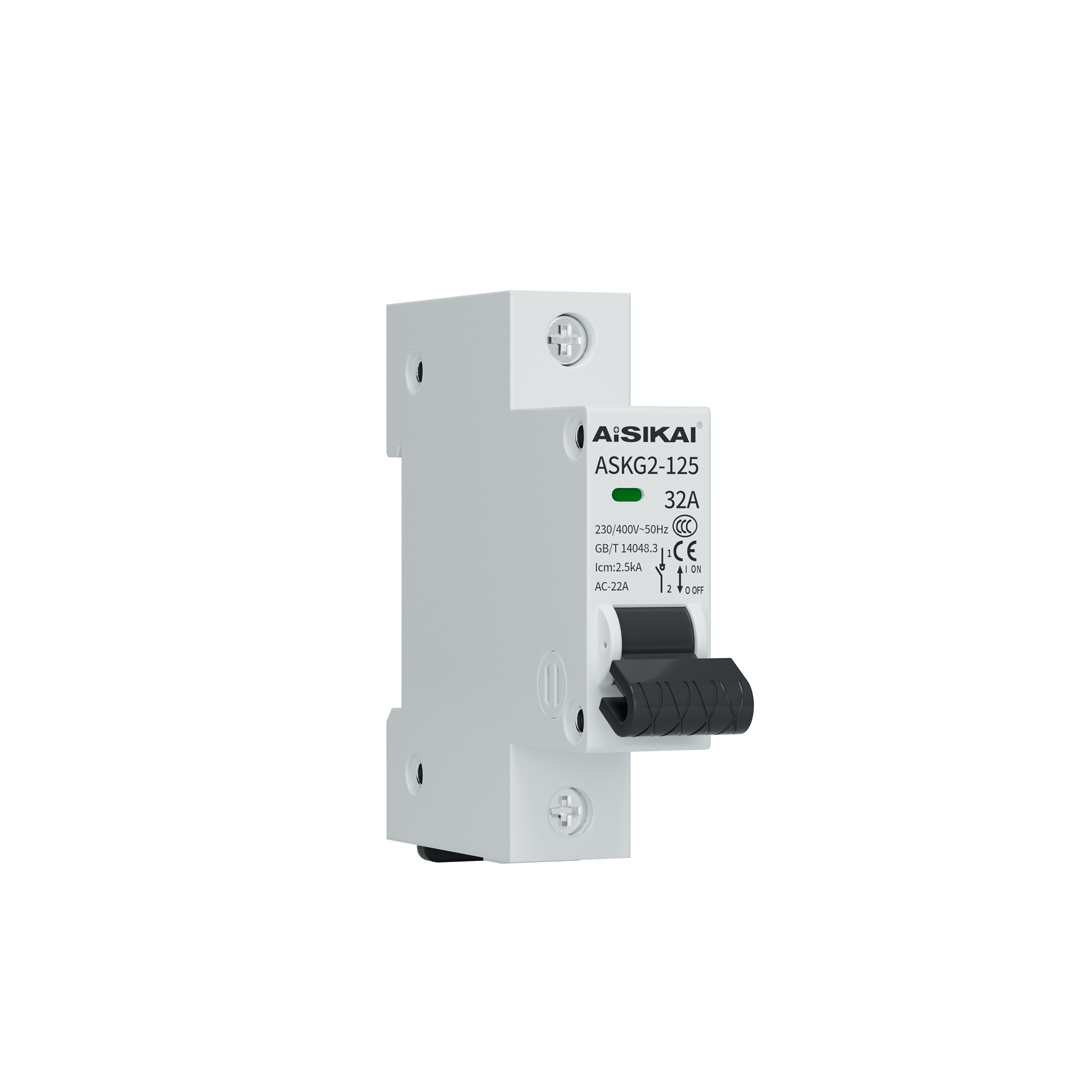

ASKG2-1P |

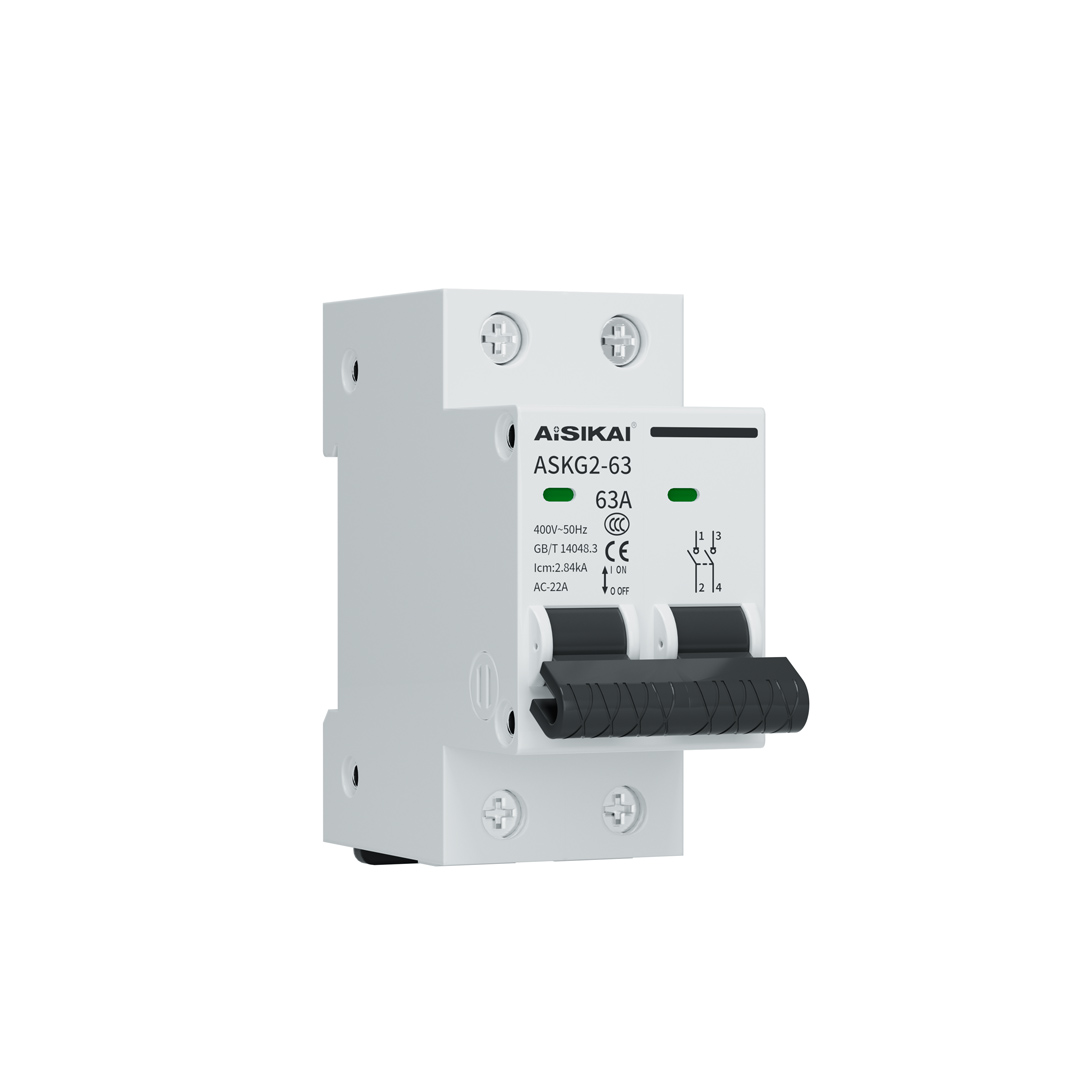

ASKG2-2P |

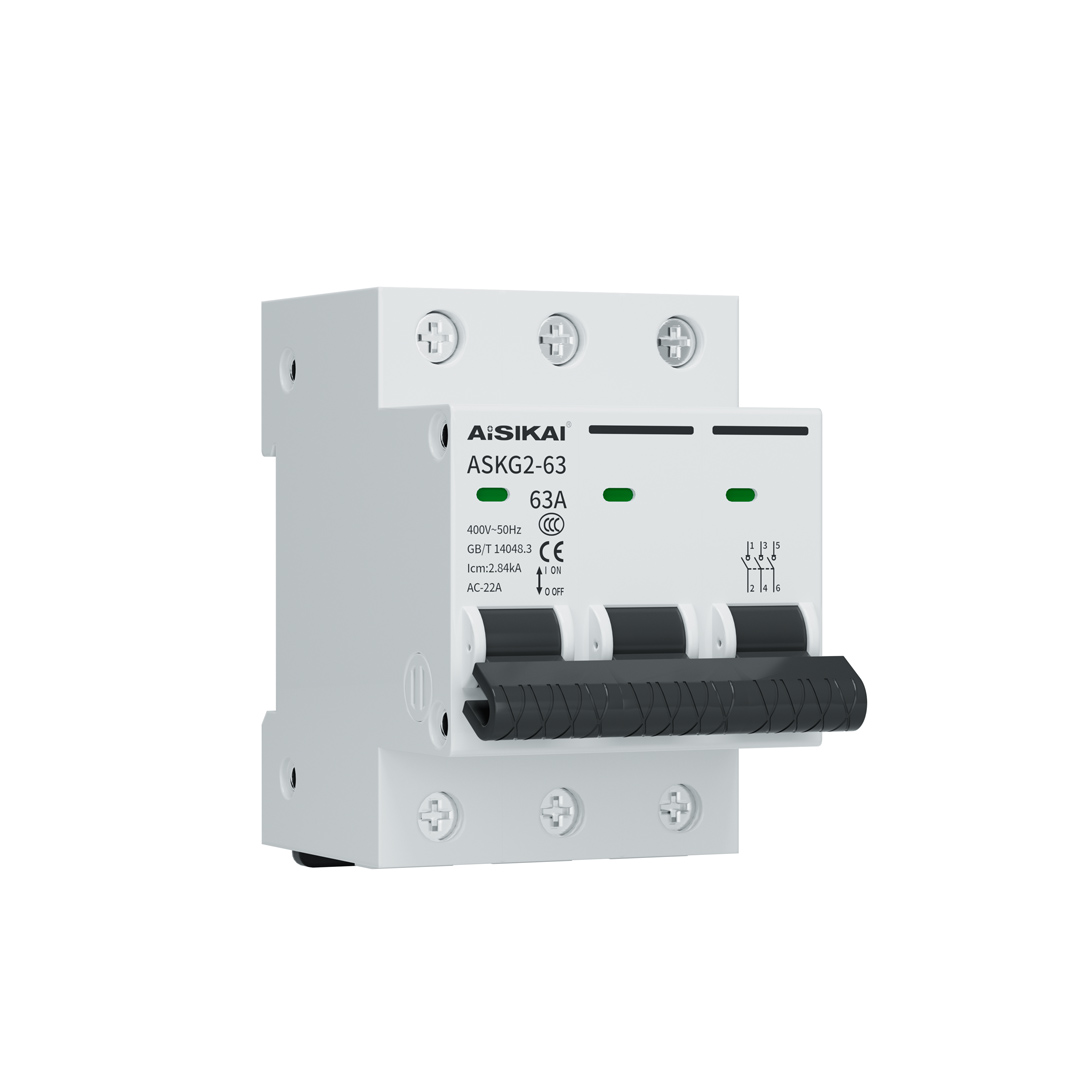

ASKG2-3P |  |  |
FAQ
Where can the ASKG2 series of miniature isolating switches be used?
They are suitable for power distribution and control circuits with an alternating current of 50Hz or 60Hz and a rated working voltage of 230/400V or below. They find applications in industries like construction and power. Specifically, they are well-suited for controlling motors, low-power electrical appliances, and lighting equipment in home, small commercial premises (e.g., small shops, office pantries), provided that the corresponding operating conditions are met.
How to select the ASKG2 series of miniature isolating switches?
Choose the rated current (16 - 125A) based on the load current to avoid overloading. Select the number of poles (1 - 4 poles) according to the circuit phase number and control requirements. Additionally, due to its modular design, attention should be paid to the compatibility of installation space when combining multiple poles, ensuring it fits into the target distribution box or cabinet.
What should be noted when installing the ASKG2 series of miniature isolating switches?
Install using the TH35 - 7.5 type rail with an inclination not exceeding 5°. Secure the incoming wires with screws to guarantee reliable connections. The installation environment must meet specified operating conditions including ambient temperature, altitude, and pollution degree. Moreover, due to its compact modular structure, a small clearance (preferably no less than 5mm) should be reserved between adjacent components to facilitate heat dissipation.
