| Quantity: | |
|---|---|
Type Desigation
ASK | G | 5 | 800A | /4P |
|
|
|
|
|
Company Code | Miniature Circuit Breaker | Serial Code | Rated operating current | Number of Poles |
By Rated Current le : - 16A | 20A | 25A | 32A | 40A | 50A | 63A | 80A | 100A | 125A

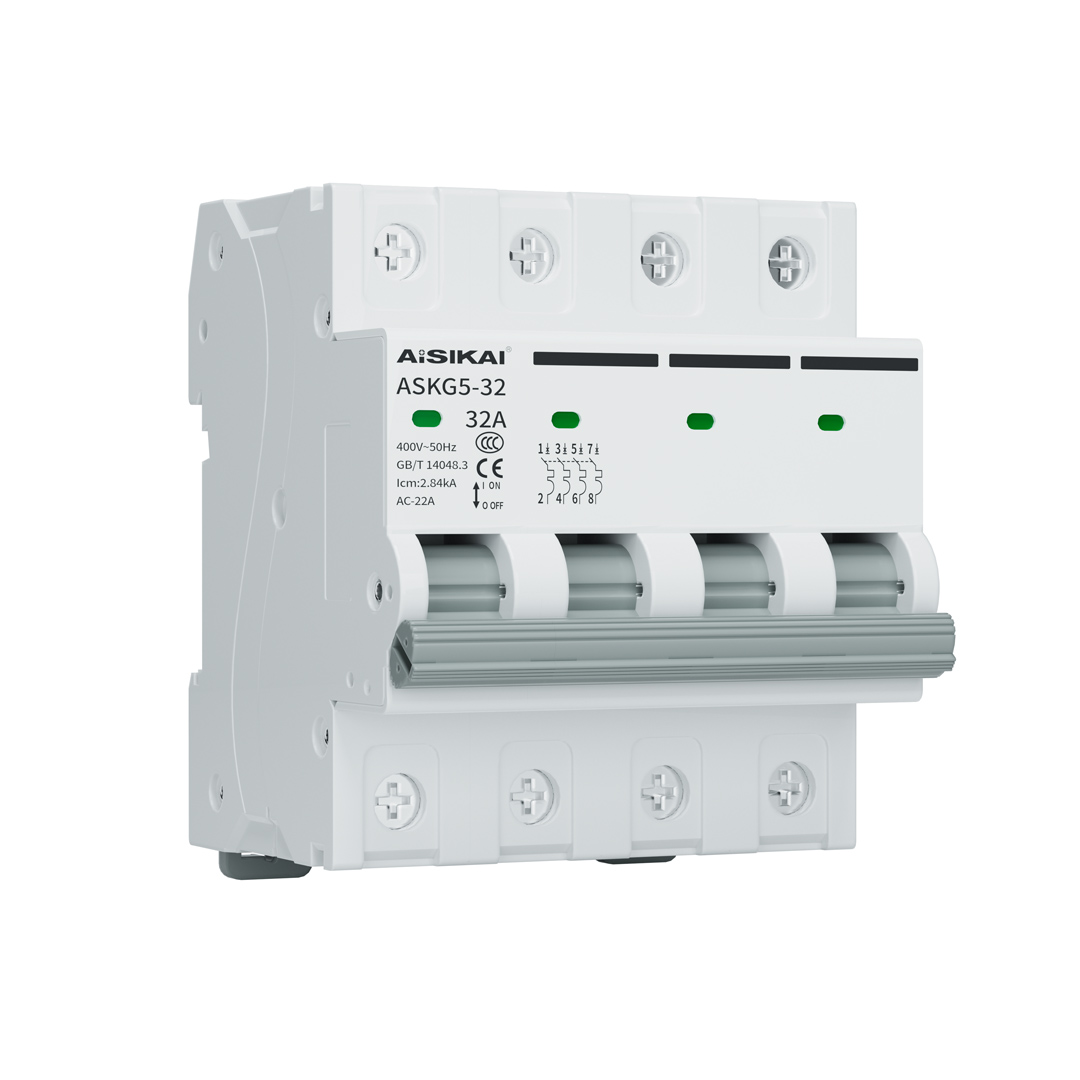

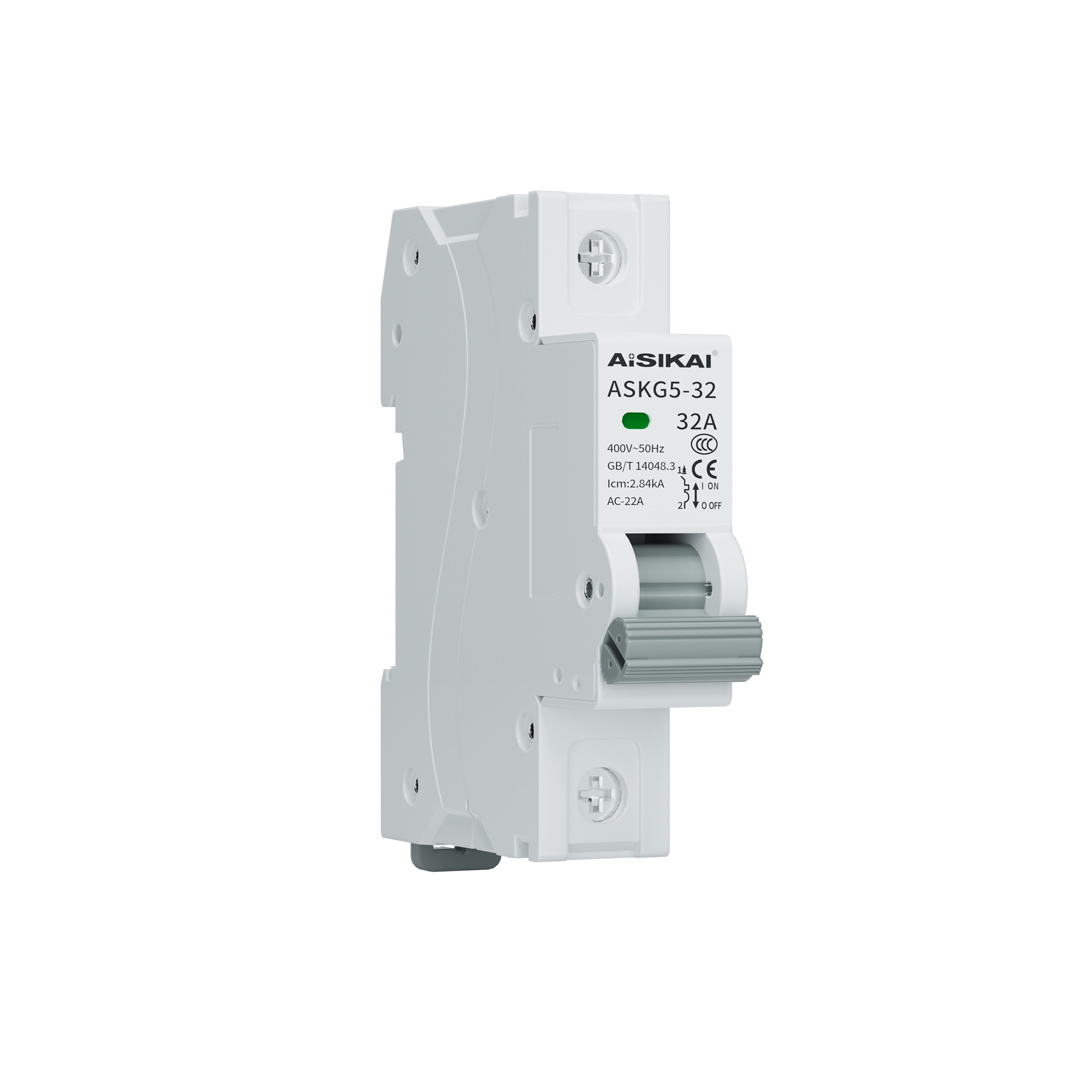

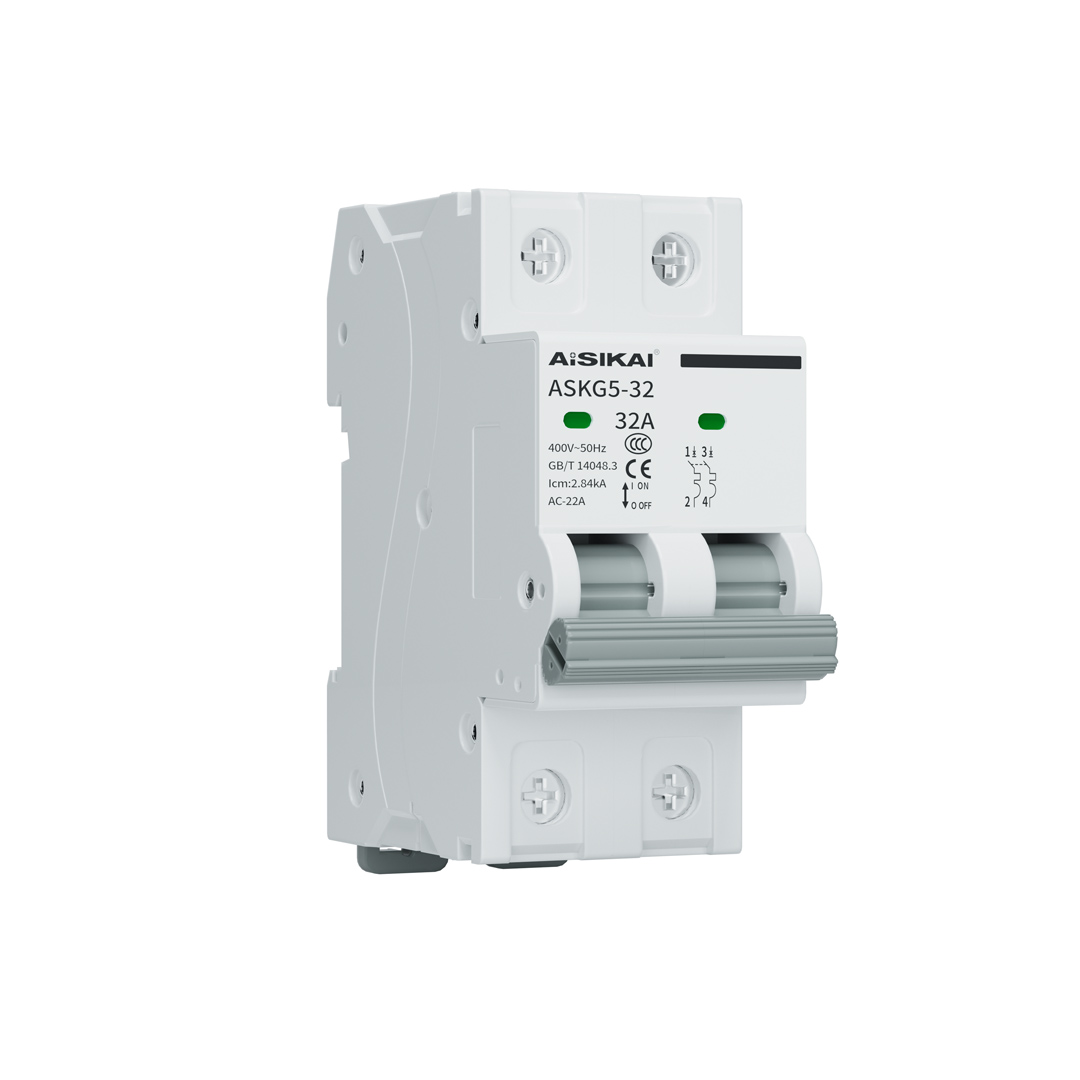

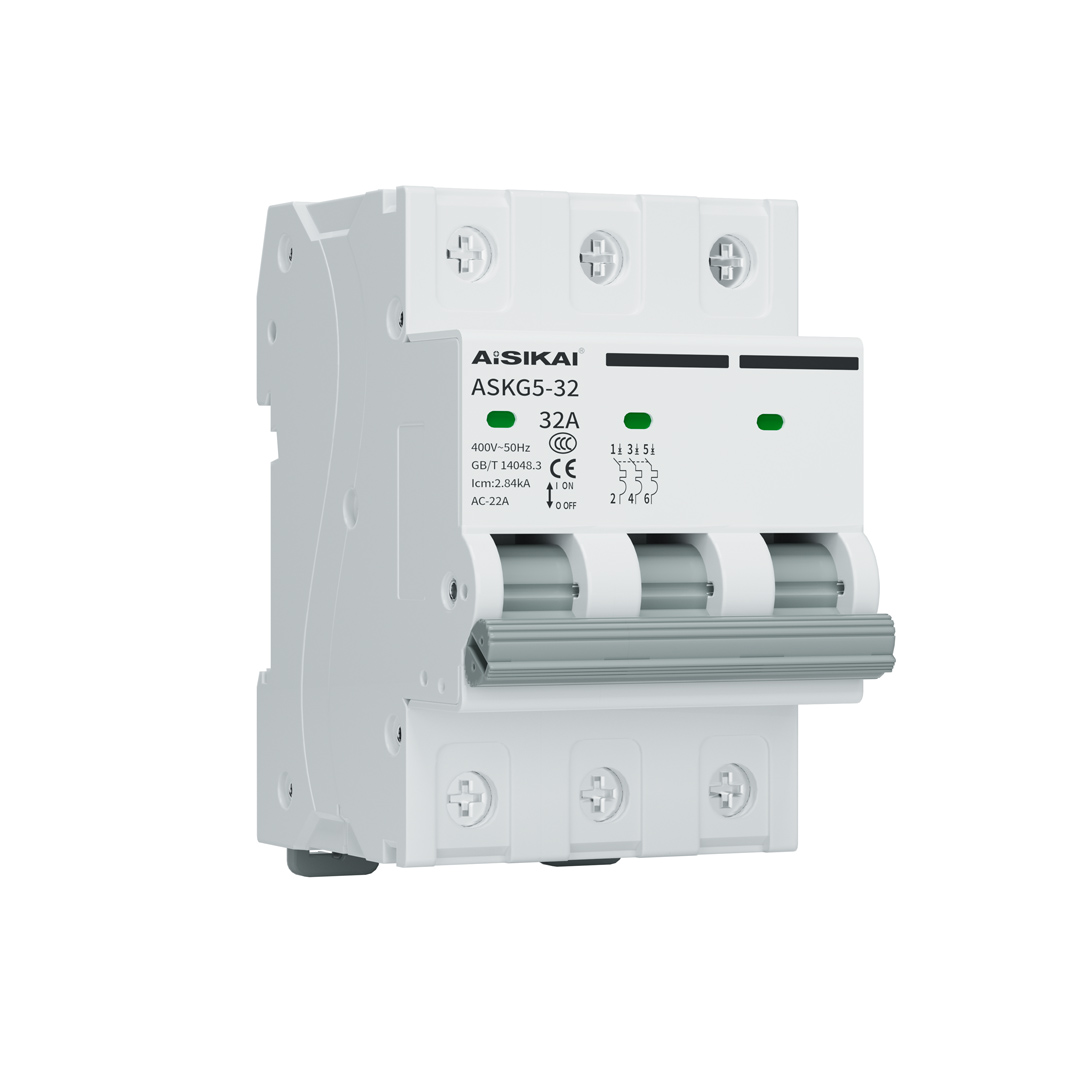

By Pole Numbers: - 1P | 2P | 3P | 4P
By Frequency f : - 50Hz
Rated Working Voltage Ue: | 230V (single - pole), 400V (multi - pole). |
Rated Working Current Ie | 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A. |
Rated Short - time Withstand Current Icw | 2kA/1s. |
Rated Short - circuit Making Capacity Icm | 2.84kA, with an energization time of 0.1s. |
Rated Making and Breaking Capacity | 3Ie, 1.95Ue, Cosφ = 0.65. |
Operating Performance | Mechanical life is 8500 cycles, and electrical life is 1500 cycles. |
FAQ
1. Where can the ASKG5series of miniature isolating switches be used?
They are suitable for power distribution and control circuits with an alternating current of 50Hz or 60Hz and a rated working voltage of 230/400V or below. They can be used in industries such as construction, power, etc. They can control motors, small - power electrical appliances, and lighting equipment, and are applicable to home, commercial, and industrial sites, provided that the corresponding operating conditions are met.
2. How to select the ASKG5 series of miniature isolating switches?
Select the rated current (16 - 125A) according to the load current to prevent overloading. Choose the number of poles (1 - 4 poles) based on the circuit phase number and control requirements.
3. What should be noted when installing the ASKG5 series of miniature isolating switches?
Install using the TH35 - 7.5 type rail with an inclination of no more than 5°. Secure the incoming wires with screws to ensure reliable connections. The installation environment should meet the operating conditions such as ambient temperature, altitude, and pollution degree.
