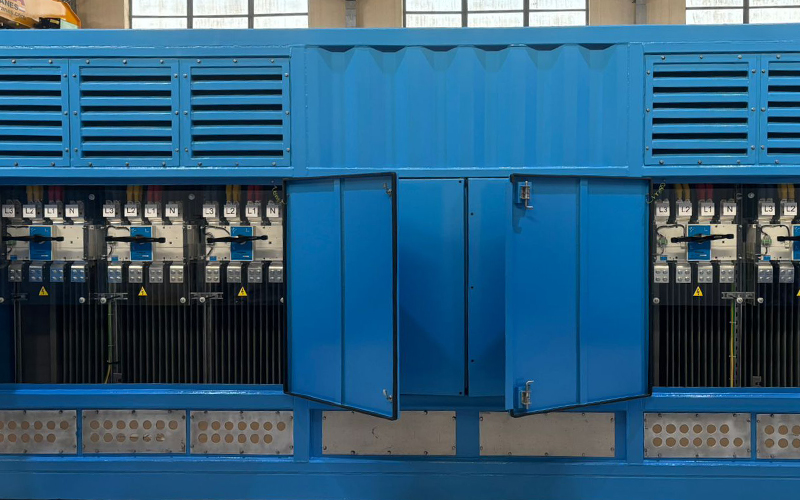

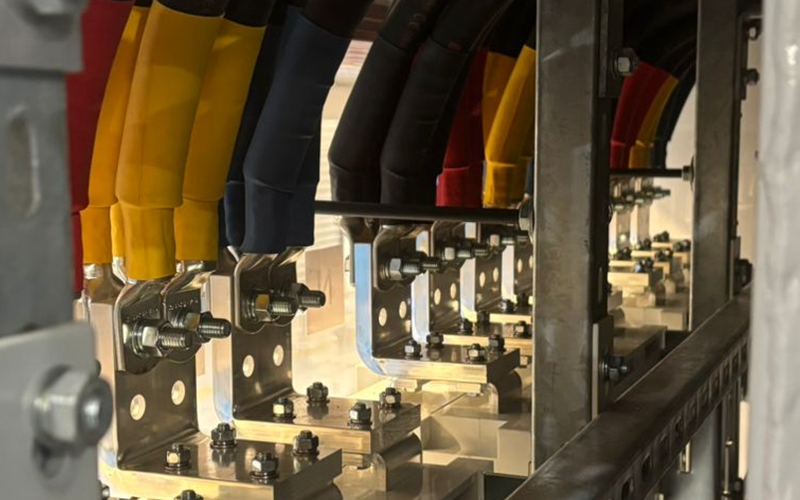

10MW 5kV Diesel Power Plant Project in Dubai, UAE

• PC Class: ATS is designed solely for power source transfer without built-in short-circuit protection
• AC-33A: the highest utilization category for automatic transfer switches
• Maximum Current: 630A
• Fast Switching
• Capable of frequent switching

• PC Class: ATS is designed solely for power source transfer without built-in short-circuit protection
• AC-33A: the highest utilization category for automatic transfer switches
• Maximum Current: 6300A
• Fast Switching Solenoid (electromagnetic) Driven
• Capable of frequent switching

AISFT series modular transfer switch is a new type of PC level miniature manual dual power transfer switch, use category AC-22A, with compact volume design, can be used with ASKB series miniature circuit breakers together with rail mounting to form the main standby power distribution system. AISFT series switches have isolation function, comply to GB/T14048.11, IEC60947-3 standards, applicable to rated voltage It is suitable for emergency power supply system with rated voltage of 400V,rated current of 125A and below, and is widely used in all kinds of emergency power supply places with small space. It is widely used in all kinds of emergency power supply places with narrow space.

• PC Class: ATS is designed solely for power source transfer without built-in short-circuit protection
• AC-33A: the highest utilization category for automatic transfer switches
• Maximum Current: 3200A
• Capable of frequent switching

BAC series switch - type battery chargers adopt the latest switching power supply technology. Designed based on the charging characteristics of lead - acid batteries for starting generators, BAC chargers are suitable for long - term supplementary charging (floating charging) of lead - acid batteries. The maximum charging current is 6 amperes for 12 volts and 10 amperes for 24 volts.

ASKW2 series panel front wiring type intelligent universal circuit breakers (hereinafter referred to as circuit breakers) are suitable for AC 50Hz, rated voltage 400V, 690V, rated current 200A to 1600A power distribution network, used to distribute electrical energy and protect the lines and power supply equipments from the hazards of overload. undervoltage, short-circuit, leakage and other faults. The circuit breaker has intelligent protection with isolation function. The selective protection is precise, which can improve the reliability of power supply and avoid unnecessary power outage. The circuit breaker has an open communication interface, which can realize four remotes to meet the requirements of centralized control of automation system.630A and the following circuit breakers can be used as directly operating motors as controlling the occasional starting and stopping of motors.

The ASKV5 series indoor high-voltage vacuum circuit breaker(VCB) is a new generation vacuum circuit breaker independently developed and manufactured by AISIKAI, with competitive advantages in the industry. This vacuum circuit breaker is suitable for indoor installations with an AC frequency of 50Hz and rated voltages of 12kV, 24kV, and 40.5kV. The VCB is designed for various types of loads and locations with frequent operations. The operating mechanism is a new spring-operated mechanism, which is independently developed by our company. It features a simple structure and reliable action.

SKZ series intelligent automatic transfer switch cabinet, is an electrical equipment system that ensures the continuous and stable operation of the entire electrical system under abnormal conditions such as power outages. Its core mission is to continuously supply the electricity required for production and daily life to various places, including enterprises, factories, apartments, hospitals, commercial centers, airports, railway stations, and ports, and eliminate the risk of power outages.

ASKM3 thermomagnetic molded case circuit breaker(hereinafter referred to as MCCB) is a new type of circuit breaker designed and developed by ourcompany using international advanced technology. The rated insulation voltage of MCCB is 1000V. MCCB is suitable for the distribution network of AC50/60Hz, rated voltage 690V and below, rated current 10A- 1250A. MCCB can distribute power and protect circuits and power equipment against faultslike overload, under-voltage, short. circuit and under-voltage. MCCB can also be used for infrequent switching of lines and infrequent starting ofmotors. The products have the characteristics of small volume, high breaking capacity, short flying arc, vibration resistant, etc. The whole series haveisolation function.
