SKZ1
AISIKAI
| Quantity: | |
|---|---|

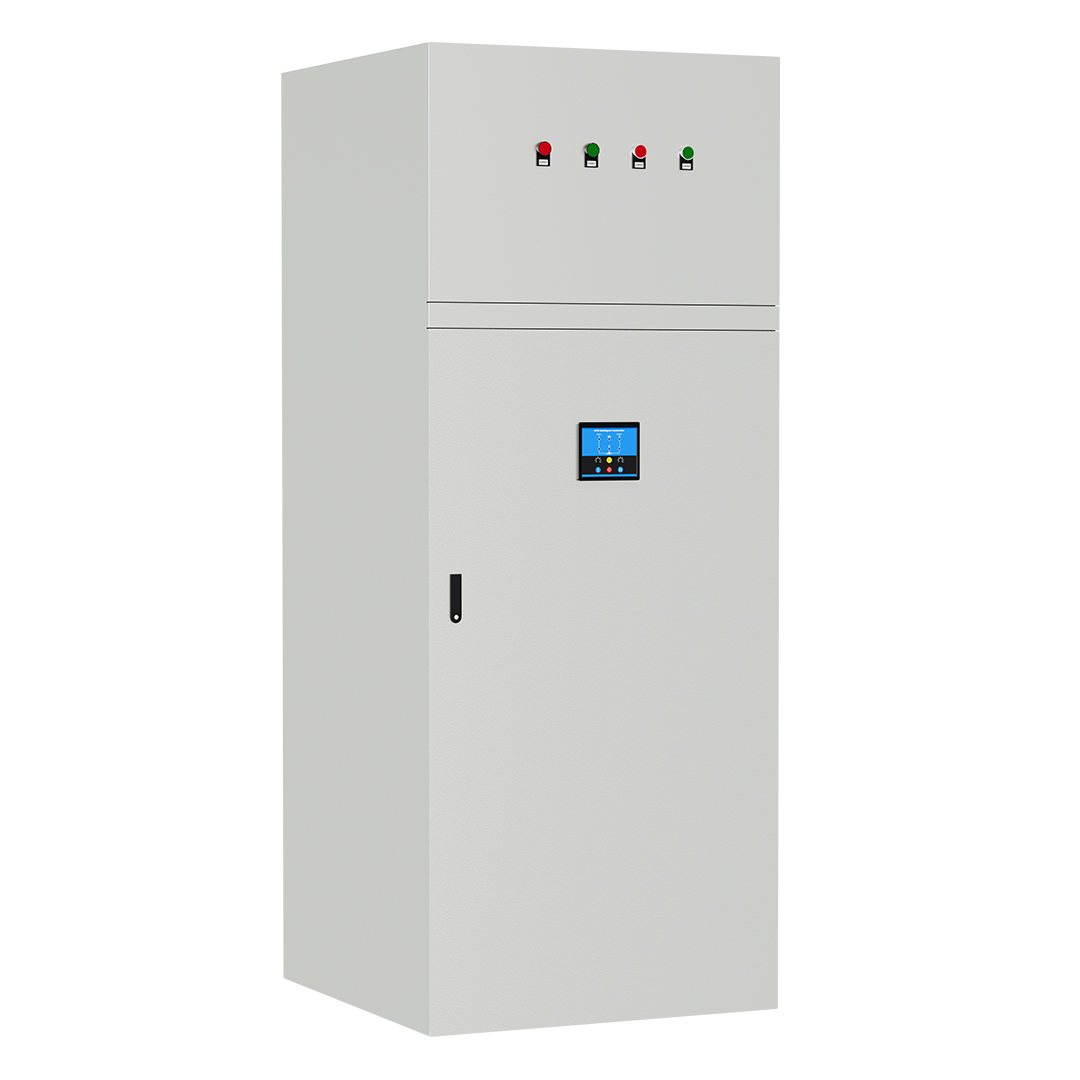

The SKZ1 Floor-standing ATS Cabinet (400A–3200A) from AISIKAI, a prominent manufacturer based in China, is a smart automatic transfer switch cabinet engineered to provide stable and continuous power supply during unexpected power interruptions or other abnormal conditions. Serving as a vital component in electrical systems, its main function is to guarantee uninterrupted electricity for production, everyday use, and essential operations in various environments. From industrial plants and commercial buildings to residential complexes, hospitals, shopping centers, airports, train stations, and ports, the SKZ1 Floor-standing ATS Cabinet effectively mitigates the risk of sudden power outages, making it a crucial solution for dependable power management.
The SKZ1 Floor-standing ATS Cabinet (400A–3200A) stands out with a range of advanced advantages and features, tailored to adapt to various power supply environments and operational needs:
Flexible Voltage Compatibility: It supports an AC voltage input range of 176V-265V, with an optional DC power supply of 8V~35V. This broad range allows seamless adaptation to fluctuating power conditions, ensuring stability in both standard and specialized electrical setups.
Rapid Response Time: Equipped with the ATSC series controller, the cabinet achieves a minimum response time of 3 seconds. This swift reaction to input signals or commands minimizes downtime during power transitions, critical for protecting sensitive equipment and maintaining operational continuity.
Enhanced Connectivity & Anti-Interference: Integrated with an RS485 communication interface, SKZ1 Floor-standing ATS Cabinet (400A–3200A) enables efficient data transmission and remote monitoring. Its strong anti-interference capabilities ensure reliable performance even in environments with electrical noise, making it suitable for industrial and commercial settings.
User-Friendly Design: The ATSC (SKR2-A series/SKR2-B series) control modules are installed externally on the cabinet, facilitating easy operation and maintenance in special circumstances. This design reduces the need for complex internal access, saving time during inspections or adjustments.

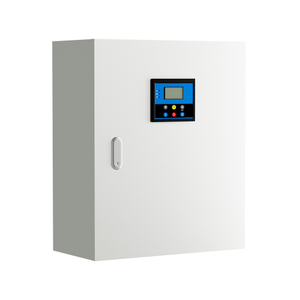

Customizable Installation: With strong selectivity, users can choose between wall-mounted cabinets or floor-standing cabinets based on current requirements (ranging from 20A to 3200A). This flexibility ensures optimal space utilization in diverse installation environments.
The SKZ1 Floor-standing ATS Cabinet (400A–3200A) is engineered to meet the power continuity needs of multiple sectors, including but not limited to:
· Construction: Ensures uninterrupted power for construction sites, where consistent electricity is vital for tools, lighting, and temporary facilities.
· Data Centers: Protects critical servers and networking equipment from power disruptions, preventing data loss and downtime that could result in significant financial losses.
· Hospitals: Maintains power for life-support systems, medical equipment, and lighting, ensuring patient safety and uninterrupted healthcare services.
· Commercial Centers: Supports continuous operation of elevators, HVAC systems, and retail operations, enhancing customer experience and avoiding revenue loss.
· Airports & Railway Stations: Guarantees power for navigation systems, ticketing platforms, and passenger amenities, ensuring smooth transportation operations.
· Factories & Enterprises: Prevents production halts caused by power outages, safeguarding manufacturing schedules and reducing operational losses.
Technical data
| AC 176V-265V |
DC power(Optional) | (8-35)V |
Material | Steel, electrostatic powder coating |
Switch | ATS series |
Transfer time | Minimum 3 seconds |
Control module | ATSC series |
| RS485 |
| Installation | Wall mount, Floor stand |
Language | English |
Ambient temperature | (-25~+70)ºC |
Humidity | (20~90) % |
Altitude | ≤5000 m |
OUTLINE AND CLASSIFICATION
Current | 400A 630A | 800A,1000A 1250A,1600A | 2000A,2500A,3200A |
Dimensions(mm) | 1200*600*500 | 1600*800*600 | 2000*800*800 |
Cable outlet side | Bottom | Bottom | Bottom |
Weight(kg) | 95 | 150 | 285 |
SKR2-A | SKR2-B | |
Main functions | Three-phase sampling, protections against power failure, overvoltage, undervoltage and phase-loss | Three-phase sampling, protections against power failure, overvoltage, undervoltage, phase-loss, overfrequency, underfrequency and reverse phase sequence |
Human-machine interface |
LED status display |
LED status display+LCD electric parameter display |
Parameter setting method | Knob adjustment | Digital adjustment |
Timed start generator function | No | Yes |
Historical records | No | 50 |
Display language | No | Chinese / English |
Power detection and display | No | No |
Communication | RS485 | RS485 |
Mount type | Wall Mount | Floor Standing |
