In modern power distribution, a Molded Case Circuit Breaker (often shortened to MCCB) is one of the most practical “last lines of defense” between everyday operation and a costly electrical incident. When current rises beyond safe limits—whether slowly from overload or suddenly from a short circuit—this device is designed to disconnect the circuit fast and reliably. For facility managers, OEMs, panel builders, and maintenance teams, understanding the basics of a Molded Case Circuit Breaker helps reduce downtime, improve safety, and make selection decisions with confidence.
This guide explains what an MCCB is, how it works, which trip unit types exist, what ratings truly matter, and how to choose the right breaker for real-world installations—without drowning you in jargon.
Electrical systems don’t fail politely. Loads change, motors start, cables age, and faults can occur with little warning. A Molded Case Circuit Breaker helps keep those events from turning into equipment damage, arc hazards, or prolonged outages. Compared with smaller “branch-only” protection devices, MCCBs are commonly used where higher current levels, more demanding duty cycles, or more flexible protection settings are required.
Operational continuity: properly selected MCCBs minimize nuisance trips while still protecting conductors and equipment.
Asset protection: limiting fault energy and clearing abnormal conditions reduces stress on transformers, feeders, and connected loads.
Practical scalability: MCCBs support a wide range of current ratings and application styles, from feeders to large loads.

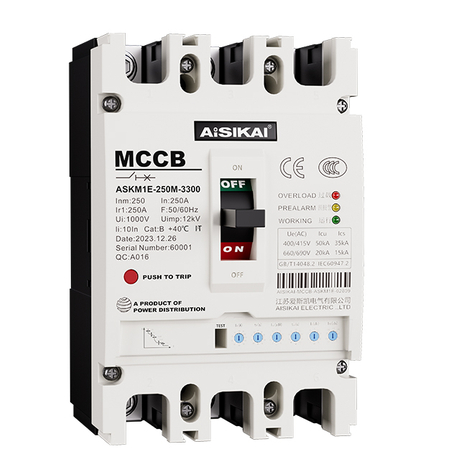

A Molded Case Circuit Breaker is an automatic switching device that opens a circuit when current exceeds a safe level. The “molded case” refers to the rugged, insulated housing that supports the internal mechanism and provides electrical isolation. In practical terms, an MCCB combines three essential functions:
Switching: it can be turned ON/OFF for normal operation.
Protection: it trips during overloads or short circuits (and, with the right configuration, may also address ground faults).
Interruption: it separates contacts and manages the arc produced during opening.
Where a basic breaker might be chosen simply by amperage, an MCCB is often selected with a broader “system thinking” mindset—fault levels, coordination needs, adjustable protection settings, and installation environment.
You don’t need to be a design engineer to understand MCCBs, but knowing the internal building blocks makes selection and troubleshooting easier. A typical Molded Case Circuit Breaker includes:
Molded frame/case: the insulated body that provides mechanical strength and electrical separation.
Line and load terminals: connection points to the upstream supply and downstream circuit.
Contacts: conductive elements that carry current when closed and separate when opening.
Operating mechanism: the linkage that opens/closes contacts and holds the breaker in the ON state until a trip occurs.
Trip unit: the “brain and sensor” system—thermal-magnetic or electronic—that decides when to trip.
Arc management components: structures that control, stretch, and cool the arc created during interruption.
Think of the molded case as the protective shell, the mechanism as the “hands,” and the trip unit as the “reflex.” Together they form an integrated protective device.
An MCCB’s job is not only to detect abnormal current—it must also safely interrupt it. That typically happens in three stages:
Detection: the trip unit senses current above a defined threshold.
Release: the mechanism unlatches and drives contacts open.
Interruption: the arc is controlled until current is fully interrupted.
Overload response (time-dependent): Overloads often develop gradually—think of a conveyor motor running hot due to mechanical drag. The breaker needs to allow normal inrush or temporary load swings while still tripping on sustained overcurrent. Many MCCBs do this using an inverse-time characteristic: higher overload current equals a faster trip.
Short-circuit response (instant action): A short circuit can produce extremely high current in a fraction of a second. The MCCB’s instantaneous function is designed to trip quickly when current spikes beyond a defined level.
Arc control (why it matters): When contacts open under load, an arc can form. MCCBs are engineered to manage that arc inside the case, reducing the risk of damage and ensuring the breaker can interrupt safely.
Trip units determine how a Molded Case Circuit Breaker responds to abnormal current. The most common categories are:
Thermal-magnetic trip units
Thermal (overload): responds to sustained overcurrent with a time delay pattern that helps tolerate short-duration surges.
Magnetic (short circuit): triggers very fast when current reaches a high, immediate threshold.
Best fit: robust, cost-effective protection for many general-purpose applications.
Electronic (solid-state) trip units
More adjustable settings: fine-tune long-time, short-time, instantaneous, and sometimes ground-fault protection functions.
Better coordination flexibility: useful when multiple protection layers must work together.
Best fit: facilities with complex distribution, critical uptime, or coordination requirements.
In selection discussions, “trip unit choice” is often where performance, coordination, and budget meet. The right trip technology should match the electrical study results and the operational reality of the site.
Choosing a Molded Case Circuit Breaker is not only about the amp rating printed on the handle. These specifications typically shape safe and reliable performance:
Rated current: the continuous current the breaker is intended to carry under specified conditions. Consider real load profiles and thermal environment.
Frame size: the physical and design “platform” that defines maximum capabilities; different trips can be used within a given frame range.
Voltage rating: the system voltage the MCCB is designed for. AC and DC applications can differ significantly in interruption behavior.
Interrupting capacity (short-circuit rating): the maximum fault current the breaker can safely interrupt. This must be adequate for the available fault current at the installation point.
Trip curve / time-current behavior: how quickly the breaker trips at different multiples of rated current—critical for coordination and nuisance-trip control.
Practical tip: If you only remember one rule, remember this: the interrupting capacity has to be high enough for the worst-case fault current where the breaker is installed. Everything else is secondary to that safety requirement.
MCCB labeling can be intimidating, especially when comparing products across regions or standards. For most buyers, the goal is simple: confirm the device is certified for the intended market and suitable for the application type. In addition to certification markings, focus on what directly impacts engineering decisions:
Protection functions: overload, short-circuit, and optional ground-fault capability.
Ratings: current, voltage, interrupting capacity, and temperature/environment assumptions.
Accessories and interfaces: shunt trip, undervoltage release, auxiliary contacts, remote indication, or communication (where needed).
If you operate in multiple markets, ensure your procurement team aligns standard requirements with engineering expectations—especially for panel integration and inspection acceptance.
A reliable selection process usually follows a consistent logic: understand the load, understand the system’s fault energy, then match the breaker’s protection and interruption capabilities to the real conditions.
Step 1: Define the application
Feeder protection vs individual load protection
Motor circuits, HVAC, pumps, heaters, or mixed distribution
Duty cycle and startup/inrush behavior
Step 2: Confirm electrical requirements
System voltage (and AC vs DC if relevant)
Expected continuous current and conductor sizing assumptions
Available fault current at the installation point
Step 3: Choose trip unit strategy
Need for adjustability to avoid nuisance trips
Coordination needs with upstream/downstream protective devices
Ground-fault protection requirements (if required by design or policy)
Step 4: Confirm physical and environmental fit
Enclosure size, mounting method, and heat dissipation
Ambient temperature, ventilation, and derating considerations
Accessory needs for interlocks, remote trip, or status monitoring
In many facilities, the “best” Molded Case Circuit Breaker is the one that balances safety, coordination, and maintainability—not merely the lowest price or the highest rating.
Even a perfectly selected Molded Case Circuit Breaker can perform poorly if installation and maintenance are neglected. Keep these practical fundamentals in mind:
Terminations matter: verify compatible conductors/lugs and apply correct torque procedures to reduce overheating risk.
Mounting and clearances: ensure the breaker is installed as intended for ventilation and safe access.
Operation checks: confirm the handle action is smooth, labeling is clear, and auxiliary functions (if present) operate correctly.
Condition-based maintenance: watch for heat discoloration, nuisance trips with no process changes, unusual odor, or insulation damage.
For mission-critical systems, many organizations also incorporate periodic testing and thermal inspections as part of a reliability program, aligned with their safety policies and engineering standards.
Most MCCB problems are preventable. Here are frequent mistakes that lead to downtime or safety exposure:
Ignoring interrupting capacity: selecting based on amperage alone without confirming fault current can be dangerous.
Over-sizing to “stop trips”: masking a process or wiring issue by increasing breaker size can leave conductors underprotected.
Under-sizing for motor starts: failing to account for inrush can cause nuisance trips and production interruptions.
Assuming coordination will “just work”: without checking time-current behavior, upstream and downstream breakers may trip unpredictably.
Skipping environment considerations: heat buildup in a crowded panel can change real-world performance.
The safest approach is to treat MCCB selection as part of system design, not a last-minute part number choice.
CHINT Global
Describes MCCBs as protection devices that disconnect circuits during overloads and short circuits.
Highlights their broad use across electrical distribution and protection scenarios.
LS Electric America
Frames MCCBs as robust circuit protection suited to higher-current commercial and industrial environments.
Emphasizes selection based on application needs and protection performance.
Schneider Electric eShop
Positions MCCBs as circuit protection that reduces risk from overcurrent conditions such as overloads and short circuits.
Focuses on the practical “basics” that help users match breakers to installations.
Electrical Engineering Portal
Highlights the idea of MCCBs as integrated, self-contained interrupting devices within an insulated housing.
Emphasizes understanding construction and operating principles for correct application.
ECMWeb
Explains classic MCCB protection behavior through thermal and magnetic trip principles.
Emphasizes understanding trip response as key to safer selection and use.
EasyPower
Breaks down MCCB basics with emphasis on components, labels, and how breakers behave in coordination scenarios.
Highlights practical considerations for studies and protection settings.
PSI Control Solutions
Emphasizes trip-unit-based protection concepts, including overload and short-circuit coverage, and the role of configuration.
Focuses on selection guidance tied to real control and protection needs.
Fuji Electric Americas
Describes MCCBs as devices that protect electrical systems by interrupting overcurrent and fault conditions.
Highlights common applications and general characteristics.
Eaton
Emphasizes molded insulation construction and how breaker fundamentals connect to real system protection goals.
Focuses on selecting appropriate protection functions for equipment and people.
What is a Molded Case Circuit Breaker used for?
A Molded Case Circuit Breaker is used to protect circuits and equipment by automatically disconnecting power during overloads or short circuits, helping prevent damage and improve safety.
MCCB vs MCB: what’s the difference?
While both protect circuits, MCCBs are typically used for higher current applications and may offer broader rating ranges and more adjustable protection options. Selection depends on system size, fault levels, and coordination needs.
What do MCCB trip settings mean?
Trip settings define how the breaker responds to overcurrent—how long it tolerates overload, when it trips quickly, and how it handles instantaneous faults. Adjustments should be made by qualified personnel based on engineering studies and operating conditions.
Why is interrupting capacity important?
Interrupting capacity is the breaker’s ability to safely interrupt the maximum possible fault current at its location. If the available fault current exceeds the MCCB’s rating, the breaker may not clear the fault safely.
How do I know if an MCCB should be replaced?
Warning signs can include persistent nuisance trips without process changes, visible overheating at terminals, mechanical wear, or evidence of damage from past fault events. For critical systems, a structured inspection and testing program helps determine replacement timing.
