Why do circuit breakers matter in your home or business? These essential devices protect electrical systems from damage. Circuit breakers detect faults and stop dangerous current flow. Molded Case Circuit Breakers (MCCBs) are vital for high-demand environments. In this post, you'll learn about circuit breakers, their importance in electrical systems, and how MCCBs differ from standard options.
A circuit breaker is an electrical safety device designed to protect an electrical circuit from damage caused by overload or short circuit. Its main purpose is to interrupt current flow after detecting a fault. By automatically cutting off electricity, it prevents damage to wiring, equipment, and reduces the risk of fire.
Circuit breakers come in several types, each suited for specific applications:
Miniature Circuit Breakers (MCB): Used mainly in residential and light commercial settings, they protect against overload and short circuits on low voltage circuits.
Molded Case Circuit Breakers (MCCB): Suitable for higher current ratings and industrial applications, they offer adjustable trip settings.
Air Circuit Breakers (ACB): Used in large electrical distribution systems, they handle very high currents and provide advanced protection.
Ground Fault Circuit Interrupters (GFCI): Protect people from electric shock by detecting ground faults.
Residual Current Devices (RCD): Similar to GFCIs, used mainly in Europe for personal protection.
High Voltage Circuit Breakers: Used in power transmission systems for interrupting high voltage currents.
Each type varies in size, capacity, and functionality to match different electrical system needs.
A typical circuit breaker includes the following components:
Switching Mechanism: Opens or closes the electrical circuit manually or automatically.
Contacts: Conduct electricity when closed; separate to interrupt current flow during faults.
Arc Extinguishing System: Suppresses the electrical arc formed when contacts open.
Trip Unit: Detects abnormal conditions like overload or short circuit and triggers the breaker to open.
Operating Mechanism: Connects the trip unit to the switching mechanism.
Functionality involves detecting abnormal current flow and quickly disconnecting the circuit. For example, in an overload, the trip unit senses excess current and causes the contacts to open, stopping the current flow instantly.
Note: Proper selection of circuit breaker type and rating ensures optimal protection and system reliability in any electrical installation.

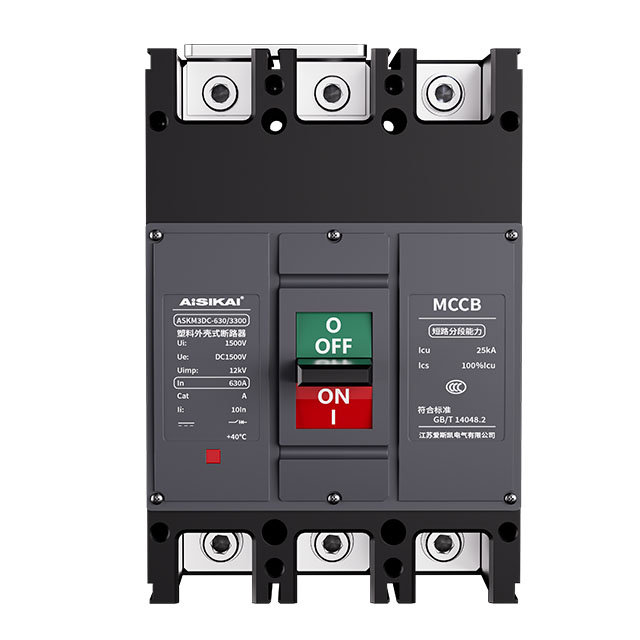

A Molded Case Circuit Breaker (MCCB) is a type of circuit breaker designed to protect electrical circuits from damage caused by overloads, short circuits, and faults. Unlike miniature circuit breakers (MCBs), MCCBs handle higher current ratings, typically ranging from 15 amps up to 2,500 amps. They feature a molded insulating case, usually made from durable plastic, which houses the internal components securely and protects against external environmental factors.
Key characteristics of MCCBs include:
Adjustable trip settings: Users can set the trip current to match specific application requirements.
Robust construction: Designed for industrial and commercial use, MCCBs withstand harsh conditions.
Wide range of ratings: Suitable for various voltage and current levels.
Thermal-magnetic trip units: Combine thermal elements for overload protection and magnetic elements for short circuit protection.
MCCBs operate by detecting abnormal current flow and interrupting the circuit promptly to prevent damage. They contain two primary trip mechanisms:
Thermal Trip: A bimetallic strip heats up under overload conditions and bends to trigger the breaker, opening the contacts.
Magnetic Trip: An electromagnet activates instantly during short circuits, causing immediate contact separation.
When either trip mechanism activates, the MCCB opens its contacts, stopping current flow. The molded case ensures safe containment of arcs generated during interruption. After tripping, MCCBs can be manually reset, restoring normal operation without replacing the device.
MCCBs are versatile and used across many sectors, including:
Industrial facilities: Protect motors, transformers, and distribution panels.
Commercial buildings: Safeguard electrical systems in offices, malls, and hospitals.
Residential complexes: Provide higher capacity protection where needed.
Renewable energy systems: Manage power distribution and protect inverters.
Automation systems: Integrate with control panels for machinery protection.
Their adjustable settings and rugged design make MCCBs ideal for environments requiring reliable, customizable circuit protection.
Tip: When selecting an MCCB, consider the specific load characteristics and environmental conditions to ensure optimal protection and device longevity.
Molded Case Circuit Breakers (MCCBs) differ from standard circuit breakers mainly in their design and construction. MCCBs feature a molded plastic casing that encases the internal components tightly. This molded case provides excellent insulation, mechanical strength, and protection against dust, moisture, and other environmental factors. In contrast, standard circuit breakers, such as Miniature Circuit Breakers (MCBs), often have simpler construction with less robust casing materials.
MCCBs are designed for higher current ratings, typically from 15 amps up to 2,500 amps, while many standard breakers handle lower currents, usually below 100 amps. The internal mechanisms of MCCBs include adjustable trip units, allowing customization of protection settings. Standard breakers often have fixed trip settings, limiting flexibility.
Performance-wise, MCCBs offer superior reliability in handling high current loads and fault conditions. Their thermal-magnetic trip units provide precise protection against overloads and short circuits. The thermal element reacts to prolonged overloads, while the magnetic element responds instantly to short circuits. This dual mechanism ensures quick and accurate fault detection.
Standard circuit breakers, especially MCBs, are better suited for lower power applications and provide basic protection. MCCBs can interrupt larger fault currents safely and handle more demanding industrial environments. Their construction reduces wear and tear, improving durability and reducing maintenance needs.
Cost differences between MCCBs and standard breakers reflect their capabilities. MCCBs generally cost more upfront due to their advanced features, rugged design, and higher current capacity. However, their longevity and versatility can lower total cost of ownership in industrial or commercial settings.
Installation of MCCBs requires more space and sometimes specialized mounting hardware, given their size and weight. Standard breakers are smaller and easier to install in residential panels. MCCBs also often require professional configuration for trip settings, whereas standard breakers are typically plug-and-play.
Tip: When choosing between MCCBs and standard breakers, consider your current load, fault current levels, and environmental conditions to balance cost, safety, and performance effectively.
Molded Case Circuit Breakers (MCCBs) provide superior safety compared to many standard breakers. Their molded plastic case offers excellent insulation, reducing the risk of electrical shock or short circuits caused by external contact. Inside, MCCBs use thermal-magnetic trip units that quickly detect overloads and short circuits, shutting off power before damage occurs. This fast response protects equipment and prevents fires. Many MCCBs also include arc fault detection and ground fault protection options, adding layers of safety in sensitive environments.
MCCBs are built to last. Their robust construction withstands harsh industrial and commercial conditions, including vibration, dust, and moisture. The molded case shields internal parts from environmental damage, extending the device’s lifespan. Unlike some standard breakers, MCCBs are designed for frequent operation and resetting without degradation. This durability means fewer replacements and less downtime, saving money and effort over time.
One of MCCBs’ biggest advantages is their adaptability. They cover a wide current range, from around 15 amps to 2,500 amps, making them suitable for various systems—from large industrial motors to commercial power distribution. Adjustable trip settings allow users to tailor protection to specific load requirements, improving system performance and safety. MCCBs also come in different frame sizes and mounting options, fitting diverse panel designs and space constraints. This flexibility makes them a go-to choice for engineers and electricians handling complex electrical setups.
Tip: When choosing MCCBs, consider their adjustable trip settings and robust design to enhance safety and reliability in demanding electrical systems.
Molded Case Circuit Breakers (MCCBs) are widely used in industrial and commercial settings. They protect electrical systems powering heavy machinery, motors, and large equipment. Factories rely on MCCBs to handle high current loads and frequent switching, ensuring safety and preventing downtime caused by electrical faults. Commercial buildings such as offices, shopping malls, and hospitals use MCCBs to safeguard power distribution panels and critical electrical circuits. Their adjustable trip settings help tailor protection to specific equipment needs, improving operational reliability.
Though MCCBs are more common in industrial environments, they also find use in residential complexes, especially in larger buildings or multi-family homes. They offer higher current capacity and enhanced protection compared to Miniature Circuit Breakers (MCBs). MCCBs can protect main service panels or subpanels, handling larger electrical loads from HVAC systems, elevators, or electric vehicle charging stations. Their robust design ensures longer service life and safer operation in residential settings where power demands are increasing.
MCCBs play a crucial role in automation and control systems. They protect electrical circuits feeding programmable logic controllers (PLCs), motor drives, and other automation equipment. In manufacturing automation, MCCBs prevent damage from overloads or short circuits, reducing costly downtime. Their adjustable trip parameters allow engineers to customize protection according to the specific requirements of automated machinery. MCCBs are often integrated into control panels alongside other protective devices, providing comprehensive circuit safety in complex automated processes.
Tip: When applying MCCBs in automation or industrial settings, always match the breaker’s trip settings to the specific equipment load to ensure precise protection and avoid unnecessary shutdowns.
Choosing the right circuit breaker starts with understanding your electrical system's requirements. Key factors include:
Current Rating: Match the breaker’s current capacity to your system’s maximum load. MCCBs cover a wide range, from 15 to 2,500 amps, while other breakers like MCBs handle lower currents.
Voltage Rating: Ensure the breaker supports the system voltage to prevent failures.
Type of Load: Consider whether the load is resistive, inductive, or motor-driven. Motor loads often need breakers with adjustable trip settings, like MCCBs.
Fault Current Level: The breaker must interrupt the highest possible fault current safely.
Environmental Conditions: Harsh environments may require breakers with robust construction and better insulation.
Space Constraints: Panel size and available mounting space affect breaker choice.
Regulatory Standards: Compliance with local electrical codes and certifications is essential for safety and legality.
Understanding differences helps in selecting the best breaker:
| Feature | Miniature Circuit Breaker (MCB) | Molded Case Circuit Breaker (MCCB) | Air Circuit Breaker (ACB) |
|---|---|---|---|
| Current Range | Up to 100 amps | 15 to 2,500 amps | Above 800 amps |
| Trip Settings | Fixed | Adjustable | Highly adjustable |
| Application | Residential, light commercial | Industrial, commercial, heavy-duty applications | Large electrical distribution systems |
| Construction | Simple plastic casing | Molded insulated case, robust | Large, air-insulated, complex |
| Installation | Easy, compact | Requires more space and professional setup | Requires specialized equipment and expertise |
| Cost | Low | Moderate to high | High |
Assess Load Characteristics: For industrial motors or variable loads, MCCBs with adjustable trip settings offer better protection.
Plan for Future Expansion: Choose breakers that can handle potential load increases.
Consult Electrical Codes: Always follow NEC or local standards for breaker selection.
Consider Maintenance: MCCBs tend to require less frequent replacement and offer easier resetting.
Seek Professional Advice: When in doubt, consult an electrical engineer or certified electrician to ensure safety and compliance.
Match Breaker to Panel: Verify compatibility between the breaker and panelboard or switchgear.
Selecting the right circuit breaker ensures safety, system reliability, and cost efficiency. An informed choice reduces downtime and protects equipment effectively.
Tip: Always evaluate your system’s current, voltage, and fault levels alongside environmental conditions to select a circuit breaker that balances safety, performance, and cost.
The article highlights the differences between Molded Case Circuit Breakers (MCCBs) and standard circuit breakers. MCCBs offer robust construction, adjustable trip settings, and handle higher currents, making them ideal for industrial applications. In contrast, standard breakers like Miniature Circuit Breakers (MCBs) are suited for residential use with fixed settings. As technology advances, circuit breaker designs continue to evolve, enhancing safety and efficiency. Aisikai provides innovative MCCBs, ensuring reliable protection and adaptability in diverse electrical systems.
A: A molded case circuit breaker (MCCB) is a type of circuit breaker designed to protect electrical circuits from overloads, short circuits, and faults, with adjustable trip settings and higher current ratings.
A: A molded case circuit breaker works by using thermal-magnetic trip units to detect abnormal current flow and interrupt the circuit, preventing damage and ensuring safety.
A: Molded case circuit breakers offer enhanced safety, durability, and flexibility, making them ideal for high current and industrial applications compared to standard circuit breakers.
A: Molded case circuit breakers generally have a higher upfront cost due to advanced features and robust construction but offer long-term savings through durability and reduced maintenance.
