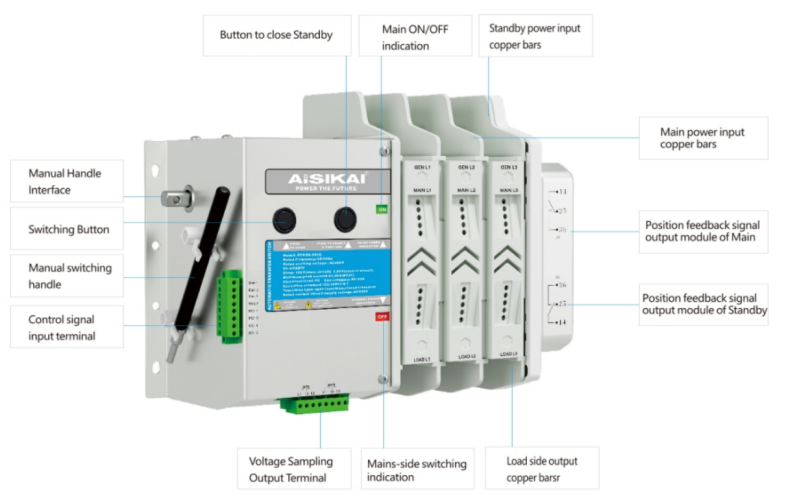

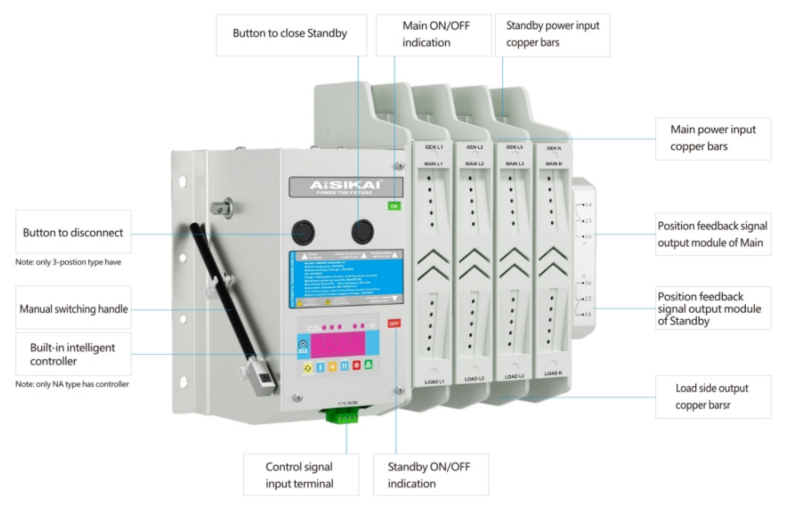

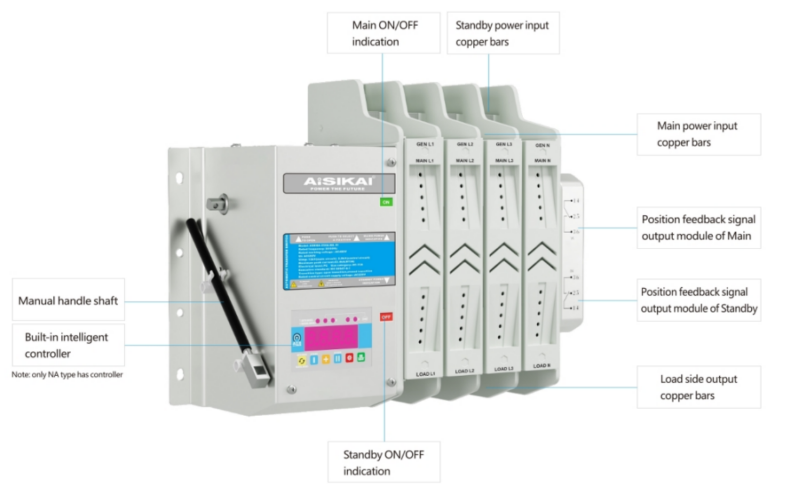

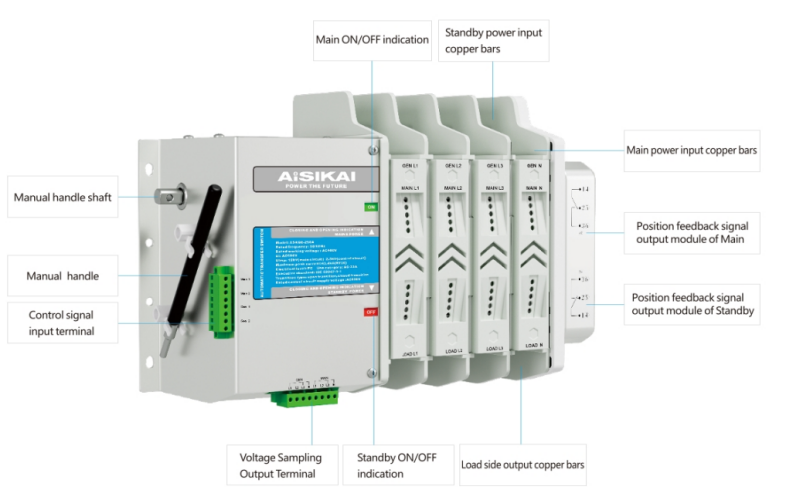

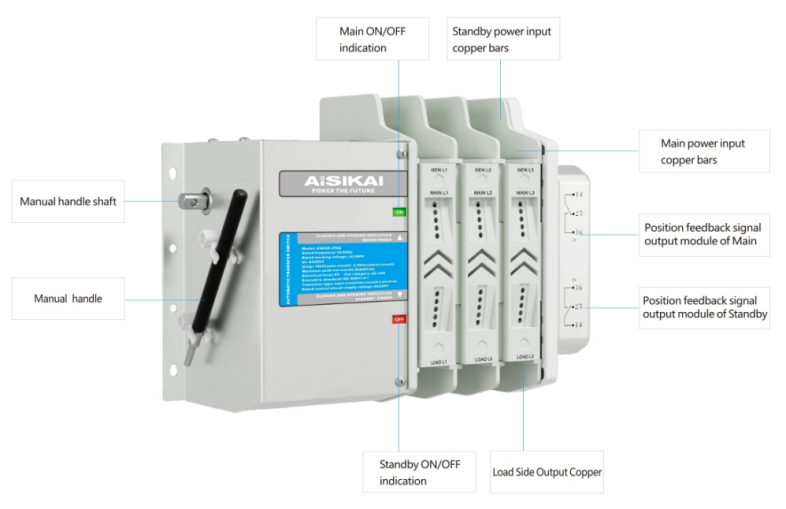

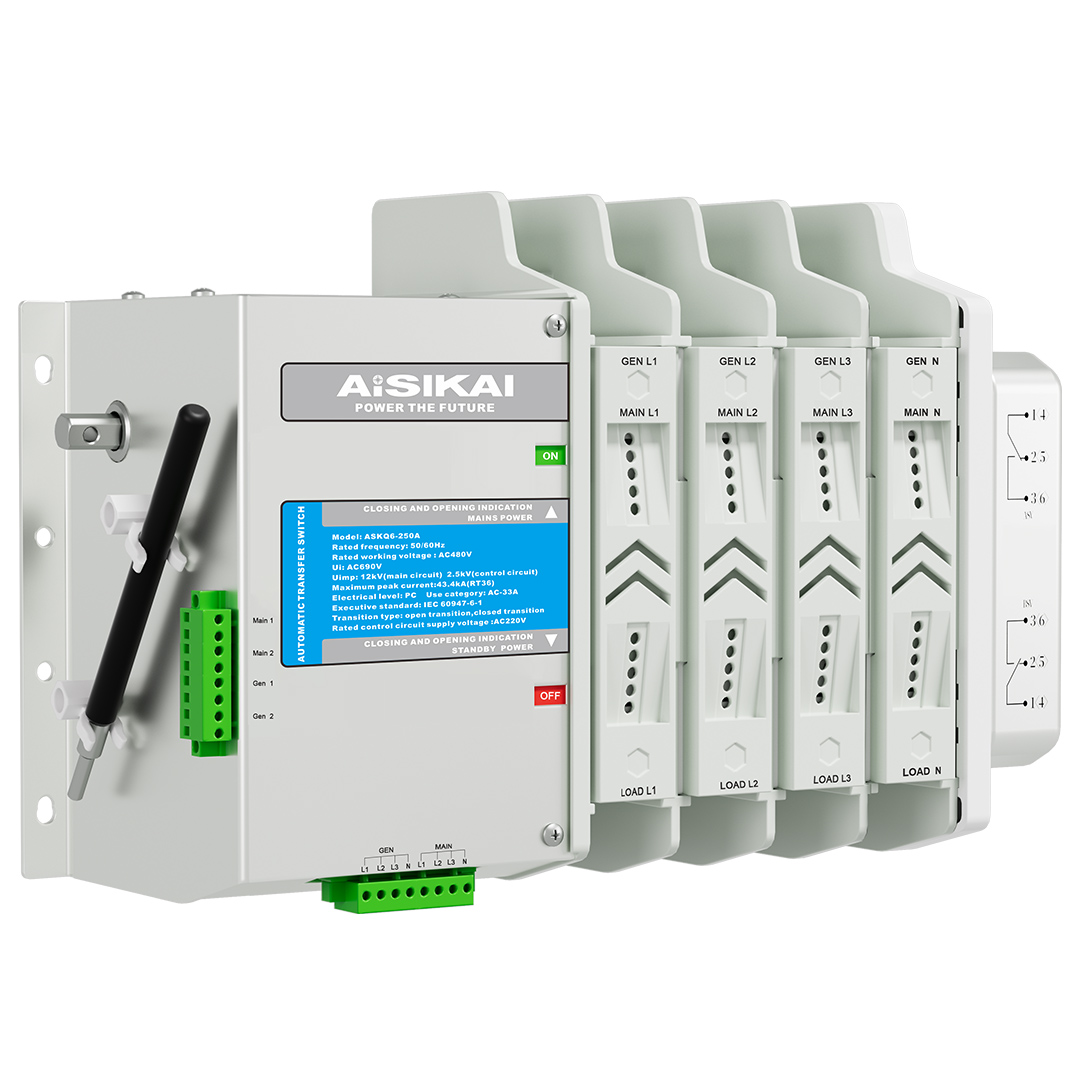

Structural Overview
|
|
J BASIC TYPE | X - With 0 Position Type |
| Category | Specification |
| Peimary Function | Automatic switching between dual power sources in emergencies to ensure continous operation of critical load(emergency lighting, staircases, fire protection systems, etc.) |
| Target Load Type | Class I Loads |
| Power Source Types | Grid to Grid, Auto-start Generator Sets, Battery Banks, etc. |
| Applications | Firefighting, Telecommunications, Hospitals, Hotels, High-rises, Industrial lines,TV stations, and critical power suppl points. |

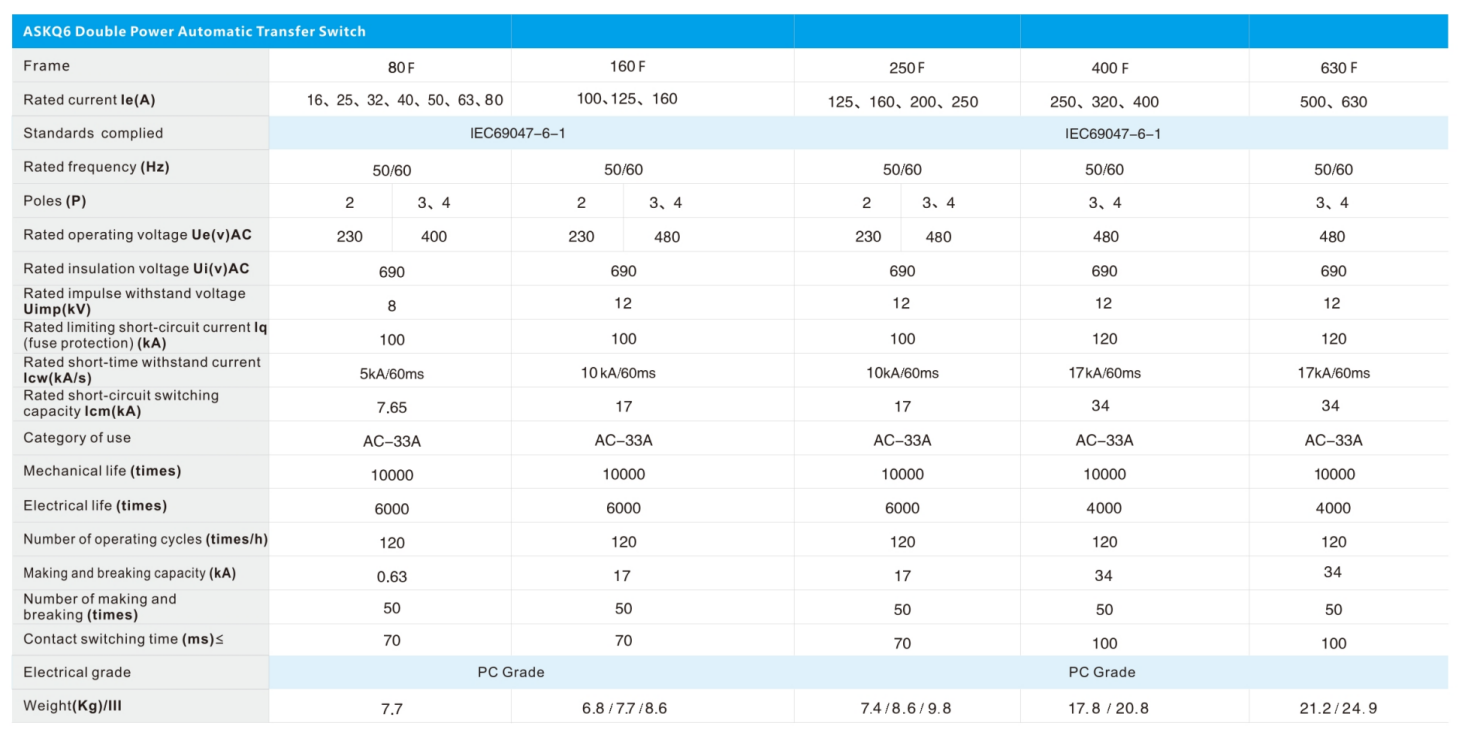

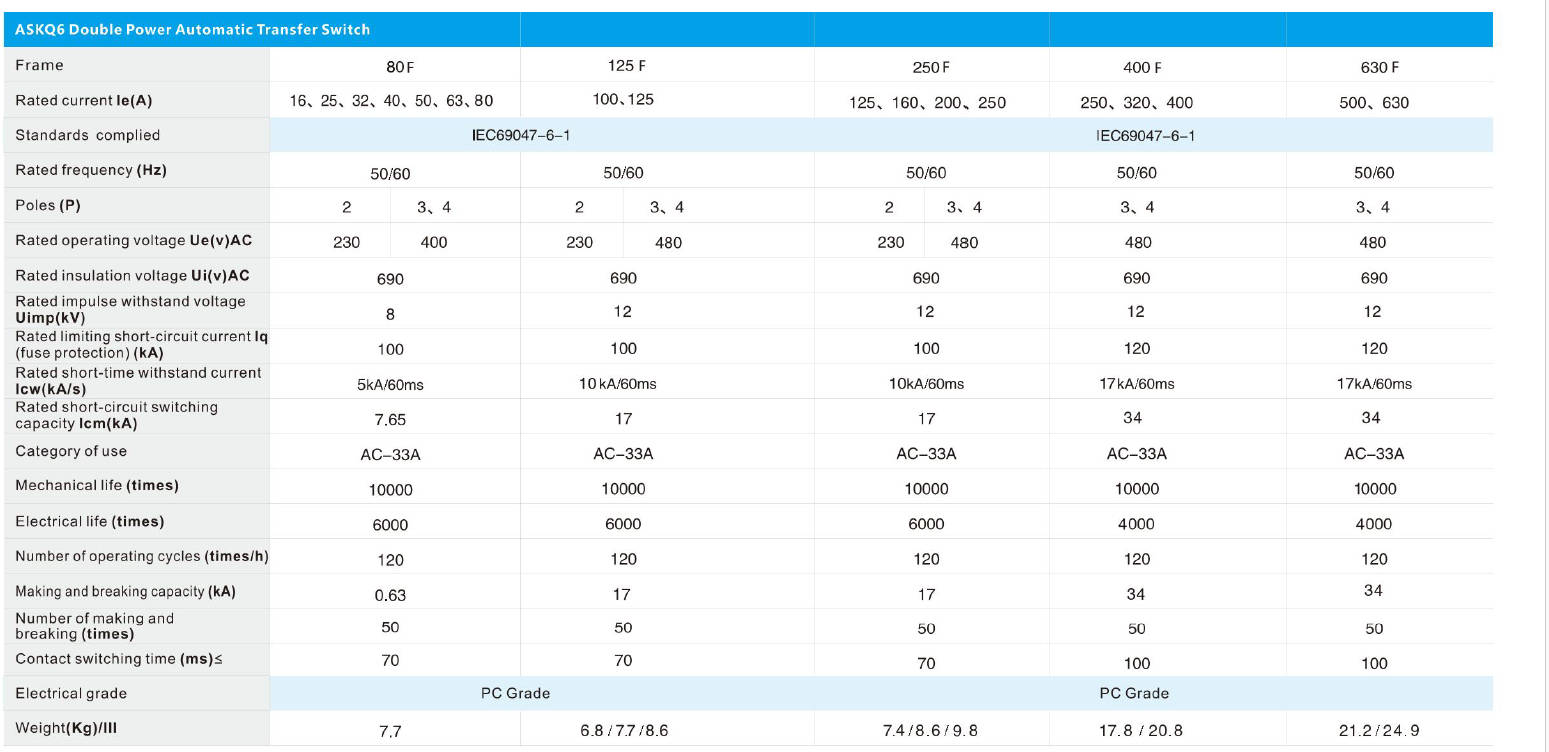

Technical Specifications

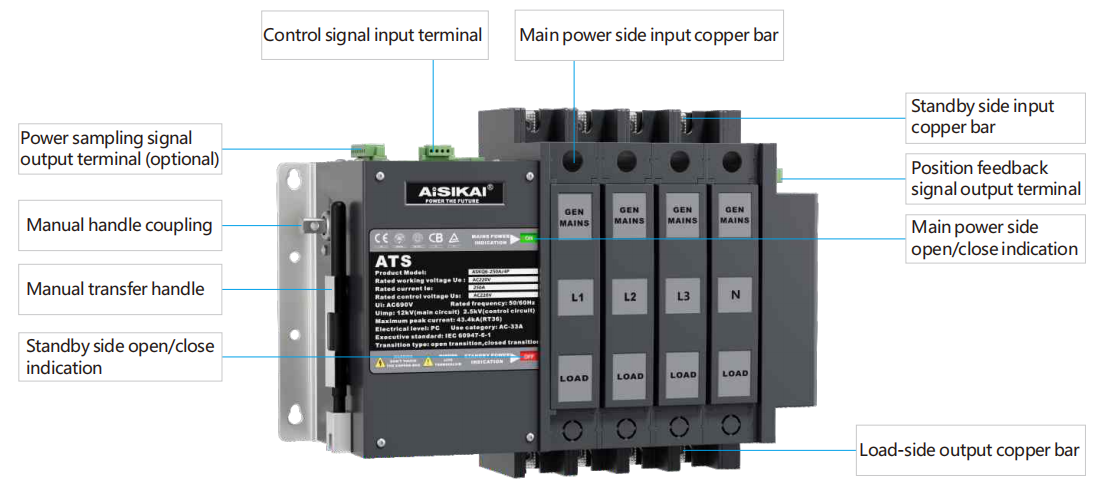

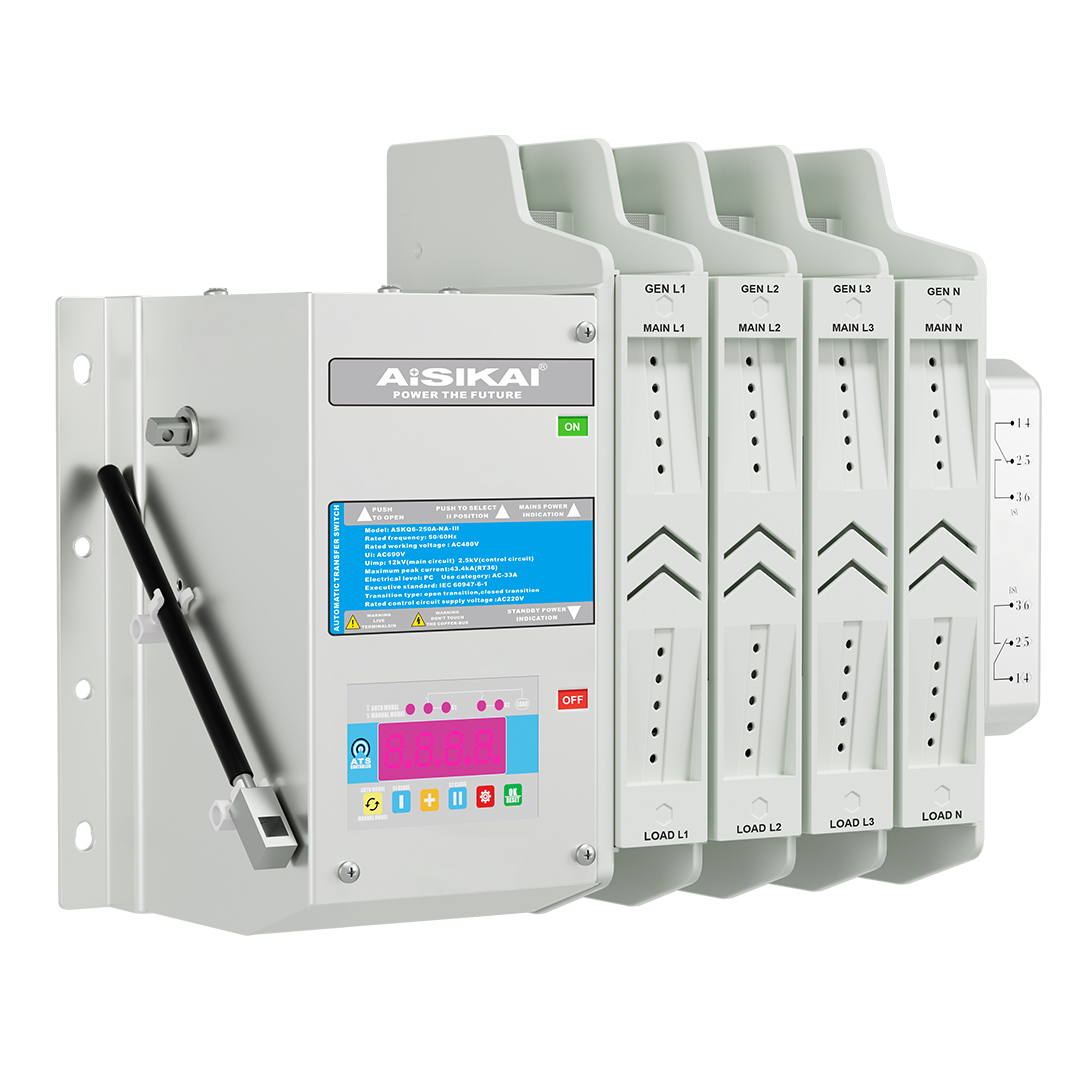

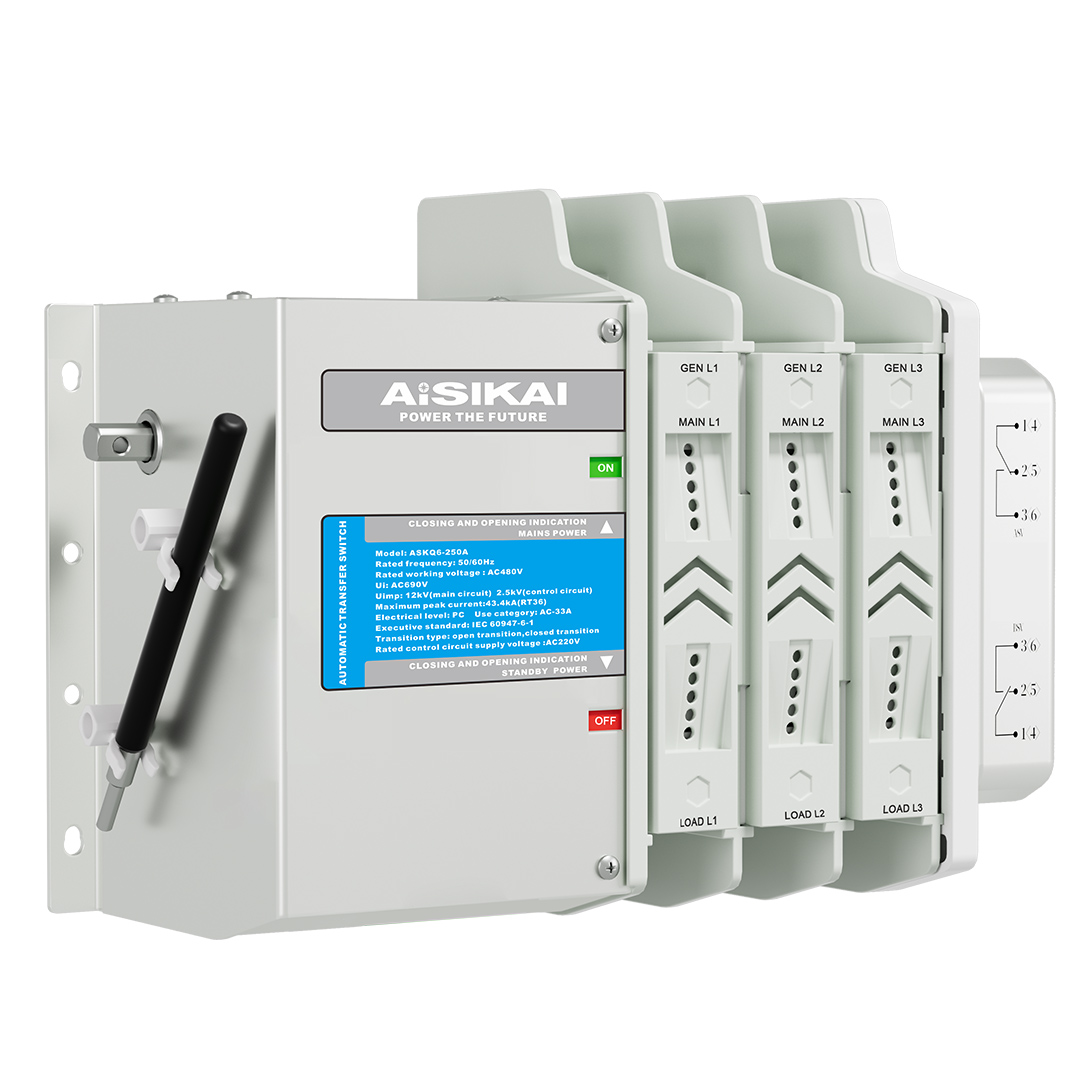

1. Below are the key technical parameters of the ASKQ6 Series J BASIC TYPE.
| Category | Specifications | Functions | Support | |||||
| Frame | 160F | 250F | Function code | J | ||||
| Rated current le(A) | 16,20,25,32,40,50,63,80,100,125,140,150,160 | 63,80,100,125,140,150,160,180,200,225,250 | Structure | |||||
| Standards | IEC60947-6-1 | Electrical two-position type | Y | |||||
| Rated frequency(Hz) | 50/60 | Manual two-position type | Y | |||||
| Poles(P) | 2 | 3,4 | 2 | 3,4 | Control mode | |||
| Rated operating voltage Ue(V)AC | 230 | 400 | 230 | 400 | Remote electrical control(external controller) | Y | ||
| Control voltage(V)AC | 230 | Emergency manual | Y | |||||
| Rated insulation voltage Ui(V)AC | 1000(main circuit); 500V(auxiliary circuit,control circuit | Applucation function | ||||||
| Rated impulse withsand voltage Uimp(KV) | 8 | Self-transfer and self-recovery | External control | |||||
| Rated limited short-circuit current lq(kA) | fuse protection | 100 | Self-transfer but no self-recovery | External control | ||||
| circuit breaker protection | 50 | Normal power supply priority | External control | |||||
| Rated short-time withstand current lcw(kA/s) | 10kA/100ms | Standby power supply priority | External control | |||||
| Rated short-circuit making capacity lcm(kA) | 17 | Power failure delay setting | External control | |||||
| Utiilization category | AC-33A | power recovery delay setting | External control | |||||
| Mehcanical life (cycle) | 10000 | Feedback signal | Passive(Ⅰ,Ⅱ) | |||||
| Electrical life (cycle) | 6000 | Note:Y indicates the pressnce of this function. | ||||||
| Number of operation cycles (cycles/hour) | 120 | |||||||
| Switchhing time (ms)≤ | 70 | |||||||
| Electrical grade | PC | |||||||

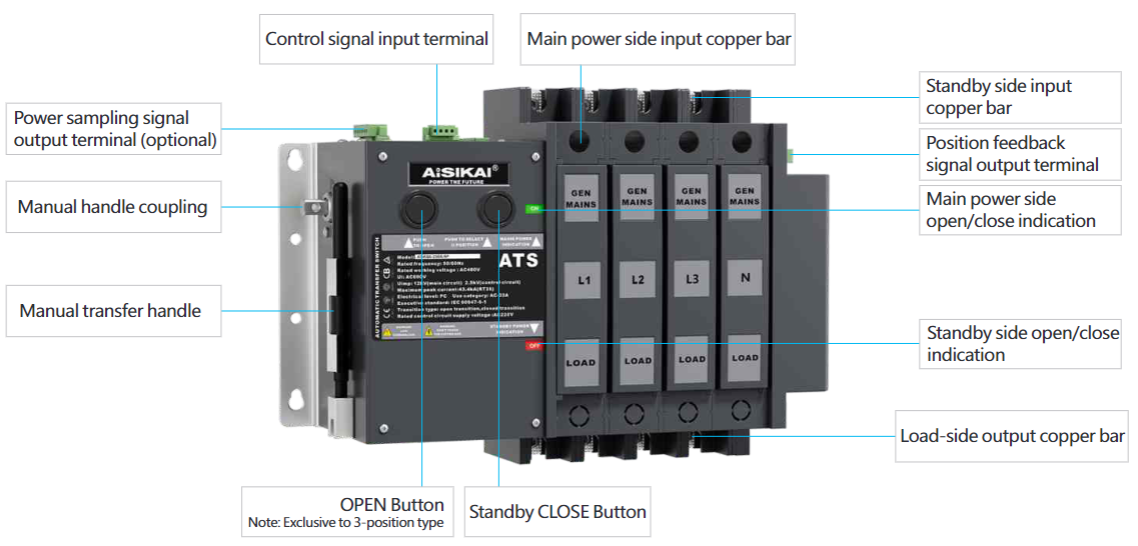

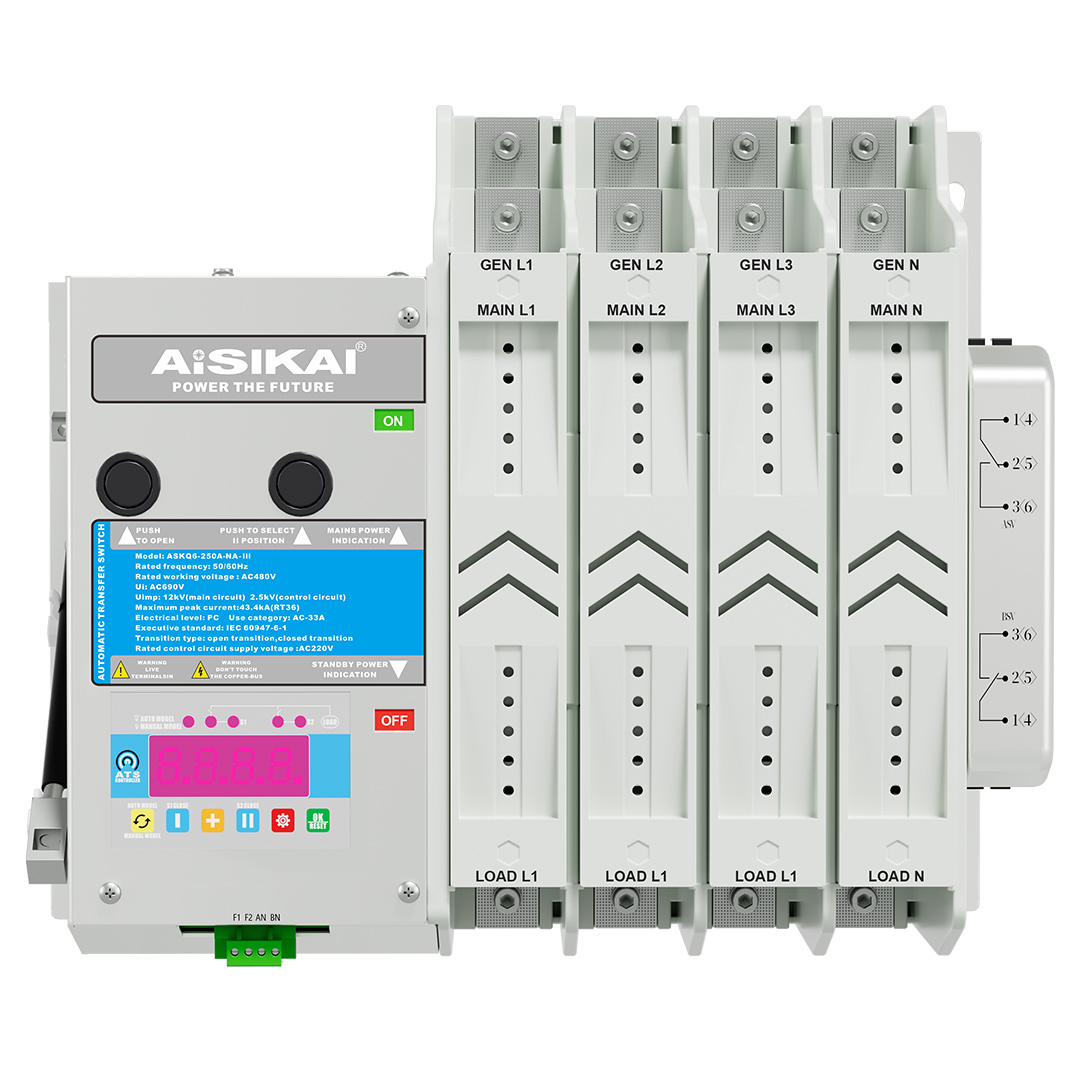

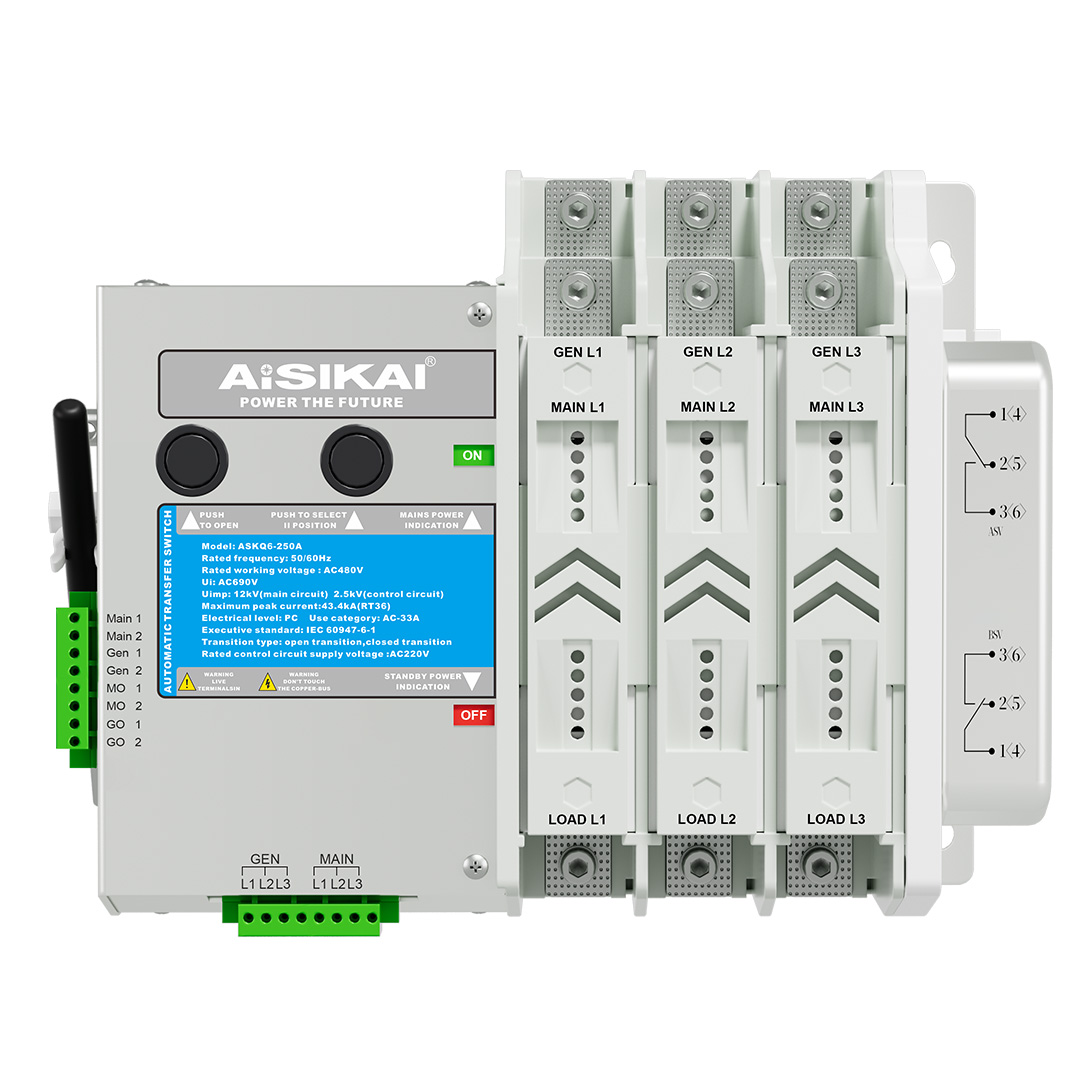

2. Below are the key technical parameters of the ASKQ6 Series X - With 0 Position Type.
| Category | Specifications | Functions | Support | |||||
| Frame | 160F | 250F | Function code | X | ||||
| Rated current le(A) | 16,20,25,32,40,50,63,80,100,125,140,150,160 | 63,80,100,125,140,150,160,180,200,225,250 | Structure | |||||
| Standards | IEC60947-6-1 | Electrical two-position type | Y | |||||
| Rated frequency(Hz) | 50/60 | Manual two-position type | Y | |||||
| Poles(P) | 2 | 3,4 | 2 | 3,4 | Control mode | |||
| Rated operating voltage Ue(V)AC | 230 | 400 | 230 | 400 | Remote electrical control(external controller) | Y | ||
| Control voltage(V)AC | 230 | Emergency manual | Y | |||||
| Rated insulation voltage Ui(V)AC | 1000(main circuit); 500V(auxiliary circuit,control circuit | Applucation function | ||||||
| Rated impulse withsand voltage Uimp(KV) | 8 | Self-transfer and self-recovery | External control | |||||
| Rated limited short-circuit current lq(kA) | fuse protection | 100 | Self-transfer but no self-recovery | External control | ||||
| circuit breaker protection | 50 | Normal power supply priority | External control | |||||
| Rated short-time withstand current lcw(kA/s) | 10kA/100ms | Standby power supply priority | External control | |||||
| Rated short-circuit making capacity lcm(kA) | 17 | Power failure delay setting | External control | |||||
| Utiilization category | AC-33A | power recovery delay setting | External control | |||||
| Mehcanical life (cycle) | 10000 | Feedback signal | Passive(Ⅰ,Ⅱ, 0) | |||||
| Electrical life (cycle) | 6000 | Note:Y indicates the pressnce of this function. | ||||||
| Number of operation cycles (cycles/hour) | 120 | |||||||
| Switchhing time (ms)≤ | 70 | |||||||
| Electrical grade | PC | |||||||
Normal Operating Conditions And Installation Methods
| Category | Requirements |
| Temperature | -10°C to +40°C, with the 24-hour average not exceeding +35°C; |
| Humidity | Under the condition of +40°C, the average humidity shall not exceed 50%. At lower temperatures, higher relative humidity is permissible, such as reaching 90% at +25°C. Special measures should be taken for occasional condensation caused by temperature changes; |
| Altitude | Less than 2000 meters; if exceeding 2000 meters, please operate with derated values; |
| Vibration and gas | The operating environment shall be free from strong vibration and shock, as well as harmful gases that corrode metals and damage insulation; |
| Surrounding substances | Free from severe dust, conductive particles, and explosive hazardous substances; |
| Pollution degree | 3 |
| Installation category | Ⅳ |
| Installation inclination | The product is fixedly installed within the cabinet, with a maximum inclination of +22.5°. |
FAQ
Q: What certifications does the ASKQ6 hold?
A: It complies with CCC, CE and ISO 9001/14001/45001 standards, ensuring global safety and quality compliance.
Q: What is the lifespan of the contacts?
A: The electrical life ranges from 4,000 to 6,000 cycles, depending on the model. Regular maintenance extends operational longevity.
Q: Is the ASKQ6 suitable for outdoor use?
A: Yes, its IP-rated design and AC-33A certification allow performance in harsh environments, including dust and moisture.
