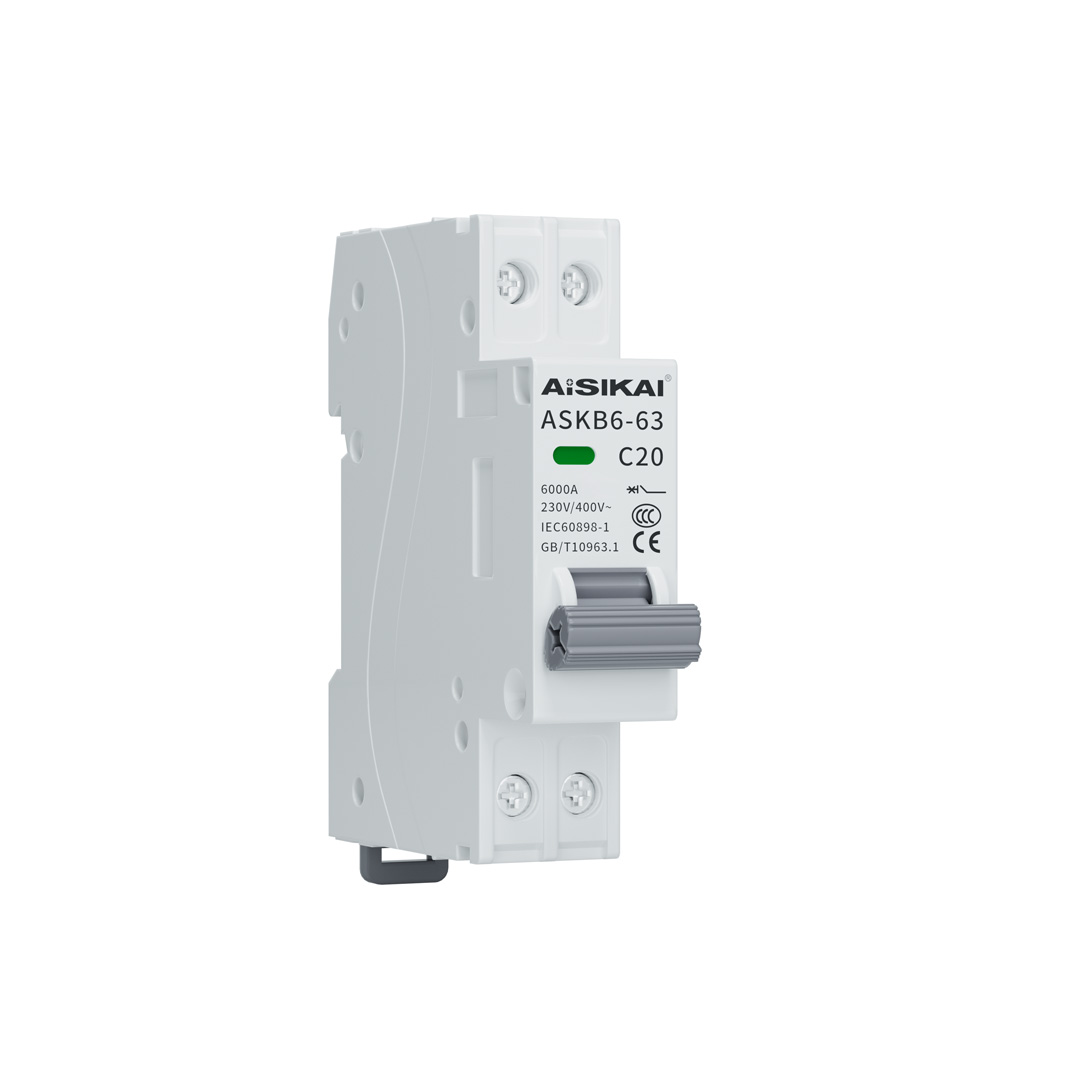

ASKB6
AISIKAI
| Quantity: | |
|---|---|
Type Desigation
ASK | B | 6 | 40 | L | 1P+N | C | 40A |
| Company Code | Product code | Design Serial | Frame Ratings | Function derivation code | Number of Poles | Tripper Type | Rated Current(A) |
AISIKAI ELECTRIC | Miniature Circuit | 6:DPN type | 40: 40A frame | No code:normal protction | 1P+N | C:LIGHT type | 6-32A |
| ASKB6 series household miniature circuit breakers are suitable for the end power distribution lines of office buildings, residences and general industrial use. ASKB2 can protect lines against overload and short-circuit, and provide functions of isolation and control. Under normal conditions, MCB can also be used in infrequent on-off control of electrical devices and lighting lines. The MCB are suitable for AC 50/60Hz, rated voltage below 230V, rated current below 40A. The MCB adopts the innovative "phase line+ N line" design, which can cut off the phase and neutral lines at the same time, achieving higher safety performance and avoiding personal and fire hazards caused by reverse wiring of the phase and neutral lines or high neutral-to-ground potential when using single-pole circuit breakers. The compact design makes its thickness only 18mm, which fully meets the high standard requirements for compo-nent volume of household distribution box. MCB has high breaking capacity, adopts modular design, and can be used with a variety of accessories to meet customers' requirements for other additional functions. |
I. By the over-current tripper rated current
Frame 63(A)： | 6, 10, 16, 20, 25, 32, 40 |
II. Classified by over-current tripper type
B type: protect pure resistive load and low-inductive lighting systemtripping characteristic: instantaneous trip range(3-5)In |
| C type: protect inductive load and high-inductive lighting systemtripping characteristic: instantaneous trip range(5-10)In |
Innovative "phase line+ N line" structural design. Thickness only 18mm. Save 50% spaceShell with ventilation slot design, active heat dissipation, reduce temperature riseComposite high conductive material. Longer service life Ergonomic operation design, non-slip handle for easy operation
Technical Data
63 Frame | ||
No of Poles | 1P+N: single phase two lines, N line is involved in breaking | |
Electrical Performance | ||
Functions | Short-circuit protection, overload protection, isolation, control | |
Rated frequency (f) | Hz | 50 |
Rated operational voltage (Ue) | V AC | 230 |
Rated current (In) | A | 6, 10, 16, 20, 25, 32, 40, |
Impulse withstand voltage (Uimp) | kV | 4 |
Instantaneous tripping type | C/D | |
| Rated short-circuit capacity (Icu) | k A | Icu=Ics=4(L) |
| Icu=Ics=6(H) | ||
Tripper type | Thermomagnetic | |
Service Life | Mechanical | 20000 |
Electrical | 8000 | |
Control & indication | ||
Optional accessories(multiple options available) | None | |
Connection & Installation | ||
Protection level | IP20 | |
Handle lock | None | |
Wiring Capacity | mm² | 1~25 |
Operational Temperature | ℃ | -5~40 |
Resistence to heat & humidity | 2 | |
Altitude | (m) | ≤2000 |
Air relative humidity | Not exceed 95% at +20℃; not exceed 50% at +40℃ | |
Pollution level | 2 | |
Installation environment | Without strong impact and vibration | |
Installation category | Ⅲ | |
Installation method | DIN standard rail | |
Outline Dimesions （Width x Height x Depth) | a | 18 |
b | 83 | |
c | 76 | |
Application Scenerios
General Operation & Installation Methods
Category | Requirement |
Operational Temperature | Between -5℃ and +40℃. The average value in 24 hours does not exceed +35℃ |
Altitude | Lower than 2000 meters. |
Operational humidity | The relative humidity at +40℃ shall not exceed 50%. Higher relative humidity is allowed at lower temperature. The average maximum relative humidity is 90% in the most humid month |
Installation level | The installation level is Ⅱ,Ⅲ. |
Pollution level | Level 2 |
Installation method | Install vertically or horizontally. Use YH35-7.5 standard DIN rail |
Installation conditions | The inclination of the mounting surface to the vertical surface does not exceed 5 degrees. Use environment should be without strong impact and |
Wiring method | Fasten the wires using screws. |
Wire inlet method | Wiring reversely is acceptable for normal type. |
FAQ
1. What are the rated current specs of ASKB6 series miniature circuit breakers?
- 40(A) frame: 6, 10, 16, 20, 25, 32
2. What do the trip curves (B/C/D/K/Z) mean?
-Type B (3–5× In): Homes (sensitive devices like electronics).
-Type C (5–10× In): Commercial (motors, fluorescent lighting).
-Type D (10–20× In): Industrial (high inrush currents, transformers).
-Type K/Z: Specialized (semiconductors, medical equipment).
3. Does MCB wiring direction matter?
Yes! Most MCBs label "LINE" (input) and "LOAD" (output). Reverse wiring may affect performance or safety.
4. MCB trips but won’t reset – What to do?
-Disconnect all loads and try resetting.
-If it still trips, check for short circuits (use a multimeter).
-Replace the MCB if defective.
5. What If an MCB Won't Reset After Tripping?
Possible Causes:
Persistent short circuit/ground fault.
MCB mechanism failure (e.g., failed to reset).
Solution: Inspect wiring or replace the MCB.
7. Can MCBs Be Used in DC Circuits?
Standard MCBs: Designed for AC; DC use requires special models (DC MCBs).
DC Ratings: Check manufacturer specs (e.g., 24V/48V DC systems in solar panels).
Arc Extinction: DC arcs are harder to interrupt, needing higher breaking capacity.
