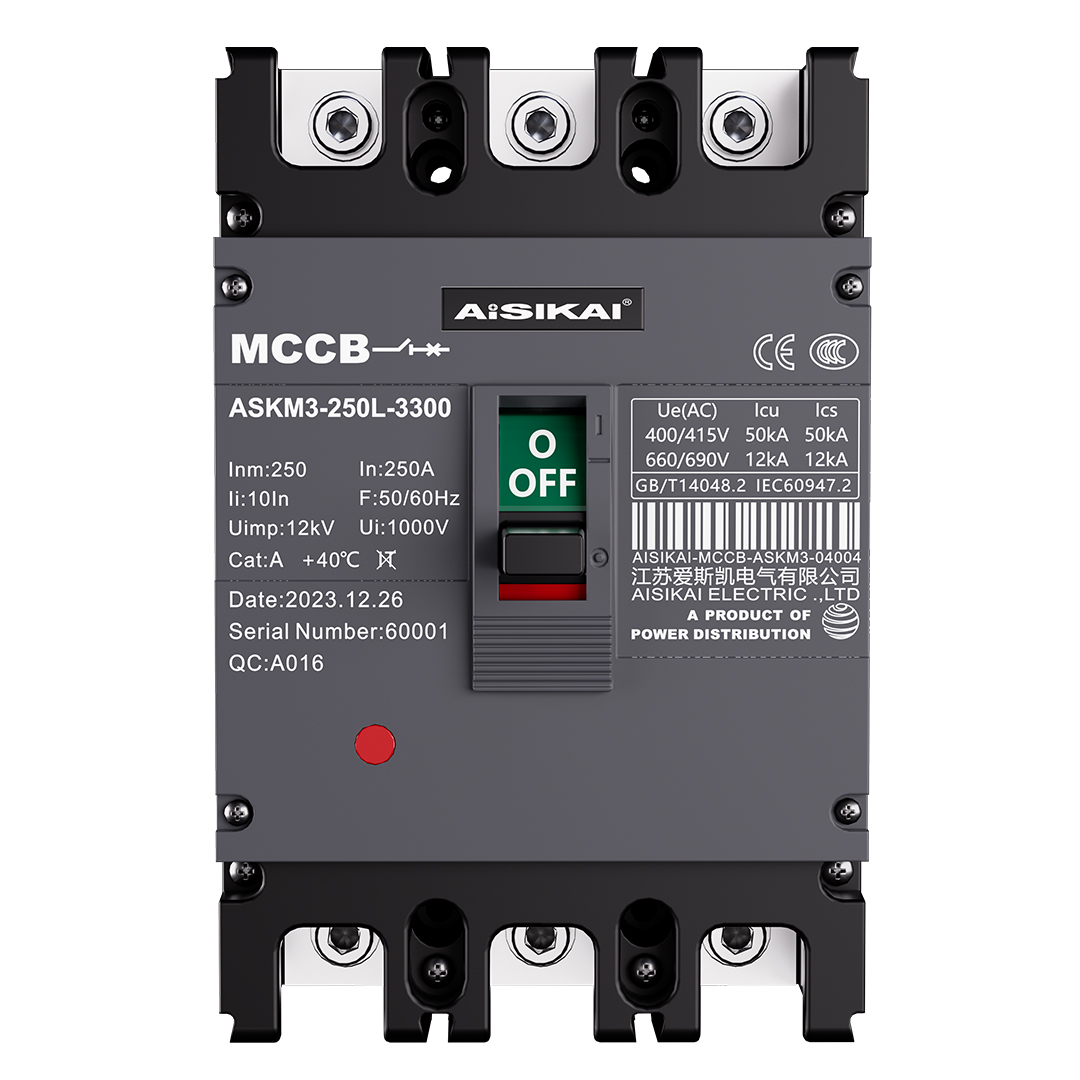

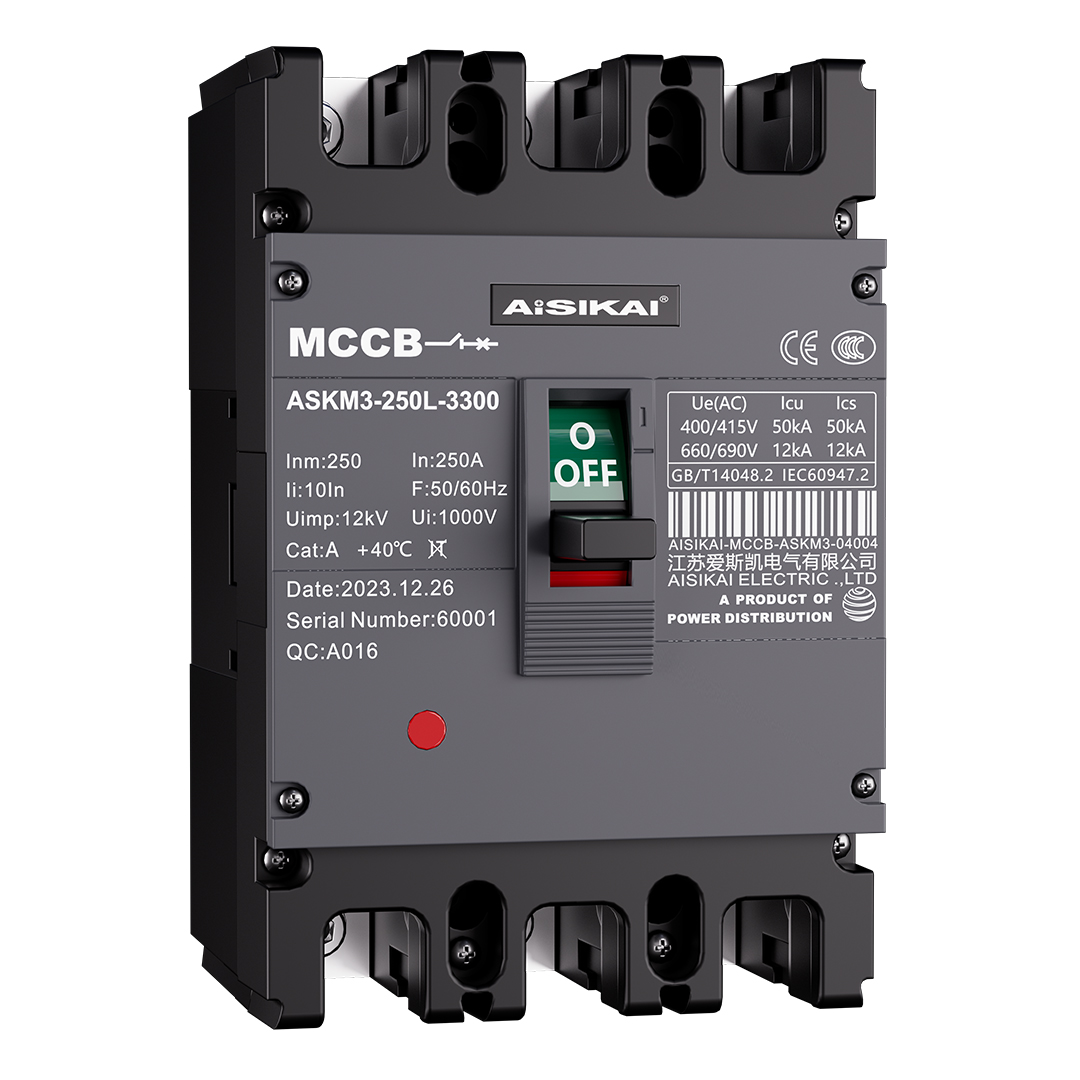

ASKM3 Intelligent Electronic Molded Case Circuit Breaker for General Protection

ASKM3 Intelligent Electronic Molded Case Circuit Breaker for General Protection

ASKM3 thermomagnetic molded case circuit breaker(hereinafter referred to as MCCB) is a new type of circuit breaker designed and developed by ourcompany using international advanced technology. The rated insulation voltage of MCCB is 1000V. MCCB is suitable for the distribution network of AC50/60Hz, rated voltage 690V and below, rated current 10A- 1250A. MCCB can distribute power and protect circuits and power equipment against faultslike overload, under-voltage, short. circuit and under-voltage. MCCB can also be used for infrequent switching of lines and infrequent starting ofmotors. The products have the characteristics of small volume, high breaking capacity, short flying arc, vibration resistant, etc. The whole series haveisolation function.

Quantity:
Availability:





Inquiry

Product Description

Download

FEATURES

Small volume, high breaking capacity, isolation function;

Electronic adjustable tripper based on MCU microprocessor technology, precise three-section

/ four-section protection;

Short-circuit protection with backup protection, there is a backup magnetic tripper to achieve

rapid tripping, limiting the short-circuit current to ensure reliable breaking

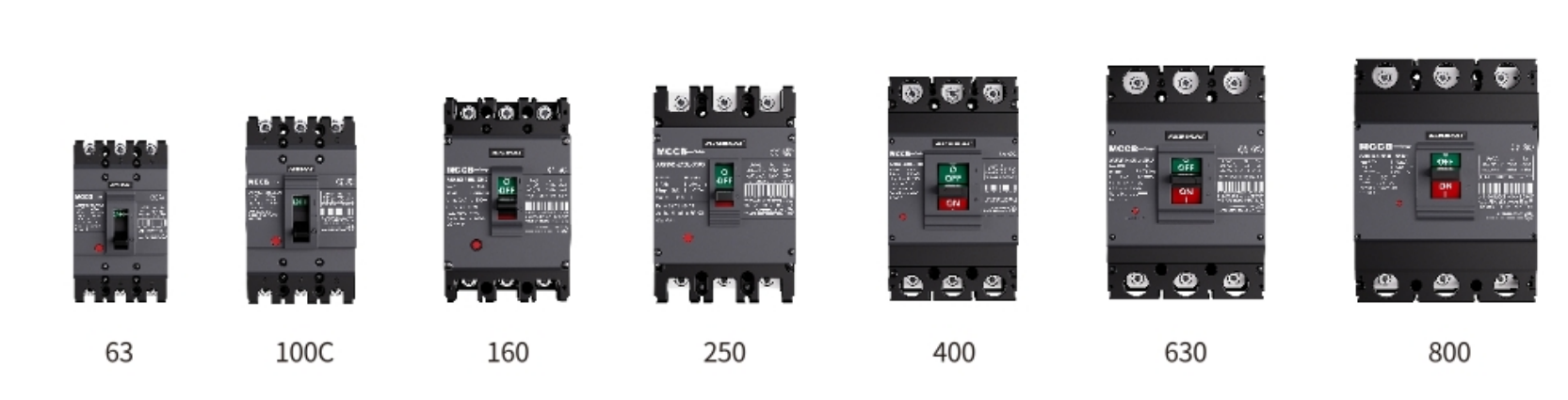

FRAME

7c1ad2d8-8b43-45ee-8eaf-988e39cb90e9

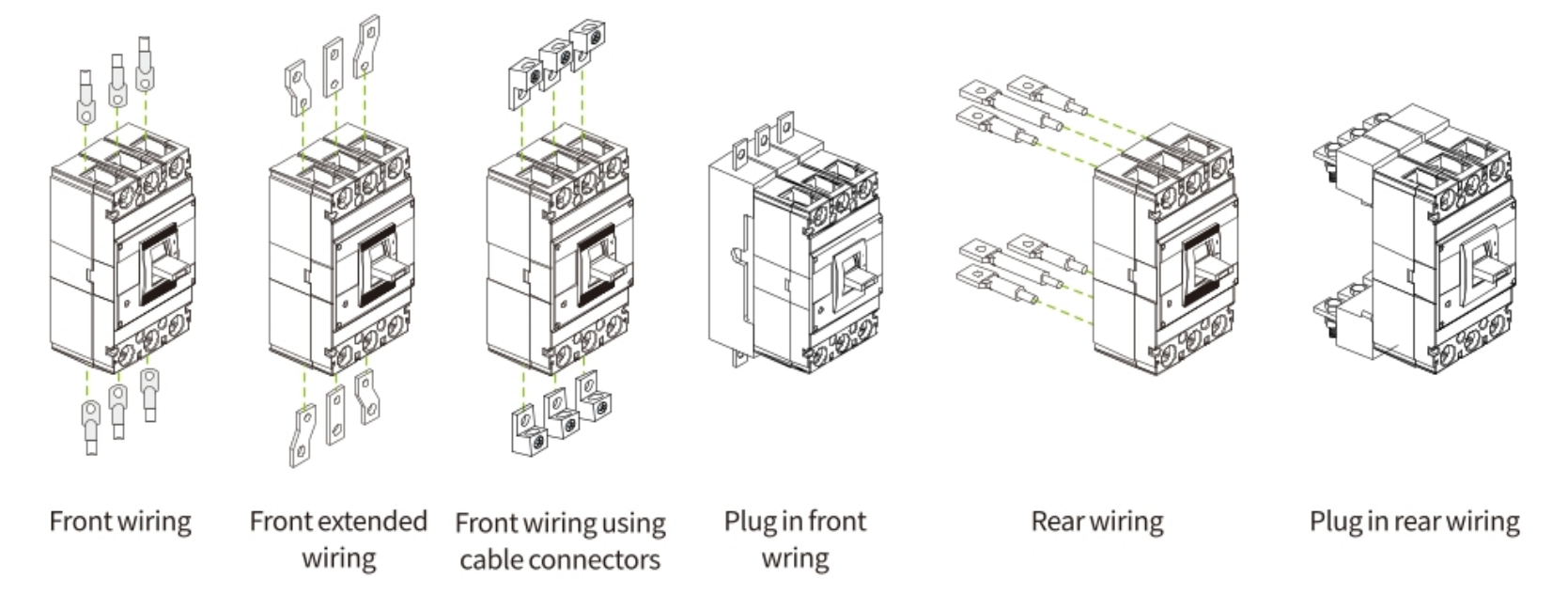

WIRING METHOD

6d9ebcd7-eac2-41ac-9d92-c0b28416b4ac

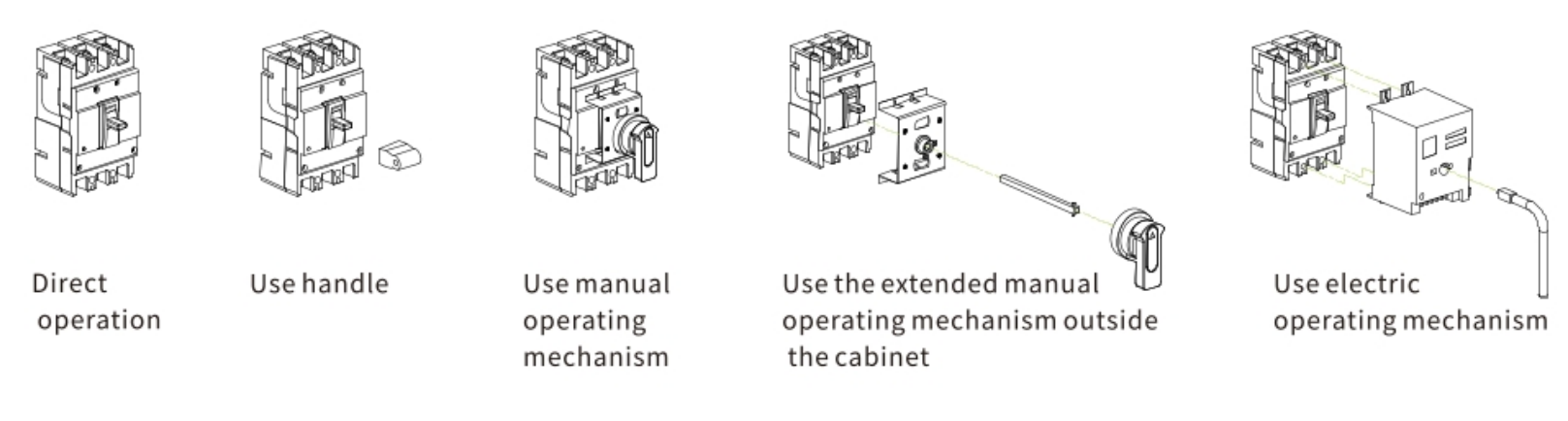

OPERATION METHOD

257a01b2-b14d-4a6d-9fd8-6bcbdf431845

APPLICABLE STANDARDS

GB14048.2、IEC60947.2

f7f2b8d8-8144-489a-a834-d81fbcfeb1d2

TECHNICAL DATASHEET OFASKM1E THERMOMAGNETICNORMAL PROTECTION MOLDED CASE CIRCUIT BREAKER

Model		ASKM3-63		ASKM3-100C	ASKM3-160				ASKM3-250				ASKM3-400				ASKM3-630				ASKM3-800
Frame rating current Inm(A)		63		100	160				250				400				630				800
No.of poles		3P/4P		3p/4p	3P/4P				3P/4P				3P/4P				3P/4P				3P/4P
Rated current In(A)		10 16 20 25 32 40 50 63		10 16 20 25 32 40 50 63 80 100	10 16 20 25 32 40 50 63 80 100 125 140 160				100 125 140 160 180 200 225 250				225 250 315 350 400				400 500 630				400 500 630 700 800
Rated insulation voltage Ui(V)		1000V		1000V	1000V				1000V				1000V				1000V				1000V
Rated impulse withstand voltage Uimp(V)		8000V		8000V	12000V				12000V				12000V				12000V				12000V
Rated operational voltage Ue(V)		AC 400V/415,AC 660V/690V
Arc distance(mm)		≯50(0)**		≯50(0)**	≯50(0)**				≯50(0)**				≯100(0)**				≯100(0)**				≯100(0)**
Breaking capacity level		L	M	C	C	L	M	H	C	L	M	H	C	L	M	H	C	L	M	H	L	M	H
Ultimate short- circuit breaking capacity Icu(kA)	AC400V/415V	36	55	40	40	50	70	85	40	50	70	100	40	65	70	100	40	70	75	100	75	85	100
	AC 660V/690V	10	12	12	12	12	20	20	12	12	20	20	15	15	20	20	20	20	30	30	20	30	30
Service short- circuit breaking capacity Ics(kA)	AC400V/415V	36	55	40	40	50	70	85	40	50	70	100	40	65	70	100	40	70	75	100	75	85	100
	AC660V/690V	10	12	12	12	12	20	20	12	12	20	20	15	15	20	20	20	20	30	30	20	30	30
Use category		A		A	A				A				A				A				A
Electrical service life(times of operation)	AC400V/415V	8000		8000	8000				8000				7500				7500				7500
	AC660V/690V	1500		1500	1500				1000				1000				1000				500
Mechanical service life(times of operation)	without maintenance	20000		20000	20000				20000				10000				10000				10000
	with maintenance	40000		40000	40000				40000				20000				20000				20000
Outline dimensions (mm)	W(3P/4P)	75/100		75/100	92/122				107/142				150/198				182/240				210/280
	L	130		130	150				165				257				270				280
	H(includinghandle)	61		61	92				90				106				110				114.5
