ASKM2E-Y
AISIKAI
IEC60947-2
| Quantity: | |
|---|---|
FRAME

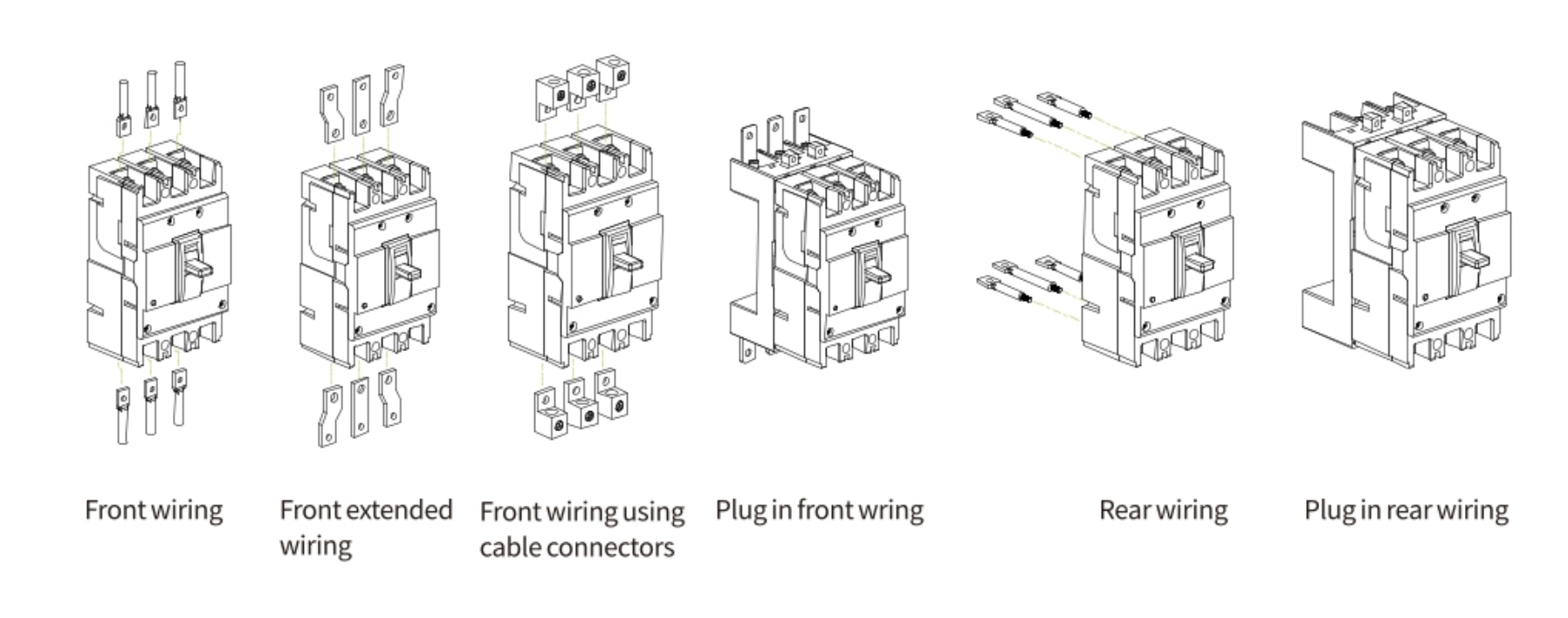

WIRING METHOD

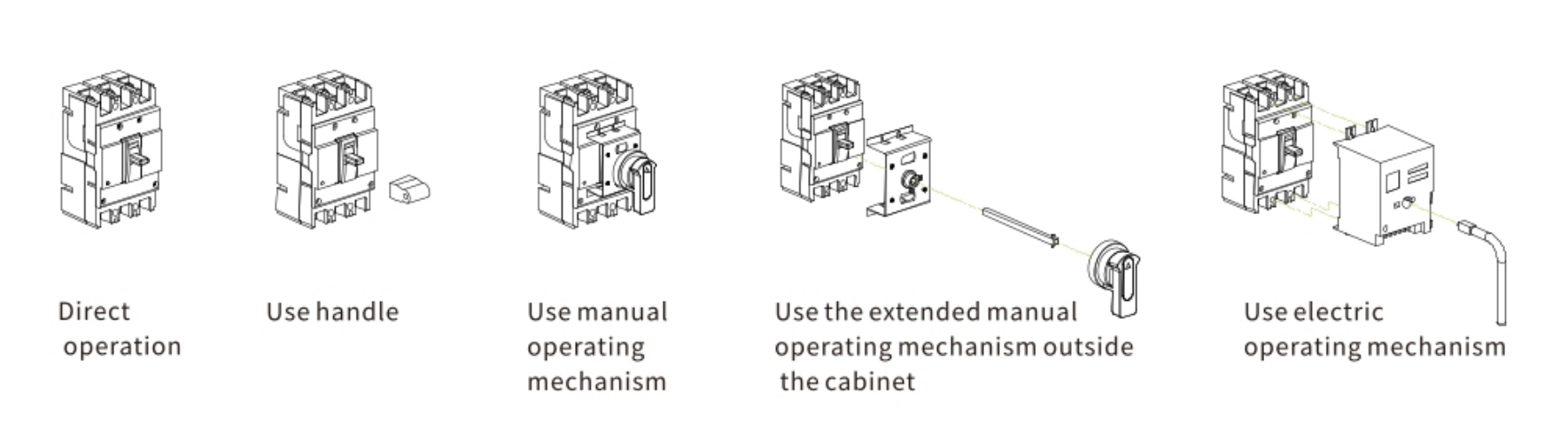

OPERATION METHOD
APPLICABLE STANDARDS
IEC60947-2
FEATURES
Small volume, high breaking capacity, short flying arc,vibration resistant;
Reasonable structure,reliable performance,easy installation;
Extensive optional accessories,can installed on-line,meet the technical requirements of different power distribution systems.
For more details, please see the article: Comparison Between AISIKAI M1 M2-and M3 Series MCCB.
FAQ
1、What are the wiring methods for this model?
There are 4 types in total: Front panel wiring,rear panel extended wiring,plug-in front panel wiring,plug-in rear panel wiring.
2、What are the differences between thermal magnetic and electronic types?
The thermal-magnetic type is based on thermal/electromagnetic effects and is suitable for general protection; the electronic type provides more precise protection settings and more functions.
3、What protection functions does it have?
Overload protection, short circuit protection, undervoltage protection.
4、What is breaking capacity?
The maximum short-circuit current that the MCCB can safely cut off, in kA. The selection should be greater than or equal to the fault current value.

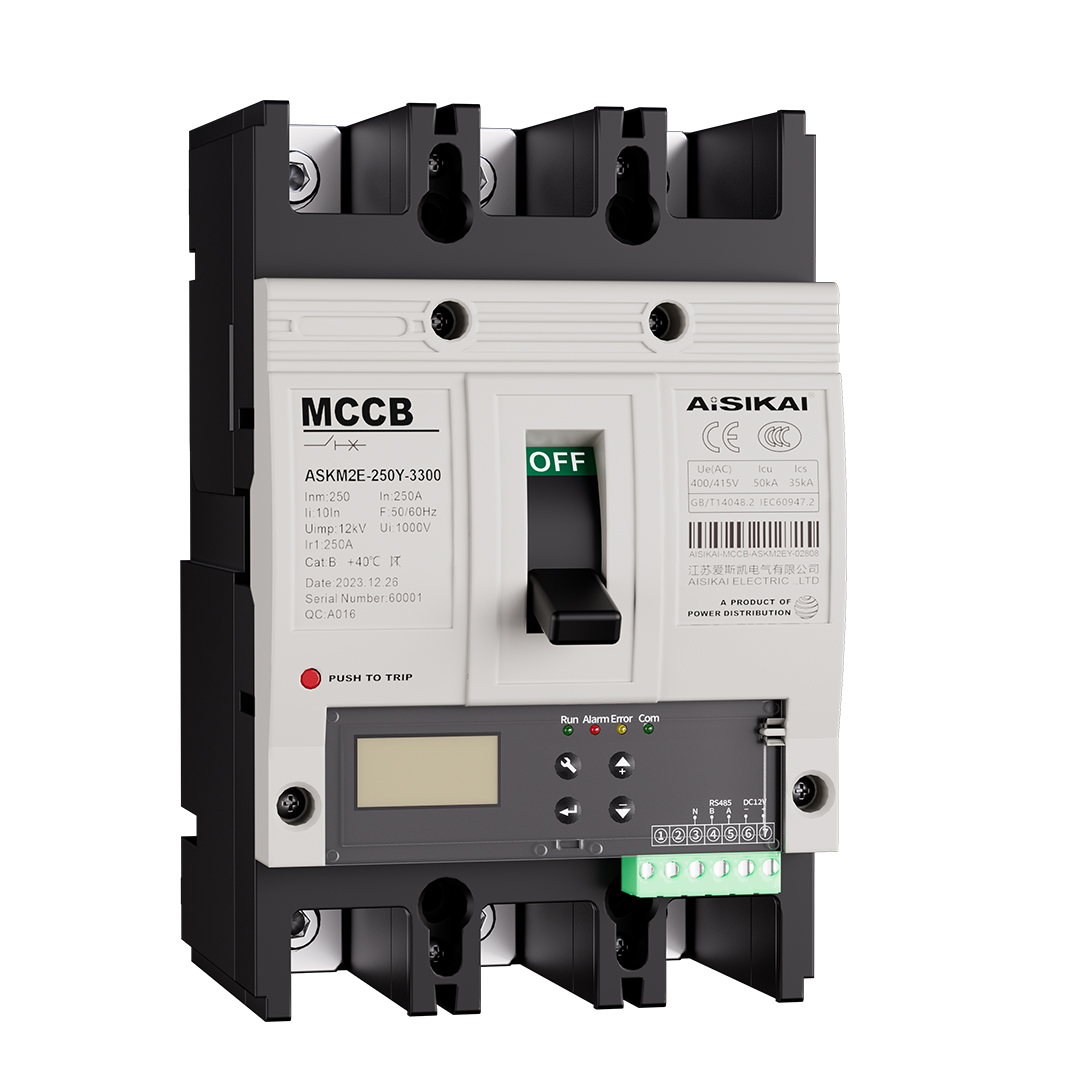

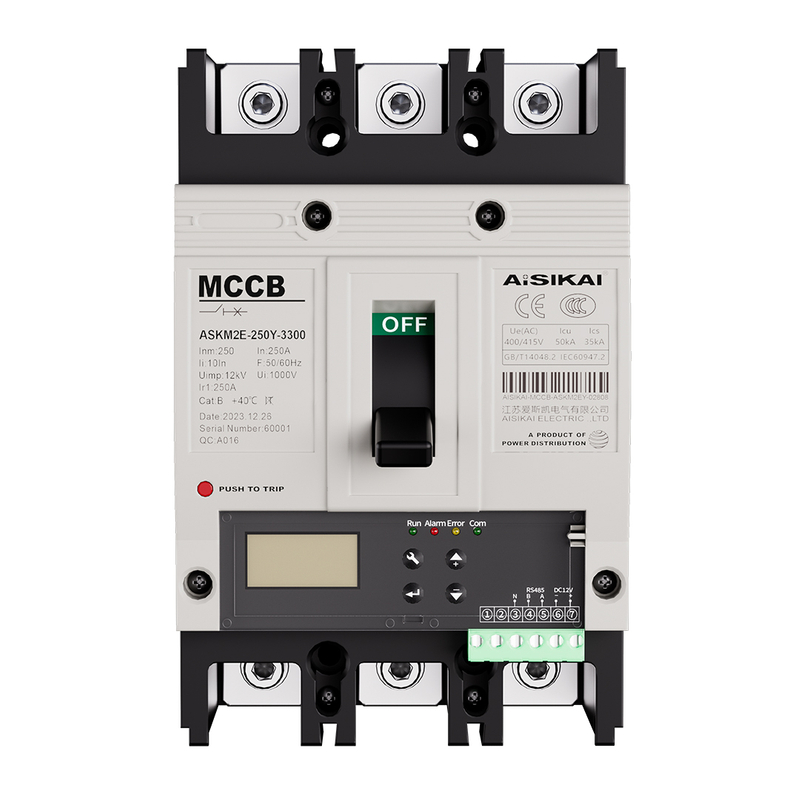

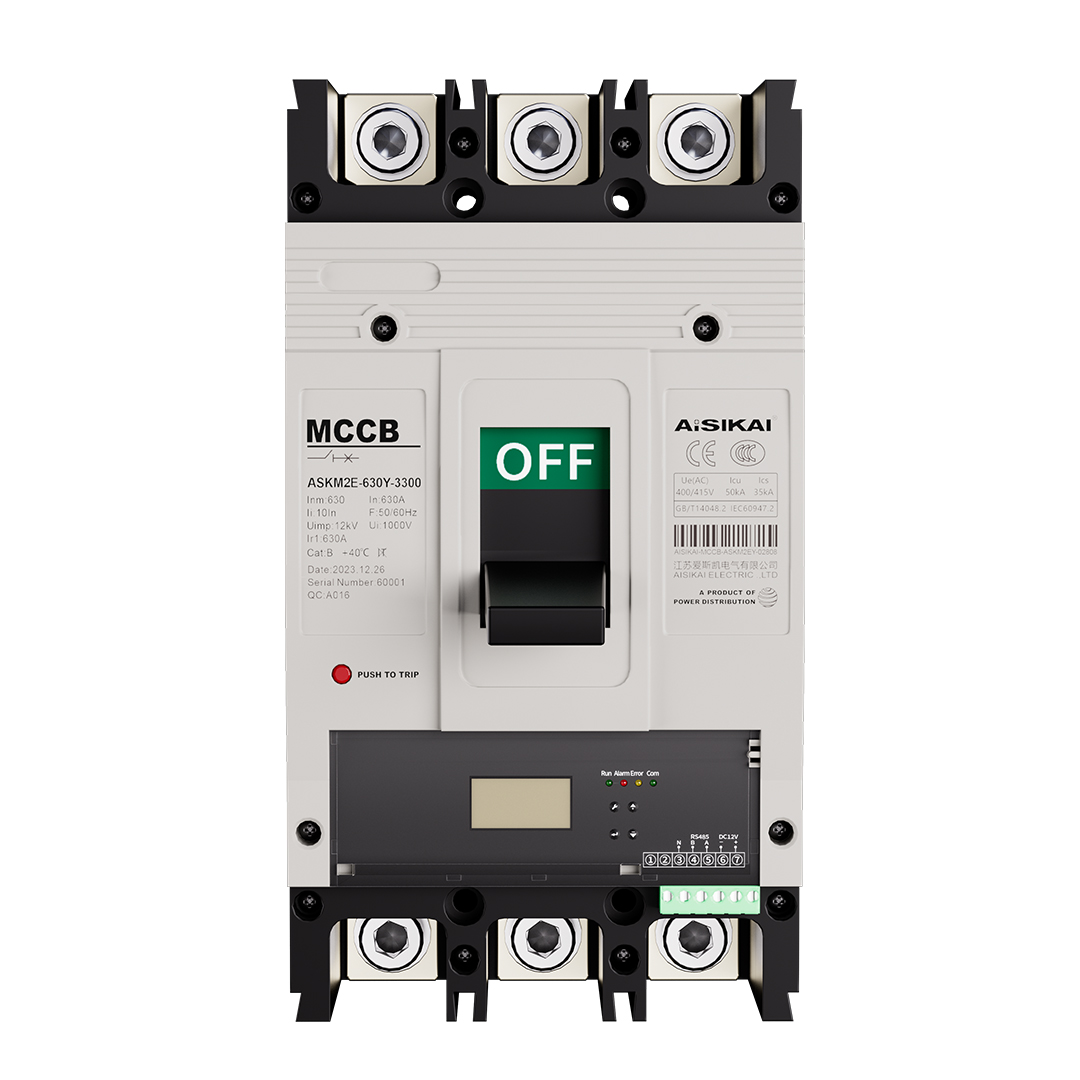

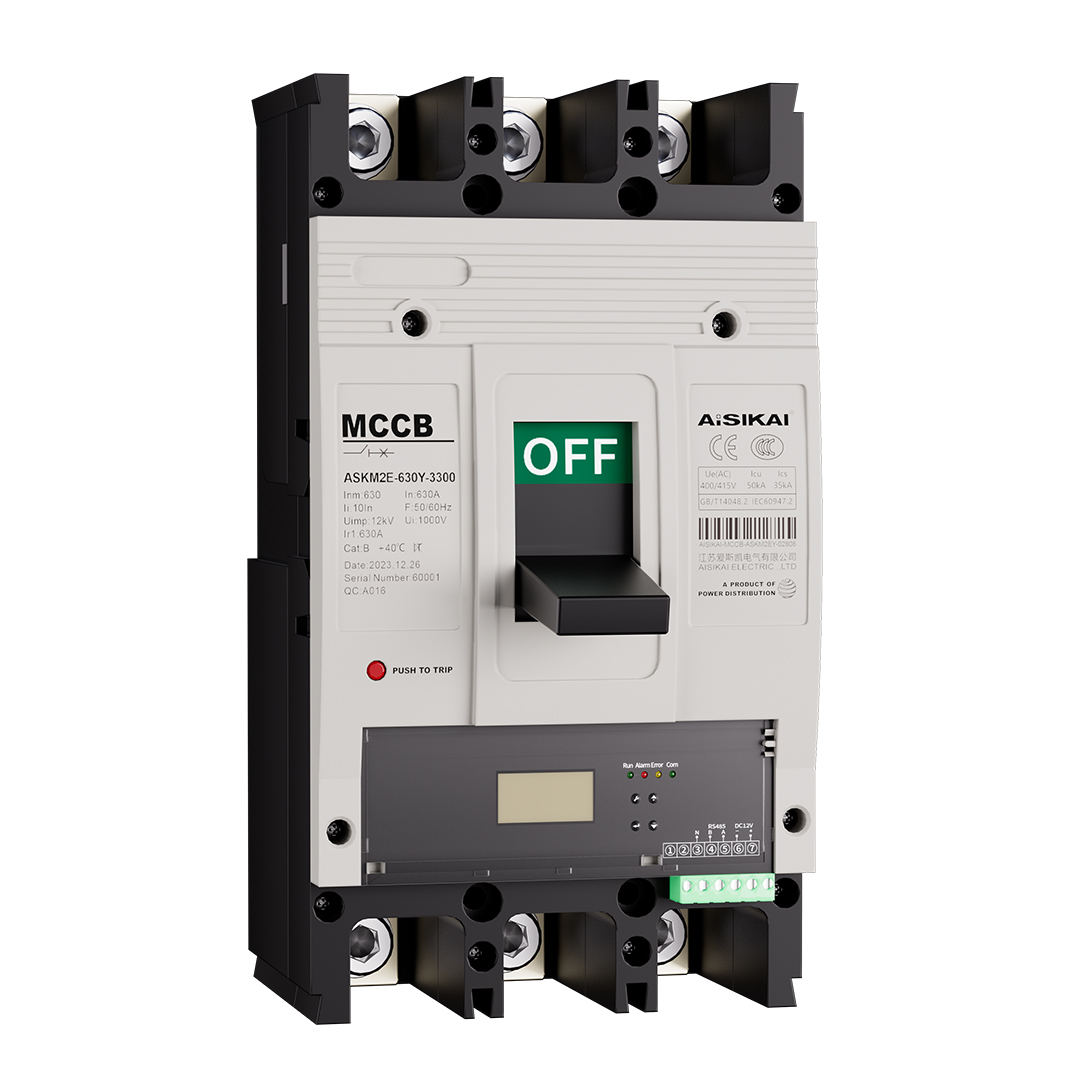

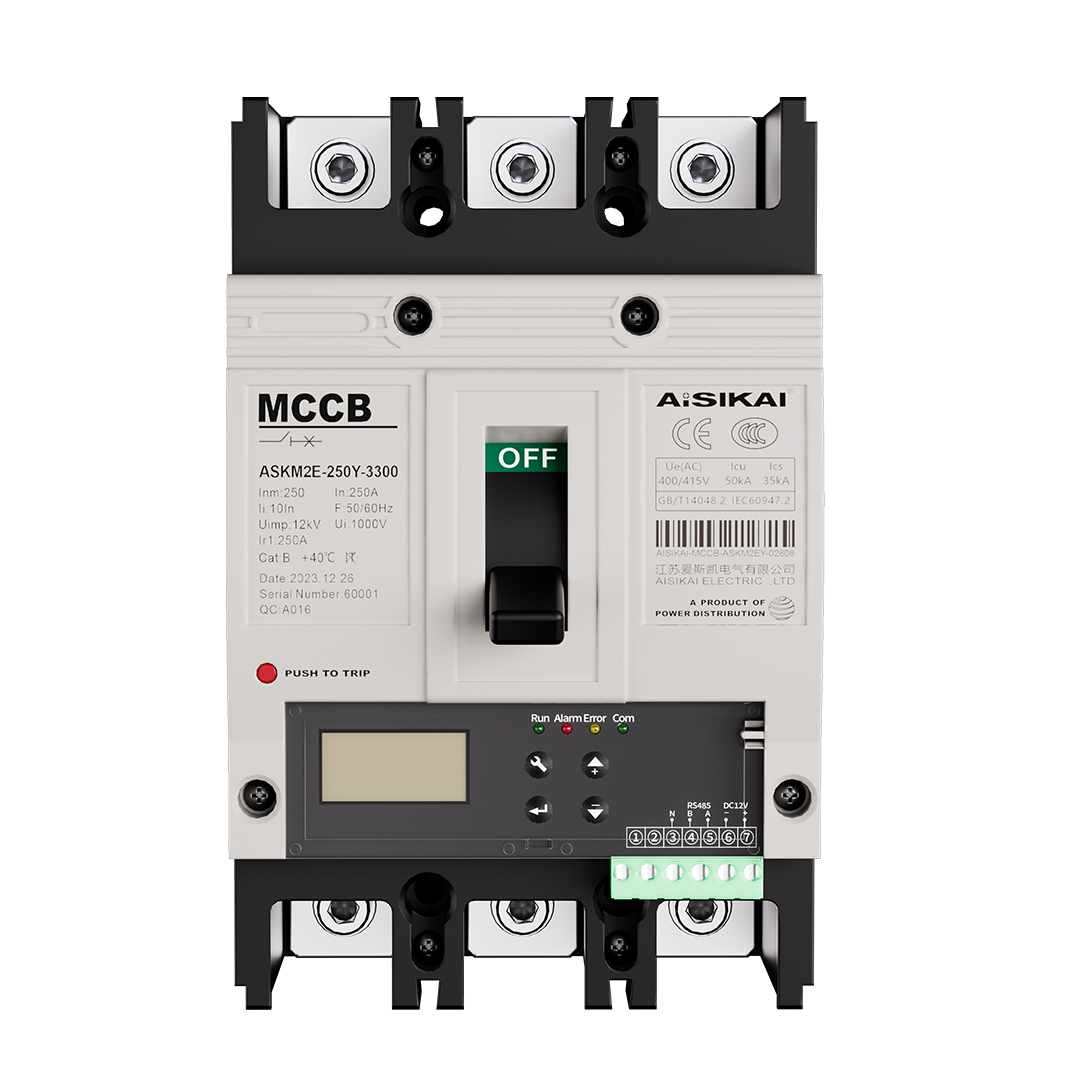

TECHNICAL DATASHEET OFASKM2E-Y ELECTRONIC GENERAL PROTECTION MOLDED CASE CIRCUIT BREAKER
| Model | ASKM2E-250Y | ASKM2E-630Y | |||||

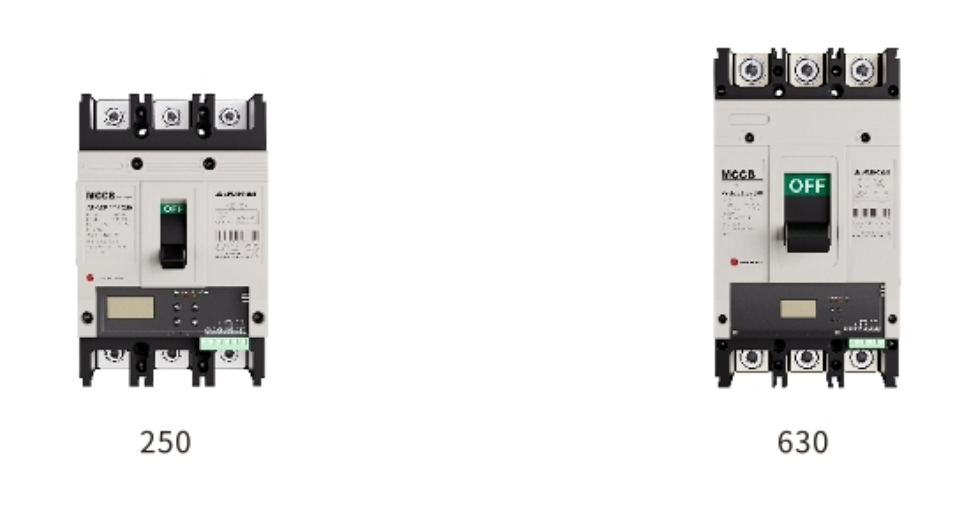

| Frame rating current Inm(A) | 250 | 630 | |||||
| Rated current In(A) | 160 | 250 | 400 | 630 | |||
| Overload long delay setting current Ir1(A)Ir1=(0.4~1In) | 63,80,90,100, 125,140,160 | 100,125,140,160, 180,200,225,250, | 250,315,350,400, | 400,420,440,460,480, 500,530,560,600,630, | |||
| Rated operational voltage Ue(V) | AC400V/415V,AC660V/690V | AC400V/415V,AC660V/690V | |||||
| Rated insulation voltage Ui(V) | 1000 | ||||||
| Rated impulse withstand voltage Uimp(V) | 12000 | ||||||
| Arc distance(mm) | ≯50(0)** | ≯100(0)** | |||||
| Breaking capacity level | M | H | M | H | |||
| Ultimate short-circuit breaking capacity Icu(kA) | AC400V/415V | 50 | 50 | 50 | 50 | ||
| Service short-circuit breaking capacity Ics(kA) | AC400V/415V | 35 | 50 | 35 | 50 | ||
| Rated short-time withstand current Icw(KA)/1s | 5 | 10 | |||||
| Use category | B | B | |||||
| Electrical service life(times of operation) | 3000 | 2000 | |||||
| Mechanical service life(times of operation) | without maintenance | 7000 | 4000 | ||||
| with maintenance | 20000 | 20000 | |||||
| Outline dimensions (mm) | W(3P/4P) | 105/142 | 105/142 | 140/184 | 140/184 | ||
| L | 165 | 258 | |||||
| H(with handle) | 103.5 | 117.5 | |||||
