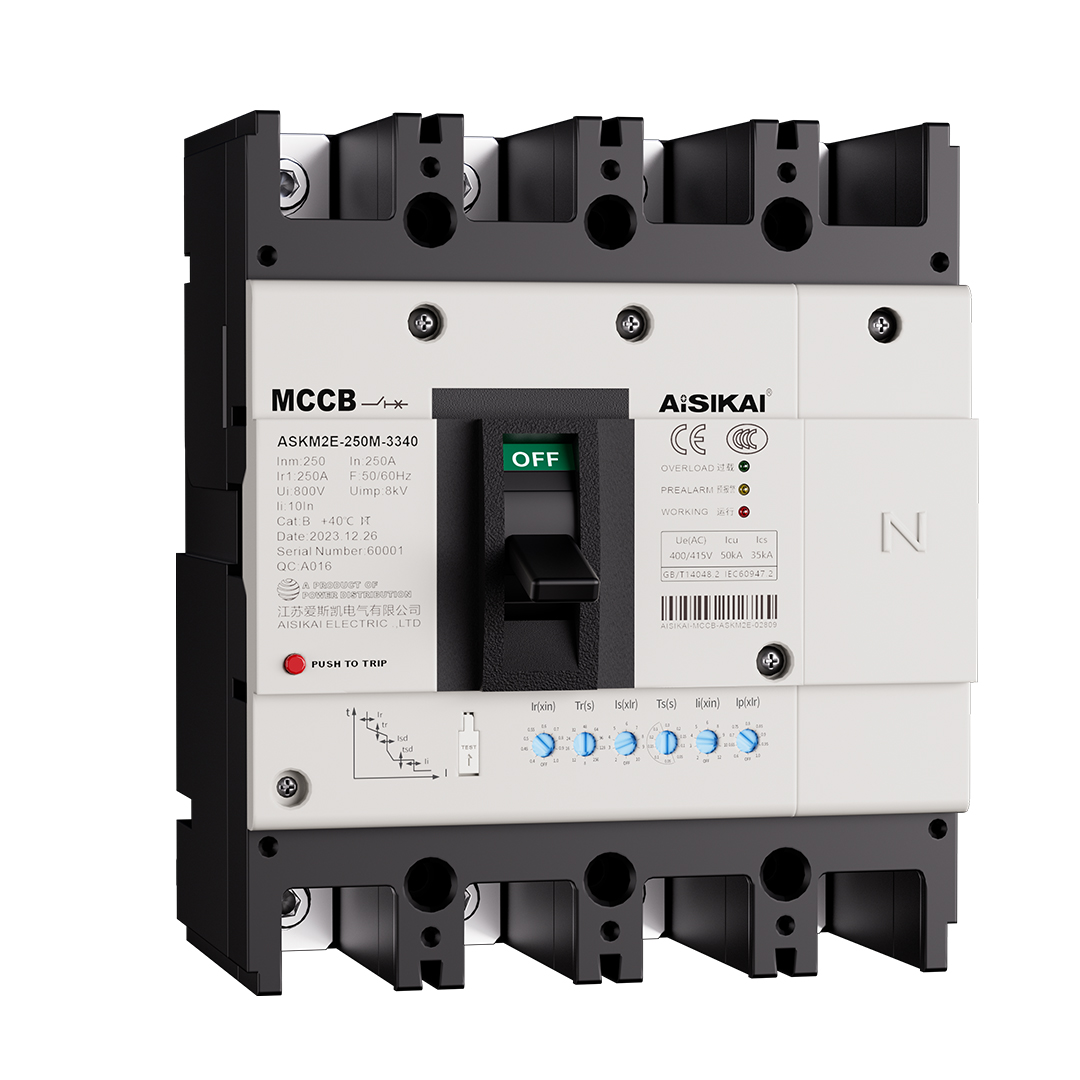

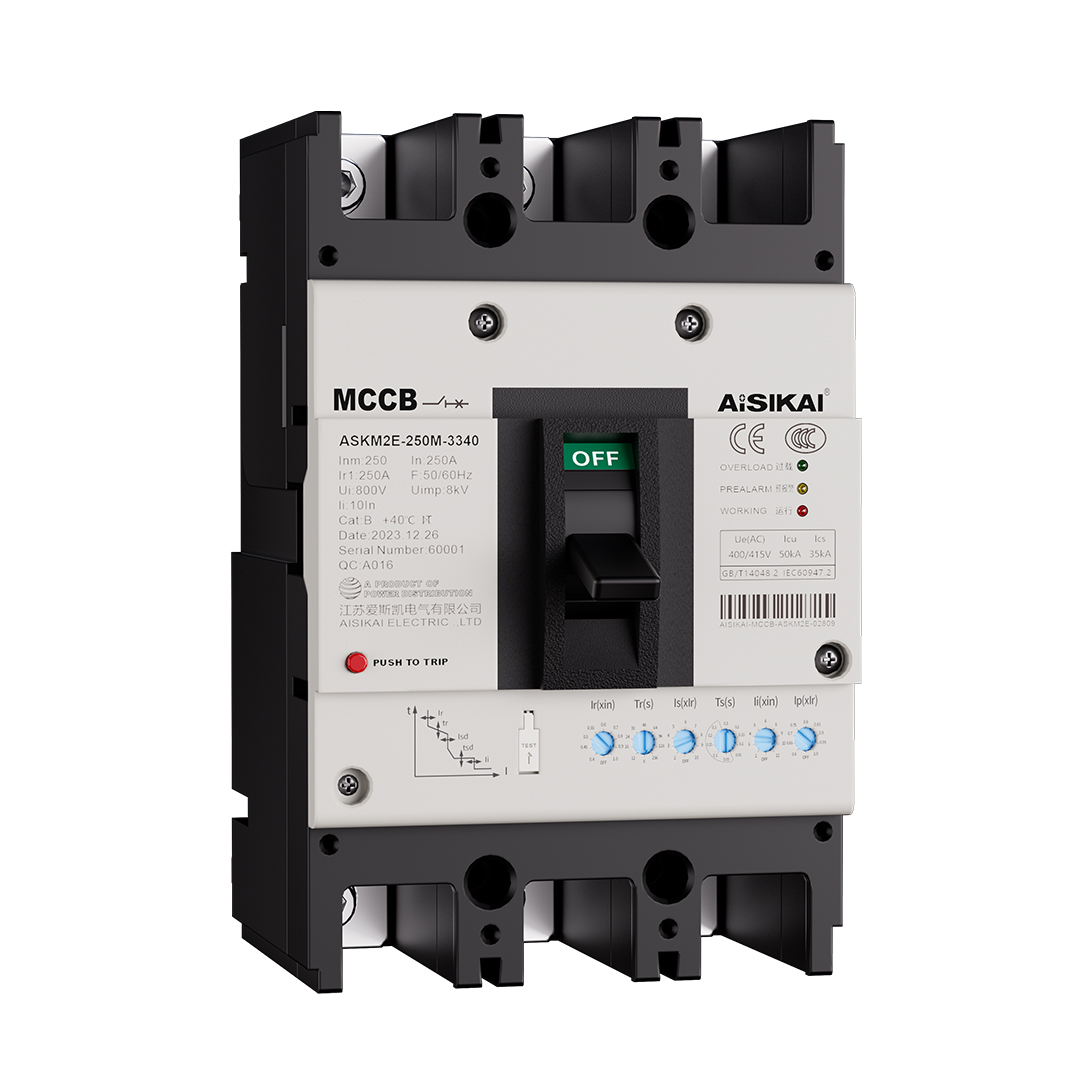

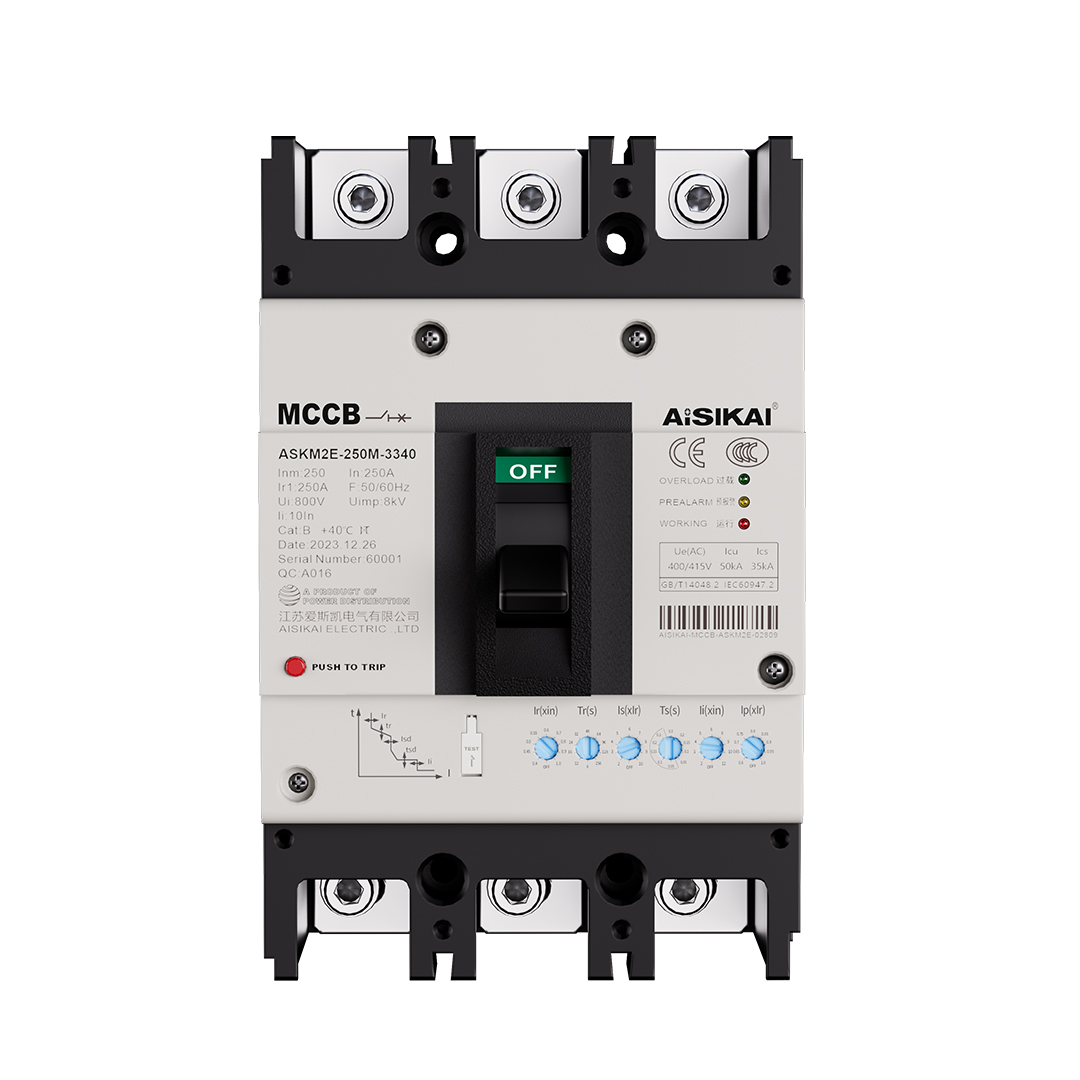

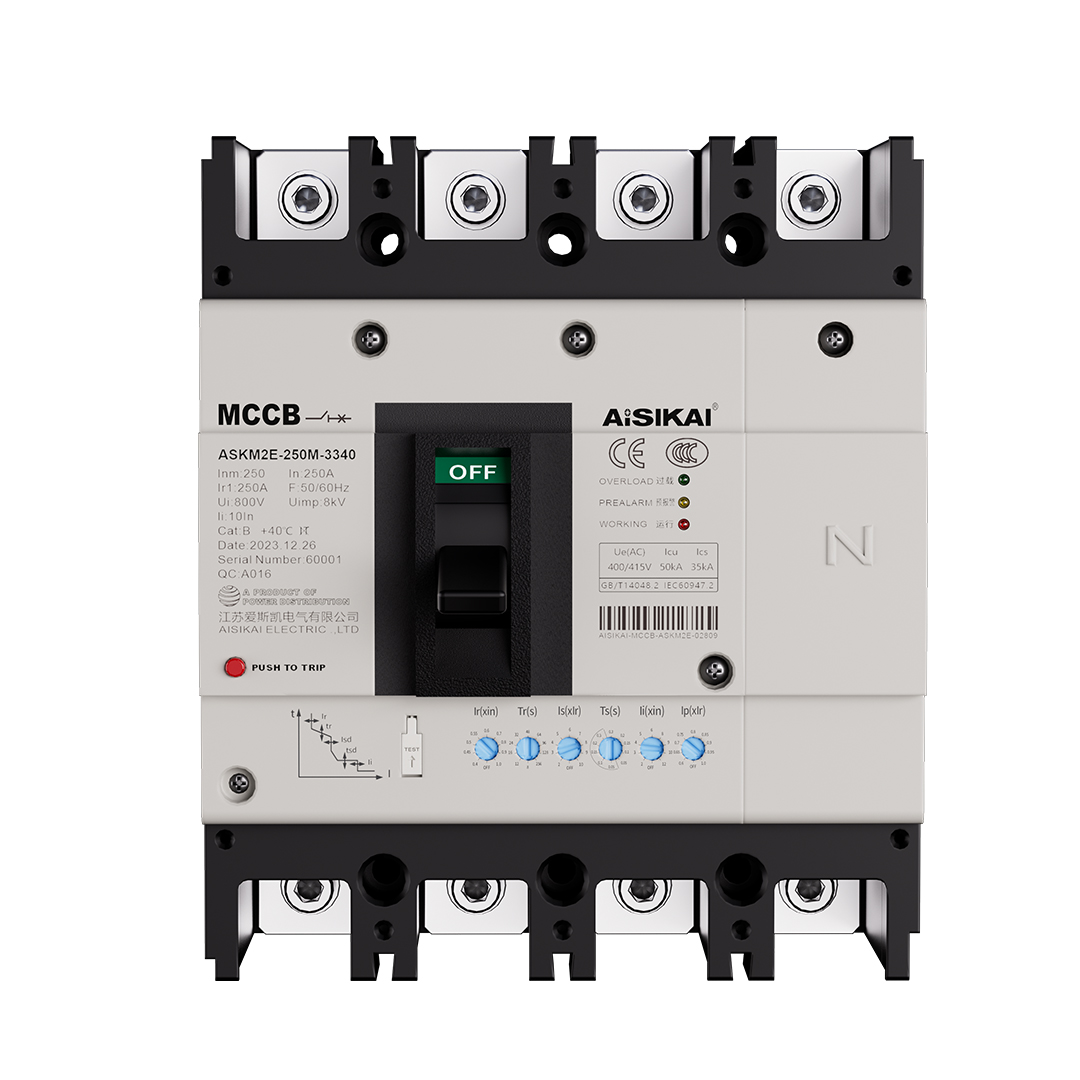

ASKM2E Intelligent Electronic Molded Case Circuit Breaker for General Protection

ASKM2E Intelligent Electronic Molded Case Circuit Breaker for General Protection

ASKM2E intelligent electronic molded case circuit breaker(hereinafter referred to as MCCB) is a new type of circuit breaker designed and developed byour company using international advanced technology. MCCB is suitable for the distribution network of AC 50Hz, rated insulation voltage 1000V, ratedvoltage 400V and rated current up to 1250A. MCCB can be used for infrequent switching of lines and infrequent starting of motors.

MCCB have 3-section protection function(LSI, i.e. overload long delay protection+short-circuit short delay protection+grounding protection ), 4-section protection function(LSIG, i,e. overload long delay protection+short-circuit short delay protection+short-circuit instantaneousprotection+grounding protection ) and under-voltage protection function. MCCB can protect circuits and power equipment from damage. Lowtemperature to -40"C type circuit breaker is available.

Quantity:
Availability:





Inquiry

ASKM2E High Breaking Capacity Short Circuit Protection Adjustable Trip Range intelligent electronic adjustable

Product Description

Download

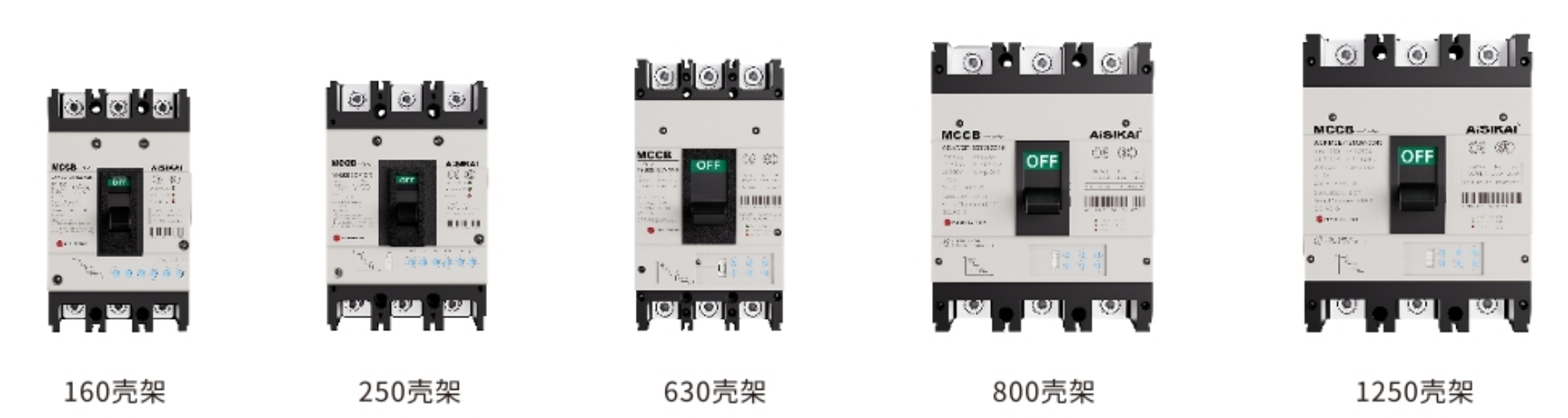

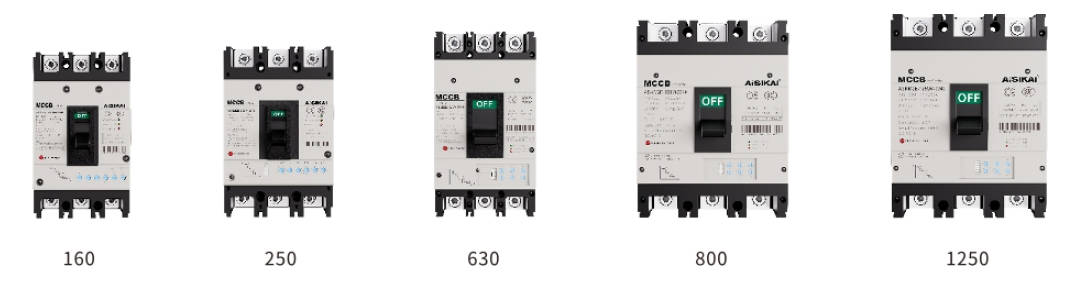

FRAME

efcae76e-8059-4bd1-ba62-fb662e026980

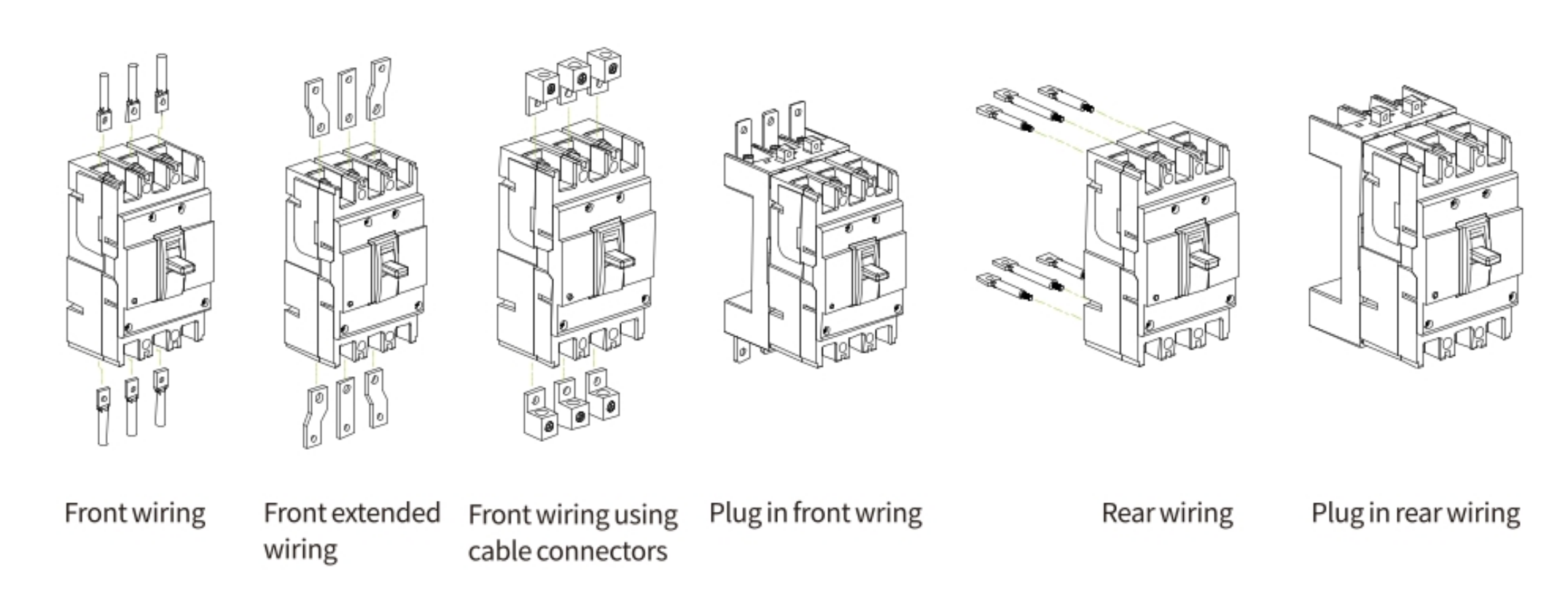

WIRING METHOD

e51d7161-87de-4f86-9e15-ea2e66a7d277

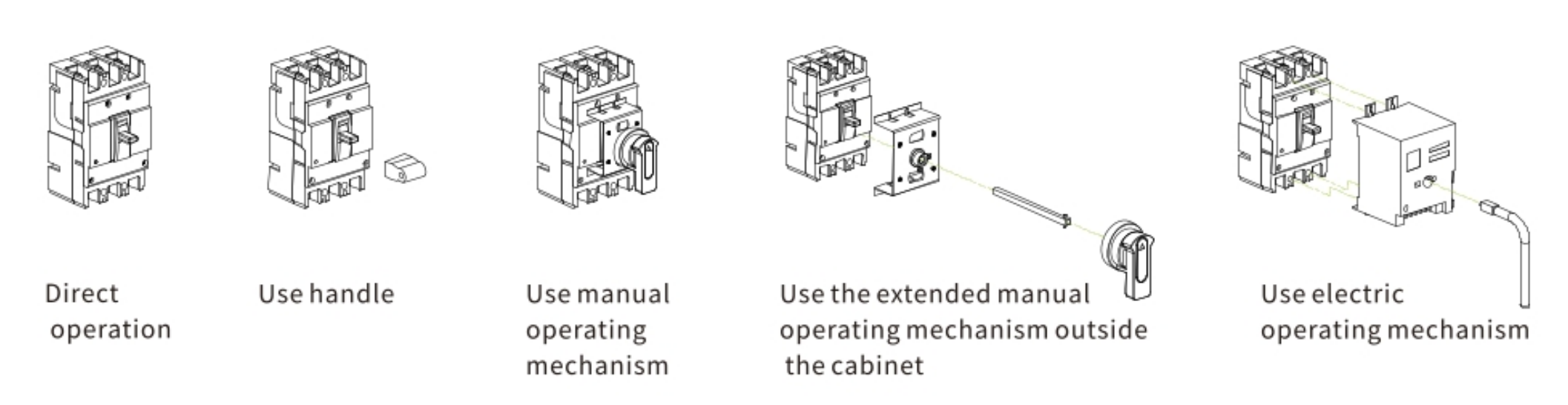

OPERATION METHOD

7ce89562-05b7-4c85-b9de-624bff3161bd

APPLICABLE STANDARDS

GB14048.2、IEC60947.2

687ec3d6-86fd-4e3f-a468-dc3df685fb9b

FEATURES

Small volume, high breaking capacity, short flying arc,vibration resistant;

Reasonable structure,reliable performance,easy installation;

Extensive optional accessories,can installed on-line,meet the technical requirements of different power distribution systems.

TECHNICAL DATASHEET OFASKM1 THERMOMAGNETICNORMAL PROTECTION MOLDED CASE CIRCUIT BREAKER

Model		ASKM2E-160		ASKM2E-250		ASKM2E-630			ASKM2-630			ASKM2-800
Frame rating current Inm(A)		160		250		630			800			1250
Rated current In(A)		32/63/160		160/250		400/630			630/800			800/1250
Overload long delay setting current Ir1(A)		Ir1=(0.4~1In)		Ir1=(0.4~1In)		Ir1=(0.4~1In)			Ir1=(0.4~1In)			Ir1=(0.4~1In)
Rated operational voltage Ue(V)		AC400V/415V		AC400V/415V		AC400V/415V			AC400V/415V			AC400V/415V
Rated insulation voltage Ui(V)		800V
Rated impulse withstand voltage Uimp(V)		8000V
Rated operational voltage Ue(V)		AC400V/415V
Arc distance(mm)		≯50(0)**		≯50(0)**		≯50(0)**			≯100(0)**			≯100(0)**
Breaking capacity level		M	H	M	H	L	M	H	L	M	H	L	M	H
Ultimate short-circuit breaking capacity Icu(kA)	AC400V/415V	50	50	50	50	35	50	75	35	50	75	35	50	75
Service short-circuit breaking capacity Ics(kA)	AC400V/415V	35	50	35	50	25	35	75	25	35	75	25	35	75
Rated short-time withstand current Icw(KA)/1s		2		5		8			10			19.2
Use category		B		B		B			B			B
Electrical service life(times of operation)		3000		3000		2000			1500			1500
Mechanical service life(times of operation)	without maintenance	7000		7000		4000			4000			4000
	with maintenance	20000		20000		20000			20000			20000
Outline dimensions (mm)	W(3P/4P)	90/120		105/140		140/184			210/280			210/280
	L	155		165		258			276			275
	H(includinghandle)	92		100		113			114			105
