Arc extinction in circuit breakers is a critical process in ensuring electrical safety and system reliability, especially in miniature circuit breakers (MCBs) used in low-voltage applications.
During a short-circuit interruption, the separation of contacts generates an electric arc. This arc is highly dynamic and influenced by electromagnetic forces, arc chute geometry, and material design.
Understanding how arc chutes extinguish arcs is essential for improving circuit breaker performance, durability, and protection capability.
Once an arc is formed, the current flowing through it generates a magnetic field. The arc behaves like a current-carrying conductor and is driven by the Lorentz force:
F = I × B
This force causes the arc to move, typically toward the arc chute, where it can be elongated, cooled, and extinguished.
Due to non-uniform magnetic field distribution, the arc experiences a directional force that guides it into the arc chute structure.
The arc chute design is one of the most important factors in arc extinction. It determines how the arc is captured, guided, elongated, and segmented.

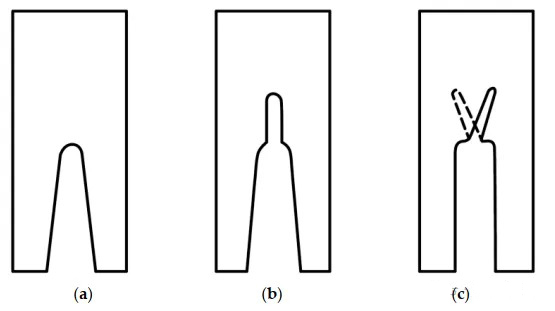

In AC circuit breakers, U-shaped or V-shaped notches are commonly used at the arc chute entrance.
Improve arc capture at the entrance
Promote arc elongation
Enable arc splitting between splitter plates
Adding a central slot enhances arc control:
Improves arc guidance stability
Ensures controlled arc elongation before splitting
Provides consistent performance under different current conditions
DC arc extinction is more challenging due to the absence of current zero-crossing.
Forces a zig-zag arc path
Increases arc length and arc voltage
Promotes early arc segmentation
Reduces arc stability for faster extinction

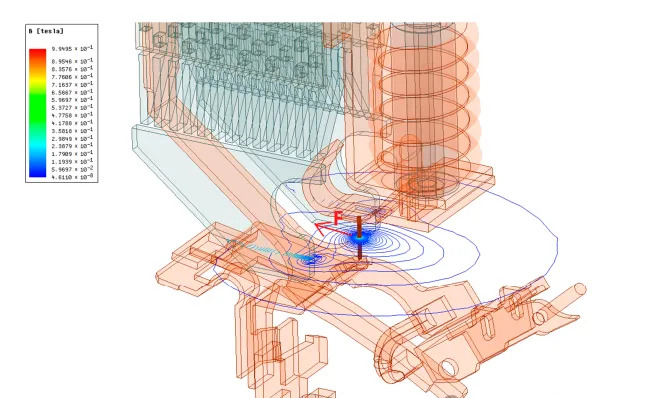

Simulation tools such as ANSYS show how electromagnetic forces affect arc behavior during interruption.
At the moment when contacts separate, the arc experiences a net upward force toward the arc chute entrance.

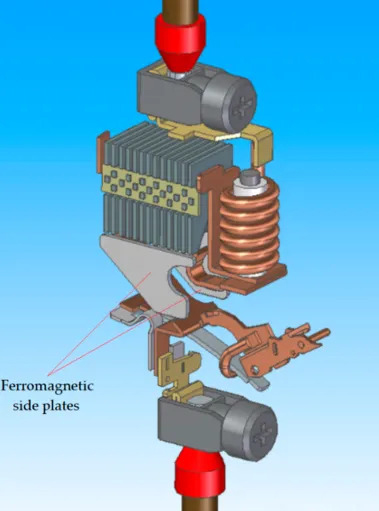

Magnetic fields are non-uniform due to conductor geometry and ferromagnetic materials
Higher magnetic flux density appears near bends and arc chute entrance
The resulting Lorentz force drives the arc into the arc chute
As the arc position changes:
Magnetic flux distribution varies
The force vector acting on the arc changes
However, the overall effect remains consistent:
The arc is continuously driven into the arc chute, where it is elongated and segmented until extinction
Short-circuit testing provides validation of arc extinction performance in circuit breakers.
Typical measurements include:
Short-circuit current
Transient recovery voltage (TRV)
Arc chute erosion patterns
Breaking time: 3.0 ms, current: 3670 A
→ High arc energy, strong oscillations, severe erosion
Breaking time: 3.0 ms, current: 2790 A
→ Frequent arc transfer and segmentation, localized erosion
Breaking time: 2.8 ms, current: ~2790 A
→ Smoother arc behavior, more uniform erosion
Breaking time: 3.0 ms, current: 2810 A
→ Stable arc attachment, minimal TRV, controlled erosion
Arc chute design directly impacts arc extinction performance
Arc behavior is controlled by both geometry and electromagnetic forces
U/V notches, central slots, and staggered slots serve different roles
Simulation and testing together improve circuit breaker design efficiency and reliability
