North American Split-Phase Power Distribution System: A Comprehensive Technical Overview

1. Introduction

The North American low-voltage power distribution network utilizes a split-phase system (officially designated as a single-phase three-wire system). This architecture is the backbone of residential and light-commercial power delivery, offering 120V and 240V from a single transformer with a center-tapped secondary winding. Its design balances cost-efficiency, reliability, and versatility, making it distinct from international standards (e.g., IEC’s 230V single-phase or 400V three-phase systems).

2. System Architecture

2.1 Transformer Configuration

- A single-phase architecture with a center-tapped secondary winding provides:

- Two 120V legs (L1 & L2, 180° out of phase).

- A neutral wire (center tap, solidly grounded).

- 240V potential between L1 and L2.

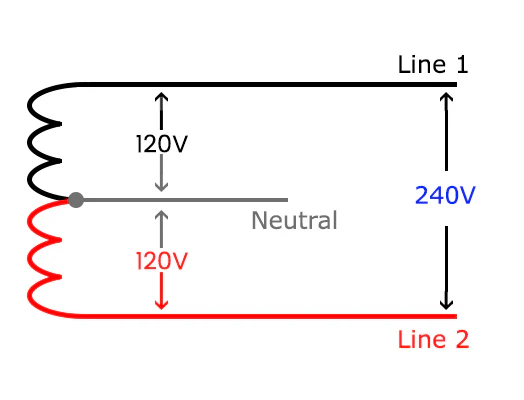

Split-Phase System Architecture

Why this design?

- Historical & Practical: Optimized for early 20th-century appliance standards.

- Efficiency: Single transformer serves both low- and high-power loads.

2.2 Wiring & Voltage Delivery

3. Key Technical Considerations

3.1 Neutral Conductor Behavior

- Balanced Loads: Ideal case (equal 120V loads on L1/L2) cancels neutral current.

- Real-World Imbalance:

- Neutral carries difference current (e.g., 10A on L1, 8A on L2 → 2A neutral).

- Harmonic Distortion: Modern electronics (LEDs, inverters) generate 3rd-order harmonics, causing neutral overload risks.

- NEC Requirement: Neutral must match phase conductor size for safety.

3.2 Smart Metering & Energy Measurement

- Dual-Channel Metering: Measures L1-N and L2-N independently, summing total consumption.

- Bidirectional Support: Critical for solar PV and vehicle-to-grid (V2G) applications.

3.3 Panel Design & Protection

- Breaker Coordination:

- 120V circuits: Single-pole breakers.

- 240V circuits: Double-pole breakers (mechanically linked).

- Load Balancing: Uneven 120V loads increase neutral current → panel designs must prioritize phase balancing.

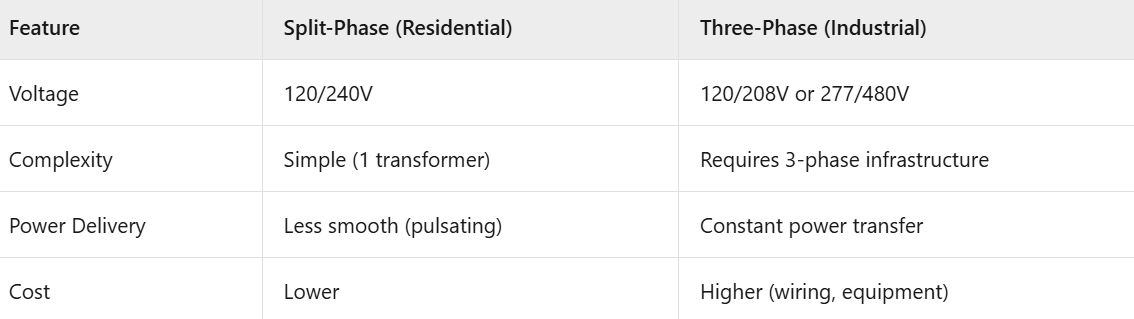

4. Comparison with Three-Phase Systems

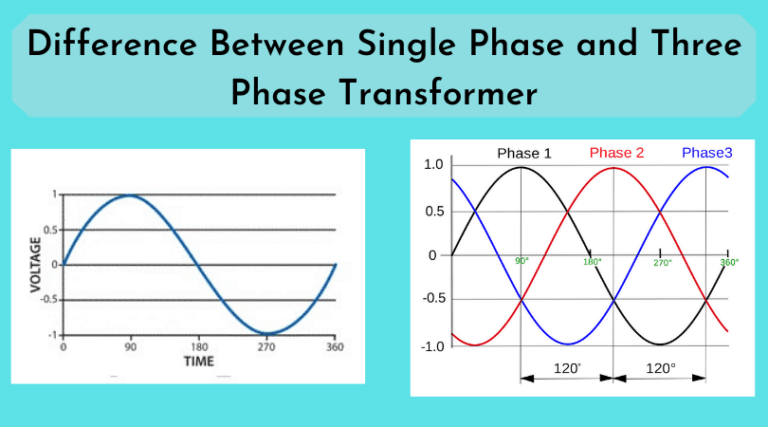

Difference between Single Phase & Three Phase

Why Not Three-Phase in Homes?

- Overkill: Residential loads rarely need three-phase’s continuous power.

- Standardization: Split-phase aligns with legacy appliance designs.

5. Export Product Compliance

For manufacturers targeting North America:

- MCCBs/ACBs: Must support 120/240V split-phase operation.

- Meters: Require dual-channel measurement (ANSI C12 standards).

- Safety Certifications: UL listing for breakers, NEC compliance for wiring.

6. Future-Proofing & Emerging Trends

- EV Charging Demand: 240V circuits now essential for Level 2 chargers (up to 80A).

- Renewable Integration: Smart panels with dynamic load management to balance solar/wind inputs.

7. Conclusion

The North American split-phase system remains a uniquely optimized solution for residential power distribution. Its simplicity, cost-effectiveness, and dual-voltage capability ensure compatibility with decades of infrastructure while adapting to modern needs like EVs and renewables.

For Engineers & Exporters:

- Prioritize neutral sizing and harmonic mitigation.

- Validate product compatibility with split-phase dynamics.

- Monitor NEC/UL updates for evolving standards.

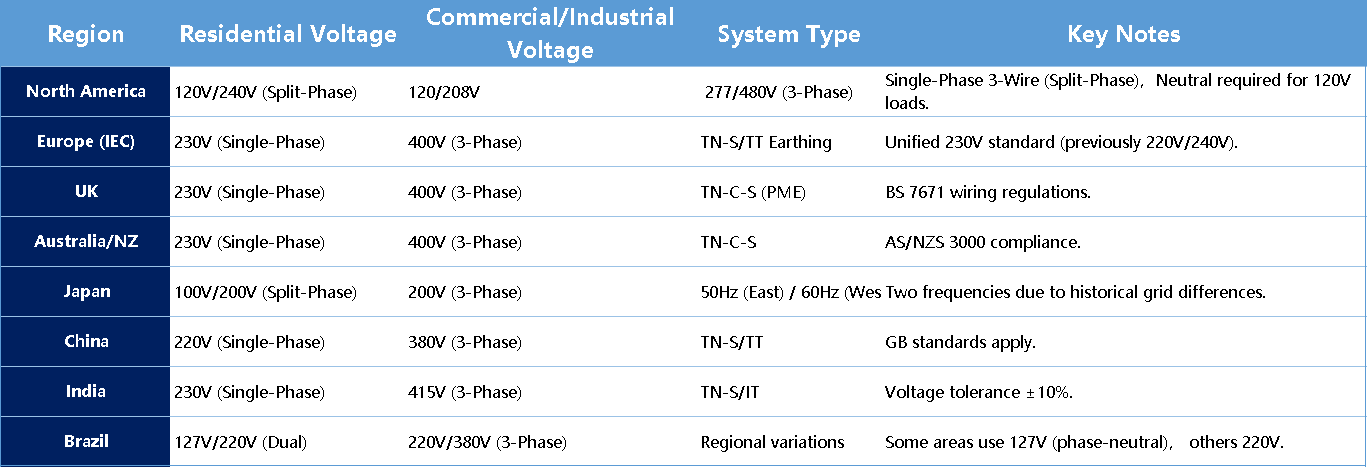

Appendix: Global Voltage Standards Comparison

To provide context for the North American split-phase system, below is a summary of standard low-voltage power distribution systems used worldwide:

Key Observations:

1. North America is Unique – The 120/240V split-phase system is rare globally, where 230V single-phase dominates.

2. Harmonization in Europe – Most EU nations standardized at 230V ±10% (previously 220V or 240V).

3. Japan’s Dual Voltage & Frequency – 100V for small appliances, 200V for heavy loads; 50Hz (Tokyo) vs. 60Hz (Osaka).

4. Brazil’s Mixed System – Some regions use 127V (phase-neutral), others 220V (phase-phase).

5. Industrial Voltage – Most countries use 400-480V 3-phase, except China (380V) and India (415V).

Why Does This Matter for Exporters?

• Product Design: A device built for 230V IEC may not support 120V split-phase without modification.

• Certifications: UL (USA), CE (EU), CCC (China), and BIS (India) have different voltage requirements.

• Safety & Compatibility: Earthing systems (TN-S, TT, IT) affect leakage protection and wiring.
