In critical power systems, choosing the right Automatic Transfer Switch (ATS) directly impacts operational safety, power continuity, and long-term reliability. While contactor-type ATS solutions are still common in small-capacity applications, motor-driven ATS systems have become the preferred choice for high-demand environments such as:
Data centers
Hospitals
Generator sets
Industrial facilities
Fire protection systems
Communication infrastructure
Among them, the SKT motor-driven ATS stands out for its superior safety, stronger short-circuit performance, lower maintenance requirements, and higher operational reliability.
This article explains why motor-driven ATS technology significantly outperforms traditional contactor-type ATS systems.

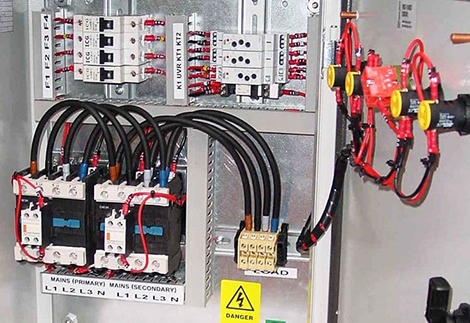

A contactor-type ATS uses two electrically interlocked contactors to transfer power between sources.
A motor-driven ATS, on the other hand, uses a mechanically operated switching mechanism combined with electrical control, providing higher reliability and safer transfer performance.
For critical applications where downtime is unacceptable, motor-driven ATS systems offer clear technical advantages.

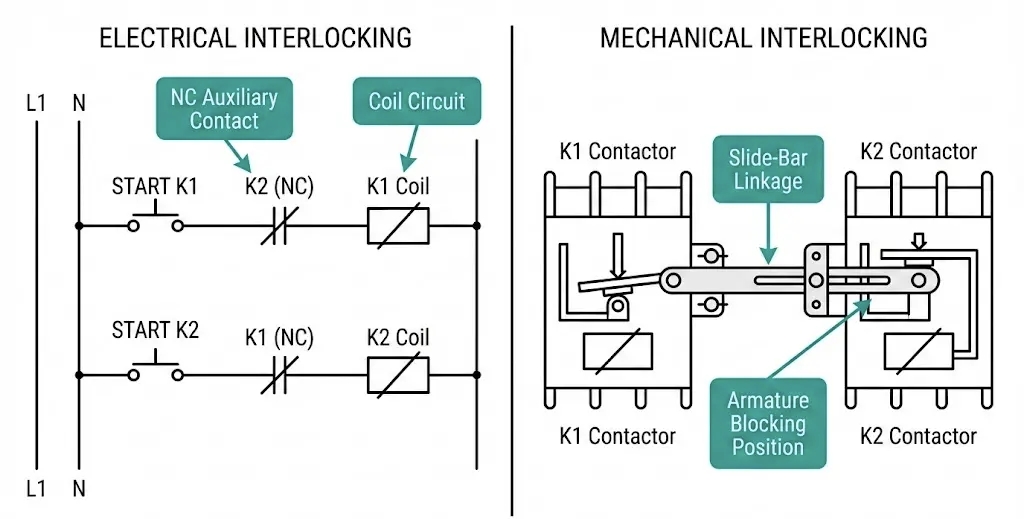

SKT ATS adopts both:
Mechanical interlocking
Electrical interlocking
Even if the control circuit fails, both power sources cannot be connected simultaneously. This effectively prevents:
Grid backfeed
Short circuits
Severe equipment damage
Contactor ATS systems mainly rely on electrical interlocking. If auxiliary contacts weld or relays fail, simultaneous source connection may occur.
This becomes especially dangerous in high-current systems.
SKT motor-driven ATS provides a fundamentally safer switching structure.
Built on an MCCB-based structure, SKT ATS offers:
High breaking capacity (Icu)
Strong short-circuit withstand capability
Optional overload protection
Integrated short-circuit protection
Standard contactors do not provide short-circuit protection and require additional MCCBs or fuses.
Under fault current conditions, contact welding or burning can easily occur.
SKT ATS combines both switching and protection functions in one integrated solution.
SKT motor-driven ATS uses an energy storage mechanism with spring-assisted operation to ensure:
Stable contact pressure
Lower contact resistance
Reduced heat generation
Longer electrical lifespan
In comparison, contactor-type ATS systems depend on electromagnetic force, which often leads to:
Lower contact pressure
Faster contact wear
Reduced durability under inductive loads
This is particularly problematic in generator and motor-starting applications.
One major advantage of motor-driven ATS technology is energy efficiency.
After switching is completed:
The motor stops operating
No continuous holding power is required
Static power consumption is nearly zero
Contactor coils require continuous energization, resulting in:
Constant power consumption
Heat generation
Faster coil aging
SKT ATS delivers better energy efficiency and lower operating temperatures.
Generator startup conditions often involve:
Voltage instability
Frequency fluctuation
Instantaneous voltage drops
The switch position is mechanically maintained even during temporary control power loss.
This prevents unwanted switching actions.
Voltage drops may cause contactor release or chattering, resulting in:
Frequent switching
Contact damage
Reduced reliability
This is one of the most common failures in generator ATS systems.
Available from:
63A to 6300A
Suitable for:
Data centers
Petrochemical facilities
Industrial plants
Hospitals
Large generator systems
Typically limited to:
40A to 800A
Higher-capacity solutions become bulky, expensive, and less reliable.
SKT ATS uses a fast energy storage mechanism that ensures:
Stable transfer speed
Consistent synchronization
Reliable switching performance
This makes it ideal for:
AMF generator systems
Fire pumps
UPS bypass systems
Critical standby power applications
Integrated design advantages include:
Simplified installation
Fewer wiring points
Reduced failure risk
Long mechanical life
Requires multiple separate components:
Contactors
Mechanical interlocks
Auxiliary relays
Time relays
Fuses
This increases:
Wiring complexity
Maintenance workload
Long-term operating costs
Compared with traditional contactor assemblies, SKT motor-driven ATS solutions provide:
More compact structure
Cleaner installation layout
Better space utilization
More professional appearance
This is especially valuable for modern switchgear systems and commercial installations.
While contactor-type ATS systems may still be suitable for small-capacity and cost-sensitive applications, motor-driven ATS technology has become the industry-preferred solution for critical power infrastructure.
For applications where reliability is essential, SKT motor-driven ATS offers:
Higher operational safety
Better switching reliability
Stronger fault protection
Lower maintenance costs
Longer service life
SKT ATS solutions are widely used in:
Diesel generator systems
Hospitals
Data centers
Telecom base stations
Fire protection systems
Industrial manufacturing facilities
Commercial buildings
When uninterrupted power is critical, the ATS system becomes one of the most important components in the entire electrical infrastructure.
Compared with traditional contactor-type ATS systems, SKT motor-driven ATS provides a safer, more reliable, and more durable solution for modern power applications.
For mission-critical environments, motor-driven ATS is no longer an upgrade — it is the professional standard.
