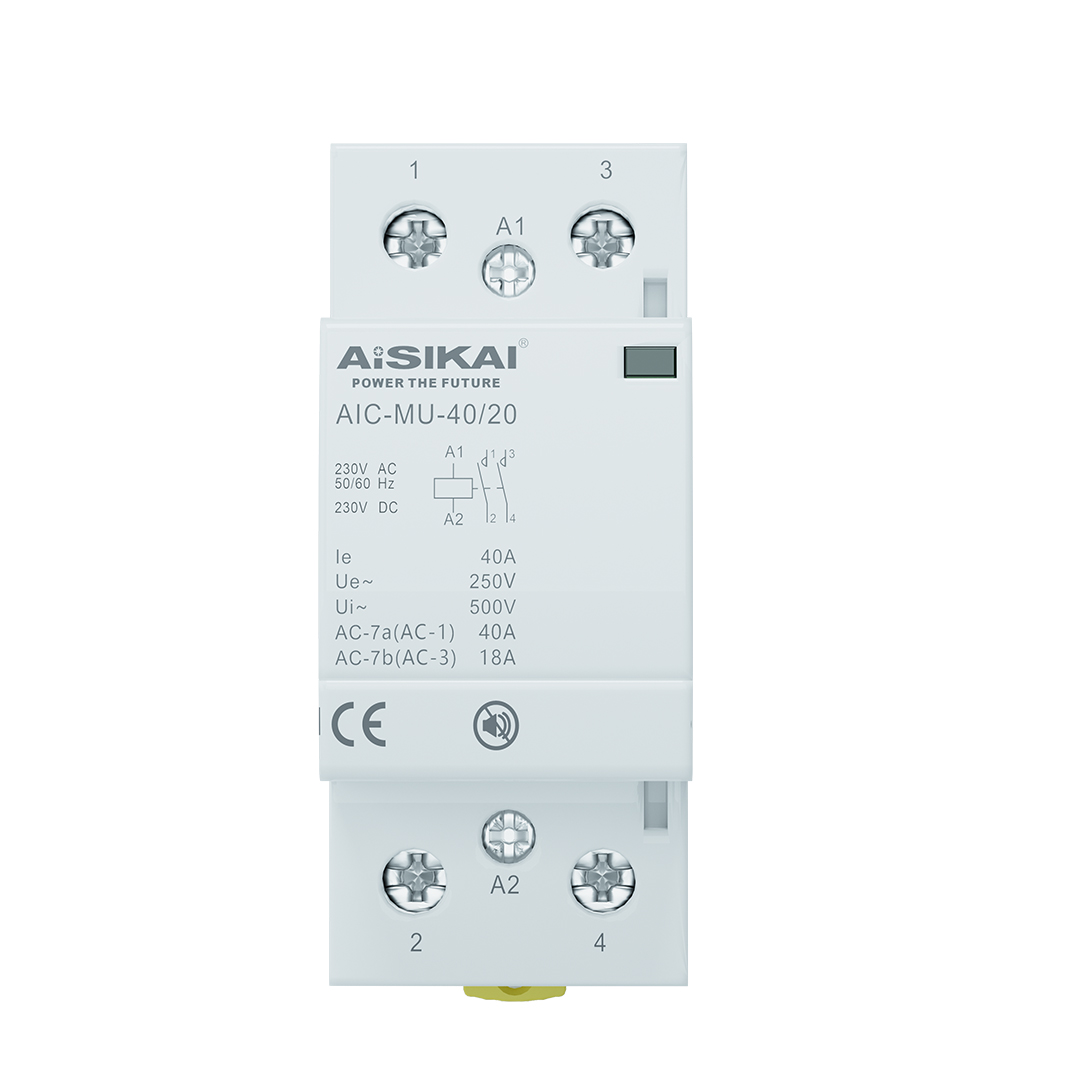

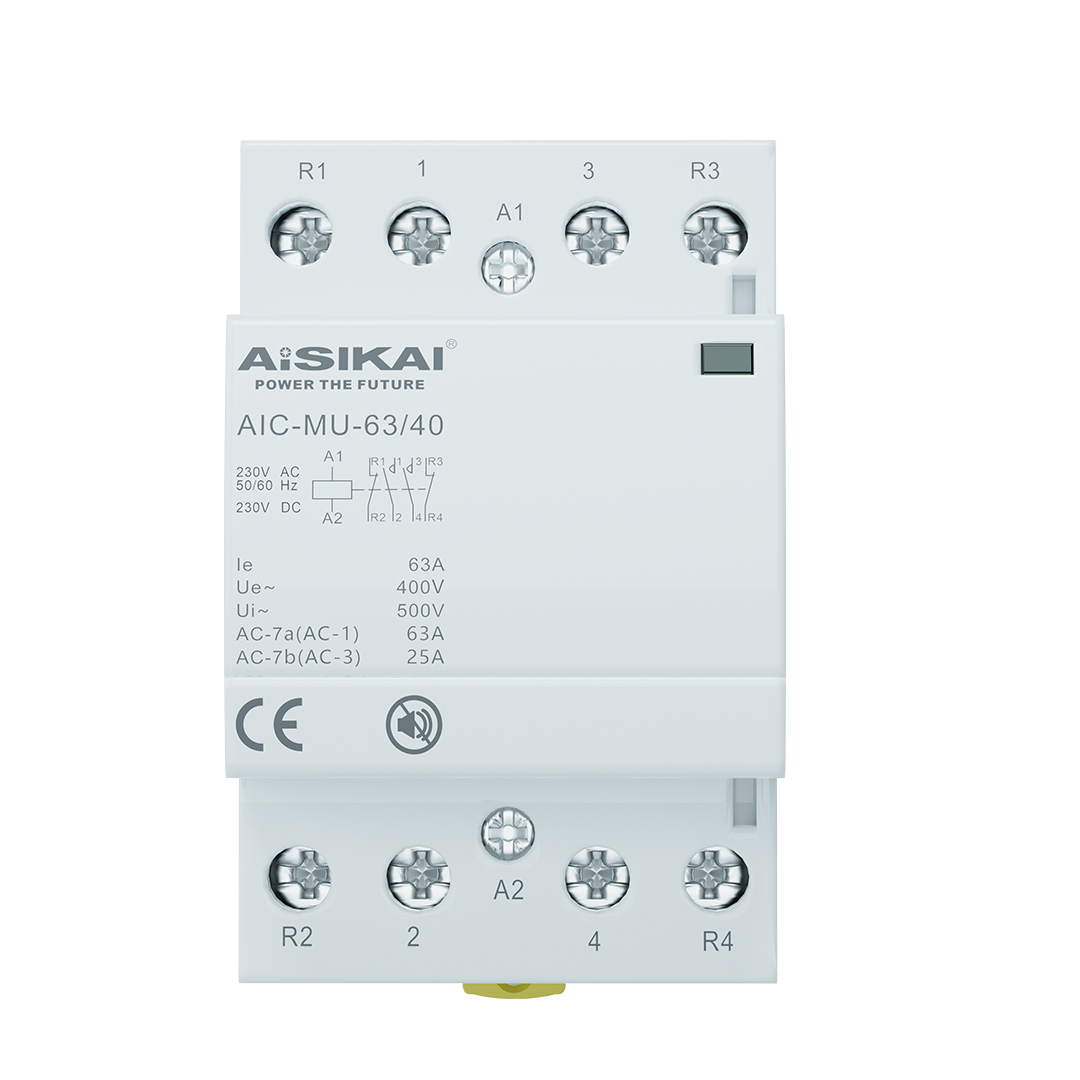

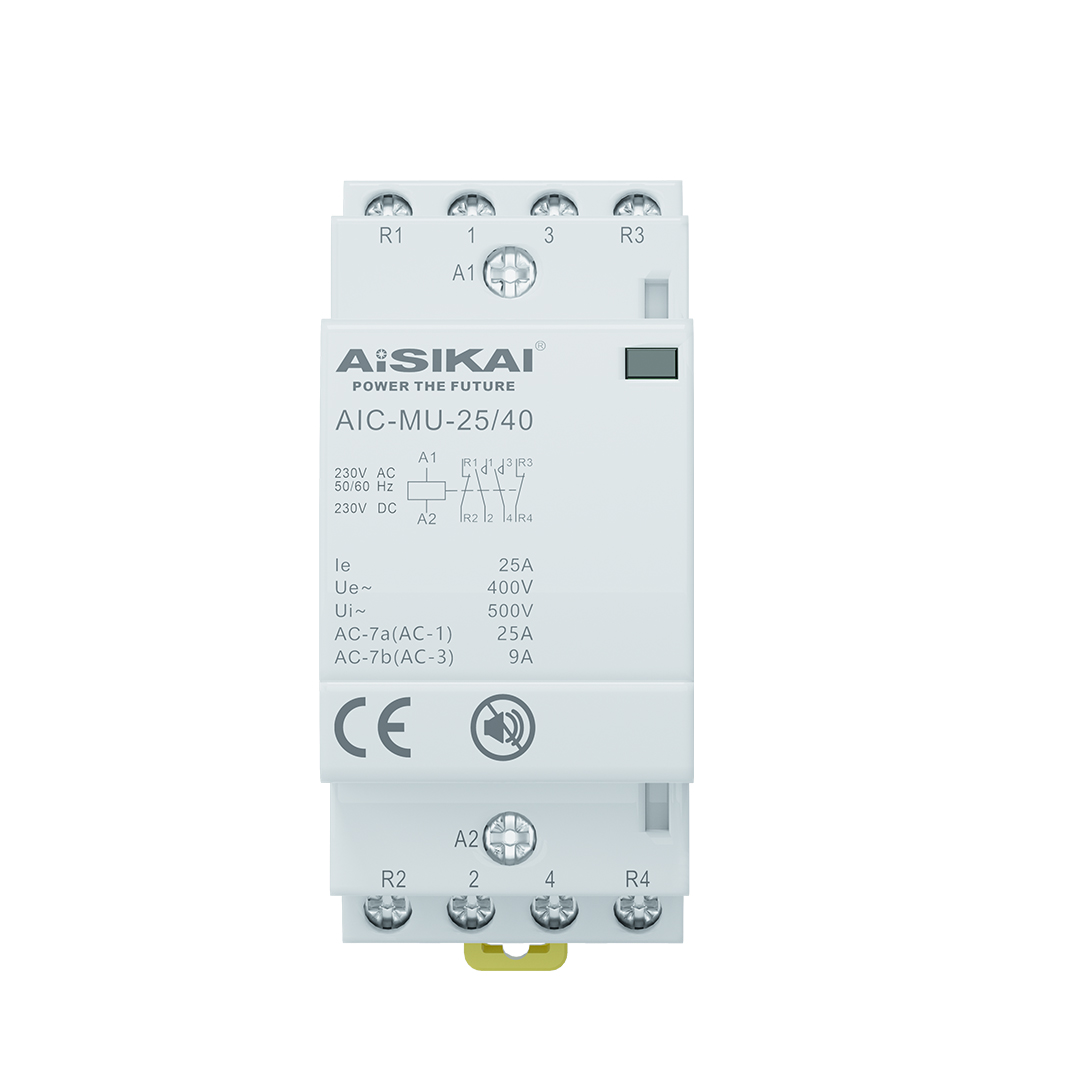

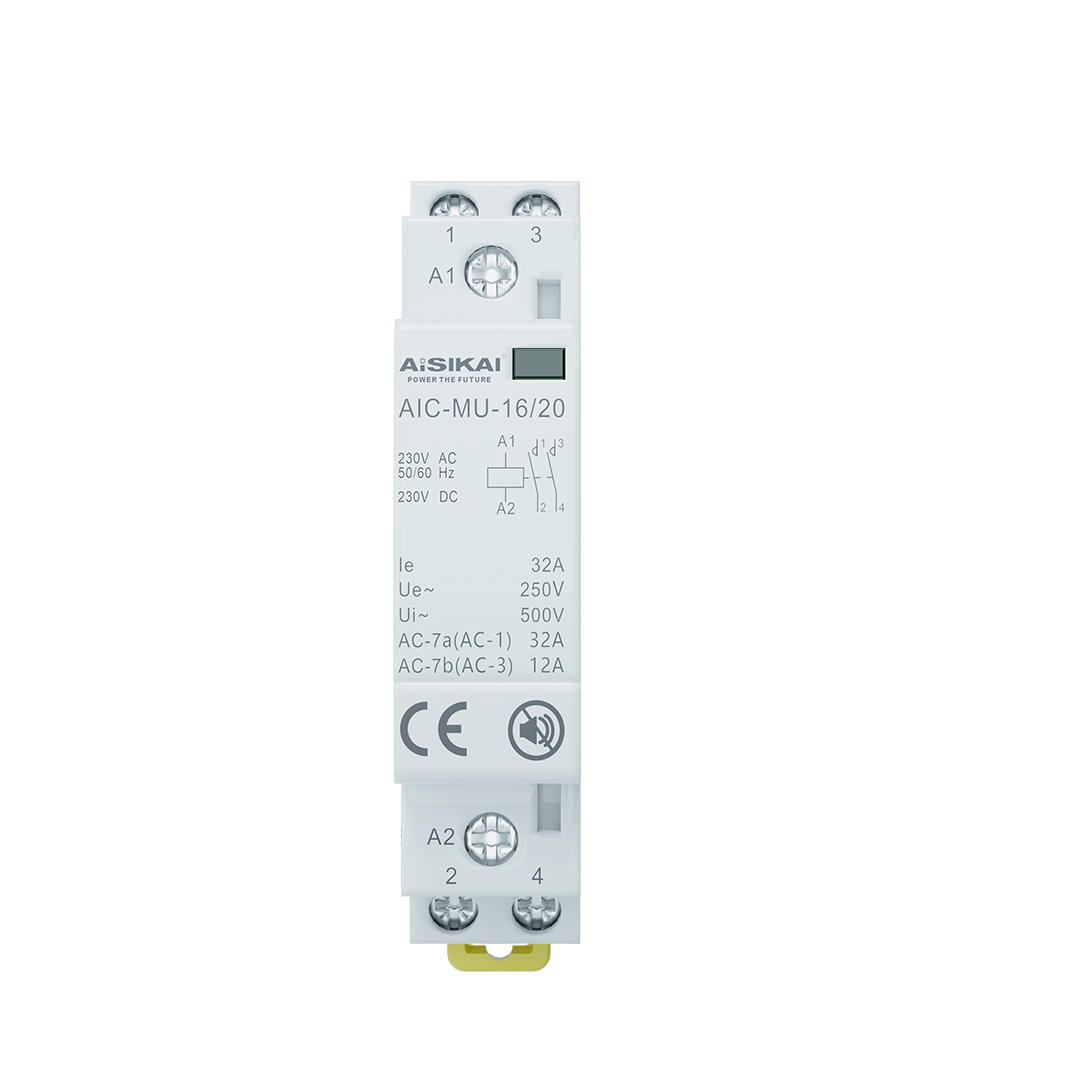

AIC-MU
AISIKAI
| Quantity: | |
|---|---|
STANDARD
IEC60947-1 UL60947-1 CSA C22.2 No.60947-1
IEC60947-4-1 UL60947-4-1 CSA C22.2 No.60947-4-1
APPLICATION
The AIC-MU modular contactor are used mainly in buildings for switching and controlling lighting, heating, ventilation and pumps. They are part of the complete range of Din rail products and can be integrated easily in dedicated panels.
PRODUCT DIMENSIONS(mm)

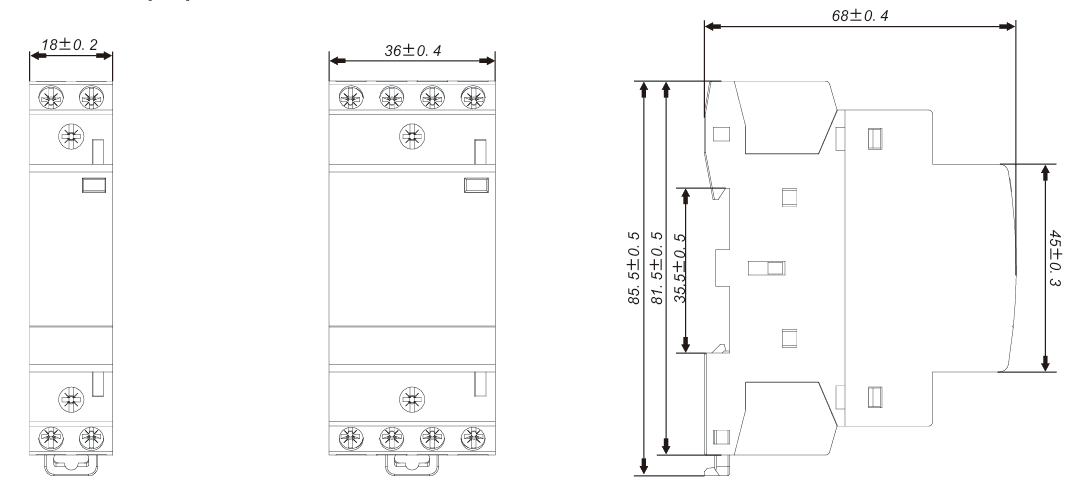

AIC-MU-16/20/25A

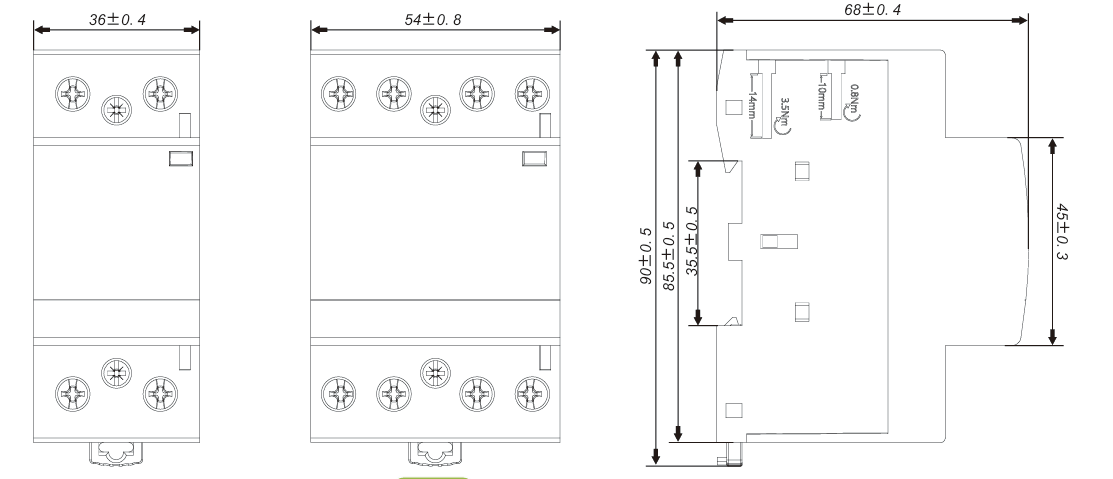

AIC-MU-40/63A
MAIN TECHNICAL PARAMETERS
Model | AIC-MU(16A-25A) | AIC-MU(40A-63A) | |||
Rated Current(In) | AC-1 | 16A、20A、25A | 40A、63A | ||
AC-3 | 6A、7A、9A | 18A、25A | |||
Product structure and | 2P,1module | 4P,2module | 2P,2module | 4P,3module | |
Control Voltage | 24/110/230 | 24/110/230/380 | 24/110/230 | 24/110/230/380 | |
Rated operating voltage | 1P、2P | 250V AC | |||
3P、4P | 400V AC | ||||
Frequency | 50/60Hz | ||||
Endurance(O-C) | 100,0000times | ||||
Electrical | 100000times | ||||
Rated insulation voltage of copper bar (Ui) | 500VAC | ||||
Rated impulse withstand voltage(Uimp) | 2.5KV(4KV for 12/24/48VAC) | ||||
Degree of Protection | Device only | IP20 | |||
Device in modular enclosure | IP40 | ||||
Tropicalization(IEC 60068.1) | Treatment 2 (relative humidity 95% at 55℃) | ||||
