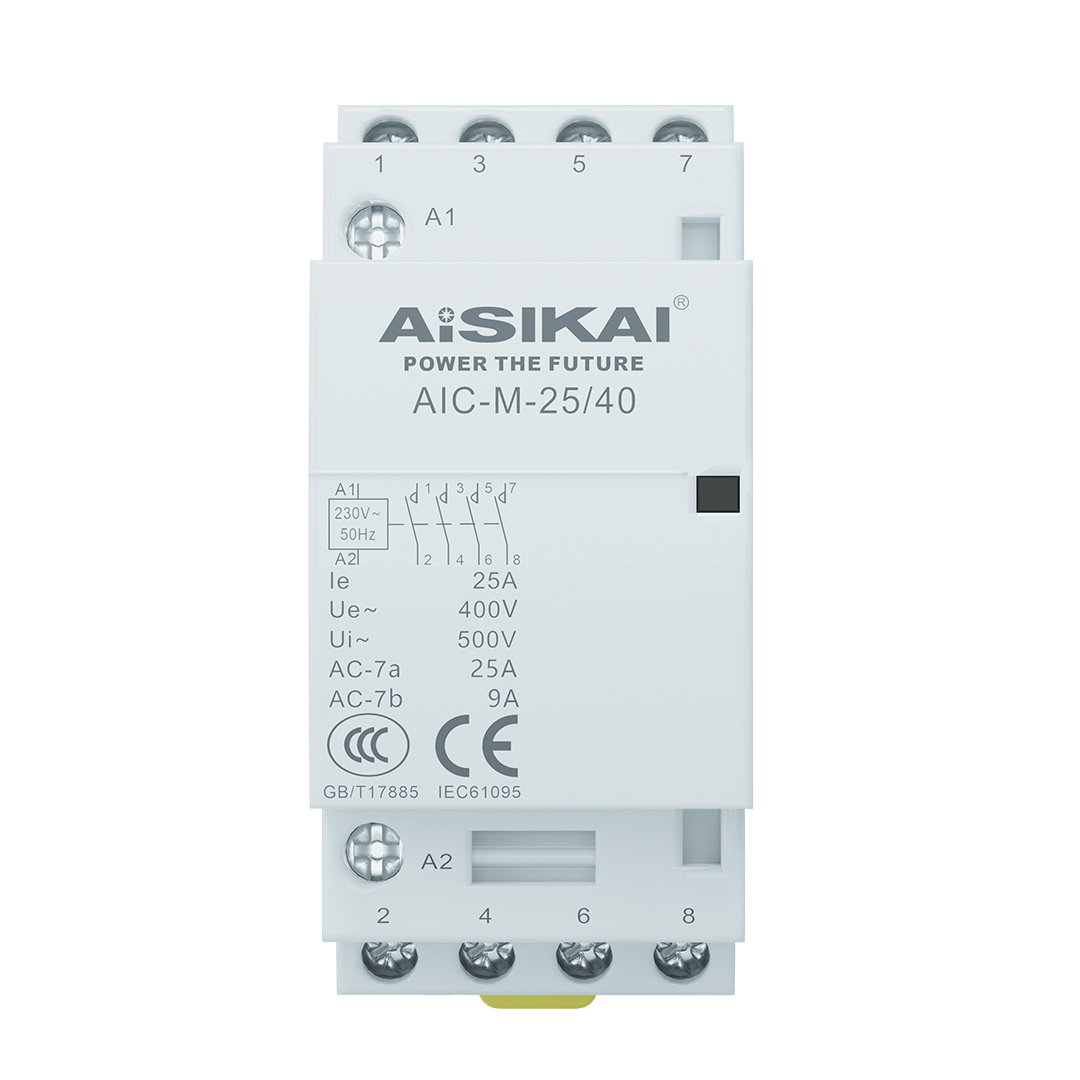

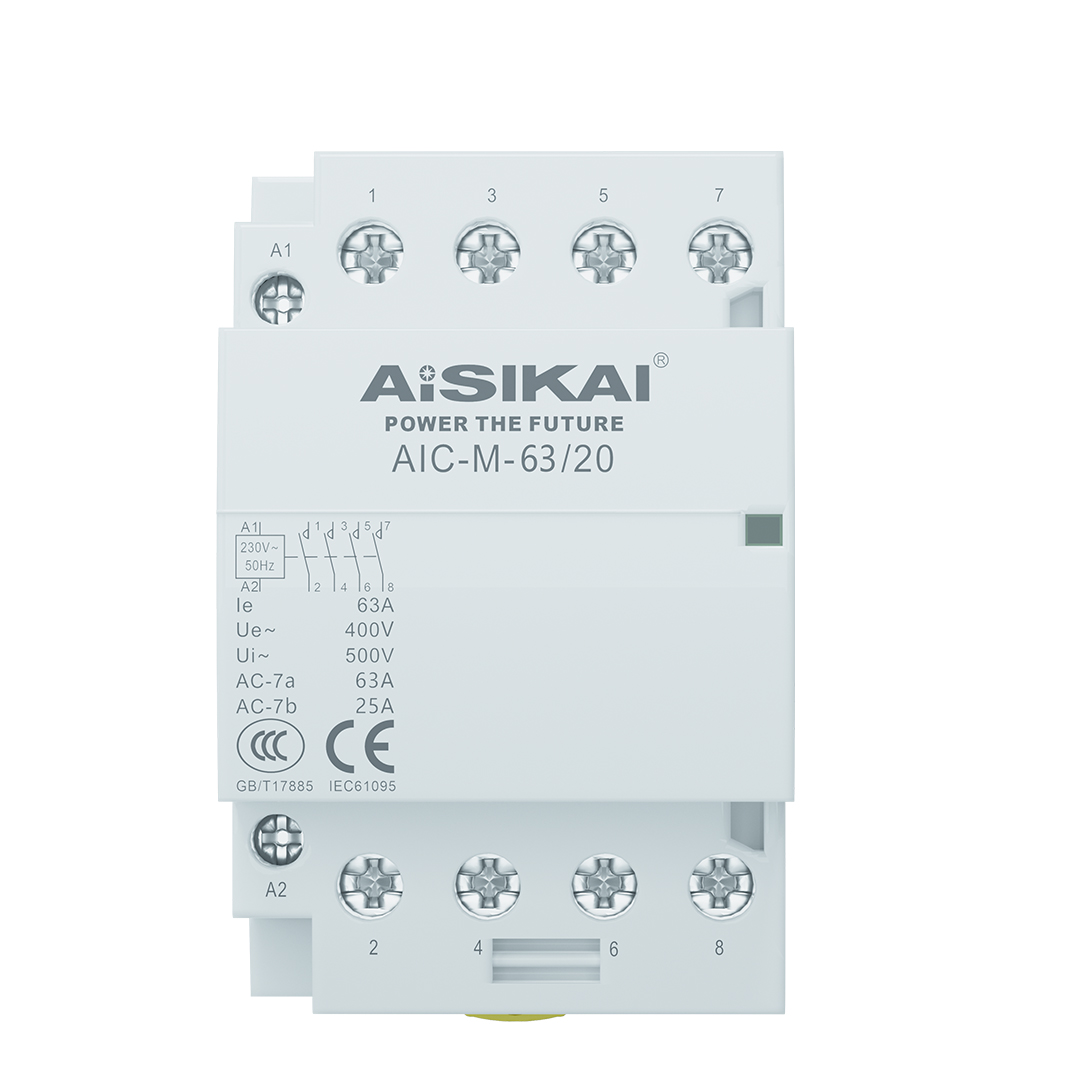

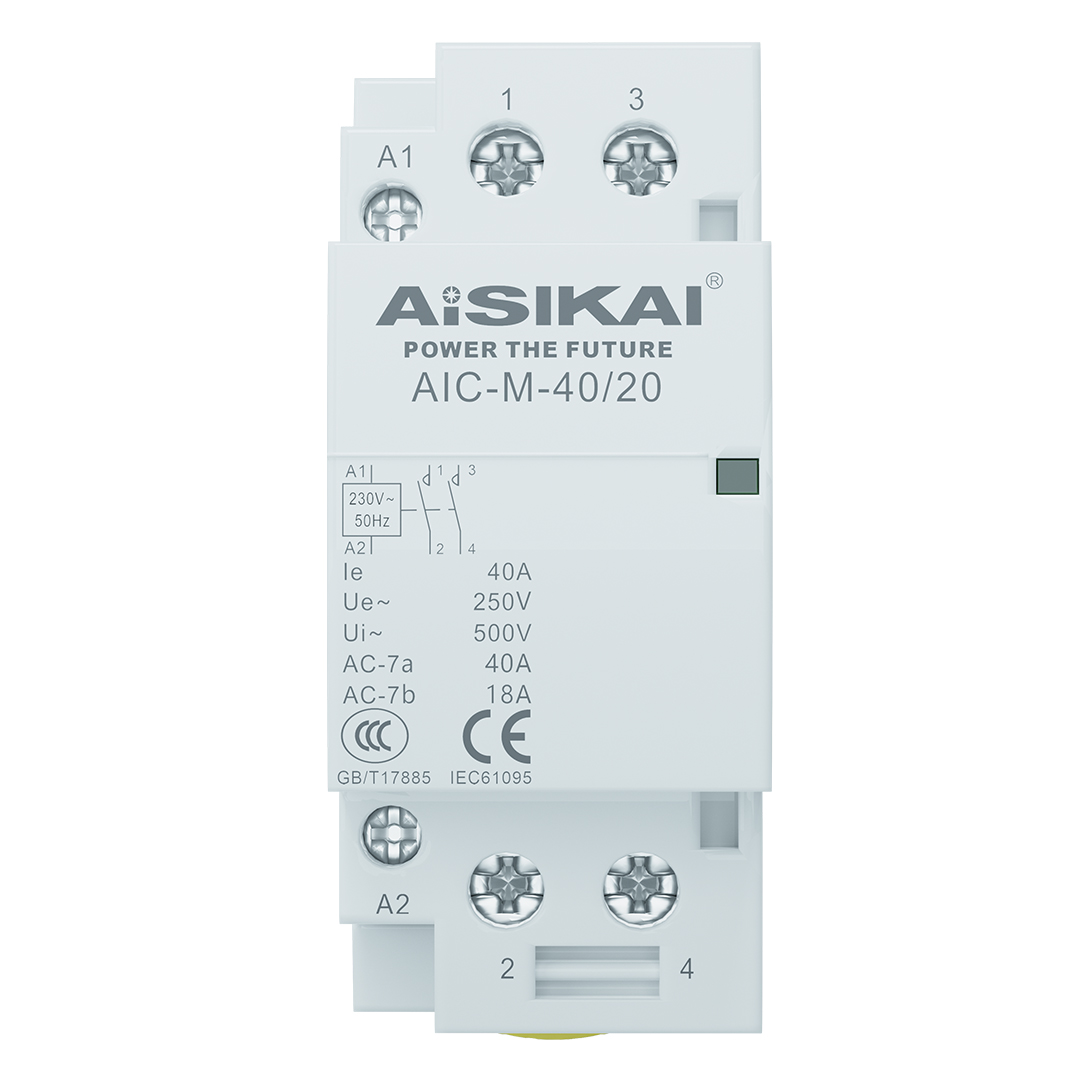

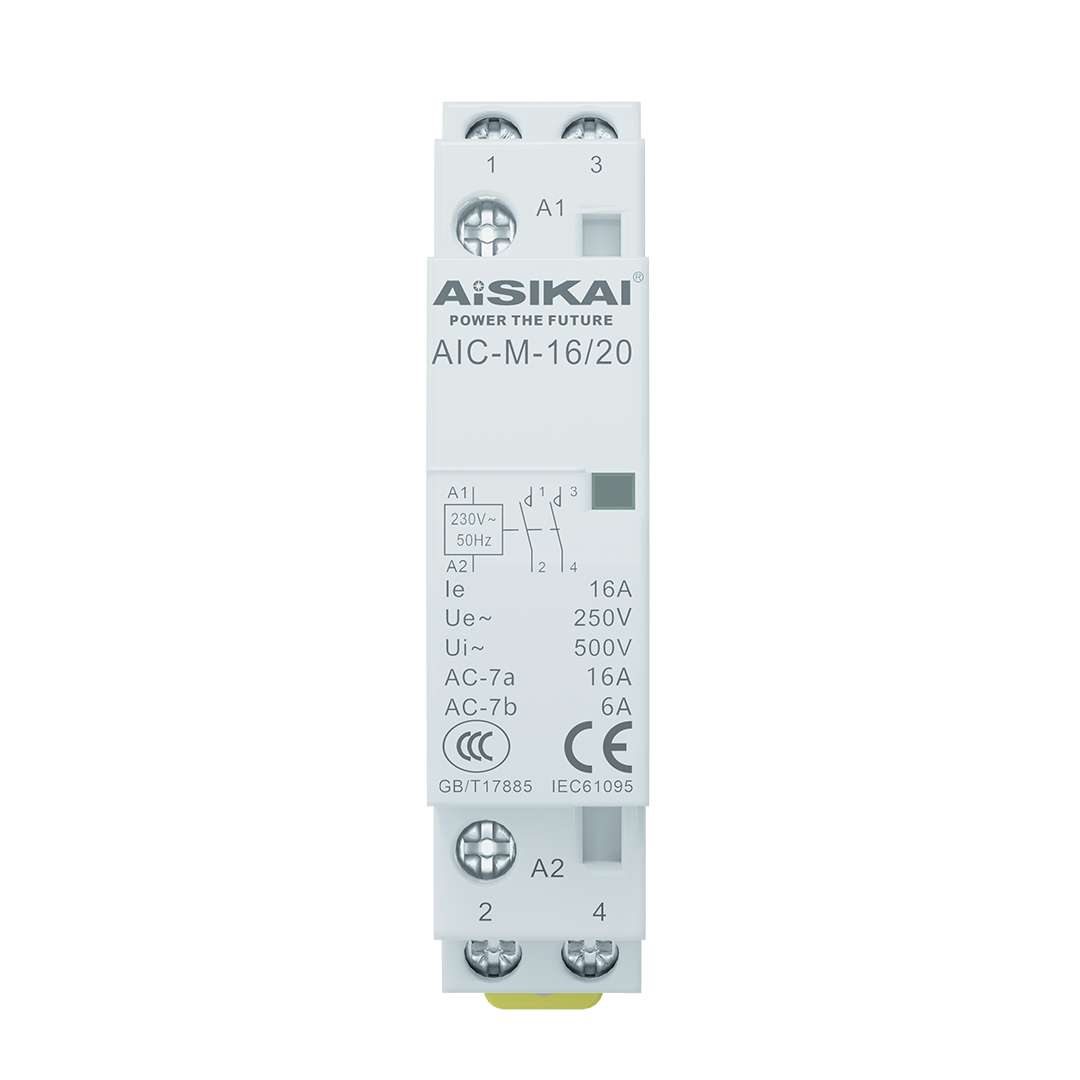

AIC-M Modular Contactor

The AIC-M modular contactors (hereinafter referred to as "contactors") are mainly suitable for circuits with an AC frequency of 50/60Hz, a rated working voltage of up to 400V, and a rated working current of up to 125A. They are used to control household appliances and similar low-sensitivity micro-loads, and can also be used to control household motor loads (with the control power correspondingly reduced).

Quantity:
Availability:





Inquiry

Modular Contactor DIN Rail Mounting AC Control Circuit Appliance control

Product Description

Download

STANDARDS

The contactor complies with the standards of GB/T 17885, GB/T 14048.4, IEC/EN 61095, and IEC/EN 60947-4-1

The accessory complies with the standards of GB/T 14048.5 and IEC/EN 60947-5-1

APPLICATION

The products are applied in homes, hotels, apartments, and other places to achieve automatic functions and are used in household appliances produced on a large scale.

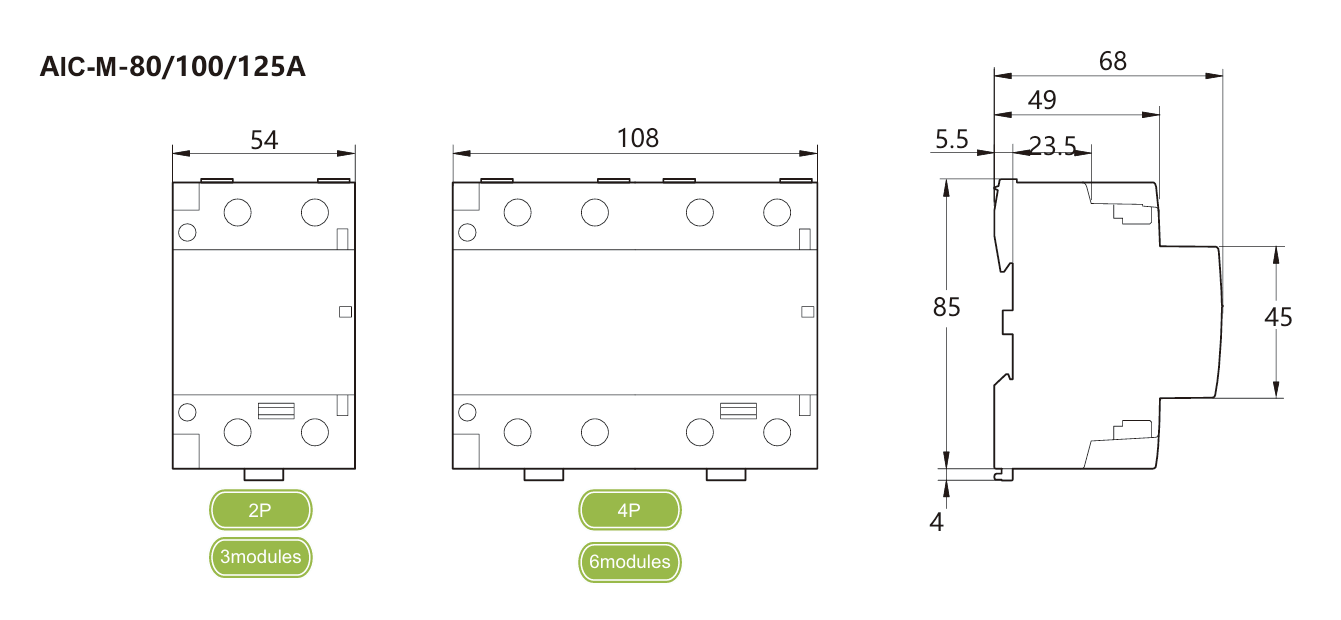

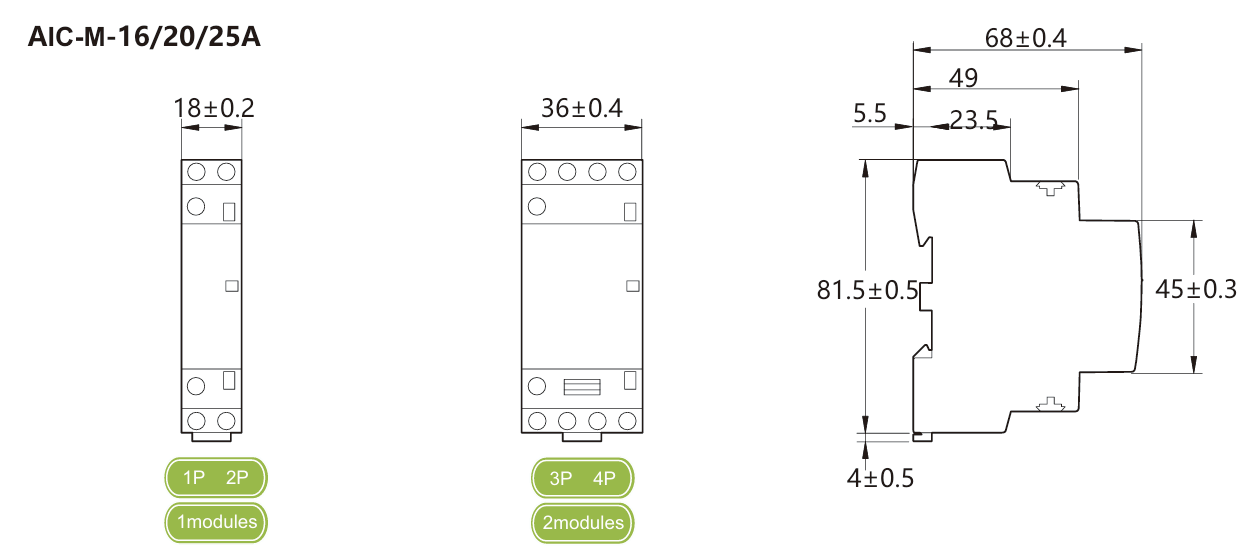

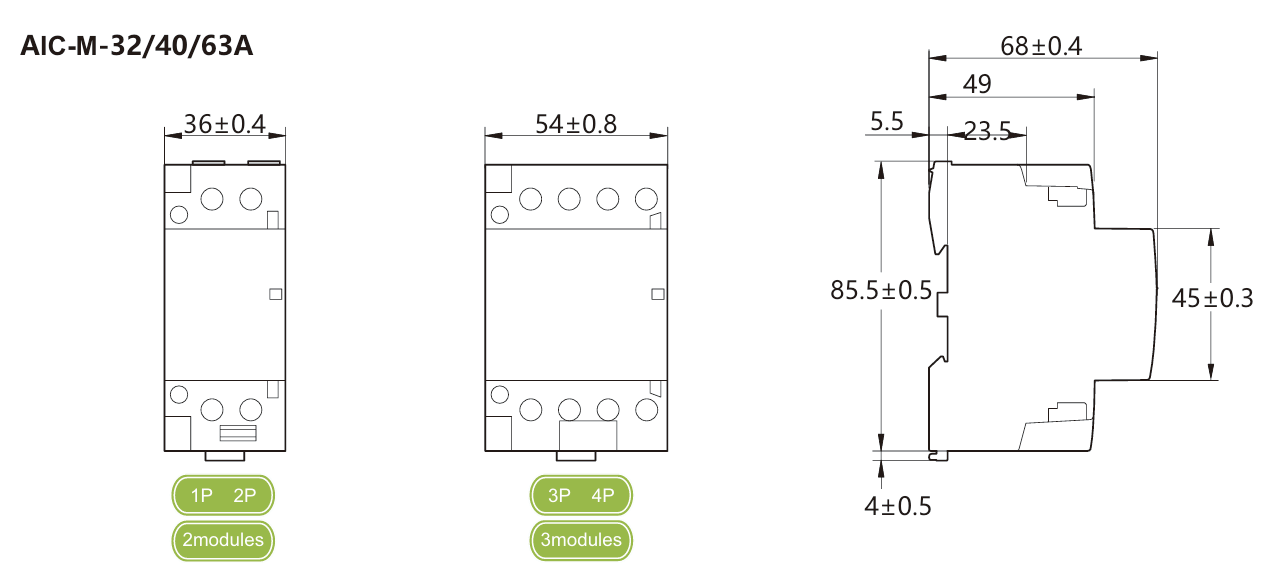

PRODUCT SIZE（MM）

2ed0d690-2696-47dc-9134-e1add31c78a3

8dec395a-6cad-4345-8cba-56fad2e83077

caf65778-5a32-4112-84a9-7e3af0862fbb

instruction：1 module=18mm wide

MAIN TECHNICAL PARAMETERS

Model		AIC-M(16A-25A)		AIC-M(32A-63A)		AIC-M(80A-125A)
Rated Current(In)	AC-1	16A、20A、25A		32A、40A、63A		80A、100A、125A
	AC-3	6A、7A、9A		12A、18A、25A		32A、40A、50A
Product structure and installation form		1P,1module、2P,1module、	3P,2module、4P,2module	1P,2module、2P,2module、	3P,3module、4P,3module、	2P,3module、	4P,6module、
Control Voltage (V AC)(50Hz)		24/110/230	24/110/230/380	24/110/230	24/110/230/380	24/110/230	24/110/230/380
Rated operating voltage of copper bar (Ue)	1P、2P	250V AC
	3P、4P	400V AC
Frequency		50/60Hz
Endurance(O-C)		100,0000times
Electrical		100000times
Rated insulation voltage of copper bar (Ui)		500VAC
Rated impulse withstand voltage(Uimp)		2.5KV(4KV for 12/24/48VAC)
Degree of Protection (IEC 60529）	Device only	IP20
	Device in modular enclosure	IP40
Tropicalization(IEC 60068.1)		Treatment 2 (relative humidity 95% at 55℃)
