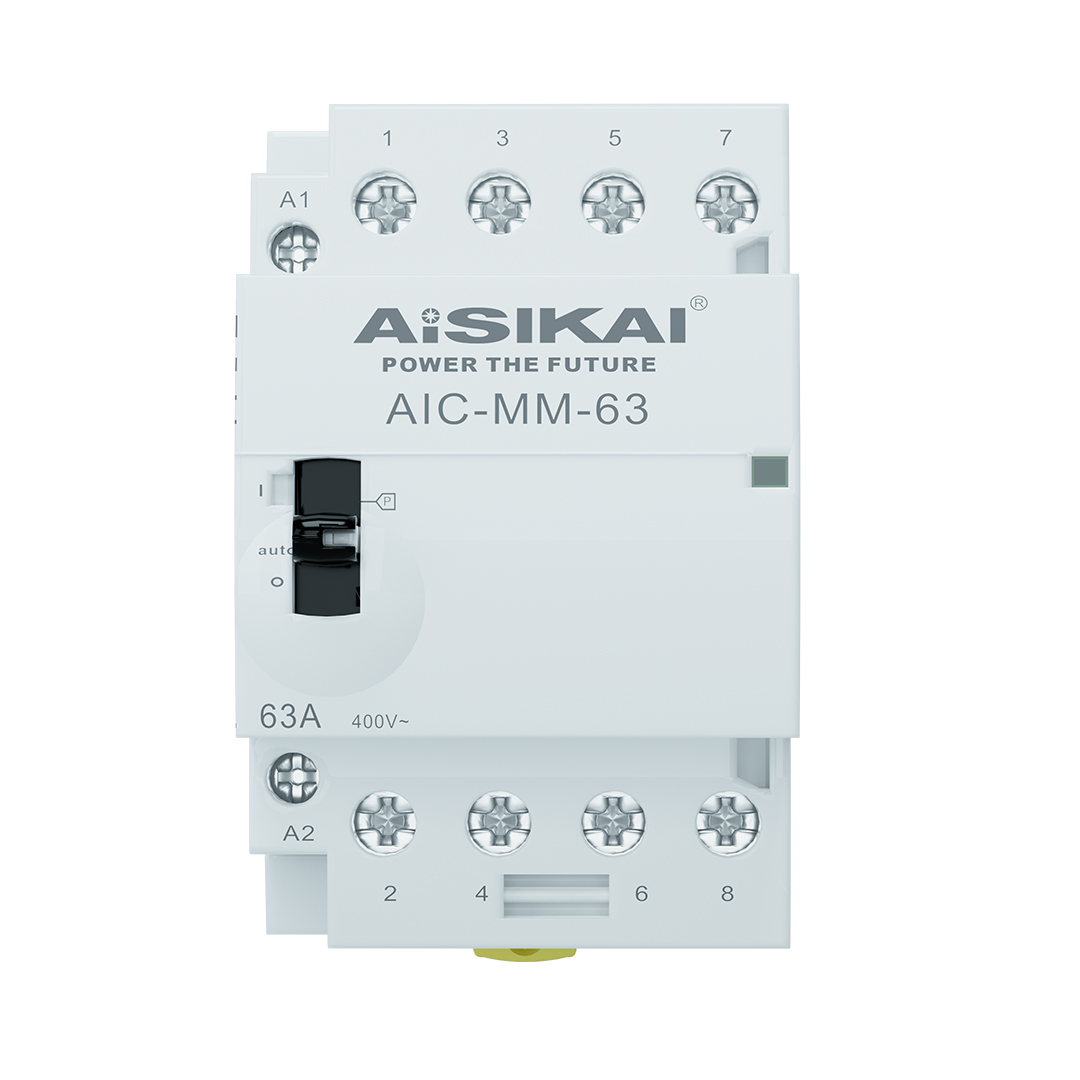

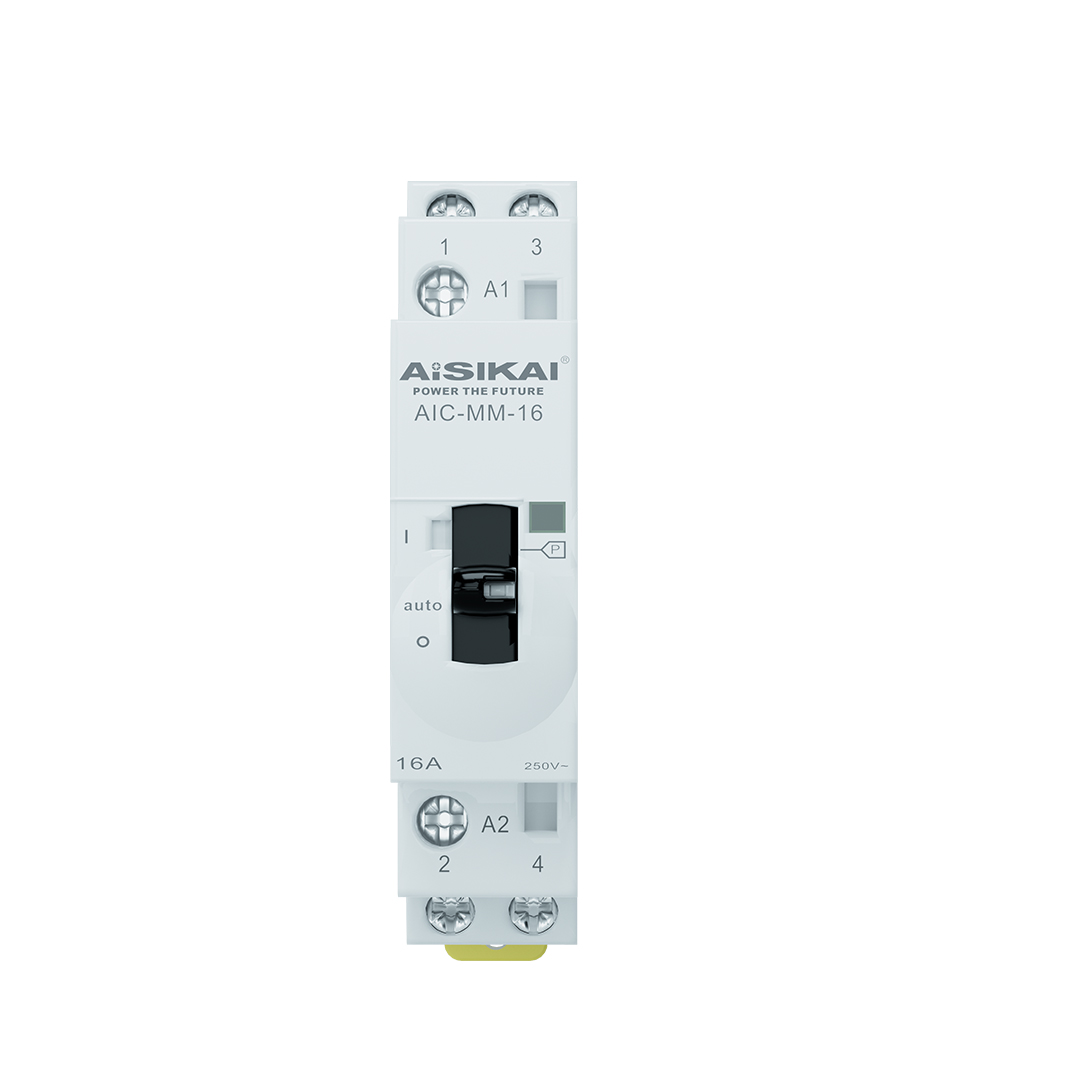

AIC-MM type manual-automatic integrated modular contactor

AIC-MM Manual-automatic Integrated Modular Contactor

The AIC-MM manual-automatic integrated modular contactor (hereinafter referred to as the contactor) is mainly suitable for circuits with an AC frequency of 50Hz (or 60Hz), a rated working voltage of up to 400V, and a rated working current of up to 125A. It is used to control household appliances and similar low-inductance micro-sensitivity loads, and can also be used to control household motor loads (with the control power correspondingly reduced). The MM type is equipped with a manual handle for opening and closing, which can realize the conversion between manual mode and automatic mode.

Model:
AIC-MM
Brand:
AISIKAI

Quantity:
Availability:





Inquiry

manual-automatic integrated modular contactor Modular Contactor Integrated Control Switch Power Transfer Control

Product Description

Download

STANDARDS

The contactor complies with the standards of GB/T 17885, GB/T 14048.4, IEC/EN 61095, and IEC/EN 60947-4-1

The accessory complies with the standards of GB/T 14048.5 and IEC/EN 60947-5-1

APPLICATION

The product is applied in homes, hotels, apartments and other places to achieve automatic functions, and is used in household appliances with large-scale production.

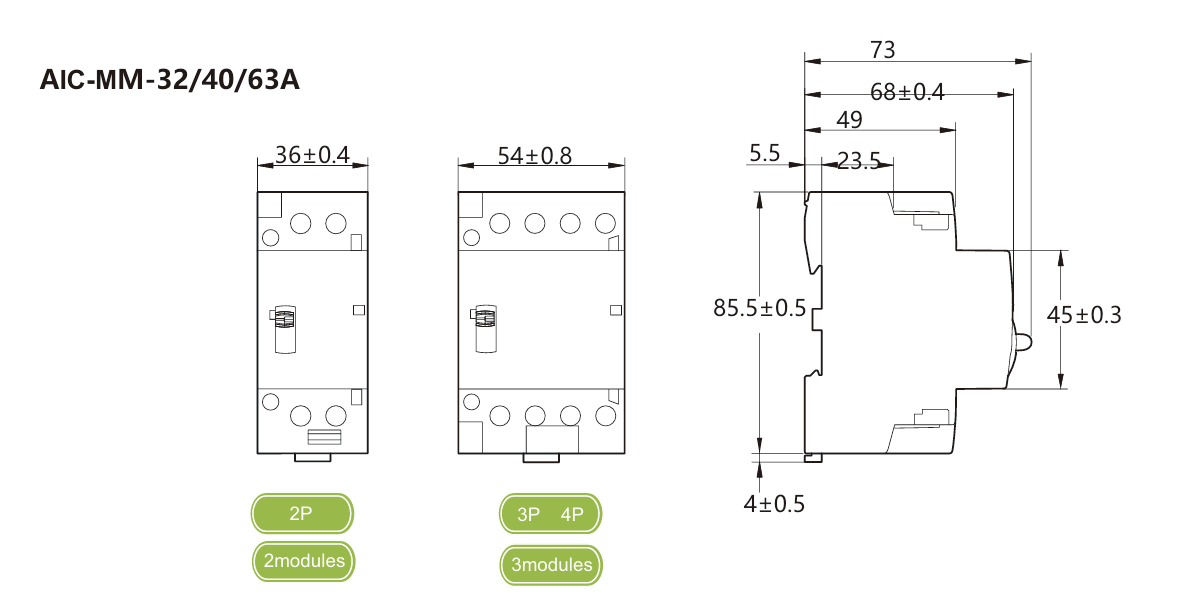

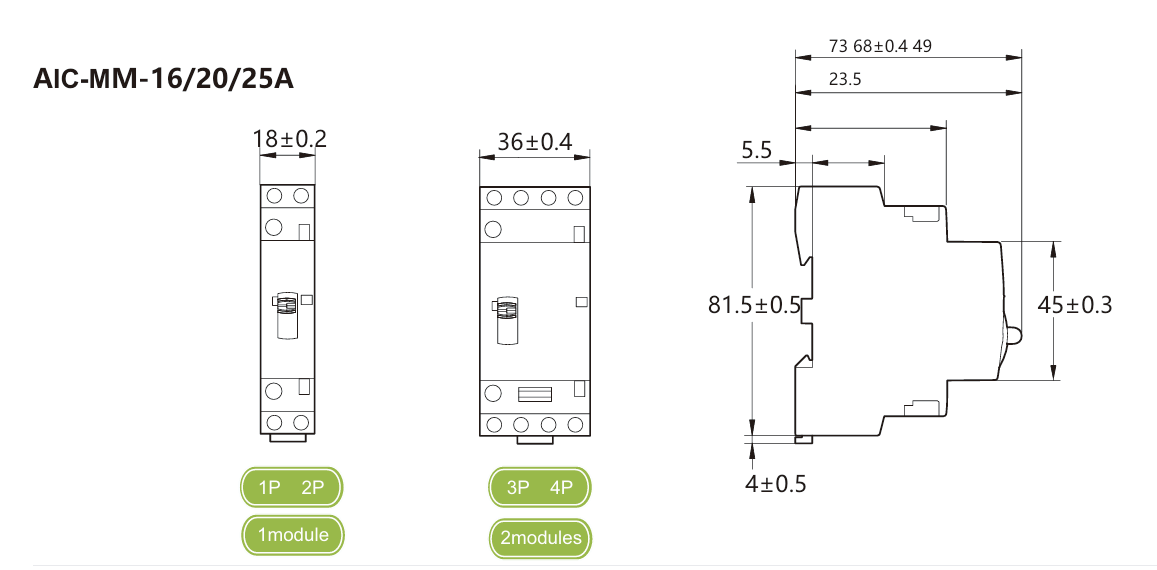

PRODUCT SIZE（MM）

b734556c-fd0f-4187-a810-8e45007ec7ec

2ad4c79a-7e36-4f8f-a940-40c3bf578f93

instruction：1 module=18mm wide

MAIN TECHNICAL PARAMETERS

Model		AIC-MM(16A-25A)		AIC-MM(32A-63A)
Rated Current(In)	AC-1	16A、20A、25A		32A、40A、63A
	AC-3	6A、7A、9A		12A、18A、25A
Product structure and installation form		1P,1module、2P,1module、	3P,2module、4P,2module、	2P,2module、	3P,3module、4P,3module、
Control Voltage (V AC)(50Hz)		24/110/230	24/110/230/380	24/110/230	24/110/230/380
Rated operating voltage of copper bar (Ue)	1P、2P	250V AC
	3P、4P	400V AC
Frequency		50/60Hz
Endurance(O-C)		100,0000times
Electrical		100000times
Rated insulation voltage of copper bar (Ui)		500VAC
Rated impulse withstand voltage(Uimp)		2.5KV(4KV for 12/24/48VAC)
Degree of Protection (IEC 60529）	Device only	IP20
	Device in modular enclosure	IP40
Tropicalization(IEC 60068.1)		Category 2 (at 55℃, with a relative humidity of 95%)
