ASKM3EL Thermal-Magnetic MCCB with Integrated Residual Current Protection

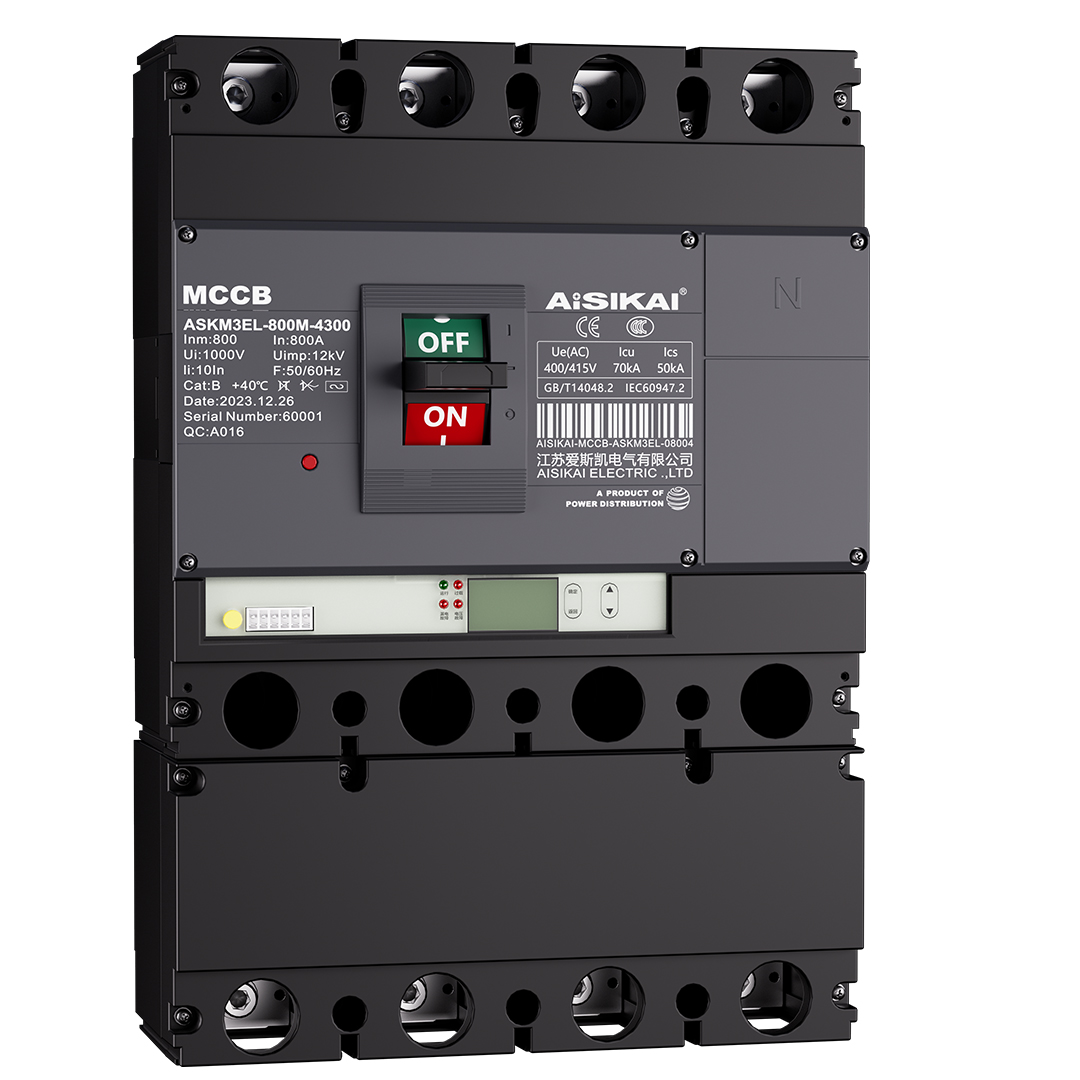

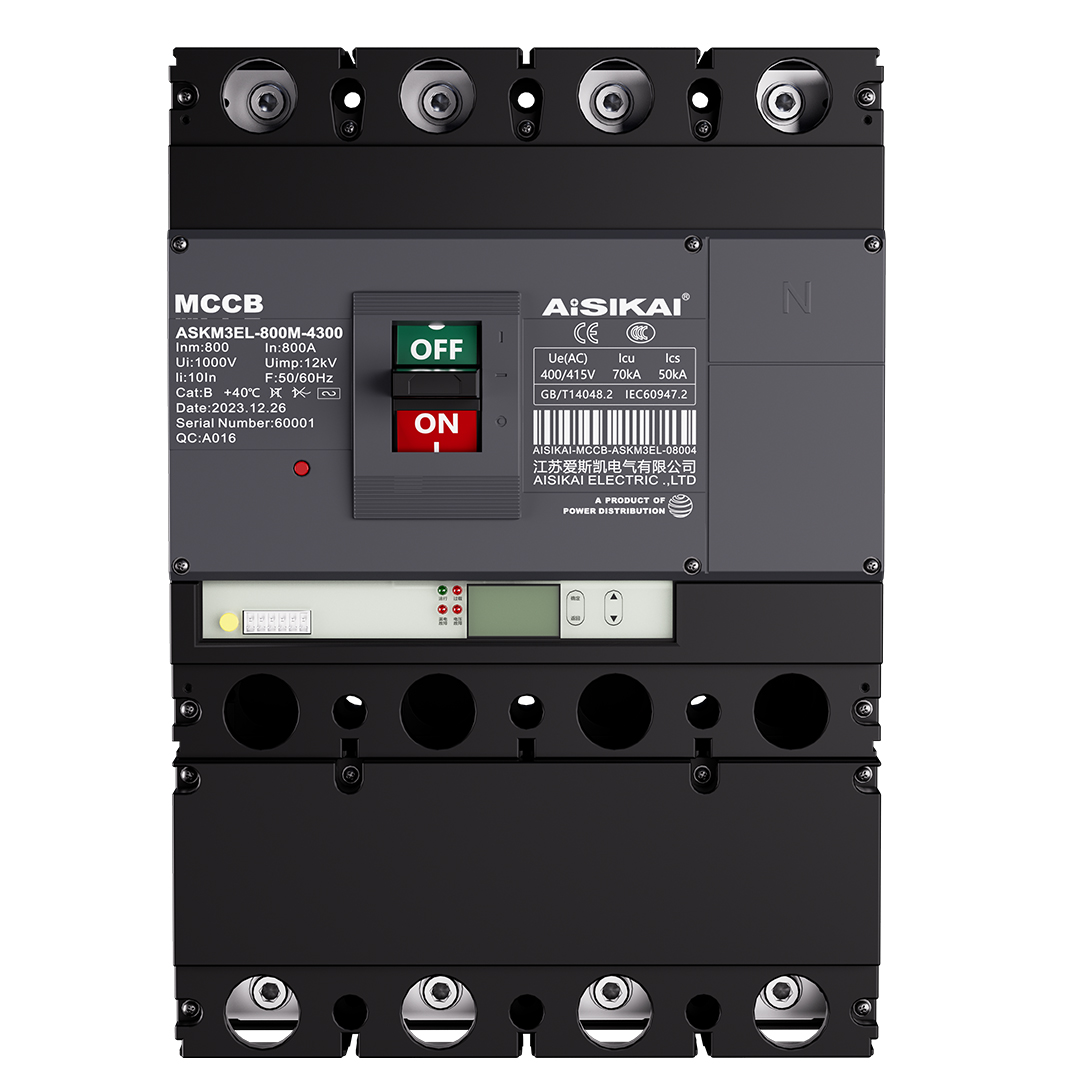

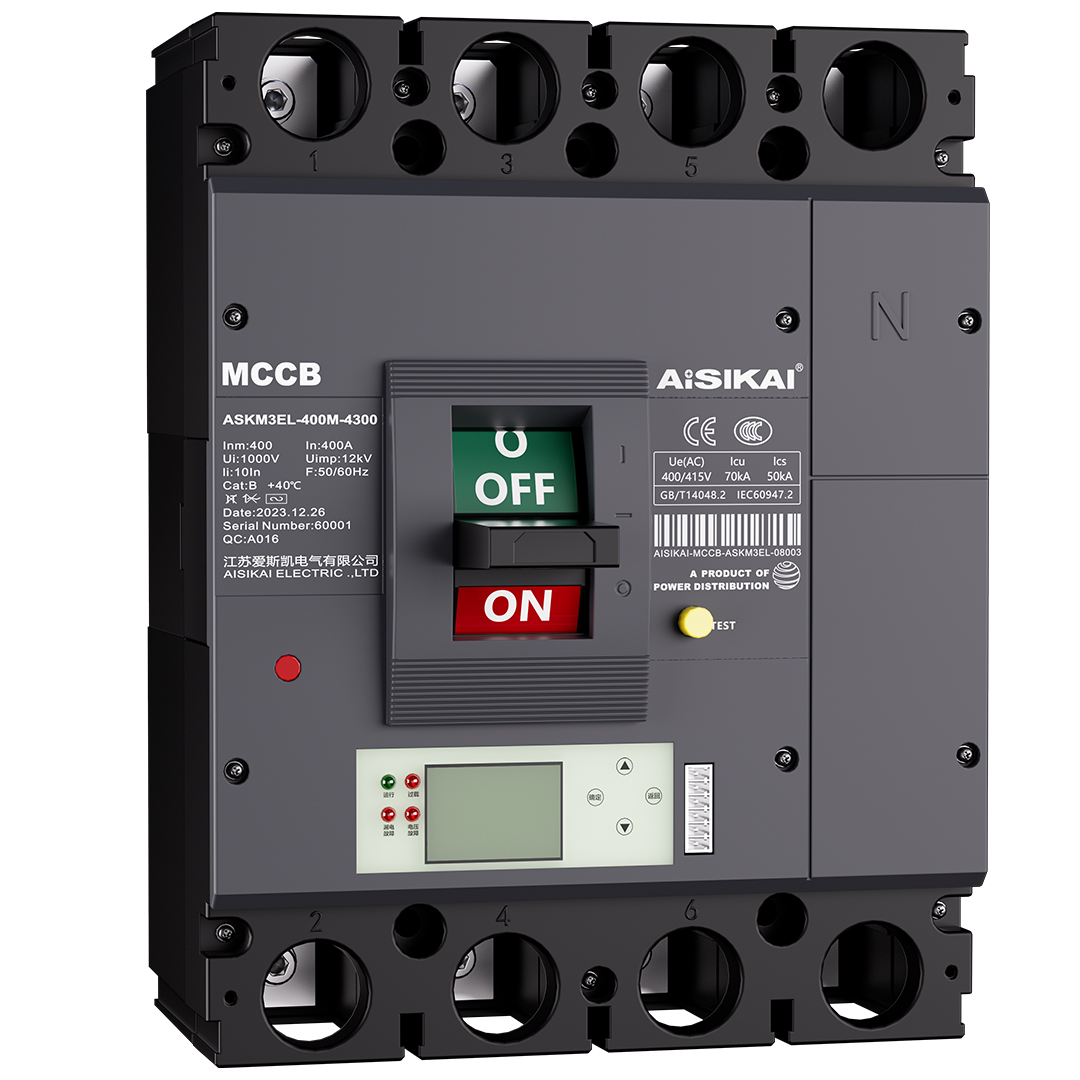

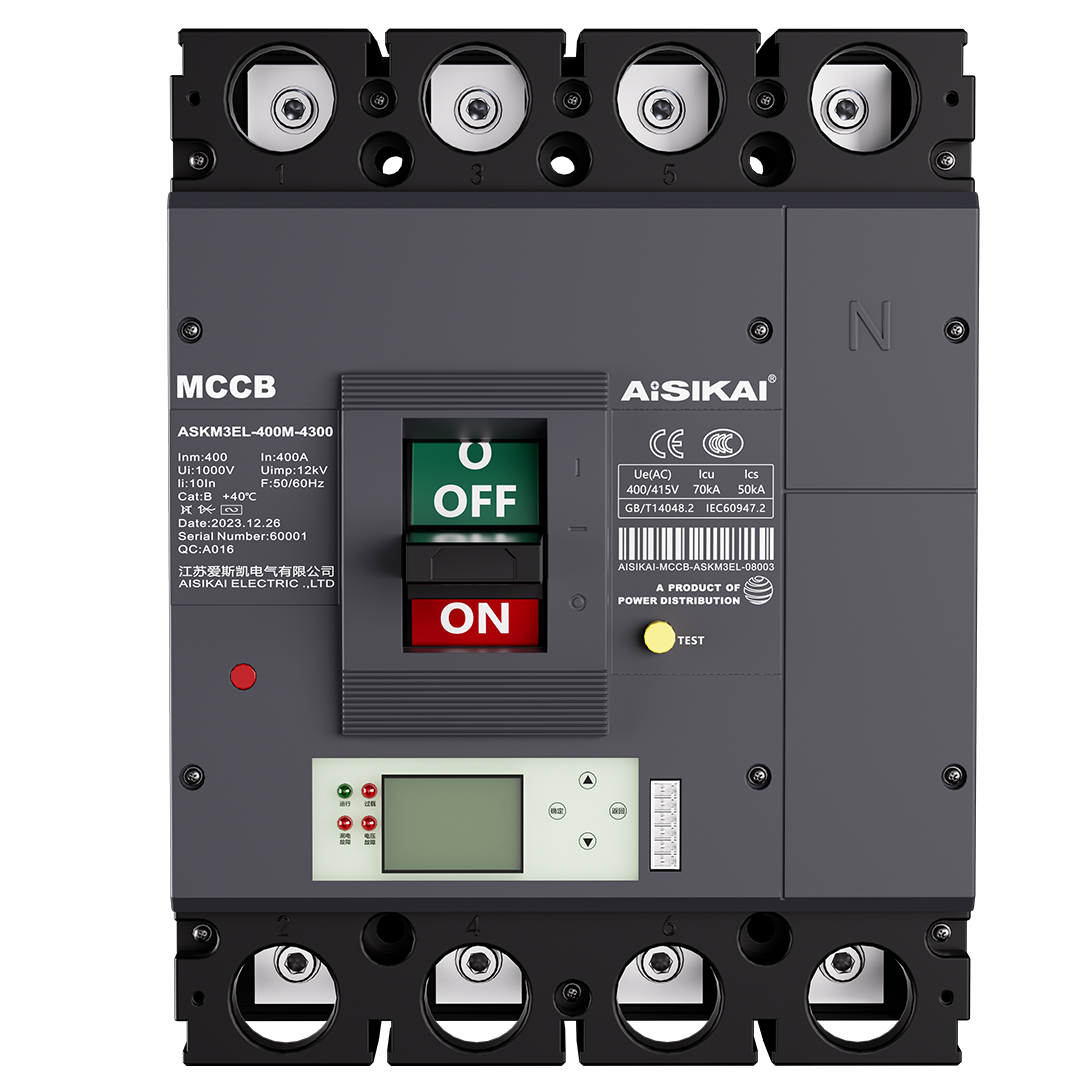

ASKM3EL LCD Electronics Molded Case Circuit Breaker with Residual Current Protection

Basing on the ASK3EL MCCB, we integrate the residual current protection function, we produce a new LCD intelligent electronic leakage protectiontype circuit breaker ASKM3EL (MCCB for short). MCCB can display real-time three phases currents, voltages and residual currents and upload datathrough communication network, realizing four remote functions and meeting the requirements of Low-voltage molded case circuit breakercommunication protocol

MCCB have protections for overload, short- circuit, under-voltage, over-voltage, phase-loss, zero-loss, can protect circuits and equipment fromdamage. MCCB also have residual current protection, providing protection against dangerous voltage exposure to people due to insulation damage.The selective protections of ACB have high accuracy, which can improve the reliability of power supply and avoid unnecessary power outages.

MCCB is suitable for the distribution network of AC 50Hz, rated insulation voltage 1000V, rated voltage 400V and rated current up to 800A. MCCB can beused for infrequent switching of lines and infrequent starting of motors. Special places can use leakage alarm non-tripping module to avoid majorlosses caused by power outages. MCCB meet the requirements ofArticle4.6 of GB13955- 2005.

Model:
ASKM3EL
Brand:
AISIKAI

Quantity:
Availability:





Inquiry

LCD Electronics MCCB with Residual Current Protection leakage protection residual current protection rccb rcbo mccb

Product Description

Download

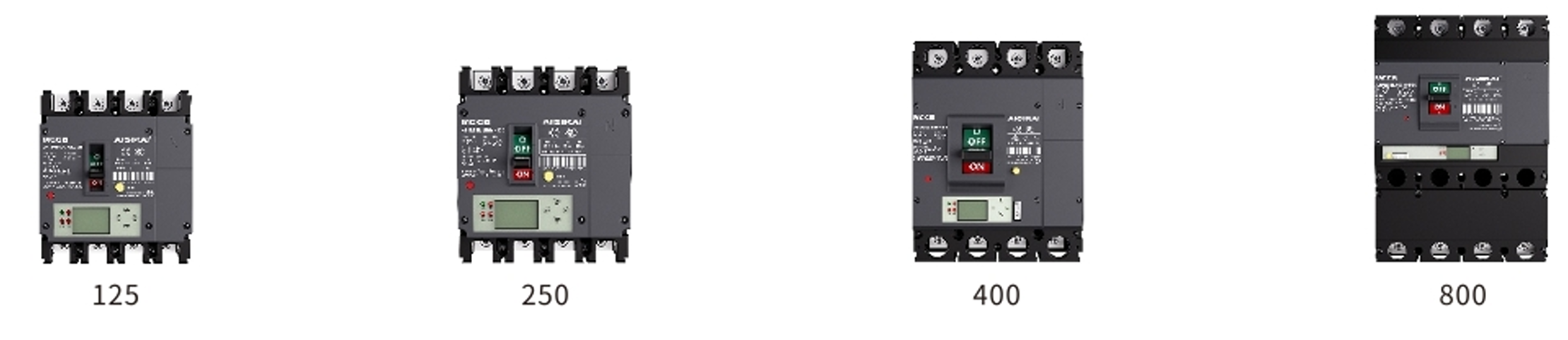

FRAME

6b2a5a36-bcce-41ff-9475-8b64ebb85a6f

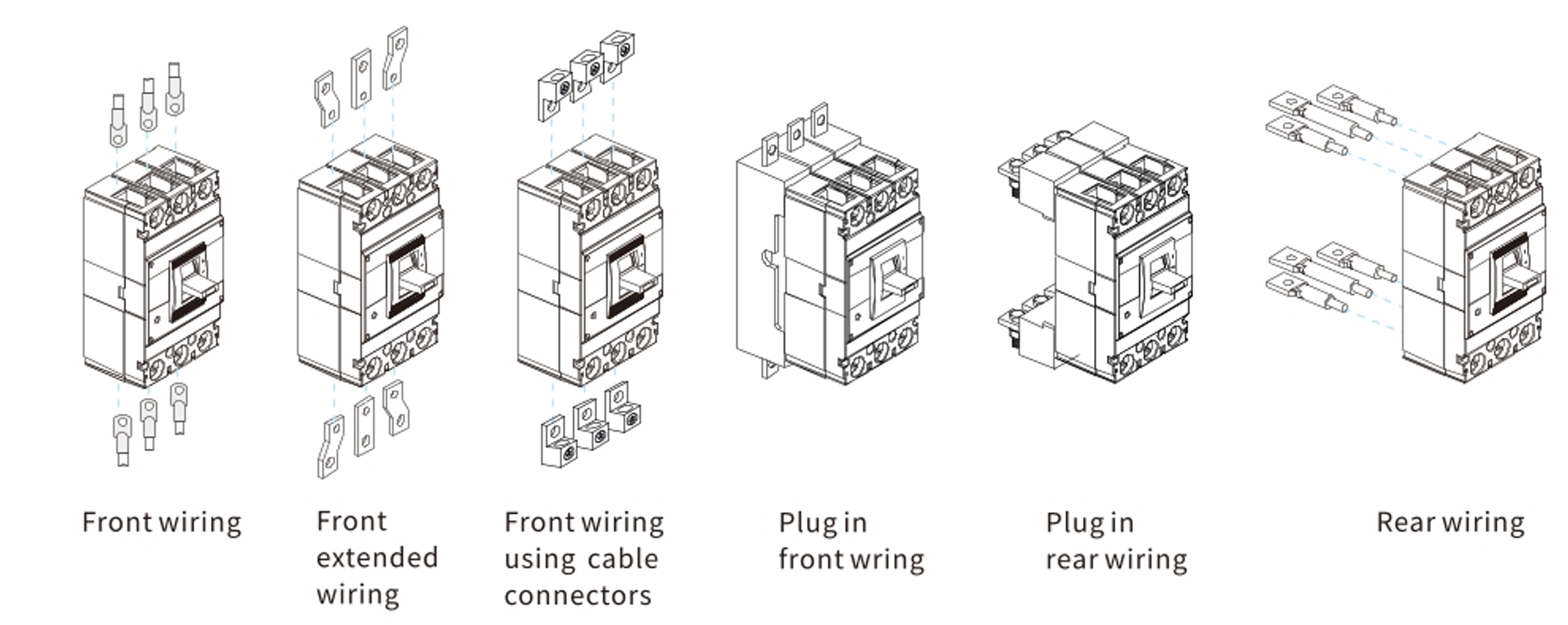

WIRING METHOD

a1510a32-032f-47b7-ad16-b3e8f4d3a171

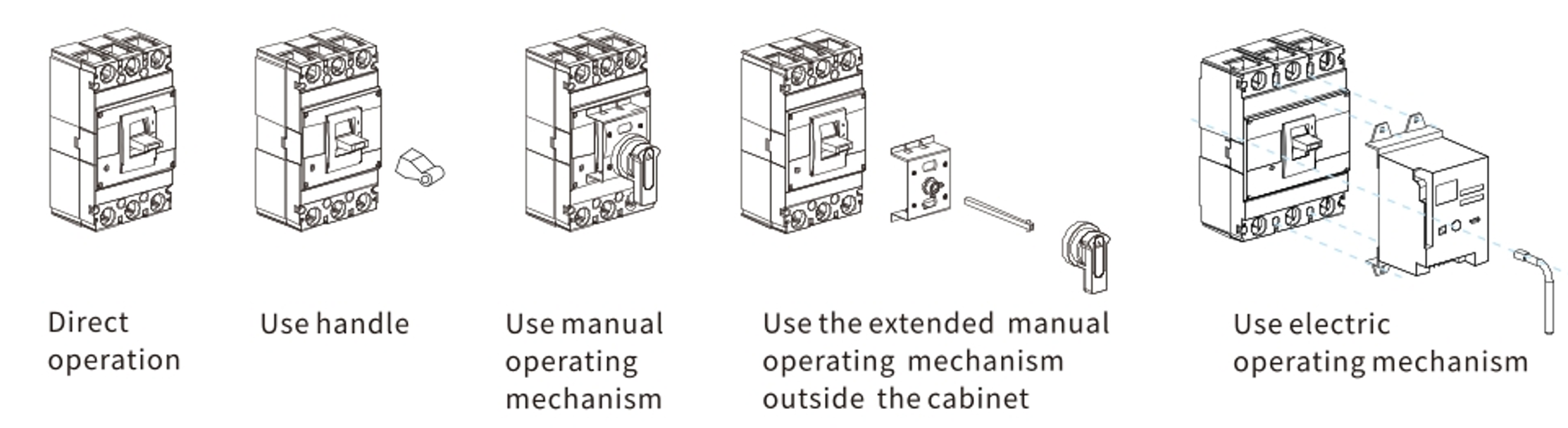

OPERATION METHOD

5bba0e3b-0e07-4f34-b2ba-00d5ca3c2962

APPLICABLE STANDARDS

GB14048.2、IEC60947.2

7509cbe3-7b23-4bfe-91ed-9a79eae349c9

FEATURES

Small volume, high breaking capacity, short flying arc,vibration resistant;

Reasonable structure,reliable performance,easy installation;

Extensive optional accessories,can installed on-line,meet the technical requirements of different power distribution systems.

FAQ

1、What accessories can be installed?

Alarm contact, shunt release, auxiliary contact, undervoltage release, electric operating mechanism, manual operating mechanism, machine operating mechanism

2、What are the reasons for frequent tripping?

Possible causes include: excessive load, circuit short, unstable voltage, internal fault or improper trip setting.

3、Can this type of MCCB be used in DC circuits?

Currently only available for AC400/415V, AC660/690V.

4、What should I do if the MCCB can't close the brake?

Check whether overload or short circuit is not ruled out.

Check whether the operating mechanism is stuck.

Check whether the undervoltage trip and shunt trip are operational.

Check that the auxiliary contacts and interlocking mechanisms are correct.

TECHNICAL DATASHEET OFASKM3L THERMOMAGNETIC NORMAL PROTECTION MOLDED CASE CIRCUIT BREAKER

Model			ASKM3EL-125		ASKM3EL-250		ASKM3EL-400		ASKM3EL-800
Frame rating current lnm(A)			125		250		400		800
Rated current In(A)			40-125		100-250		160-400		630(250-630)/800(315-800)
No.of poles			3/4		3/4		3/4		3/4
Rated insulation voltage Ui(V)			AC1000		AC1000		AC1000		AC1000
Rated operational voltage Ue(V)			AC380/AC400/AC415		AC380/AC400/AC415		AC380/AC400/AC415		AC380/AC400/AC415
Rated impulse withstand voltage Uimp(V)			12		12		12		12
Arc distance(mm)			≯50(0)**		≯50(0)**		≯100(0)**		≯100(0)**
Breaking capacity level			M	H	M	H	M	H	M	H
Ultimate short-circuit breaking capacity Icu(kA)		AC380/AC400/AC415	50	85	50	85	70	85	70	100
Service short-circuit breaking capacity Ics(kA)		AC380/AC400/Ac415	35	65	35	65	50	65	50	65
Rated short-time withstand current Icw(kA)/1s			10		10		10		10
Use category			B		B		B		B
Over-current tripper type/residual current tripper type			Electronic/Electronic AC type
Rated residual action current In(A)			50/100/150/200/300/500/1000
Rated residual non-action current Ino(mA)			1/2 In
Rated residual short-circuit making(breaking)capacity Im(kA)			1/4 In
Operational performance (times)	Electrical service life(times of operation)		8000		8000		7500		7500
	Mechanical service life(times of operation)-without maintenance)		20000		20000		10000		10000
	Mechanical service life(times of operation)-with maintenance)		40000		40000		20000		20000
Outline dimensions (mm)		W(3P/4P)	107/142		107/142		150/198		210/280
	L		165		165		257		400
	H		105		105		110		114.5
