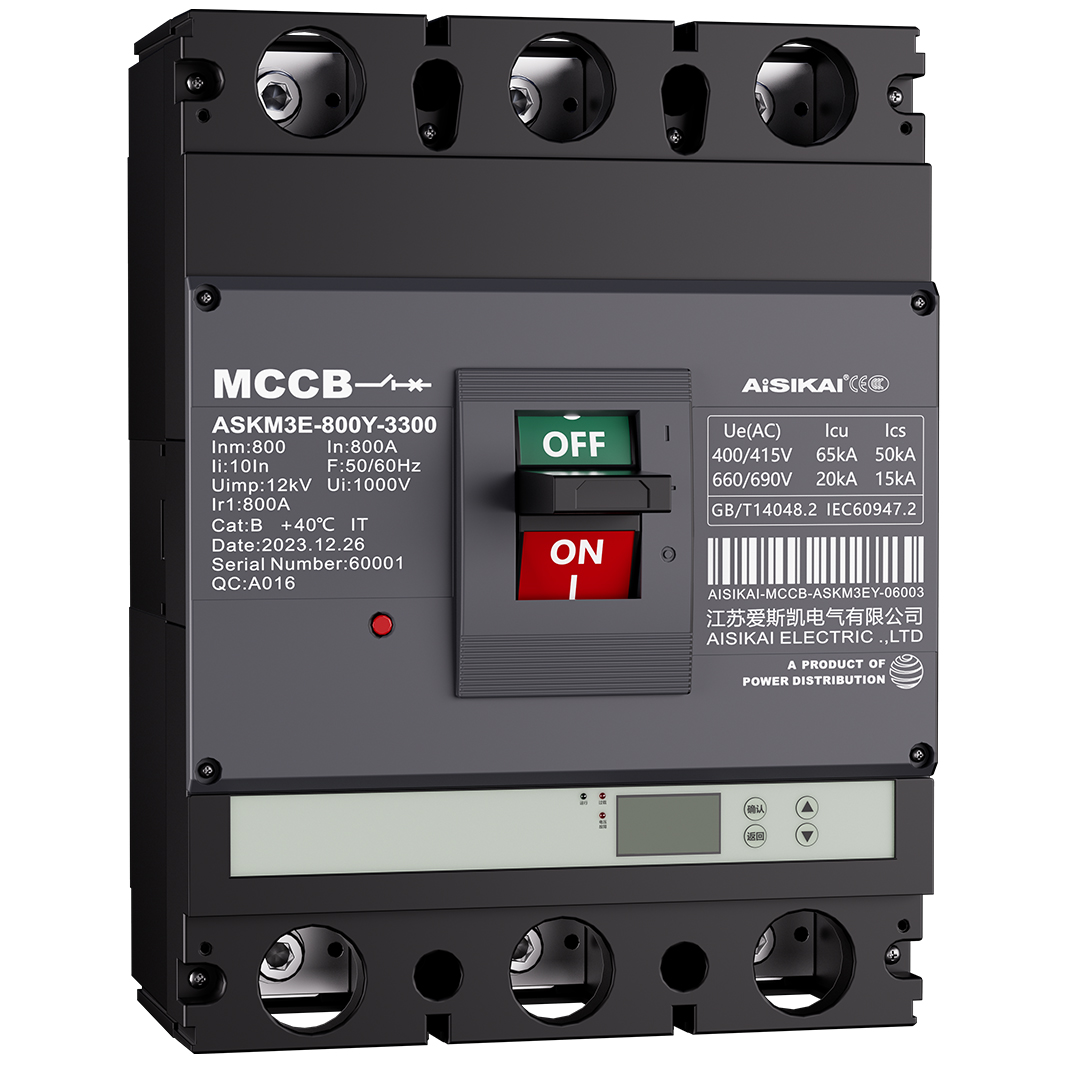

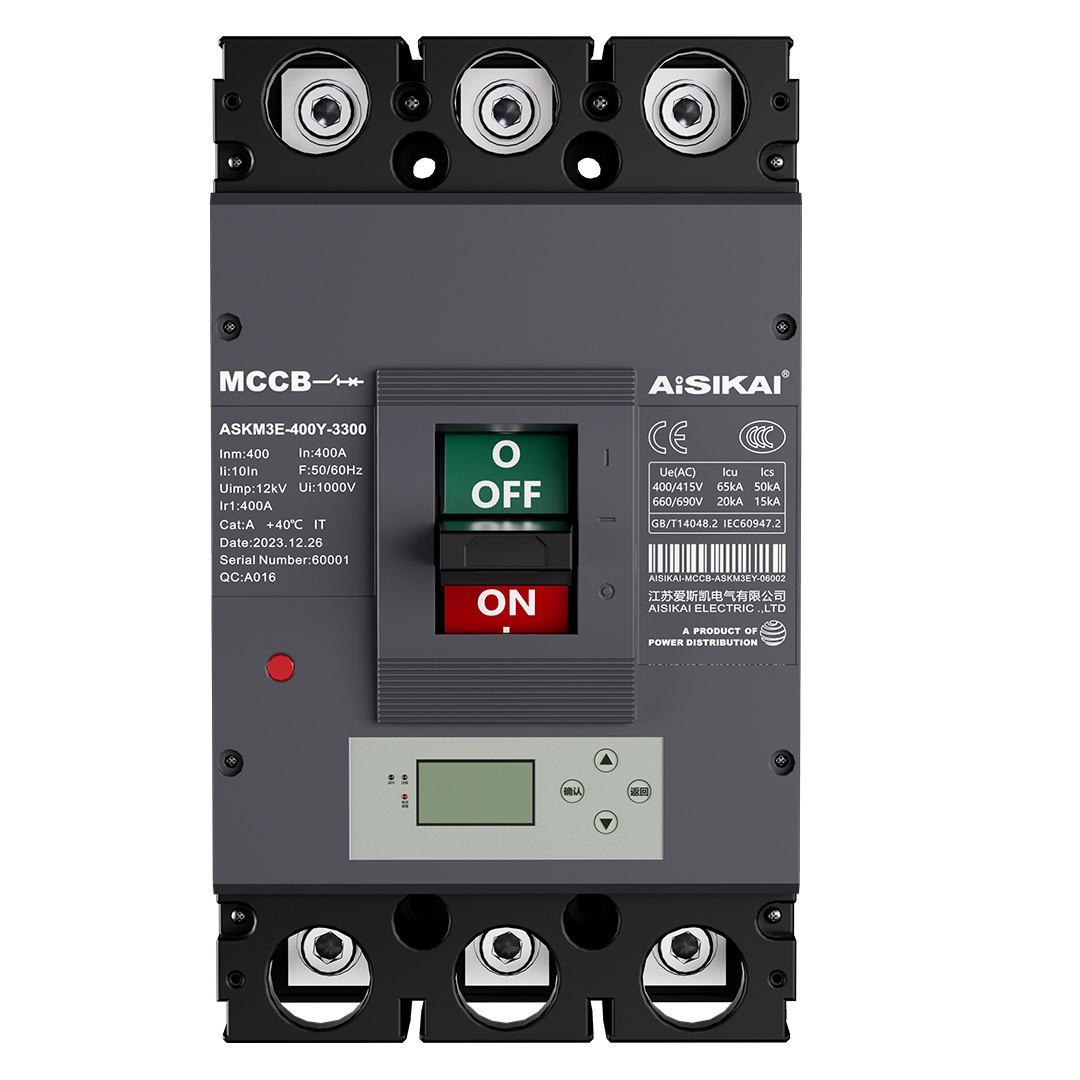

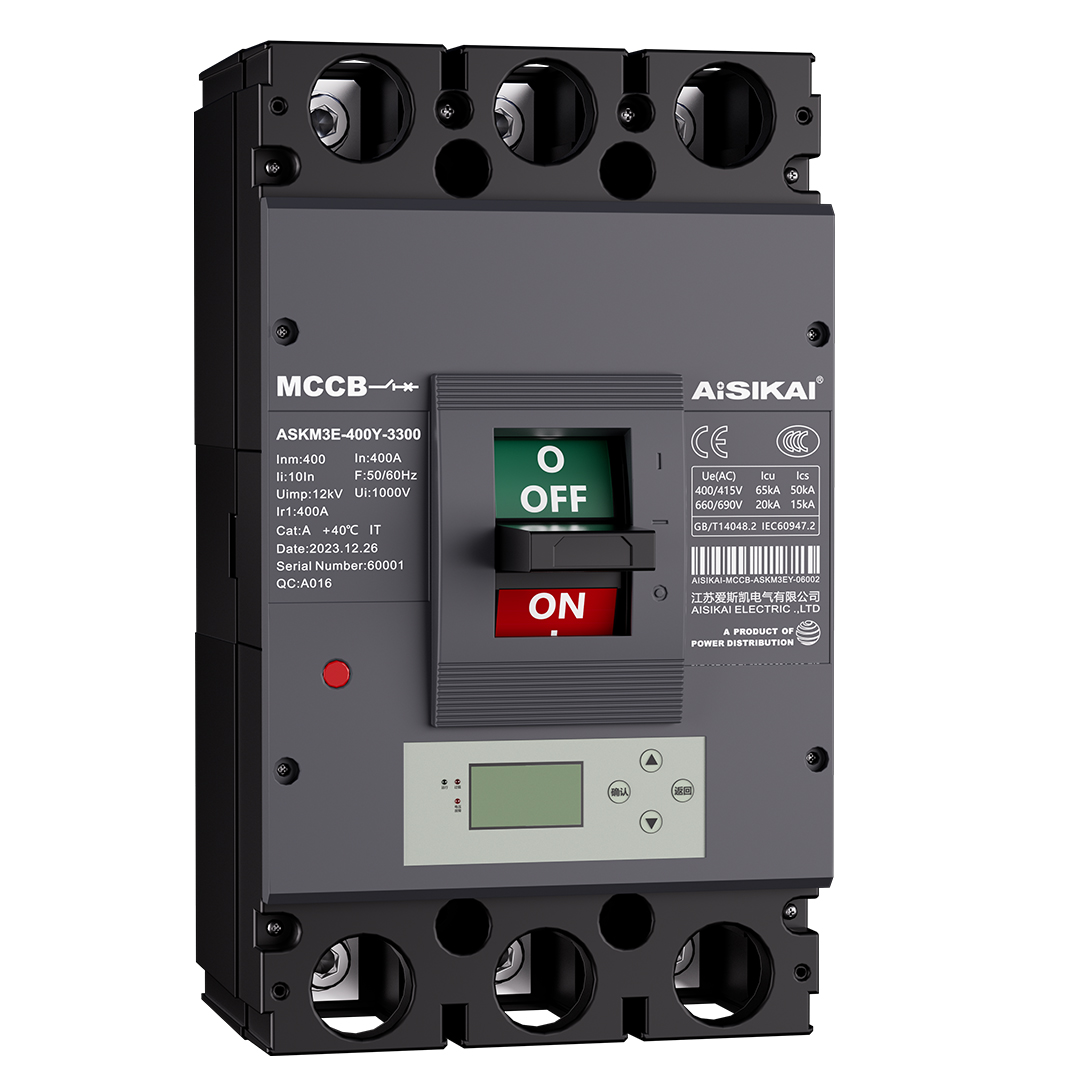

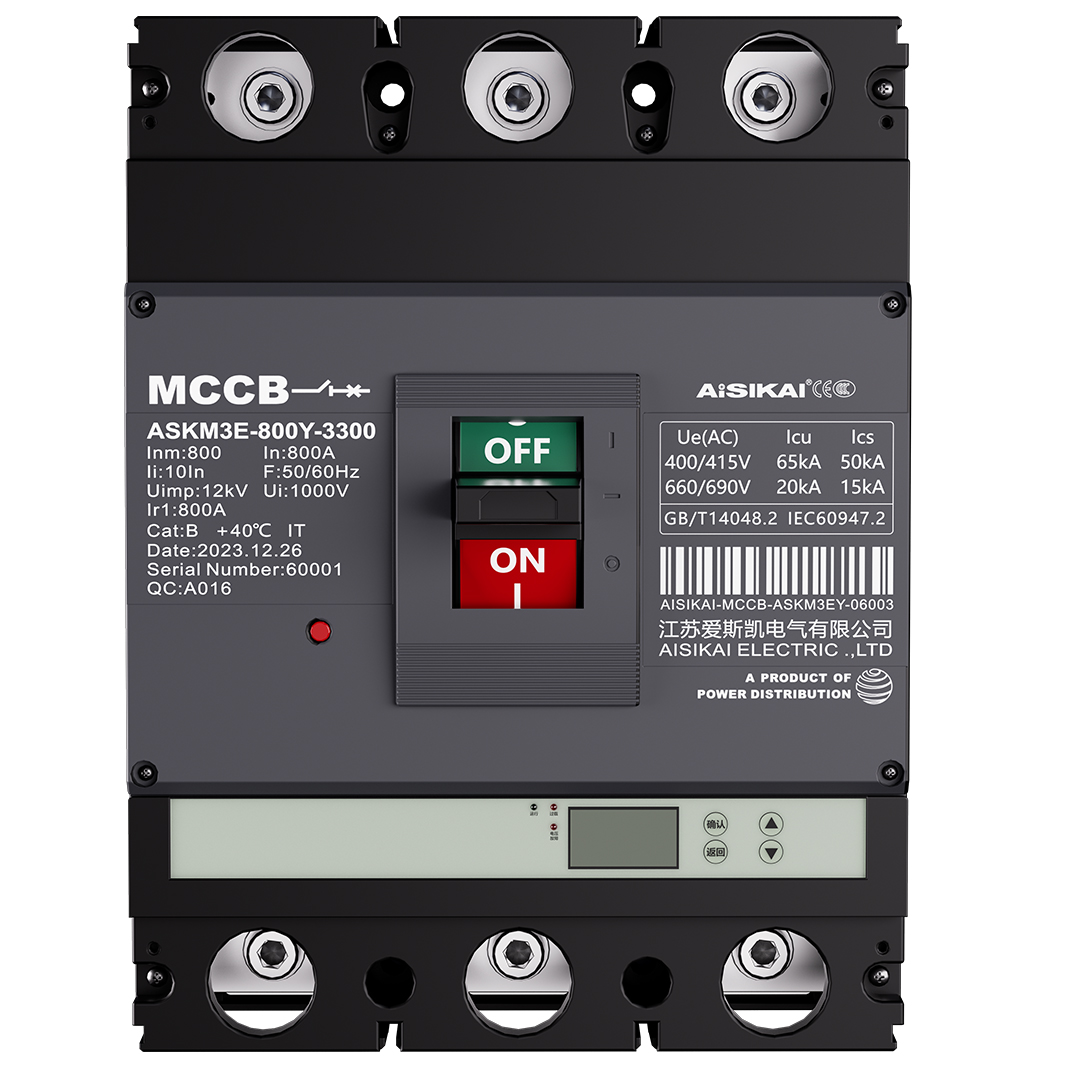

ASKM3E-Y
AISIKAI
| Quantity: | |
|---|---|
FRAME
WIRING METHOD
OPERATION METHOD
APPLICABLE STANDARDS
GB14048.2、IEC60947.2
FEATURES
Small volume, high breaking capacity, short flying arc,vibration resistant;
Reasonable structure,reliable performance,easy installation;
Extensive optional accessories,can installed on-line,meet the technical requirements of different power distribution systems.
FAQ
1、What accessories can be installed?
Alarm contact, shunt release, auxiliary contact, undervoltage release, electric operating mechanism, manual operating mechanism, machine operating mechanism
2、What are the reasons for frequent tripping?
Possible causes include: excessive load, circuit short, unstable voltage, internal fault or improper trip setting.
3、Can this type of MCCB be used in DC circuits?
Currently only available for AC400/415V, AC660/690V.
4、What should I do if the MCCB can't close the brake?
Check whether overload or short circuit is not ruled out.
Check whether the operating mechanism is stuck.
Check whether the undervoltage trip and shunt trip are operational.
Check that the auxiliary contacts and interlocking mechanisms are correct.
TECHNICAL DATASHEET OFASKM3E-Y THERMOMAGNETIC NORMAL PROTECTION MOLDED CASE CIRCUIT BREAKER
| Model | ASKM3E-125Y | ASKM3E-250Y | ASKM3E-400Y | ASKM3E-630Y | ASKM3E-800Y | ||||||||
| Frame rating current Inm(A) | 125 | 250 | 400 | 630 | 800 | ||||||||
| Rated current In(A) | 32 | 63 | 125 | 160 | 250 | 400 | 630 | 800 | |||||
| Overload long delay setting current Ir1(A)=(0.4-1In) | 12.5, 16,20, 25,32 | 32,36 40,45, 50,55, 60,63 | 63,65,70 75,80,85, 90,95, 100,125 | 50,63,65,70 75,80,85,90, 95,100,125 | 100,125,140, 160,180,200, 225,250 | 200,225,250,280,315, 350,400 | 400,420,440,460,480, 500,530,560,600,630 | 630,640,660,680,700, 720,740,760,780,800 | |||||
| Rated operationalvoltage Ue(V) | AC400V/415V AC660V/690V | ||||||||||||
| Rated insulation voltage Ui(V) | 1000V | ||||||||||||
| Rated impulse withstand voltage Uimp(V) | 12000V | ||||||||||||
| Breaking capacity level | M | H | M | H | M | H | M | H | M | H | |||
| Ultimate short-circuit breaking capacity Icu(kA) | AC400V/415V | 50 | 85 | 50 | 85 | 65 | 100 | 65 | 100 | 65 | 100 | ||
| AC660V/690V | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |||
| Service short-circuit breaking capacity Ics(kA) | AC400V/415V | 35 | 50 | 35 | 50 | 50 | 65 | 50 | 75 | 50 | 75 | ||
| AC660V/690V | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |||
| Rated short-timewithstand current lcw(kA)/1s | 5 | 5 | 8 | 10 | 10 | ||||||||
| Use category | B | B | B | B | B | ||||||||
| Arc distance | ≯50(0)** | ≯50(0)** | ≯100(0)** | ≯100(0)** | ≯100(0)** | ||||||||
| Electrical service life(times of operation) | 8000 | 8000 | 7500 | 7500 | 7500 | ||||||||
| Mechanical service life (times ofoperation) | without maintenance | 20000 | 20000 | 10000 | 10000 | 10000 | |||||||
| with maintenance | 40000 | 40000 | 20000 | 20000 | 20000 | ||||||||
| Outline dimensions (mm) | W(3P/4P) | 107/142 | 107/142 | 150/198 | 210/280 | 210/280 | |||||||
| L | 165 | 165 | 257 | 280 | 280 | ||||||||
| H(not including handle) | 105 | 105 | 110 | 115.5 | 115.5 | ||||||||
