Product Overview
| This ASK-7kW-S single - phase AC electricvehicle charging pile is an advancedcharging solution. It is primarily configuredwith a main control board, an integratedcommunication board supporting Ethernetor 4G or Bluetooth, and an RF card reader, aswell as an external indicator board. Equipped with a comprehensive suite offeatures, it offers robust charging protectionmechanisms, enabling secure chargingoperations. The charging process can beinitiated via card - swiping or QR codescanning, and it supports mobile paymentfunctionality, providing users with flexibleand convenient payment options. Designed in accordance with industrial standards, this charging pile ensures ease ofinstallation and rapid deployment, making it suitable for a wide range of applications andenvironments. |
Product Features
Output current: 32A
Built-in high-performance MCU, the product performance is stable
Multiple protection: high temp, over/under voltage, ground, over current, leakage, etc.
Three-color LED indication light shows the working status information in real time
Starting Method: swipe card, scan QR code, Bluetooth, etc.
Communication Method: Bluetooth, Ethernet, 4G
RS485 external communication interface
Support communication with remote management platform to realize remote monitoring
A variety of shell colors are available for selection
| Category | Item | Sspecification | Remark |
| Appearance Structure | Product Name | ASK-7kW-S | single-phase AC charging pile |
| Size | 230*215*108.5mm ( L*W*H ) | Only shell size | |
| Installation Method | Wall mounted / Floor-standing | ||
| Weight | 2.8K | With the shell and charging gun,3.5 cable length and otheraccessories | |
| Electrical Indication | Input Voltage | 90-265V | |
| Input Frequency | 50/60Hz | ||
| Output Power | 7kW | ||
| Output Voltage | 90-265V | t is necessary to modify theoutput over/under voltageprotection points | |
| Output Current | 32A | It can be modified independentlythrough APP and requiredcommunication functions | |
| Environment Indication | Application Scene | Indoor/ Outdoor | IP65 |
| Operating Temp | -30℃C~+55℃C | ||
| Operating Humidity | 5%~95% no condensation | ||
| Operating Altitude | <2000m | ||
| Cooling Method | Natural cooling | ||
| Protection Functions | Over Voltage | 265V | Default setting, can be modifiedthrough APP and requiredcommunication functions |
| Under Voltage | 175V | Default setting, can be modifiedthrough APP and requiredcommunication functions | |
| Over Current | ≥110% Rated output | Default setting, can be modifiedthrough APP and requiredcommunication functions | |
| Leakage | Optional | A Type+DC6mA | |
| Over Temp | 80℃ | Default setting, can be modifiedthrough APP and requiredcommunication functions | |
| Communicatio n Method | Bluetooth | Optional | CBU-IPEX |
| Ethernet | Optional | ETH1 | |
| 4G | Optional | ||
| RF Card Reader | Optional | ||
| Star Method | Plug and play/ APP control | According to Customers need and communication methods to achieve requirements | |
| Dielectric Strength | Input-Output Input- Ground Output- Ground | DC500V， 60S, ＞10MΩ | Input L, N, and output L and Nareshort-circuited after testing Insulation impedance input-output |
| Insulation Impedance | Input-Output Input- Ground Output- Ground | AC2000V， 60S, ＜10mA | Input L, N, and output L, N areshort-circuited and tested |

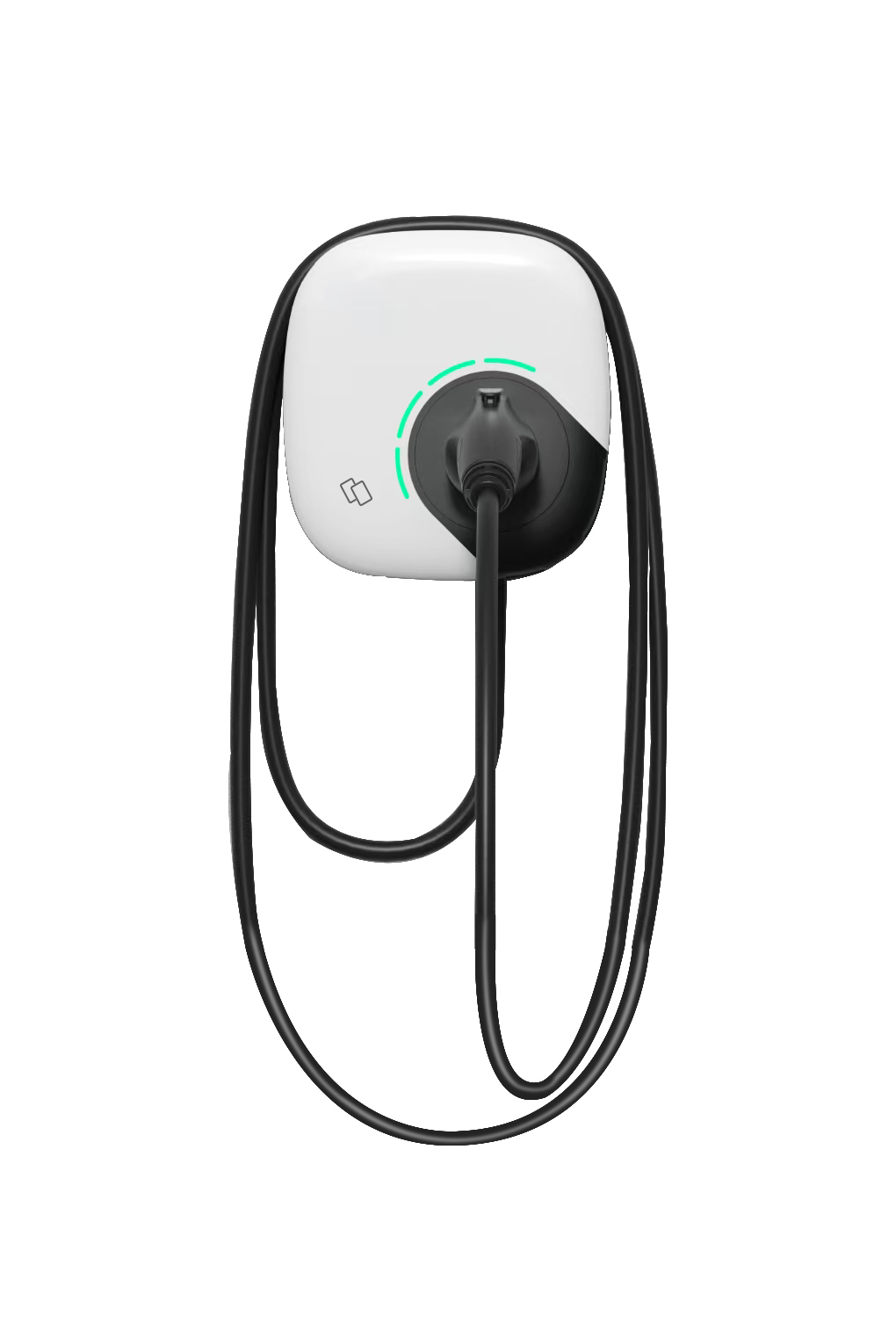

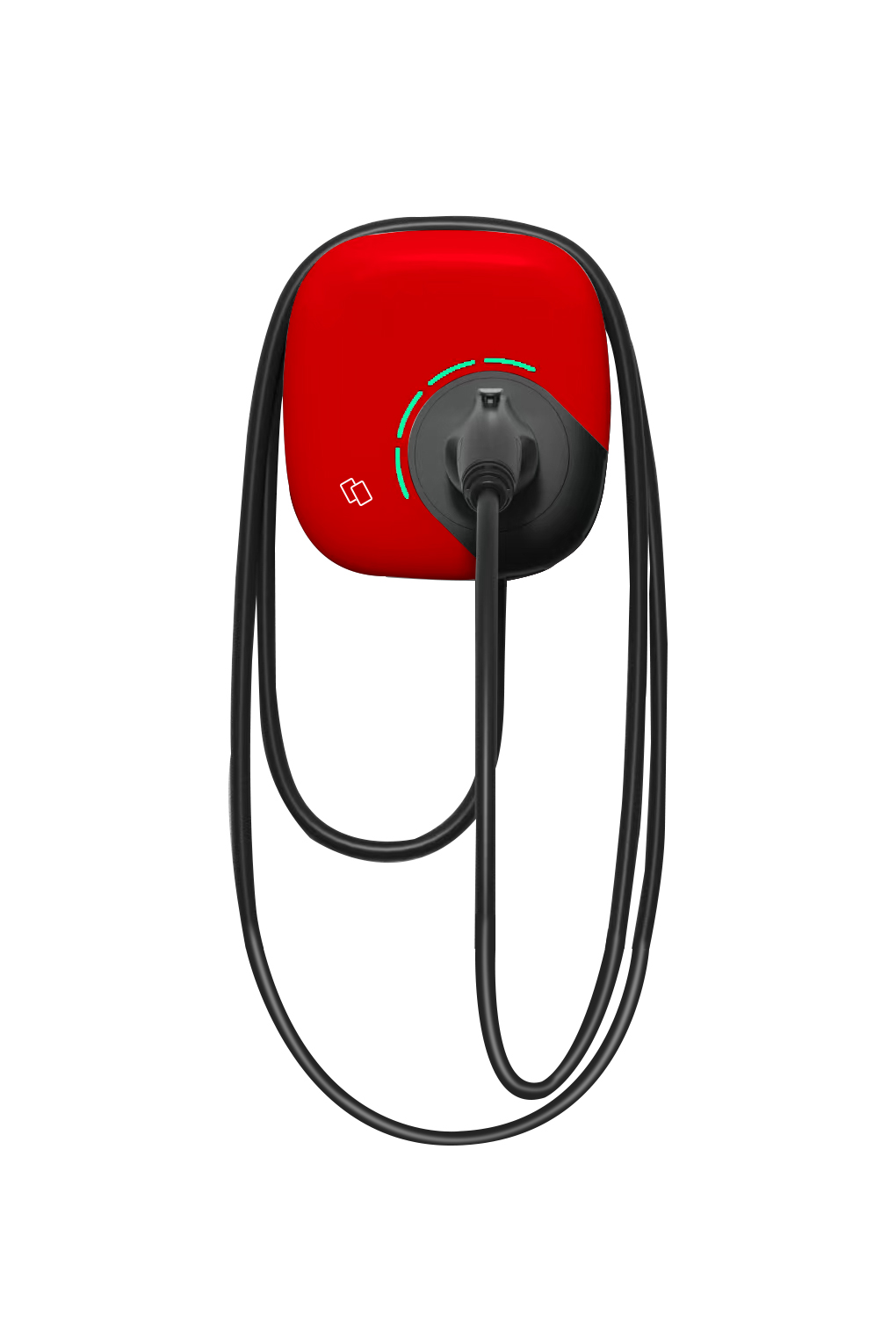

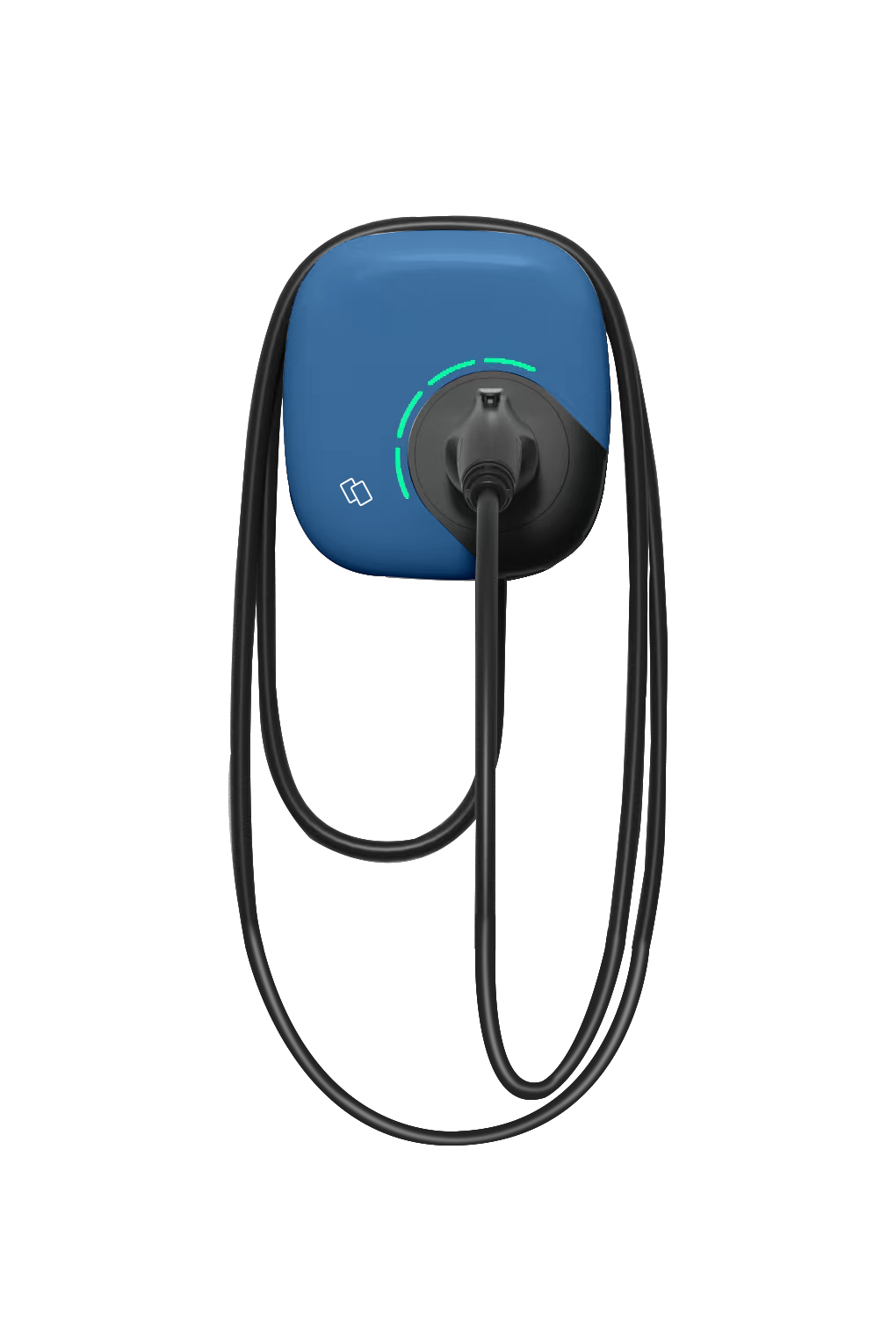

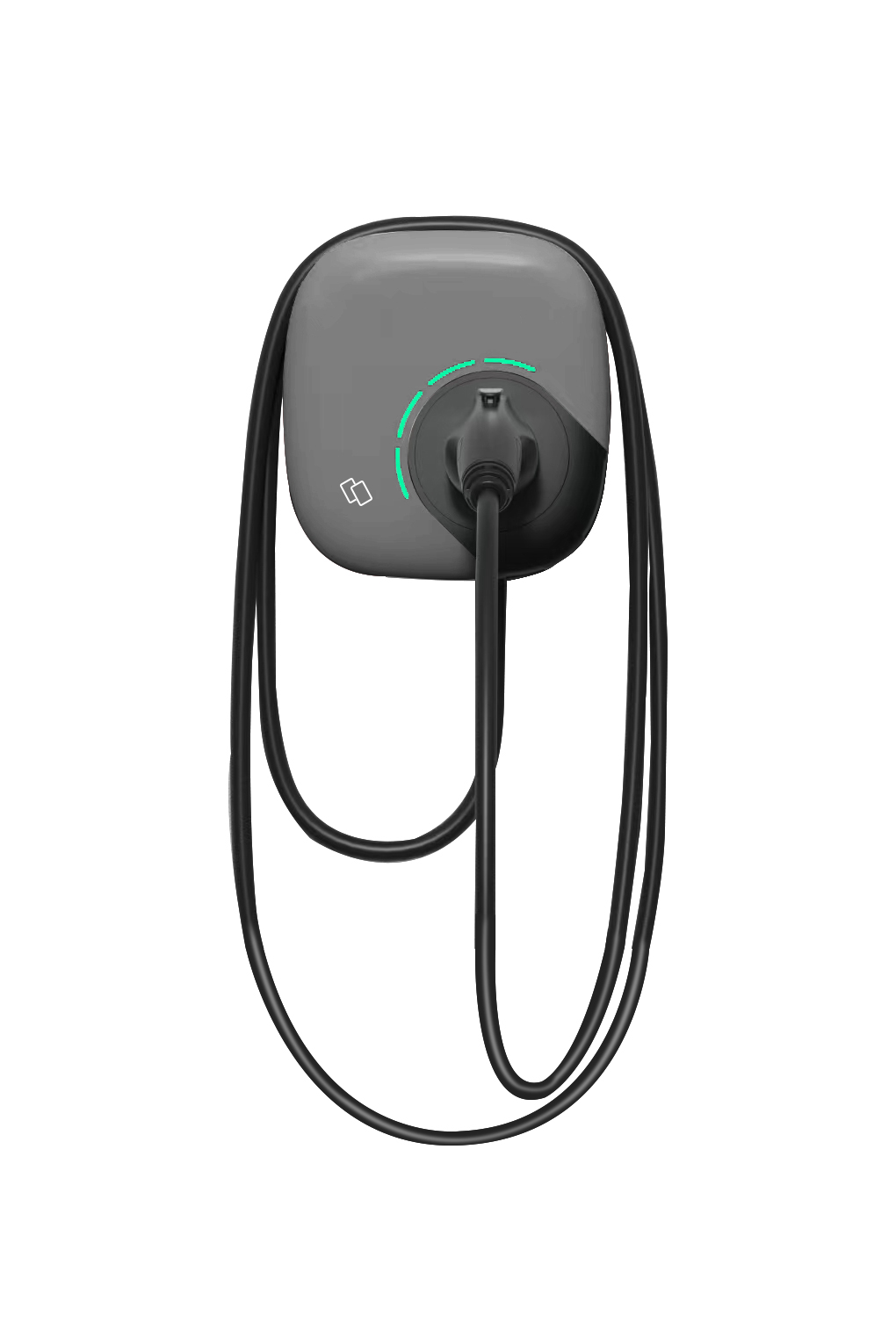

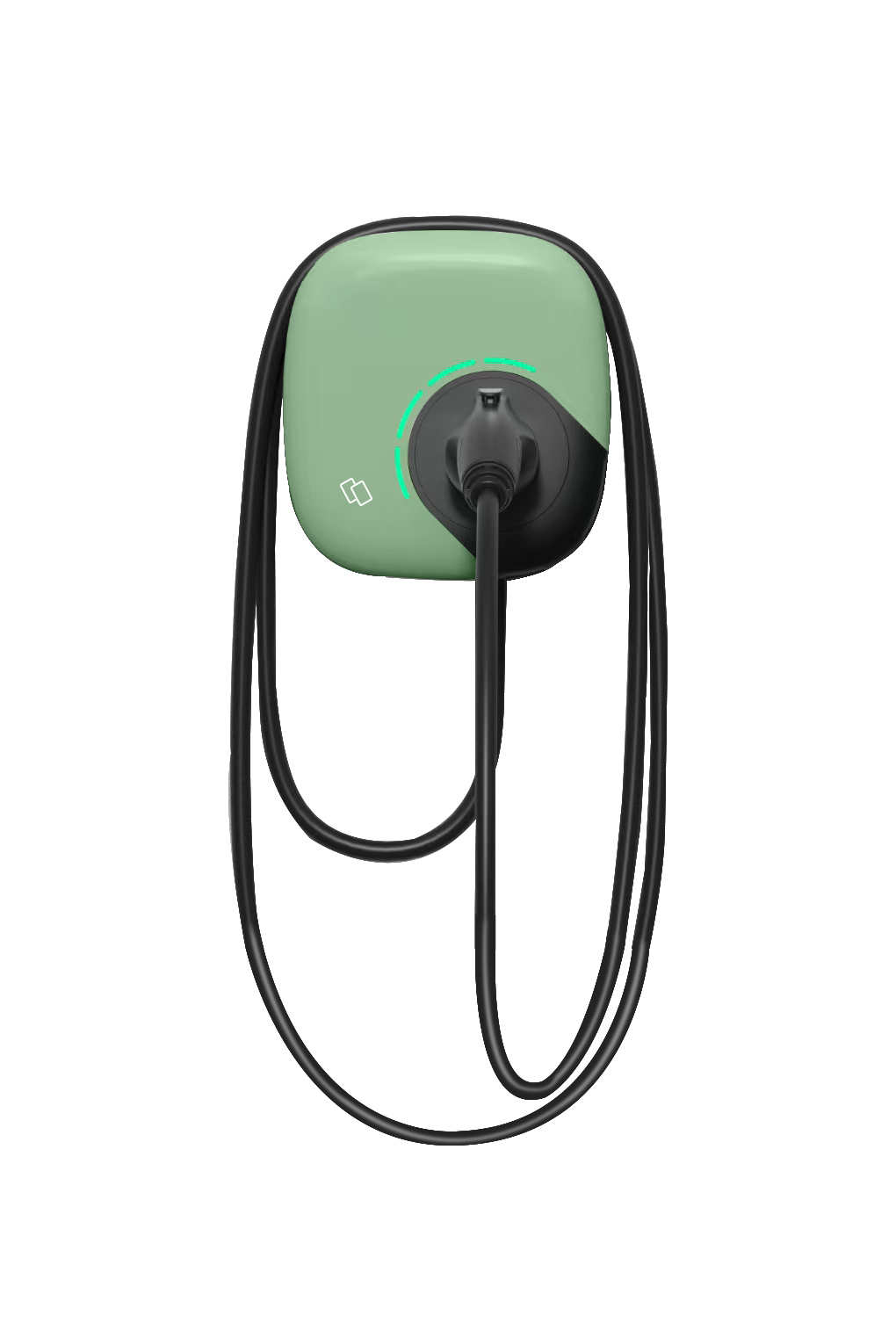

Product Appearance
 |  |  |  |  |  |
Main Components
| Name | Quantity | Standard/Optional | REMARK |
| Main control Board | 1 | Standard | |
| Charging Gun | 1 | Standard | |
| Indicator Light | 1 | Standard | |
| RF Card | 2 | Optional | |
| Card Reader | 1 | Optional | |
| Ethernet Communication Board | 1 | Optional | |
| 4G Communication Board | 1 | Optional | |
| Blue-tooth Board | 1 | Optional | |
| Built-in leakage protection device | 1 | Optional | A+DC6mA |
Operation Instructions
Normal charging operation process: Connect the charging gun to the electric vehicle →Charging in progress → Remove the charging gun.
| Status | Indicator Light Color | Indicator Light Dynamic |
| Stand-by | Yellow | Always on |
| Full-charging | Green | Always on |
| In-charging | Green | Flashing |
| Fault | Red | Flashing |

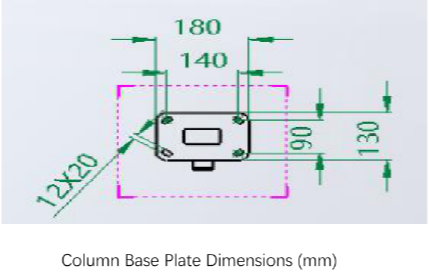

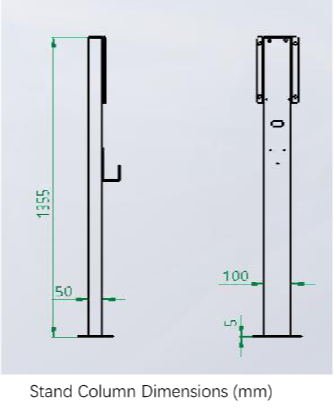

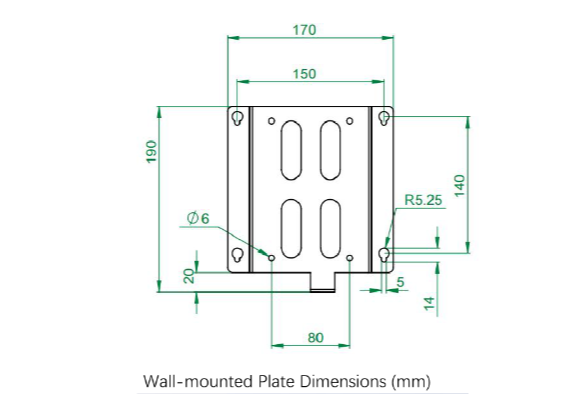

Product Dimensions

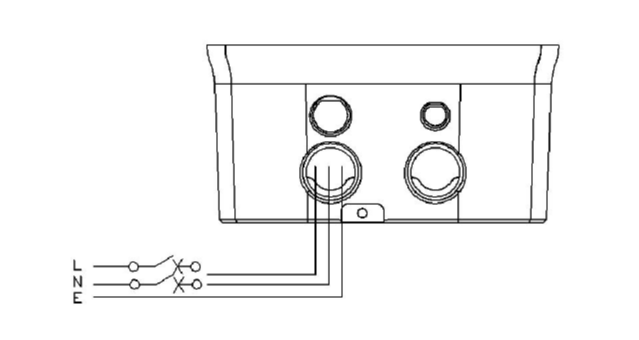

Electrical Installation
Input Cable Selection
The cable of the this 7KW charging pile adopts single-phase three-wire system (L+N+PE).
The cable specification should be selected according to the actual on-site conditions(distance, laying method, etc.). Recommended specification: 3×6mm².
The crimping and installation of cable terminals shall be firm and reliable, and safegrounding must be ensured.
Before powering on, a systematic check shall be conducted to ensure all wiring is correct.
The standard configuration of this device does not include a built-in leakage protectiondevice. During installation, it is recommended to select a miniature circuit breaker withleakage protection.
Storage and Transportation
During transportation, the charging pile should be securely packed in a sturdy packagingbox with the loading and unloading directions clearly marked. It is prohibited to transportor store the charging pile upside down. Appropriate fastening measures should be takenduring transportation to prevent strong vibrations and bumps from damaging theequipment's outer packaging. Upon arrival, check for any damage. If there is damageduring transportation, consult with the transportation provider and our company to resolvethe issue. Immediately after unpacking, verify that the items in the box match the packinglist.
The packed equipment should be stored indoors at a relative humidity of ≤80% and anambient air temperature between -10°C and +40°C. The storage area should be dry, clean,and well - ventilated, and protected from various harmful gases. It is strictly prohibited tostore the equipment with corrosive items in the same place.
Maintenance
The charging pile should preferably be fixed with anchor bolts to prevent it from tilting or shaking due to external or human factors.
Provide sun - shading and rain - proof measures for the charging pile. It is recommended to install a rain shelter outdoors.
Regularly check whether all bolts inside the charging pile are tightened, and whether thereare any loose or poorly connected wires.
Check for short - circuit conditions.
Pay attention to lightning protection, ensuring effective shielding and reliable grounding of the charging pile.
During operation, try to keep the output voltage and current of the charging pile within the rated range to ensure it operates at maximum efficiency.
When the charging pile stops being used, first stop the charging output, then wind up the cable and put it back in place.
During transportation of the charging pile, pack it securely and mark the loading and unloading directions. It is forbidden to transport or store the charging pile upside down.
Appropriate fastening measures should be taken to prevent strong vibrations and bumps from damaging the equipment's outer packaging.
Failure Code
| Protection Function | Light Indication | Remark |
| Over Voltage | red light flashes 1 time | |
| Under Voltage | red light flashes 2 time | |
| Over Current | red light flashes 3 time | |
| Over-temperature Protection | red light flashes 4 time | |
| Ground | red light flashes 5 time | |
| CP Voltage | red light flashes 6 time | |
| Relay Fault | red light flashes 7 time | |
| Leakage Protection | red light flashes 8 time | Optional |
| Relay Bonding Protection | red light flashes 9 time | |
| Self-checking Exception | red light flashes 10 time | |
| Diode Fault | red light flashes 11 ime | |
| Input Plug Temp | red light flashes 12 time | Optional |
| Output Charging Gun Temp | red light flashes 13 time | Optional |
| Abnormal Power Frequency | red light flashes 14 time |
FAQ
-Output Power: 7kW
-Output Current: 32A
-Multiple Protections: Over/under voltage, over current, leakage, over-temperature, and ground fault protection.
-Starting Methods: Swipe card, QR code scanning, Bluetooth.
-Communication Options: Bluetooth, Ethernet, 4G, RS485 interface.
-LED Indicators: Real-time status display (standby, charging, full, fault).
The charger supports wall-mounted or floor-standing installation. Ensure:
-The input cable follows the recommended specification: single-phase three-wire (L+N+PE), typically 3×6 mm².
-Safe grounding is mandatory.
-A leakage protection circuit breaker is recommended (not included by default).
Connect the charging gun to your EV.
Initiate charging via card swipe, QR code, or Bluetooth.
The green LED flashes during charging; it stays solid when fully charged.
4. Why does a DC MCB trip frequently?
-Overload: Exceeds rated current (e.g., inverter inrush current).
-Short Circuit: Battery or wiring fault (check insulation damage).
-Wrong Polarity: Causes overheating or false tripping.
-High Ambient Temperature: Poor ventilation (e.g., enclosed solar combiner boxes).
-Electrical Protections: Over/under voltage (adjustable via APP), over current (≥110% rated output), leakage (optional).
-Environmental Protections: Over-temperature (80°C default), grounding faults.
-Check the LED indicator for fault codes.
-Verify power supply and cable connections.
-Ensure no protective functions (e.g., over-voltage) are triggered.
