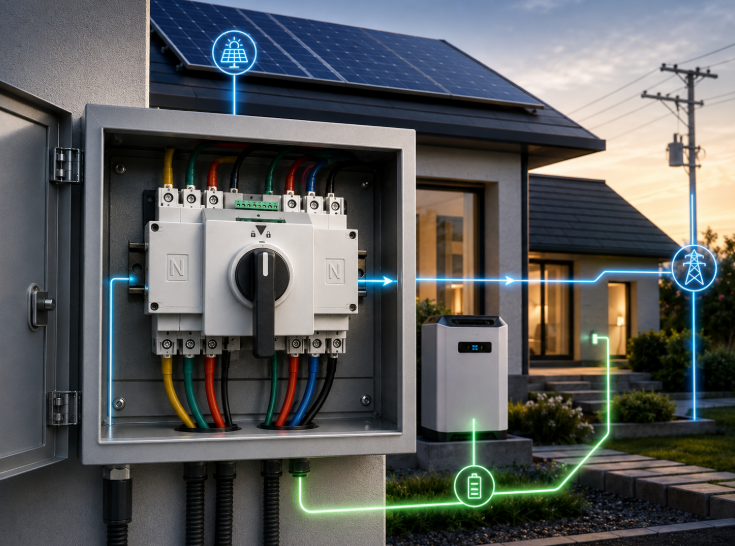

An Automatic Transfer Switch (ATS) is a specialized electrical device that automatically shifts a power load between two sources, such as a solar inverter and the utility grid or a backup generator, when it senses a power failure or a specific voltage drop. By utilizing an Automatic Transfer Switch, solar setups can achieve a seamless transition of power, protecting sensitive electronics and maintaining operational continuity without the need for manual intervention.
In this comprehensive guide, we will explore the pivotal role of transfer switches in modern photovoltaic (PV) systems, the technical mechanics behind their operation, and how to select the most reliable components to optimize your energy resilience. We will also delve into the critical synergy between solar arrays, battery storage, and backup generators to provide a complete picture of a high-performance energy infrastructure.
Section | Summary |
Why Automatic Transfer Switches are Essential | An analysis of why an ATS is the backbone of reliability in hybrid solar systems, preventing downtime during grid failures or solar fluctuations. |
How an ATS Works with Solar Power | A technical deep dive into the sensing, switching, and restoration phases of a transfer switch integrated with PV inverters and storage. |
Choosing the Right System | A guide on selecting ATS units based on amperage, transition speed (PC class vs. CC class), and environmental ratings. |
Installation and Safety | Best practices for integrating an ATS into an existing electrical panel, focusing on local codes, grounding, and surge protection. |
FAQ | Clear, expert answers to the most common technical questions regarding solar-to-grid switching and maintenance. |
Automatic Transfer Switches are essential because they provide the intelligence and speed required to manage multiple power inputs, ensuring that critical loads stay energized even when the primary solar source or the utility grid fails.
In any professional solar installation, whether it is for a manufacturing facility or a telecommunications hub, energy reliability is the top priority. While solar panels provide the energy, the Automatic Transfer Switch acts as the "brain" of the distribution system. Without an ATS, a failure in the grid or a depletion of battery storage would require manual switching, leading to costly downtime and potential data loss in sensitive systems.
Furthermore, these devices are designed to handle the complex synchronization requirements of modern power systems. For instance, when a solar system is paired with a backup generator, the ATS must ensure that the two sources are never connected simultaneously to prevent "backfeeding" into the grid, which could be lethal for utility workers. The use of high-quality PC Class Automatic Transfer Switches ensures that these transitions are handled with the highest level of safety and durability.
The necessity of an ATS can be broken down into three primary operational benefits:
Uninterrupted Continuity: For businesses running servers, medical equipment, or industrial machinery, even a few seconds of power loss can be catastrophic. The ATS detects voltage drops in milliseconds and switches to a backup source before the equipment can shut down.
Safety and Compliance: Modern electrical codes often mandate the use of listed transfer equipment to prevent accidental energization of the utility lines during a blackout.
Optimal Resource Management: An ATS can be programmed to prioritize solar energy during peak tariff hours and switch back to the grid only when necessary, significantly reducing operational costs.
An ATS works by constantly monitoring the voltage and frequency of the primary solar inverter output and automatically toggling a mechanical or electronic switch to a secondary source if the primary source falls outside of pre-set parameters.
The operational cycle of a solar-integrated Automatic Transfer Switch starts with the sensing phase. The controller inside the unit monitors the incoming power from the solar battery bank or inverter. If the clouds block the sun for an extended period and the battery bank hits a low-voltage threshold, the ATS identifies this as a "source failure."
Once the failure is confirmed, the ATS initiates the transfer. This involves opening the connection to the solar source and closing the connection to either the utility grid or a standby generator. In high-demand B2B environments, this process is often motorized to ensure a firm, reliable mechanical connection that can handle high currents without arcing. The speed of this transfer is vital; for instance, a Motorised Automatic Transfer Switch provides the robust force needed for large-scale industrial loads.
Finally, the ATS continues to monitor the primary source. Once the solar system has recharged the batteries or the grid has stabilized, the switch performs a "re-transfer." It waits for the power to remain stable for a programmed duration before moving the load back to the primary source, ensuring that the system does not "chatter" between sources during inconsistent power conditions.
Feature | Open Transition (Break-Before-Make) | Closed Transition (Make-Before-Break) |
Interruption Time | Short pause (usually <100ms) | No interruption |
Complexity | Low to Moderate | High (requires synchronization) |
Best Application | General industrial, lighting, HVAC | Data centers, hospitals, sensitive electronics |
Cost | Cost-effective | Premium |
Choosing the right ATS requires evaluating the total load capacity (Amperage), the required switching speed, and whether the system needs a PC Class or CC Class rating to handle short-circuit currents effectively.
The first step in selection is determining the amperage. You must calculate the maximum current your solar system and backup source will provide. For most commercial solar setups, an ATS rated between 100A and 630A is standard. However, for large manufacturing plants, heavy-duty switches are required. Utilizing a PC Class Automatic Transfer Switch is often recommended for these scenarios because they are designed to withstand high fault currents without needing an internal fuse, making them much more reliable for long-term industrial use.
Secondly, consider the transition type. In solar applications where the inverter might be sensitive to grid feedback, an "Open Transition" switch is often preferred to ensure a physical gap between sources. If your facility runs high-end computing equipment, you might look for a "High-Speed" motorized option that minimizes the duration of the power gap.

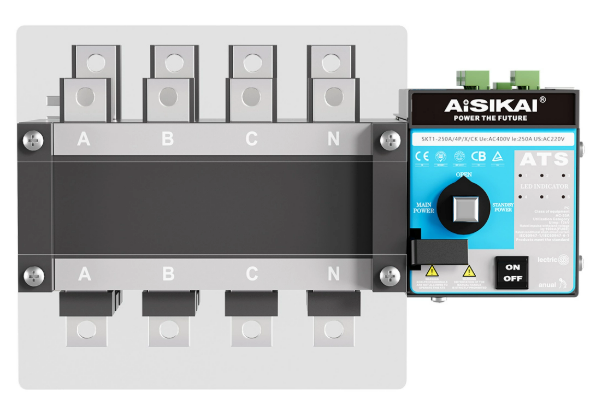

Number of Poles: Most commercial systems require a 3-pole or 4-pole switch depending on whether the neutral line needs to be switched along with the phases.
Enclosure Rating: If the ATS is installed near the solar array outdoors, it must have a high IP (Ingress Protection) rating to withstand dust and moisture.
Controller Intelligence: Advanced ATS units allow for adjustable time delays, voltage sensing thresholds, and communication ports (like RS485) to integrate with building management systems.
Proper installation involves integrating the ATS between the primary solar inverter, the secondary backup source, and the main distribution panel, ensuring all connections are torqued to specification and grounded according to local electrical codes.
Installation should always be performed by a certified electrician who understands the nuances of dual-source power systems. The ATS must be sized correctly for the overcurrent protection device (breaker) located upstream. During the wiring process, it is critical to ensure that the "Normal" and "Emergency" source inputs are not swapped. Using a high-quality Automatic Transfer Switch with clear labeling and robust terminals can significantly reduce the risk of installation errors.
Safety also involves the implementation of surge protection. Solar systems are often susceptible to lightning strikes and grid surges. An ATS installed within a solar setup should be paired with a Surge Protective Device (SPD) to protect the sensitive electronic controller inside the switch. Regular maintenance, such as checking for thermal discoloration at the terminals and testing the manual override handle, is essential for system longevity.
Isolation: Ensure all power sources—including the solar PV array, the battery storage, and the utility grid—are fully isolated and locked out before beginning work.
Grounding: Verify that the system has a common grounding point to prevent ground loops, which can interfere with the sensing electronics of the ATS.
Testing under Load: Once installed, perform a "Simulated Failure Test" by cutting the primary solar feed to ensure the ATS triggers the backup source and transfers the load within the expected timeframe.
Can I use a manual transfer switch for a solar setup?
While possible, it is not recommended for professional or commercial applications. A manual switch requires a person to be physically present to flip the lever during a power failure. In contrast, an Automatic Transfer Switch ensures that the power transition happens instantly, protecting equipment and data that cannot tolerate downtime.
What is the difference between PC Class and CC Class ATS?
A PC Class ATS, such as the PC Class Automatic Transfer Switch, is capable of making and withstanding short-circuit currents and does not rely on an integral overcurrent protection device. CC Class (Circuit Breaker based) switches use internal breakers for protection. PC class is generally considered more robust for industrial solar applications due to its higher durability and simplicity.
How does an ATS handle a solar system with a backup generator?
In a "Three-Source" or "Hybrid" setup, the ATS is programmed with specific priorities. Typically, Solar/Battery is the primary source. If solar fails, the ATS can be configured to start a backup generator automatically. The switch will wait for the generator to reach the correct voltage and frequency before transferring the load, ensuring a stable power supply.
What maintenance does a solar ATS require?
Annual inspections are recommended. This includes cleaning dust from the mechanical components, tightening electrical connections to prevent overheating, and verifying that the electronic controller is accurately reading voltage levels. Most modern motorized units are designed for thousands of cycles, but periodic testing is the best way to ensure reliability.
