An Automatic Transfer Switch (ATS) is a self-acting electrical device that disconnects a load from one power source and connects it to another when the primary source fails or its characteristics fall outside preset limits.
As we move toward a decentralized energy landscape—incorporating solar photovoltaics (PV), battery energy storage systems (BESS), and smart grids—the role of the transfer switch is undergoing a profound revolution. It is no longer just a "dumb" mechanical toggle; it is becoming the central nervous system of intelligent energy management. This article explores this evolution, the technical mechanics of modern power switching, and how the integration of smart controllers is redefining the future of energy resilience.
What Is an Automatic Transfer Switch
How Does an Automatic Transfer Switch Work?
Limitations of Traditional Automatic Transfer Switches
Home Energy Management Controller: Redefine the Role of Automatic Transfer Switches
Future Outlook: The Hyper-Evolution of Automatic Transfer Switches
Conclusion

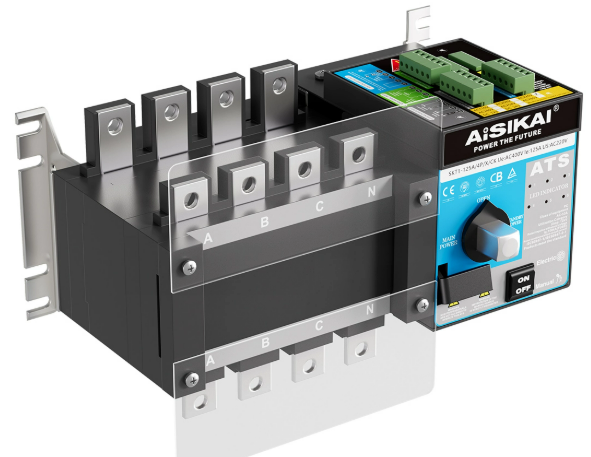

An Automatic Transfer Switch is an essential power distribution component designed to automatically shift electrical loads between a primary power source (usually the utility grid) and a secondary source (such as a generator or solar storage) during a power interruption.
The Automatic Transfer Switch acts as the primary safeguard for electrical reliability. By monitoring the incoming voltage and frequency of the utility line 24/7, the device ensures that if the grid goes down, the standby system is engaged immediately without human intervention. This is particularly vital in industrial settings where a motorised automatic transfer switch provides the robust physical movement required to transition heavy electrical loads safely.
Beyond simple switching, these devices prevent "backfeeding." Backfeeding occurs when electricity from a private generator flows back into the utility lines, which can be fatal for utility workers trying to repair the grid. The Automatic Transfer Switch uses a "break-before-make" logic to ensure that the load is never connected to both sources simultaneously unless it is a specific "closed-transition" model used in mission-critical environments.
Modern applications of the Automatic Transfer Switch have expanded significantly. While they were once paired exclusively with diesel generators, they are now frequently integrated with hybrid inverters and lithium-ion battery banks. In these setups, the switch manages the priority of energy use, often favoring renewable sources to reduce operational costs before reverting to the grid or a backup generator as a last resort.
Feature | Description |
Primary Function | Automatic power source transition |
Safety Mechanism | Prevents backfeeding to the utility grid |
Source Compatibility | Grid, Generators, Solar, Wind, Battery Storage |
Switching Speed | Varies from milliseconds to several seconds depending on class |
The operation of an Automatic Transfer Switch involves a continuous four-stage cycle: monitoring the primary source, initiating the backup source, performing the mechanical transfer, and re-transferring once primary power is stabilized.
The first stage is "Sensing." The internal controller of the Automatic Transfer Switch constantly evaluates the quality of the utility power. If the voltage drops below a certain threshold (typically 80% of nominal) or if the frequency fluctuates dangerously, the ATS identifies a "source failure." At this point, the controller sends a signal to start the backup generator or activate the discharge cycle of a battery storage system.

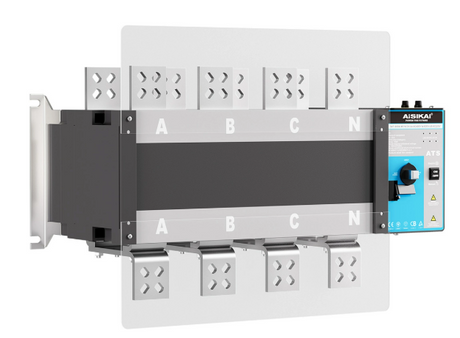

Once the backup source reaches the required voltage and frequency, the "Transfer" occurs. This is a physical movement where the internal contacts move from the primary position to the backup position. For industrial applications, using a high-quality PC Class automatic transfer switch is often preferred because it can withstand high short-circuit currents without needing a built-in overcurrent protection device, making it more durable for frequent switching operations.
Finally, the "Retransfer" and "Cool-down" phases occur. When the Automatic Transfer Switch detects that utility power has returned to a stable state for a set period (to avoid reacting to momentary flickers), it moves the load back to the grid. It then allows the generator to run for a short cool-down period before shutting it down completely. This automated process ensures that the equipment remains protected from the electrical surges often associated with power restoration.
Source Monitoring: Voltage and frequency are measured against programmed parameters.
Signal Initiation: A "Start" command is sent to the secondary power equipment.
Mechanical Switch: The load is disconnected from Source A and connected to Source B.
Load Management: Advanced units may shed non-essential loads to prevent overloading the secondary source.
Traditional Automatic Transfer Switches are limited by their purely reactive nature, lack of real-time data communication, and slower mechanical response times which may not suit modern sensitive electronics.
The primary drawback of older Automatic Transfer Switch models is their inability to "think." They operate on simple binary logic: if the power is out, switch. However, in a modern facility with complex energy rates (Time-of-Use pricing), a traditional Automatic Transfer Switch cannot decide to switch to battery power just because the grid prices are currently at their peak. It lacks the intelligence to optimize for cost rather than just availability.
Furthermore, traditional switches often have mechanical latencies. While they are sufficient for lighting and basic motors, high-speed servers and medical equipment may reboot during the transition if the switch is not fast enough. Many older systems also lack remote monitoring capabilities. If an Automatic Transfer Switch fails in a remote telecommunications tower, the operator may not know until the batteries are dead and the site goes offline.
Reliability and maintenance are also concerns. Without advanced diagnostic sensors, mechanical wear in a motorised automatic transfer switch might go unnoticed until the moment a real emergency occurs. This lack of "predictive maintenance" data means that traditional units require frequent manual inspections, which increases the total cost of ownership over time.
Category | Traditional ATS | Intelligent ATS |
Logic | Reactive (Fail/Pass) | Proactive (Optimization) |
Communication | None or Basic Dry Contacts | RS485, Modbus, IoT Cloud |
Response | Fixed mechanical speed | Optimized based on load type |
Monitoring | Local Lights/Alarms | Real-time Dashboard/Mobile App |
A Home Energy Management Controller (HEMC) integrated with an Automatic Transfer Switch transforms the device into an intelligent gateway that coordinates solar generation, battery storage, and grid interaction to maximize efficiency.
With the rise of "Prosumers"—users who both produce and consume energy—the Automatic Transfer Switch is being redefined. When paired with a smart controller, the ATS can facilitate "Load Shifting." For example, during the day, the system can prioritize using solar energy to power the home while simultaneously charging a battery. If a cloud passes over and solar production drops, the PC Class automatic transfer switch doesn't necessarily jump back to the grid; instead, the controller manages a blend of sources to maintain the lowest cost and carbon footprint.
Dynamic Peak Shaving: Using stored energy during high-tariff periods to save on utility bills.
Renewable Priority: Ensuring that 100% of generated solar power is used before drawing from the grid.
Grid Services: In some regions, the smart Automatic Transfer Switch can allow the battery to feed energy back into the grid to support stability, earning the user credits.
This "Hyper-Intelligence" also extends to load shedding. In a traditional blackout, a generator might be overwhelmed if every appliance in a house tries to start at once. A smart Automatic Transfer Switch working with a management controller can automatically disconnect high-draw, non-essential loads (like a swimming pool heater) while maintaining power to the refrigerator and Wi-Fi. This allows for smaller, more cost-effective backup systems to be used without sacrificing the performance of critical infrastructure.
The integration of a motorised automatic transfer switch in these smart systems ensures that even when dealing with high-capacity home storage or EV-to-Home (V2H) systems, the mechanical transition is handled with industrial-grade reliability. This fusion of heavy-duty hardware and sophisticated software is the hallmark of the modern energy revolution.
The future of the Automatic Transfer Switch lies in AI-driven predictive switching, seamless integration with Electric Vehicle (EV) batteries, and the development of decentralized microgrids.
As we look toward 2030 and beyond, the Automatic Transfer Switch will likely incorporate Machine Learning (ML) algorithms. By analyzing weather patterns, an AI-enabled ATS could "predict" a potential grid failure due to an approaching storm and proactively switch the facility to battery power or pre-run a generator to ensure zero-millisecond downtime. This shift from reactive to predictive switching will redefine the standards of "Uninterrupted Power."
Another major trend is the "V2X" (Vehicle-to-Everything) integration. Your electric vehicle is essentially a massive mobile battery. Future Automatic Transfer Switch designs will allow for bidirectional energy flow, where the ATS manages the transition of power from your car's battery back into your home or office during an outage. This turns every parked EV into a standby power plant, managed by the intelligent switching infrastructure.
Finally, the decentralization of the grid will see the Automatic Transfer Switch becoming the "Border Guard" of the Microgrid. Neighborhoods or industrial parks will be able to disconnect from the main utility grid during instability and operate as an island. The ATS will be responsible for the "Black Start" capabilities and the synchronization required to reconnect to the main grid once stability is restored.
2010s: Transition from manual to basic automatic switching.
2020s: Integration of IoT, Cloud Monitoring, and Solar-Storage coordination.
2030s: AI-predictive switching and universal V2G (Vehicle-to-Grid) compatibility.
The journey of the Automatic Transfer Switch from a simple mechanical safety device to a sophisticated energy management hub reflects the broader transformation of our global energy infrastructure. As we move away from a singular reliance on the utility grid and toward a diversified mix of solar, wind, and storage, the ability to switch between these sources with intelligence and speed has never been more important.
For businesses and homeowners alike, investing in high-quality hardware like a PC Class automatic transfer switch is the first step toward true energy independence. However, the hardware is only half the story. The integration of smart controllers and digital monitoring ensures that your power system is not just "available," but also "optimized" for cost, sustainability, and longevity.
In conclusion, the revolution of the Automatic Transfer Switch is far from over. As AI and renewable technologies continue to mature, the ATS will remain at the heart of our electrical systems, silently ensuring that the lights stay on, the data stays safe, and the future stays powered. Whether you are upgrading an industrial plant or building a smart home, choosing the right switching technology is the foundation of a resilient tomorrow.
