An Automatic Transfer Switch (ATS) is a self-acting electrical device that monitors utility power and automatically commands a backup generator to start and transfer the electrical load upon detecting a power failure or significant voltage drop. By isolating the home or facility from the main utility line, it prevents dangerous electrical feedback and ensures that critical systems remain operational during an outage.
Understanding the nuances of selection, installation, and maintenance is vital for any facility manager or electrical engineer. This comprehensive guide explores the technical depth of changeover mechanisms, ranging from manual solutions to advanced motorized units. We will delve into the wiring complexities, safety protocols, and troubleshooting steps necessary to master your backup power system and ensure long-term reliability.
Why a Changeover Switch for Generator is Critical for Safe Backup Power
What is a Changeover Switch and Why is it Essential?
Types of Changeover Switches: Manual vs. Automatic
Preparing for Your Changeover Switch for Generator Installation
Step-by-Step Installation and Wiring Guide
Operating and Troubleshooting Your Automatic Transfer Switch
FAQ
The primary reason a changeover switch is critical is that it provides a mechanical or electronic interlock that prevents the generator and the utility grid from being connected to the facility's load at the same time.
Without a dedicated changeover mechanism, a backup power system poses a lethal threat known as backfeeding. Backfeeding occurs when electricity from a generator flows back through the electrical panel and into the utility lines. This can energize downed power lines that utility workers believe to be dead, leading to fatal accidents. A changeover switch ensures that your internal circuitry is completely isolated from the external grid before backup power is engaged.
Furthermore, these switches protect your equipment from the "double-source" effect. If the utility power returns while your generator is still feeding the system without an interlock, the two unsynchronized power sources will clash. This result often leads to catastrophic failure of the generator's alternator, tripped breakers, and potential fires within the distribution board. By enforcing a "break-before-make" sequence, the switch acts as the ultimate safeguard for your infrastructure.
In sophisticated setups involving renewable energy, a changeover switch manages the transition between the grid, battery storage, and the generator. For those seeking high-performance industrial solutions, implementing a PC-class automatic transfer switch is often the preferred choice due to its high short-circuit withstand capacity and reliability in heavy-duty environments.

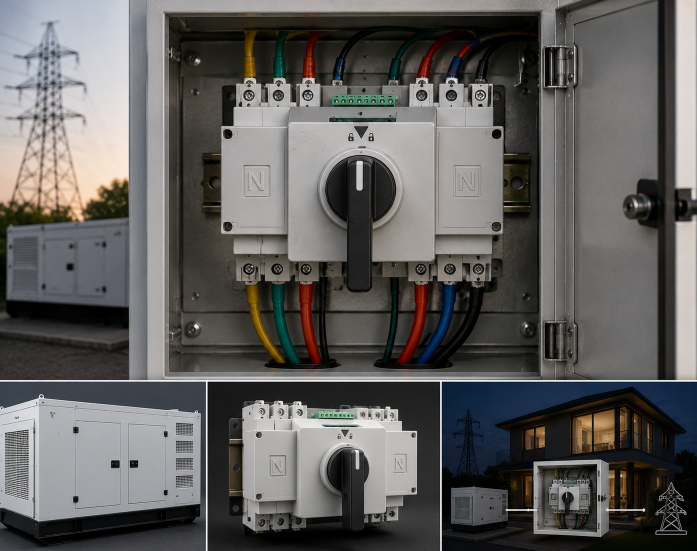

A changeover switch is an electrical device designed to transfer an electrical load between two sources, typically a primary utility provider and a secondary backup source like a generator or PV storage system, while maintaining electrical isolation.
In essence, the switch serves as the brain of the emergency power system. When the primary source fails, the switch facilitates the transition to the secondary source. In B2B environments—such as hospitals, telecommunication hubs, and factories—even a few minutes of downtime can result in significant financial loss or safety hazards. The switch ensures that this transition happens efficiently and, in the case of automatic models, without human intervention.
The essential nature of this component extends to compliance with international electrical standards. National and local codes generally mandate the use of a transfer switch for any permanent generator installation to ensure public safety. Beyond legal requirements, the switch allows for organized load management. You can prioritize which circuits receive power during an outage, ensuring that life-safety systems (like fire pumps or emergency lighting) are energized first.

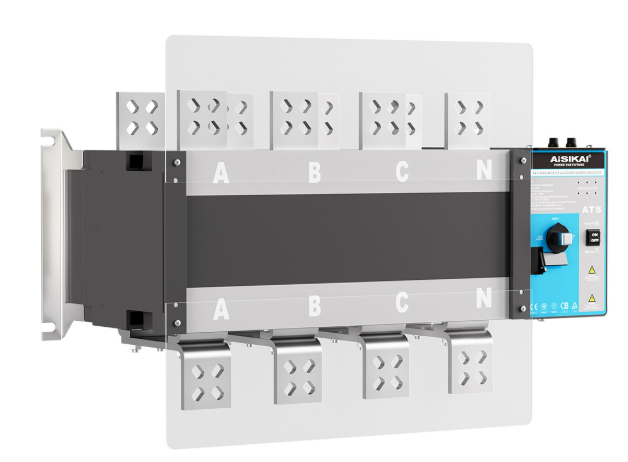

Modern power systems often integrate these switches with smart monitoring tools. This allows operators to track the health of both power sources and the switch itself. For high-demand applications requiring precise control, a Motorised Automatic Transfer Switch offers a robust mechanical structure capable of handling high-amperage transitions with minimal wear and tear over thousands of cycles.
The two main types of changeover switches are manual, which requires a person to physically flip a lever to switch power sources, and automatic, which uses a controller to detect power loss and trigger the transfer instantly.
Manual changeover switches are often found in smaller-scale operations or residential backup systems. They are cost-effective and simple but have a significant drawback: they require a human presence. If a power outage occurs at 2:00 AM in an unmanned facility, a manual switch is useless. The operator must go to the panel, ensure the generator is running, and then move the handle. This delay is often unacceptable in professional B2B settings.
An Automatic Transfer Switch (ATS) eliminates this lag. It continuously monitors the voltage and frequency of the primary source. As soon as the parameters fall below a set threshold, the ATS initiates the generator start sequence and performs the transfer. When utility power is restored and remains stable for a set period, the ATS automatically switches back and enters a "cool-down" mode for the generator.
The following table compares the two types across key performance indicators:
| Feature | Manual Changeover Switch | Automatic Transfer Switch (ATS) |
| Response Time | Minutes (Depends on operator) | Milliseconds to Seconds |
| Human Intervention | Required | Not Required |
| Complexity | Low | Moderate to High |
| Cost | Budget-friendly | Higher initial investment |
| Ideal Application | Small workshops, residential | Hospitals, Data Centers, Industrial plants |
| Integration | Standalone | Can integrate with Building Management Systems |
Preparation for installation involves conducting a thorough load analysis to determine the required amperage of the switch, checking local electrical codes for compliance, and ensuring the generator's capacity matches the facility's demand.
Before purchasing any hardware, you must identify your "critical loads." Not every piece of equipment in a facility needs to run during an emergency. By calculating the total wattage of essential machines, HVAC units, and lighting, you can select an Automatic Transfer Switch with the correct current rating. Overloading a switch is a common cause of premature failure and electrical fires.
Site selection is equally important. The switch should be installed in a dry, accessible location, preferably near the main distribution panel. You must also consider the distance between the generator and the switch; long cable runs can lead to voltage drops that might trigger the ATS sensors incorrectly. Additionally, ensure that your backup source—whether it is a traditional generator or a solar-hybrid system—is equipped with a remote-start capability, as the ATS needs this to function automatically.
Finally, verification of the grounding system is non-negotiable. Different regions have different requirements for "switched neutral" or "solid neutral" connections in changeover switches. Consulting with a certified industrial electrician ensures that the PC-class automatic transfer switch you install meets the specific earthing requirements of your local power grid.
Installing a changeover switch requires mounting the unit, connecting the primary utility lines and secondary generator lines to the appropriate terminals, and configuring the control wiring for automatic start functionality.
Mounting and Safety First: Begin by turning off the main utility breaker. Mount the ATS enclosure to a wall or within a specialized cabinet. Ensure the unit is level and has sufficient clearance for cooling and maintenance.
Connecting the Sources: Route the heavy-gauge cables from the utility meter into the "Source A" (Normal) terminals of the switch. Similarly, route the cables from the generator into the "Source B" (Emergency) terminals. Always use appropriate torque settings for terminal screws to prevent loose connections.
Connecting the Load: Connect the facility’s main distribution bus or the specific critical load sub-panel to the "Load" terminals of the switch. This creates a central point where the load can be fed from either source.
Control and Communication Wiring: For an Automatic Transfer Switch to work, it must be linked to the generator's control panel. This typically involves a low-voltage start-signal wire. When the ATS senses power loss, it closes a contact that tells the generator to crank.
Testing: Once all connections are secure and the SKT1 Motorised Automatic Transfer Switch is energized, perform a "dry run" by simulating a utility failure to ensure the sequence of operations (start, transfer, re-transfer, and cool-down) works as expected.
Operating an ATS is generally hands-off, but troubleshooting involves checking the controller's error logs, verifying terminal tightness, and testing the battery of the generator's starting system.
Under normal conditions, the Automatic Transfer Switch should remain in the "Utility" position. The LED indicators on the front panel will show that the primary source is healthy. Most professional switches also include a manual bypass handle. This is an essential safety feature that allows maintenance personnel to force a transfer if the electronic controller fails.
Common issues often stem from "nuisance tripping." This happens when the ATS sensitivity is set too high, causing it to switch to the generator during minor voltage fluctuations that don't actually require backup. Adjusting the under-voltage or frequency setpoints in the controller menu can resolve this. If the switch fails to transfer at all, the first check should always be the generator's starting battery; if the generator cannot start, the ATS cannot complete the transfer.
Routine maintenance should include:
Visual Inspection: Look for signs of overheating or discoloration on terminals.
Cleaning: Remove dust and debris that could interfere with mechanical linkages.
Manual Operation Test: Periodically use the manual handle (with the power off) to ensure the mechanism moves freely.
Firmware Updates: For digital controllers, ensure the software is up to date to handle modern grid fluctuations.
How long does an Automatic Transfer Switch last?
A high-quality Automatic Transfer Switch designed for industrial use can last between 15 to 25 years, depending on the frequency of switching cycles and the environment's cleanliness. Motorized units often have longer lifespans due to more robust mechanical components.
Can I use a changeover switch with a solar power system?
Yes. Modern changeover switches are frequently used in PV storage systems to manage the transition between battery power and the utility grid. If the battery discharges below a certain level, the switch can automatically revert to the grid to ensure continuous supply.
What is the difference between a PC-class and CC-class ATS?
A PC-class switch is capable of making and withstanding short circuits but is not intended for breaking fault currents. It is built with a rugged mechanical design. A CC-class (Contact-based) switch uses contactors and is generally more compact but might not offer the same heavy-duty endurance as a PC-class unit.
Do I need to switch the neutral wire?
This depends on whether your generator is a "separately derived system." If the generator’s neutral is bonded to its frame, you typically need a 4-pole switch (for three-phase) to switch the neutral. If it is not, a 3-pole switch is usually sufficient. Always consult local codes.
