In critical infrastructure, power continuity is never just a convenience. It serves as a strict compliance mandate and a vital revenue-protection measure. A sudden blackout can halt production lines instantly. It disrupts life-saving medical equipment. It corrupts highly sensitive data centers. While the basic function of a backup power switch remains universally understood, the underlying architecture matters deeply. You must choose between distinct equipment configurations. This architectural choice dictates your system footprint. It determines your fault tolerance. It heavily influences your emergency transition speeds. We move beyond basic definitions here. We aim to provide a strictly technical evaluation framework. This framework aligns perfectly with IEC 60947-6-1 standards. It helps facility managers and electrical engineers safely navigate their complex options. You will learn how to confidently specify the correct hardware for your exact load profiles and operational demands.

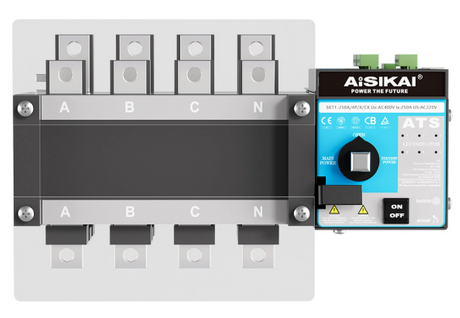

An Automatic Transfer Switch safely transitions power between a primary source and a backup generator without source-bridging.
PC Class Automatic Transfer Switch units are purpose-built for switching, offering ultra-fast transition times and high short-circuit withstand capabilities, but require separate upstream overcurrent protection.
CB Class ATS units utilize paired circuit breakers, integrating overcurrent and short-circuit protection directly into the switch, but generally feature slower transfer speeds and larger physical footprints.
Selection depends on specific facility outcomes: prioritize PC Class for mission-critical loads (data centers, hospitals) and CB Class for space-constrained or less time-sensitive industrial applications.
An improper specification introduces immense danger to your facility. If an engineer specifies the wrong equipment class, the operation faces serious financial and physical threats. Phase-out-of-sync transfers present a massive risk. When power sources bridge incorrectly, out-of-sync electrical phases clash violently. This clash generates immense torque spikes. These electrical spikes easily destroy connected motors, drives, and heavy machinery.
Catastrophic short circuits pose another severe threat. If the equipment cannot handle a sudden fault, it can melt internal panel components entirely. Furthermore, unacceptable downtime leads directly to lost revenue. Angry customers and broken service level agreements follow quickly. You must avoid these outcomes at all costs.
A successful Automatic Transfer Switch implementation must guarantee three core outcomes. First, it needs perfect electrical isolation. Reliable mechanical interlocking provides a physical barrier. It prevents dangerous backfeeding into the utility grid. You never want the generator pushing power backward into municipal lines.
Second, you need high fault resilience. The unit must withstand peak fault currents smoothly. It must stay physically intact. It waits patiently until external clearing devices operate safely to break the fault.
Finally, compliance remains non-negotiable. You must strictly adhere to local fire codes. Life safety codes govern emergency power systems rigorously. Inspectors will fail non-compliant designs immediately, forcing costly tear-downs and redesigns.

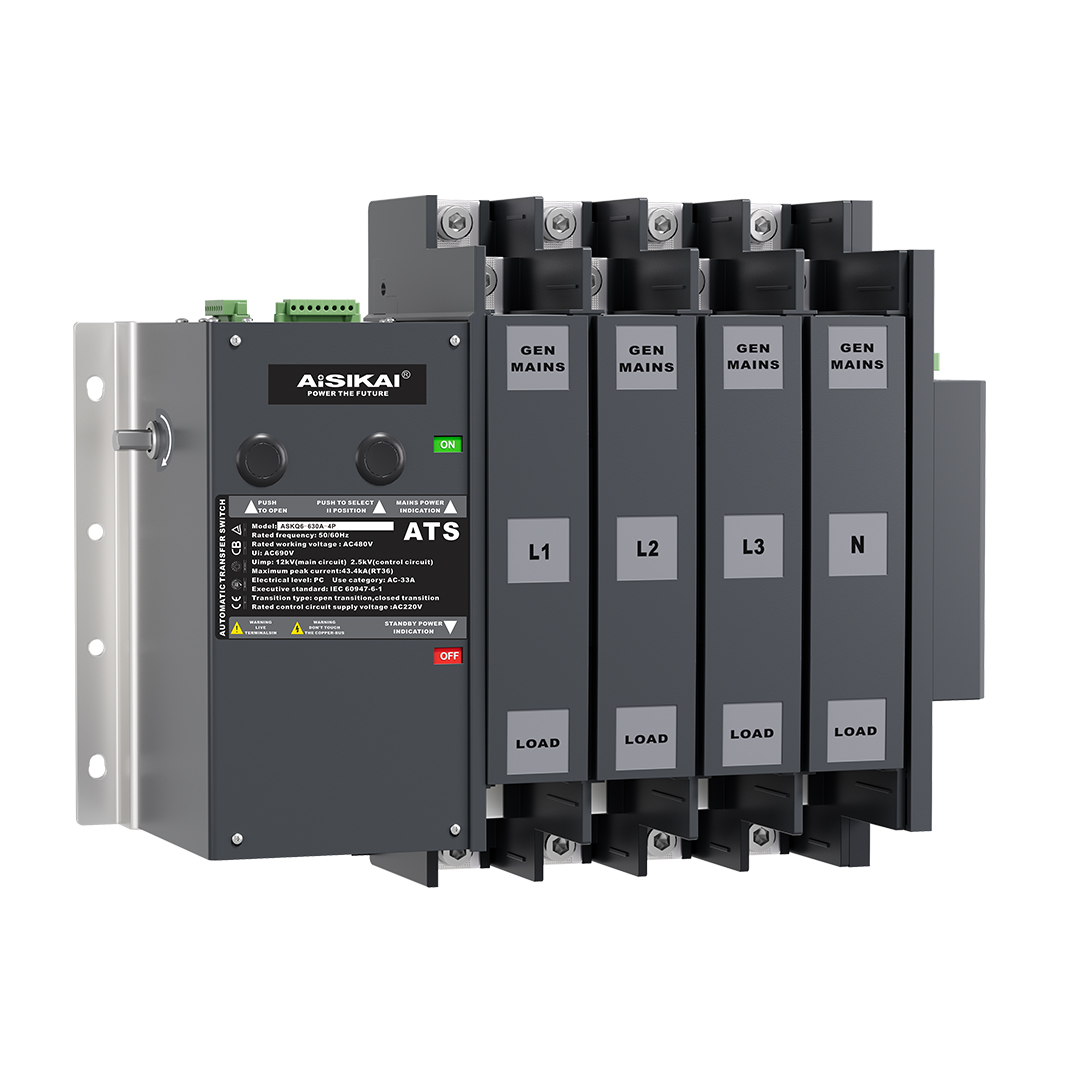

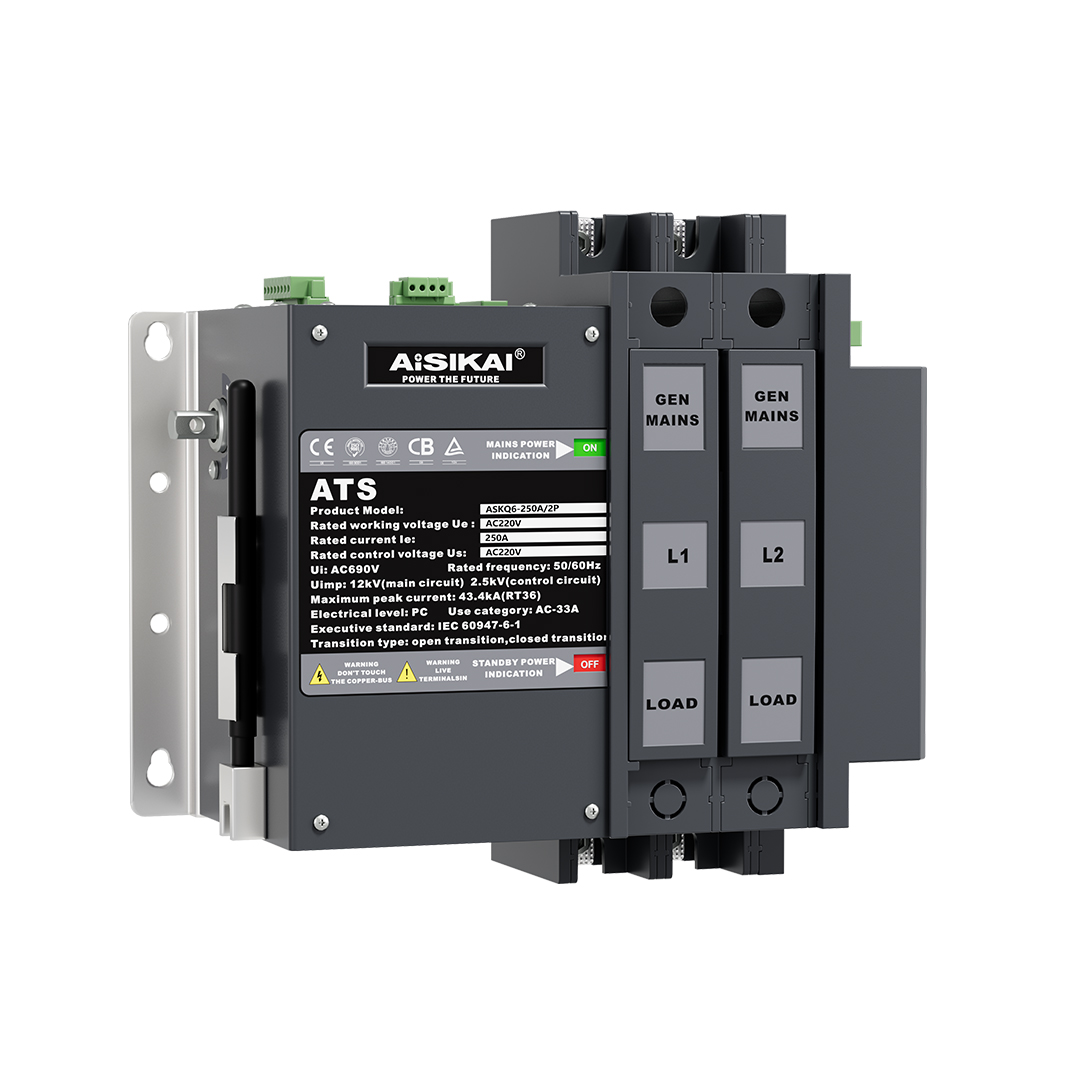

A PC Class Automatic Transfer Switch utilizes a mechanically held, electrically operated single-mechanism design. Manufacturers purpose-build these units for one specific job. They only handle switching between power sources.
The key characteristic of this architecture is its focused simplicity. This equipment lacks integral short-circuit protection. It offers no inherent overcurrent protection. It acts strictly as a switching device.
The advantages are significant. It delivers extremely fast transfer times. You often see emergency transitions completing under 50 milliseconds. It boasts a remarkably high short-circuit withstand current (Icw). It offers excellent electrical making and breaking capacities. Mechanical endurance remains exceptionally high. Because it uses a single moving contact mechanism, it physically cannot close both power sources simultaneously. The physical geometry of the switch prevents this dangerous scenario entirely.
However, it has distinct limitations. You must install coordinated upstream protective devices. This requires you to add external fuses or circuit breakers to the circuit. Designing this upstream coordination complicates the initial system layout. Engineers must carefully calculate fault clearing times to protect the switch.
A CB Class unit consists of two distinct circuit breakers. These are often Molded Case Circuit Breakers (MCCBs). Sometimes engineers use Air Circuit Breakers (ACBs) for larger loads. A shared motor operator couples them together. Manufacturers mechanically and electrically interlock these breakers internally.
The key characteristic here is functional integration. This class handles the switching function completely. It also provides full overcurrent and short-circuit protection. It carries a rated ultimate short-circuit breaking capacity (Icu).
The primary advantage is spatial efficiency. It dramatically simplifies your electrical panel layout. You eliminate the need for separate upstream protection devices. This proves highly effective for main power distribution boards. Space is often extremely tight in these main distribution boards.
The limitations focus heavily on speed and wear. Switching speeds remain noticeably slower. Motor-driven breaker toggles take time to cycle mechanically. Since breakers must physically trip and reset, the transition inherently takes more time. The overall assembly is much heavier. It relies on more complex internal mechanical linkages. These intricate linkages may require higher maintenance frequencies to prevent jamming.
You should recommend a PC Class unit for highly inductive loads. Large industrial motors demand robust switching elements. They draw massive inrush currents during startup. The PC design handles these harsh electrical arcs effortlessly. Sensitive IT infrastructure also benefits immensely. When paired alongside robust UPS systems, data centers require uninterrupted, ultra-fast transitions. Every millisecond counts when you protect server racks from crashing.
Conversely, recommend a CB Class unit for standard commercial distribution. Mixed resistive loads tolerate slower transition times perfectly well. Office lighting, standard HVAC controls, and retail spaces typically fit this profile. These non-critical applications do not justify the engineering complexity of ultra-fast millisecond switching.
You must compare the physical footprints directly. A CB Class setup saves significant room. It combines protective elements directly inside one single enclosure. A PC Class setup requires adjacent breaker panels to house the necessary protection. You must account for this extra wall space during the electrical room design phase. If your facility retrofits an older room, tight space constraints might force you to choose the integrated breaker route.
We must evaluate these choices against stringent IEC 60947-6-1 requirements. This international standard defines specific utilization categories for electrical gear. For example, AC-33A indicates highly inductive loads requiring frequent switching. AC-31B denotes mostly resistive loads needing infrequent switching. Your assigned utilization category dictates the legally viable equipment class.
Fire pumps often mandate PC Class equipment exclusively. Life-safety systems require absolute reliability under extreme stress. They cannot tolerate the risk of false breaker tripping during an emergency blackout. Inspectors heavily scrutinize these specific installations.
Feature/Dimension | PC Class | CB Class |
|---|---|---|
Switching Speed | Extremely fast (<50ms) | Slower (Motor-driven mechanisms) |
Integrated Protection | None (Requires upstream devices) | Full Overcurrent & Short-Circuit |
Physical Footprint | Larger (Requires external breaker panels) | Compact (All-in-one enclosure) |
Mechanical Endurance | Very High | Moderate |
Ideal Application | Mission-critical, Highly Inductive loads | Standard Distribution, Space-constrained layouts |
Selecting a PC Class unit requires strict engineering discipline. You must meticulously analyze the upstream breaker's let-through energy. Engineers measure let-through energy in amps-squared seconds. If this thermal energy exceeds the switch's peak withstand rating, catastrophic failure occurs. The internal contacts can weld shut permanently. A welded contact destroys the isolation barrier instantly.
You must perform a rigorous short-circuit coordination study before procurement. Engineers use specialized software to plot these coordination curves. They ensure the upstream fuse clears the fault long before the transfer mechanism takes any thermal damage.
CB Class switches often demand more frequent mechanical exercising. The motor operators and internal breaker mechanisms need regular lubrication. Technicians must test the toggles to prevent stiffening over time. In zero-downtime environments, you must install bypass-isolation switches. A bypass-isolation configuration lets technicians safely service the main unit. They can manually route utility power around the device without dropping the critical load. Hospitals rely heavily on this exact bypass architecture to maintain compliance.
CB Class units introduce a unique operational vulnerability. They can trip on a transient overload during a transfer event. When high inrush currents surge across the lines, the integrated breaker might misinterpret this as a genuine short circuit. If it trips prematurely, it potentially locks out both power sources simultaneously. You lose utility and generator power at once.
You must program and sequence the transfer carefully. Adjusting the breaker trip curves accurately prevents these dangerous nuisance lockouts. Proper commissioning is essential to avoid plunging the facility into darkness.
Follow this structured checklist during your procurement phase to ensure accuracy:
Audit the exact transfer speed required by downstream loads. Review the tolerance of your servers, motors, and lighting ballasts. Millisecond requirements point directly to PC architectures.
Determine your panel space constraints. Check if your electrical room allows for external protection panels. If space remains abundant, favor the dedicated switching route. If you require an all-in-one footprint due to tight walls, favor the breaker route.
Verify the required short-circuit withstand rating. Compare this against the facility's latest fault current study. The equipment must comfortably survive the maximum available fault current at its installed location.
You must scrutinize the manufacturer carefully before buying. Look for independent third-party testing credentials. Certifications from recognized international laboratories prove long-term design reliability. Assess the availability of spare replacement parts in your region. A rapid local support footprint ensures minimum downtime during unexpected hardware failures. Do not buy undocumented proprietary gear that traps you into expensive service contracts.
We strongly advise you to consult a licensed power systems engineer before finalizing a purchase. Request a comprehensive technical sizing assessment from your dedicated sales engineering team. They will match your exact fault current constraints to the correct hardware class. Expert guidance prevents costly design revisions and ensures ultimate facility safety.
Neither equipment class is universally superior. Your choice depends entirely on your specific facility priorities. The PC Class architecture consistently wins on transition speed and mechanical endurance. It remains the gold standard for mission-critical facilities and data centers. The CB Class architecture wins on integrated overcurrent protection and overall layout simplicity. It serves commercial distribution networks exceptionally well.
Let your specific load profile drive the final procurement decision. Always allow local compliance codes to dictate your minimum safety thresholds. We encourage you to prioritize long-term resilience over initial capital savings. A well-specified emergency power system guarantees safe, continuous operations for decades.
A: No. It is designed to withstand a short circuit (staying closed) until an external, upstream circuit breaker or fuse clears the fault.
A: PC Class is significantly faster due to its single-mechanism, dedicated switching design, whereas CB Class relies on slower motor-driven breaker toggles.
A: Dual power applications can utilize either class. The classification simply denotes whether the switch has integrated overcurrent protection (CB) or strictly handles the transfer (PC).
A: Industry standards typically recommend a monthly functional test (often under load) and an annual comprehensive inspection, though local life-safety codes dictate the strict legal requirements.
