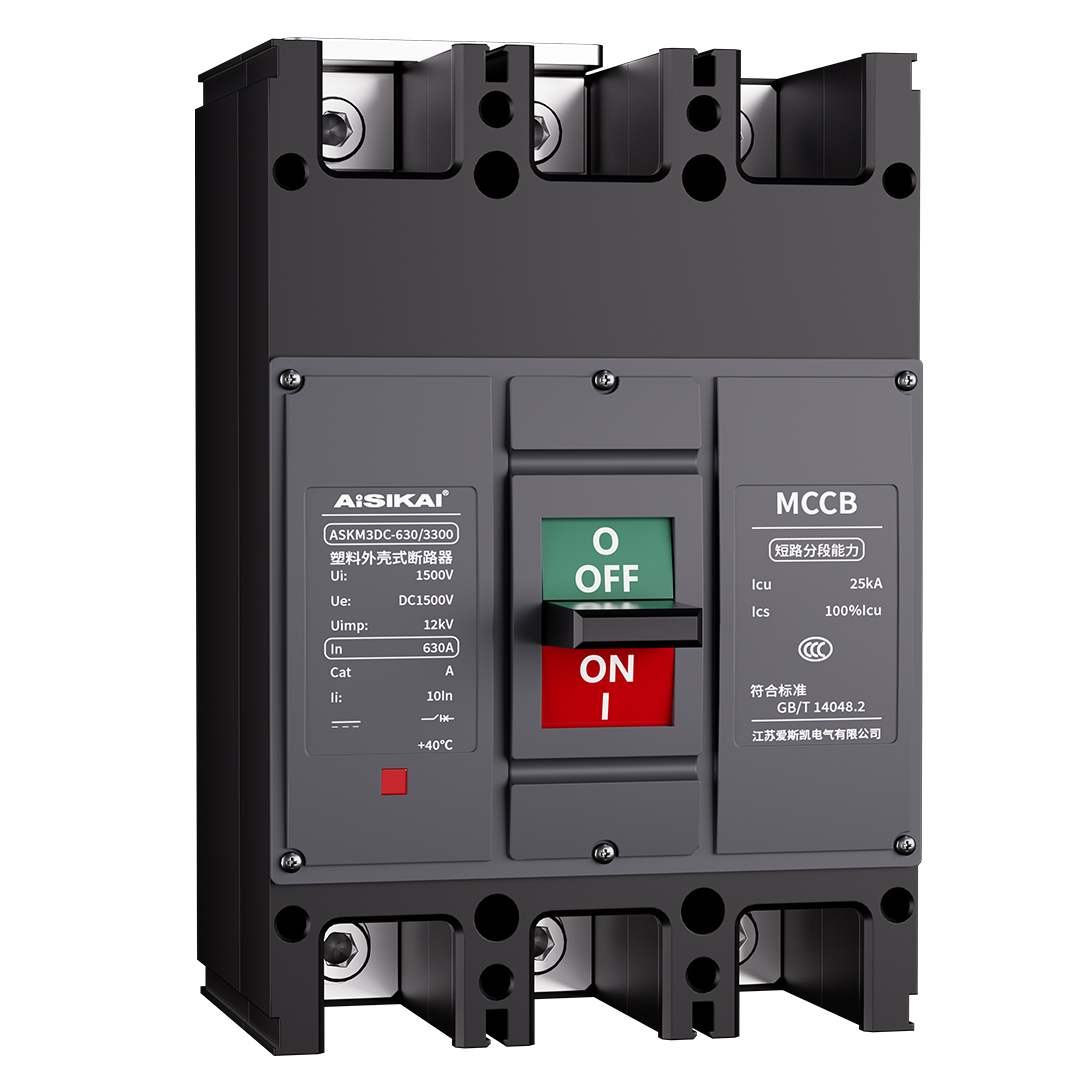

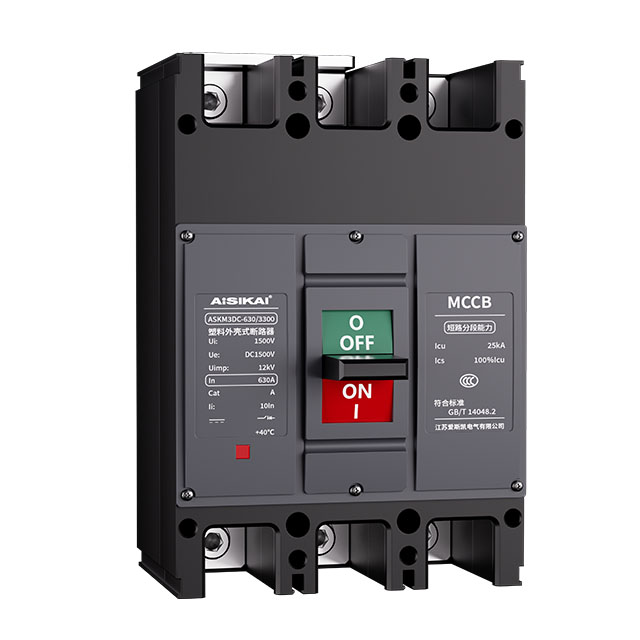

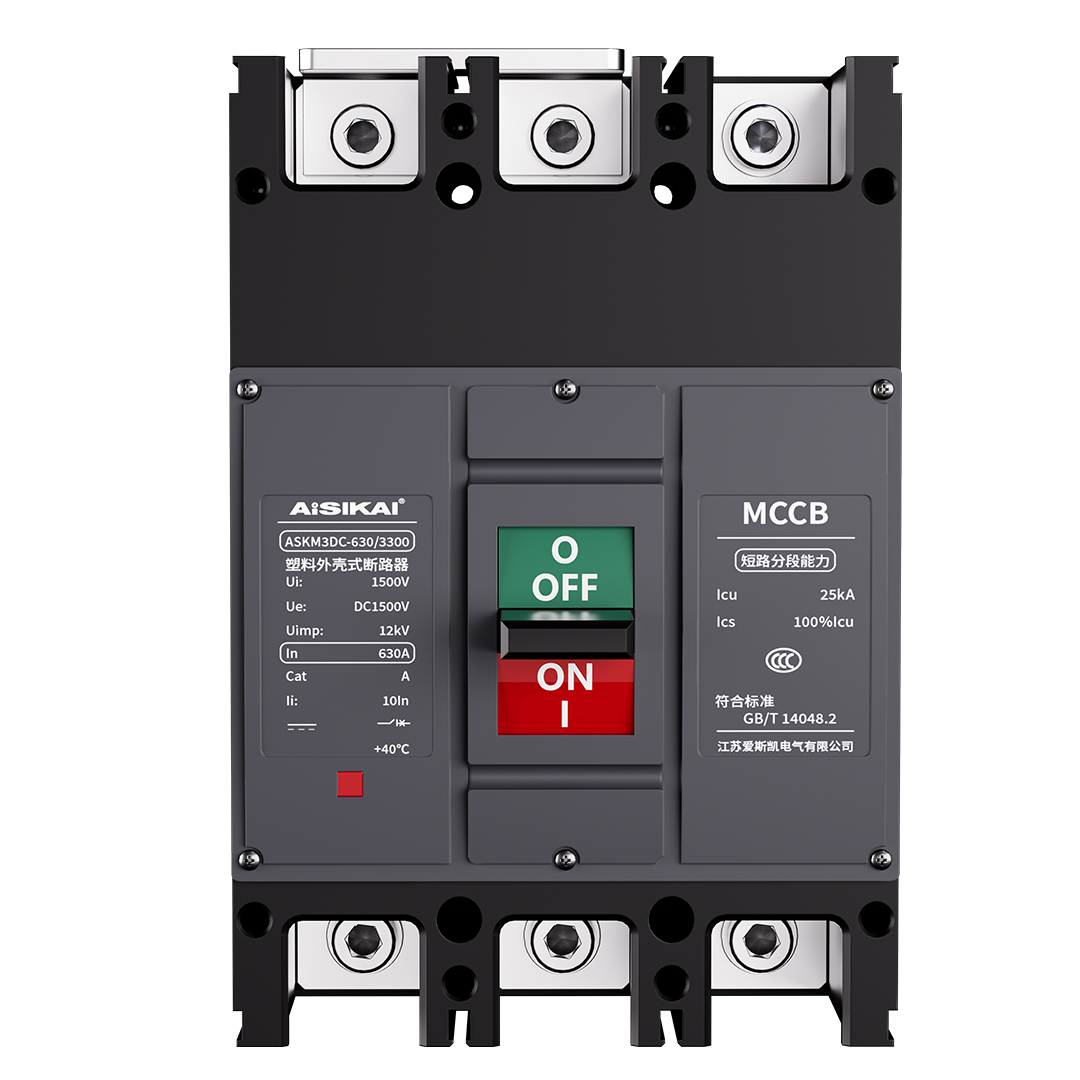

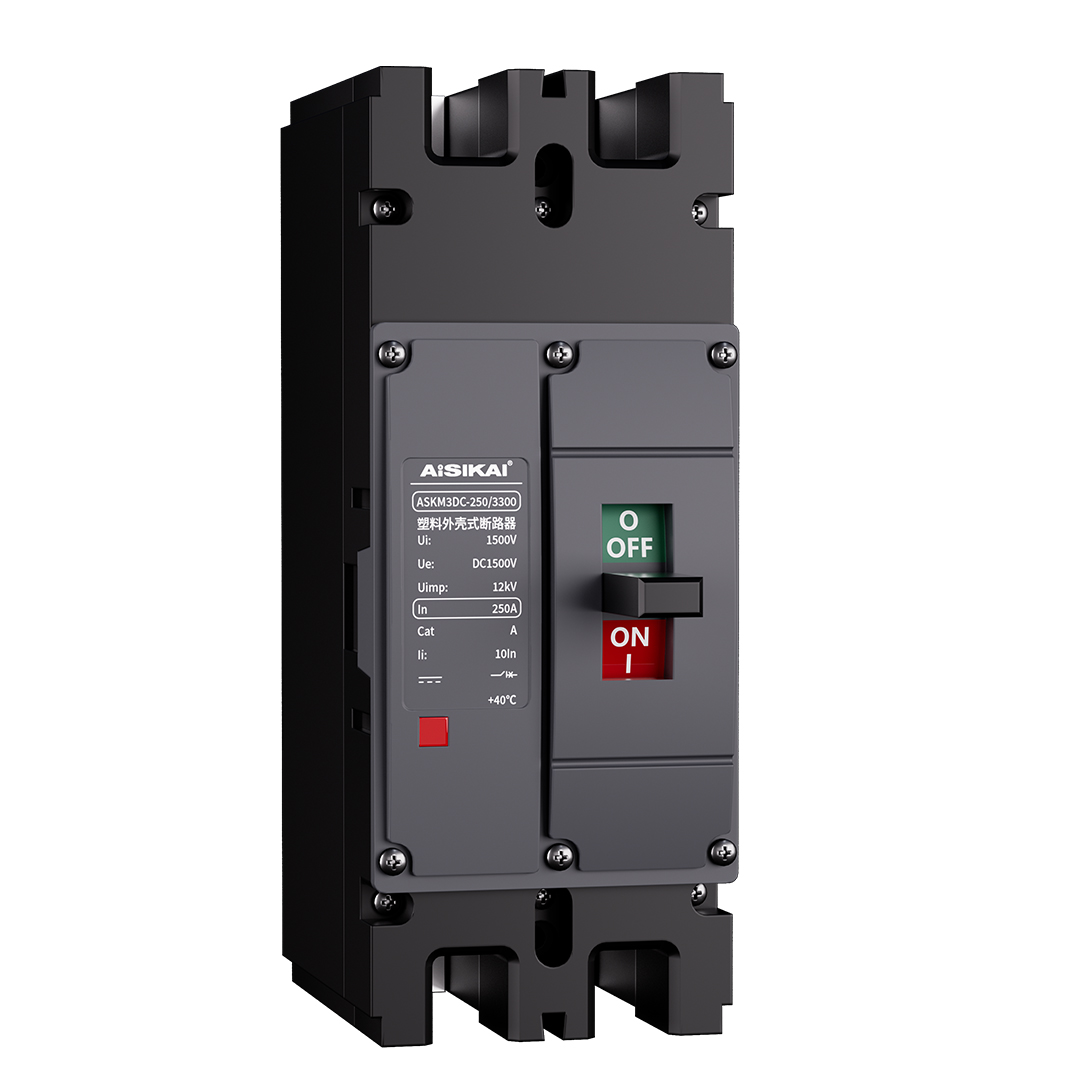

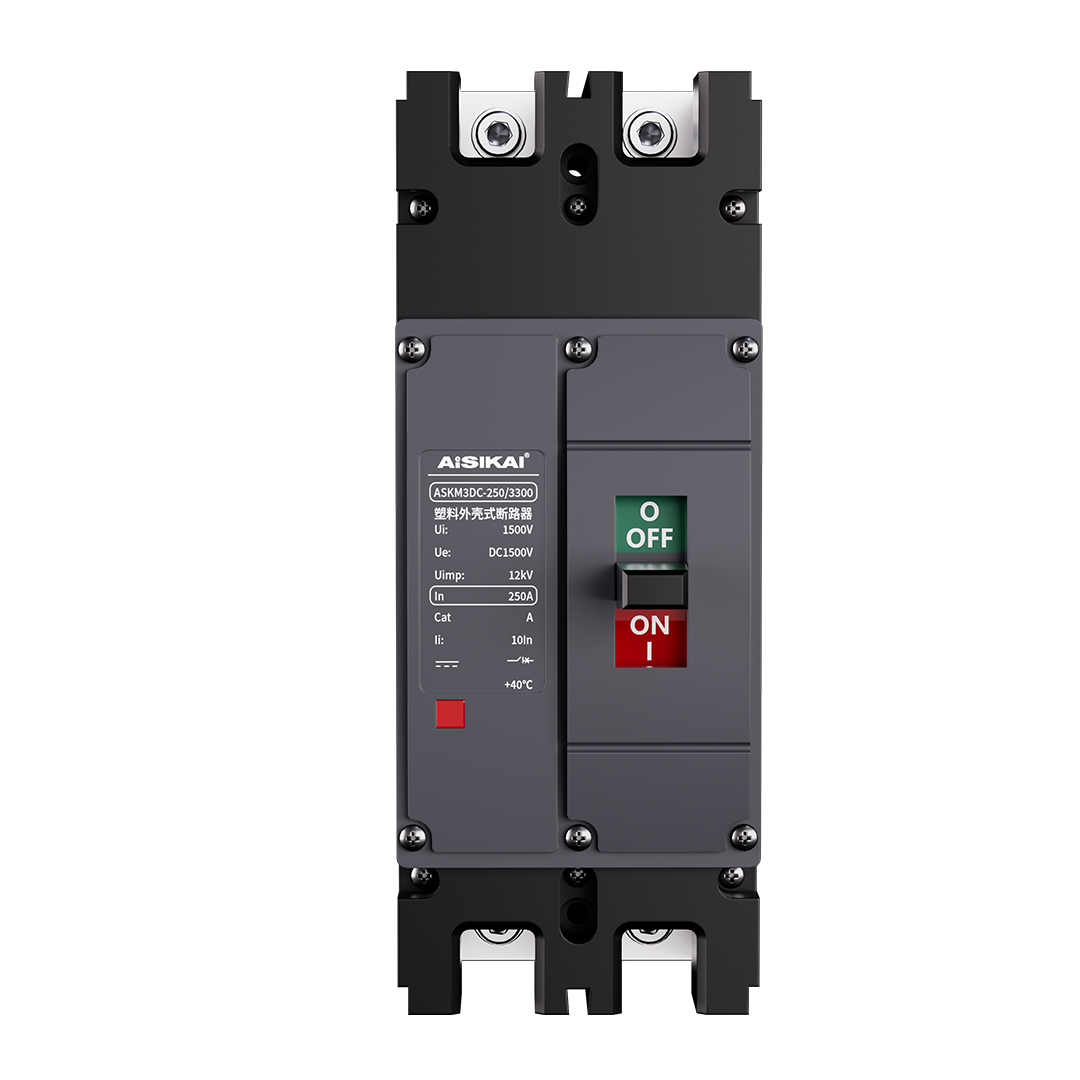

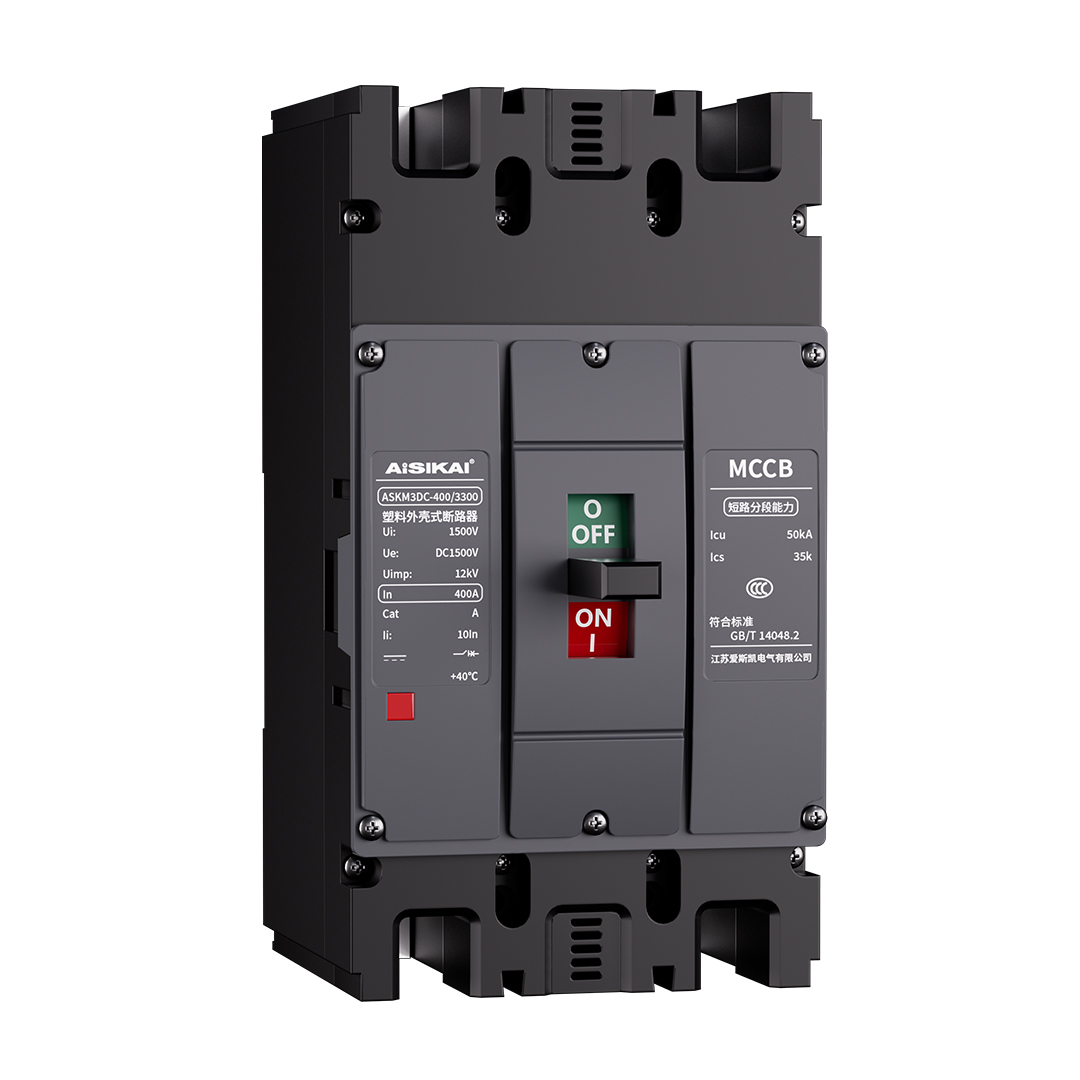

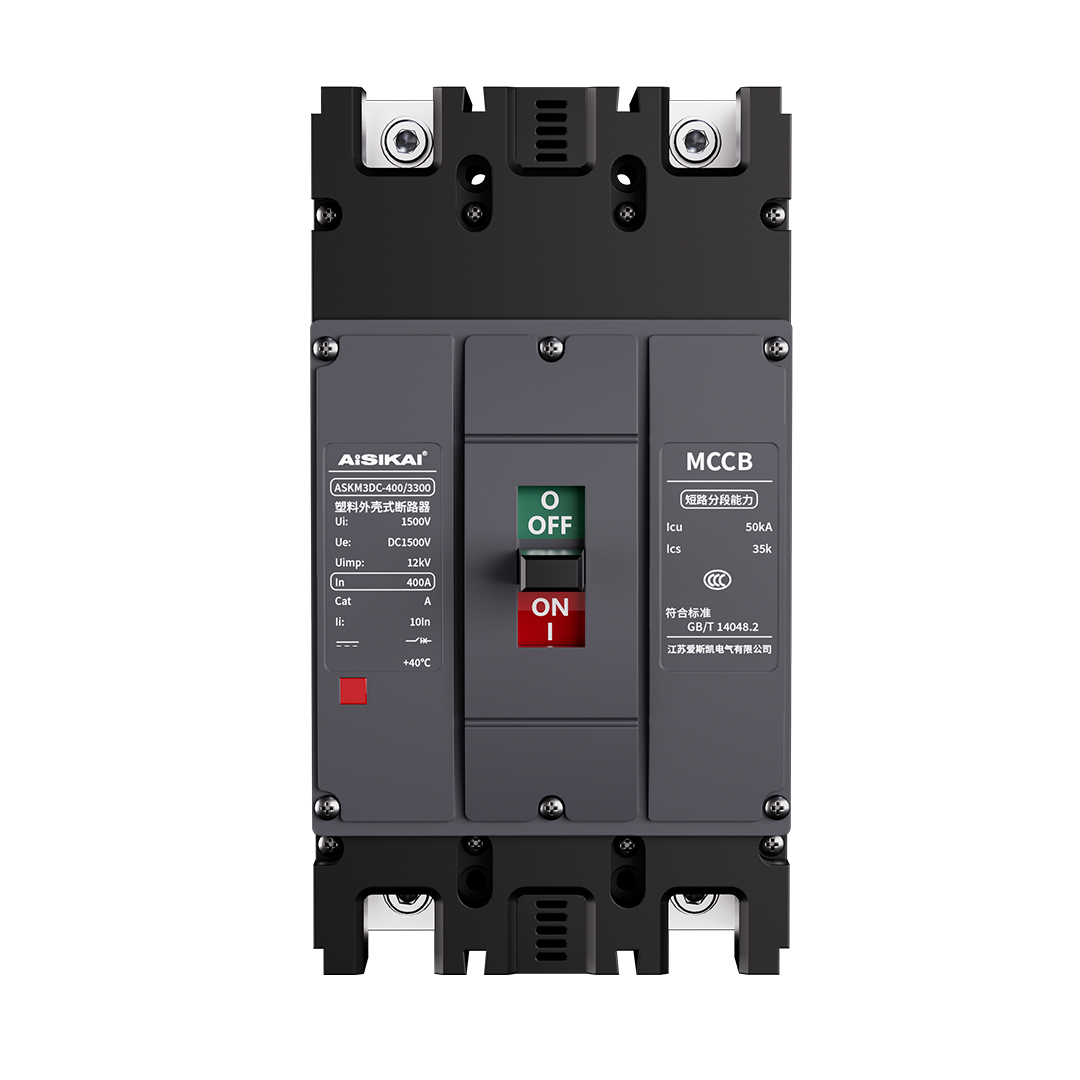

FEATURES
Small volume, high breaking capacity, short flying arc,vibration resistant;
Reasonable structure,reliable performance,easy installation;
Extensive optional accessories,can installed on-line,meet the technical requirements of different power distribution systems.
FAQ
1、What accessories can be installed?
Alarm contact, shunt release, auxiliary contact, undervoltage release, electric operating mechanism, manual operating mechanism, machine operating mechanism
2、What are the reasons for frequent tripping?
Possible causes include: excessive load, circuit short, unstable voltage, internal fault or improper trip setting.
3、Can this type of MCCB be used in DC circuits?
Currently only available for AC400/415V, AC660/690V.
4、What should I do if the MCCB can't close the brake?
Check whether overload or short circuit is not ruled out.
Check whether the operating mechanism is stuck.
Check whether the undervoltage trip and shunt trip are operational.
Check that the auxiliary contacts and interlocking mechanisms are correct.
TECHNICAL DATASHEET OFASKM3L THERMOMAGNETIC NORMAL PROTECTION MOLDED CASE CIRCUIT BREAKER
Model | ASKM3DC/ASKM3PV | ASKM3DC/ASKM3PV |
Frane | 250 | 320 | 400 | 400P | 630 | 630P | 800 |
Rated current | ln(A) | 63A、80A、
100A、125A
140A、160A
180A、200A
225A、250A | 280A、300A、
320A、 | 250A、315A、350A、
400A | 250A、315A、350A、
400A | 400A、500A、630A | 400A、500A、630A | 630A、700A、800A |
Rated insulation vol tage | Ui(V) | 1500V |
Rated impulse withstand voltage | Uimp (kv) | 12KV |
Type | DC | PV | DC | PV | DC | PV | DC | PV | DC | PV | DC | PV |
Rated working vol tage
| Ue (V)
| 2p | DC250V、DC500V、DC750V、DC1000V、DC1500V、 | DC250V、DC500V、DC750V、
DC1000V、DC1500V | DC250V、DC500V、DC750V、
DC1000V、DC1500V | DC250V、DC500V、DC750V、
DC1000V、DC1500V | DC250V、DC500V、DC750V、
DC1000V、DC1500V |
3P | DC1000V、DC1250V、DC1500V、 | DC1000V、DC1500V | DC1000V、DC1500V | DC1000V、DC1250V、DC1500V | DC1000V、DC1500V |
Rated ul timate short circuit breaking capacity
| lcu(kA)
| 2p | DC1000V:15
DC1500V:5 | DC250V、DC500V：50
DC750V、DC1000V:25
DC1500V:7.5 | DC250V、DC500V:25
DC750V、DC1000V:15
DC1500V:10 | DC250V、DC500V:50
DC750V、DC1000V:25
DC1500V:10 | DC1000V:30
DC1500V:25 | DC1000V:30
DC1500V:25 | DC1000V:30
DC1500V:25 | DC250V、DC500V:50
DC750V、DC1000V:35
DC1500V:25 | DC1000V:30
DC1500V:25 | DC1000V:40
DC1500V:30 | DC250V、DC500V:25
DC750V、DC1000V:15
DC1500V:10 | DC250V、DC500V:50
DC750V、DC1000V:25
DC1500V:10 |
3P | DC1500V:20 | DC1000V、DC1250V、
DC1500V:25 | DC1000V:30
DC1500V:25 | DC1000V:40
DC1500V:30 | _____ | _____ | DC1000V:30
DC1500V:25 | DC1000V:30
DC1500V:25 | _____ | _____ | DC1000V:30
DC1500V:25 | DC1000V:40
DC1500V:30 |
Rated operating short-circuit breaking capacity | lcu(kA) | 100%Icu |
Wiring Method | 2P(Method 1)、3p(Method2) | 2P(Method 1)、3p(Method3) | 2P(Method 1) | 2P(Method 1)、3p(Method2) | 2P(Method 1) | 2P(Method 1)、3p(Method3) |
Isolation function | YES |
Category of use | Cat | A |
Mechanical life | times | 20000 | 15000 | 20000 | 15000 |
Electrical life | times | 1500 | 1000 | 800 | 500 | 1500 | 800 | 500 |
Electrical are distance | mm | ≯50 | ≯100 | ≯100 | ≯100 |
Dimensions
| mm
| 2P | 200×73×135 | 270×130×156 | 275×106×149 | 270×130×156 | 275×106×149 | 270×130×156 |
3P | 200×107×135 | 310×182×156 |
| 270×182×156 |
| 270×182×156 |
Base ambient temperature | ℃ | 40 | 40 | 40 | 40 |
