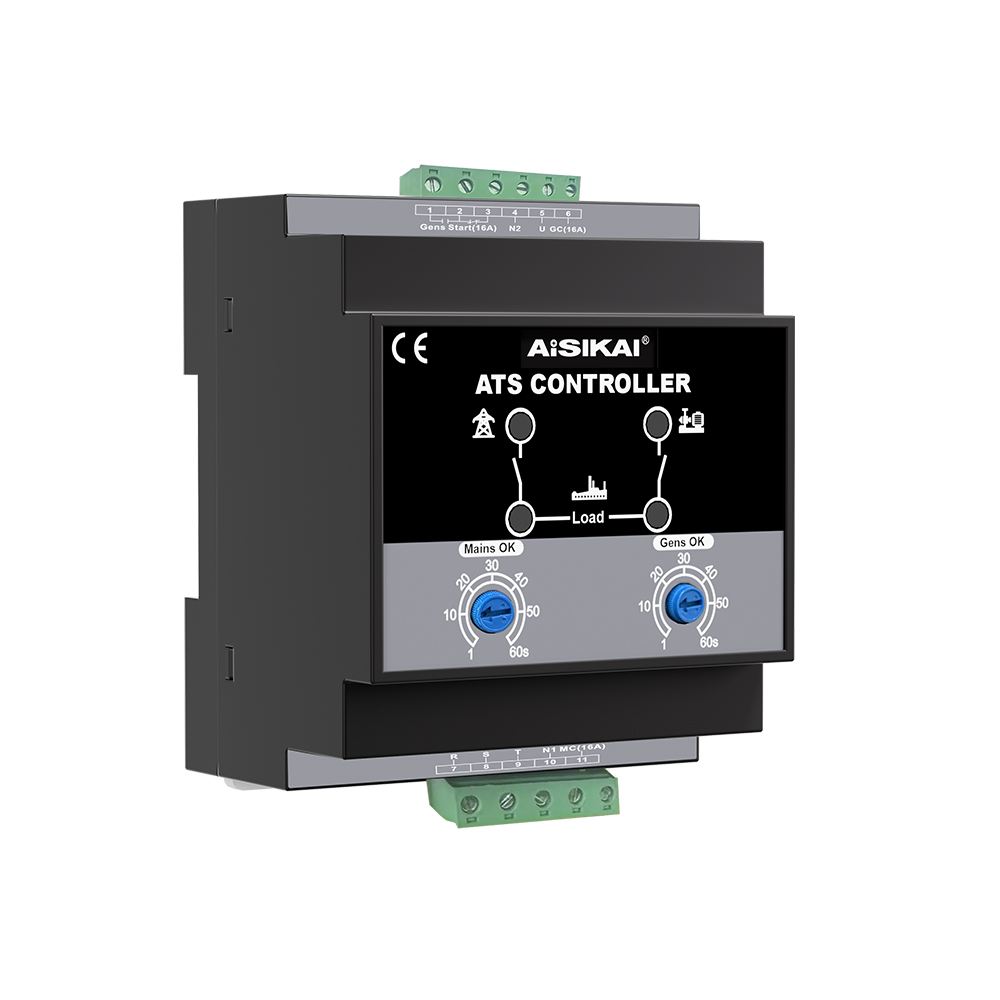

SKR2-DE
AISIKAI
| Quantity: | |
|---|---|

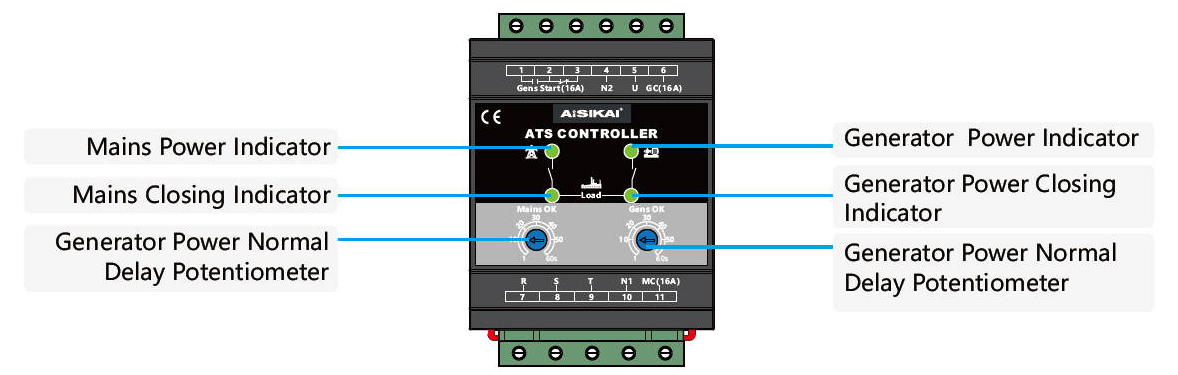

Panel layout
Operation
Main Power Close | When the mains power supply is normal, the mains indicator light of the controller is on. After the set delay period, the mains closing relay energizes, the coil of the generator set start relay is powered, and the mains closing indicator light is on. |
Generator Power Close | When the mains power supply is abnormal, the controller's mains closing indicator light is off, the mains closing relay is de-energized, and the coil of the generator set start relay is powered off. At this point, if the generator set is supplying power and the power is normal, the generator power indicator light turns on. After the set delay period, the generator closing relay energizes, and the generator closing indicator light is on. |
Working conditions and installation modes
Category | Description |
Working conditions | Temperature:(-25+70)℃, Humidity:(20~93)%RH; |
Storage conditions | Temperature:(-25+70)℃; |
Installation method | DIN Rail |
