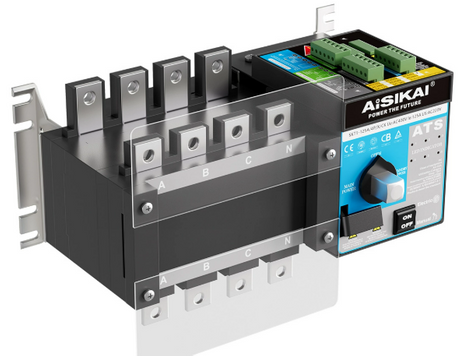

Investing in backup power is not merely an equipment purchase. It is a fundamental operational continuity strategy. A generator missing a proper transfer mechanism becomes a dangerous bottleneck rather than a reliable solution. When utility power fails, you need a smart system to bridge the gap seamlessly. An Automatic Transfer Switch acts as this critical brain. It safely disconnects grid power and activates your generator.
This article moves past basic definitions to give you a clear evaluation framework. We will explore how to select, size, and implement the ideal transfer switch for your facility. You will learn to maximize operational resilience and maintain strict safety compliance. We will guide you through transition types and load management features. By the end, you will know exactly how to align equipment specifications to meet your unique load requirements.
An Automatic Transfer Switch eliminates dangerous "backfeeding" and ensures NEC (National Electrical Code) compliance.
Selecting between manual and automatic systems depends entirely on your facility’s downtime tolerance and on-site personnel availability.
Proper ATS evaluation requires matching the switch’s transition type (open, closed, or delayed) to specific load requirements and sensitive equipment needs.
Total Cost of Ownership (TCO) must factor in installation complexities, footprint requirements, and mandated testing schedules.
Facilities often rush to purchase a generator during power crises. They overlook the mechanism required to connect it safely. This oversight creates severe vulnerabilities across your electrical infrastructure. An incomplete backup system invites catastrophic failures.
The most immediate danger is the backfeeding hazard. Backfeeding occurs when a generator pushes electricity back into the public utility grid. This happens if you fail to isolate your internal system from external lines. Utility workers repairing downed lines face life-threatening electrocution risks from this reverse current. It also destroys your internal electrical panels when utility power suddenly returns. Proper mechanical and electrical isolation is absolutely non-negotiable.
You must also face a harsh downtime reality check. Consider the "human gap" in manual setups. This gap represents the time required to manually detect an outage. Personnel must walk to the electrical room, start the generator, and switch the electrical loads. This process often takes twenty minutes or more. Every minute your facility waits for human intervention, revenues drop. Data centers lose unsaved information. Manufacturing lines grind to a halt. Cold storage facilities risk inventory spoilage.
Circumventing proper switch installation creates massive code and liability vulnerabilities. Building codes mandate specific isolation protocols. Bypassing them violates municipal laws. Furthermore, insurance companies routinely deny fire or damage claims tied to illegal generator connections. Equipment manufacturers will void warranties if they discover improper integration.
Common Mistakes to Avoid:
Skipping municipal electrical permits during the initial setup phase.
Relying on untrained staff to manually toggle breakers during high-stress outages.
Ignoring utility interconnection agreements mandated by local power authorities.
Choosing a transfer mechanism dictates how your facility survives a blackout. You must weigh human intervention against automated precision. This decision directly impacts your operational resilience.

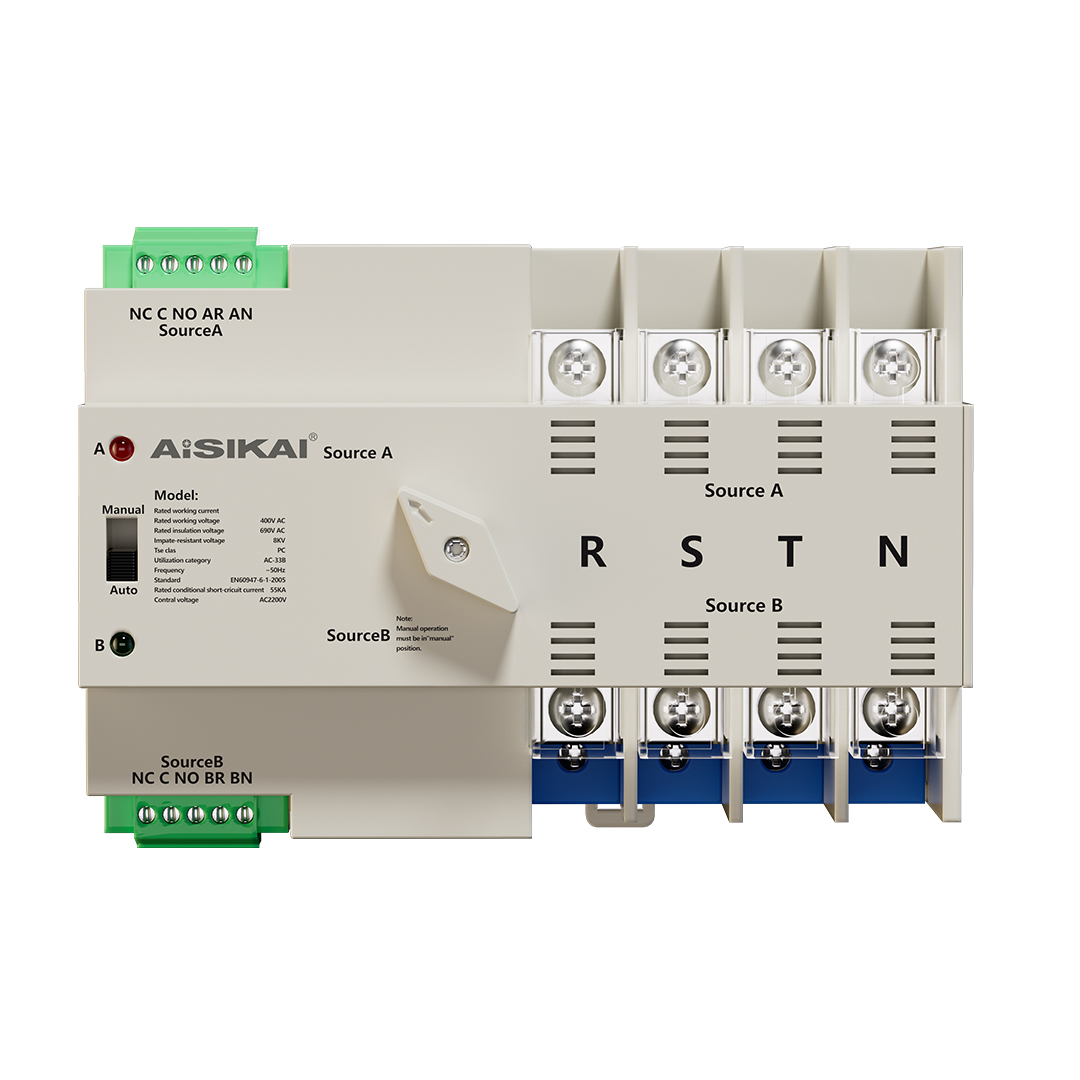

The core difference lies in the operational trigger. Manual switches rely entirely on human action. Someone must physically move a lever to switch power sources. An Automatic Transfer Switch operates using advanced voltage-sensing automation. Its internal controller constantly monitors utility voltage. When it detects a drop, it automatically commands the generator to start. Once the generator stabilizes, the switch moves the load without human input.
You must contrast the initial price with overall capability. Manual mechanisms require a smaller upfront investment. They use simpler mechanical parts. However, they offer lower operational security. Automated systems require higher initial capital but deliver unmatched speed. They remove human error from the equation. They guarantee power restoration even if the building is completely empty.
Aligning the switch type to your specific use case prevents over-engineering or under-protecting your site. We recommend evaluating your actual tolerance for electrical darkness.
Use-Case Alignment:
Manual Solutions: Best for small residential setups or highly flexible agricultural facilities. These sites usually have 24/7 staff present. They experience low financial impact from temporary downtime.
Automated Solutions: Essential for commercial facilities, data centers, and healthcare environments. Immediate, seamless power restoration is strictly non-negotiable here. High-stakes environments cannot wait for manual toggling.
Feature Matrix | Manual Transfer Switch | Automated Transfer Switch |
|---|---|---|
Intervention Required | High (Physical lever operation) | None (Voltage sensor activated) |
Response Time | Minutes to Hours | 10 to 30 Seconds |
Safety Level | Moderate (Prone to human error) | High (Mechanically interlocked) |
Ideal Application | Residential, Small Farm | Hospital, Data Center, Commercial |

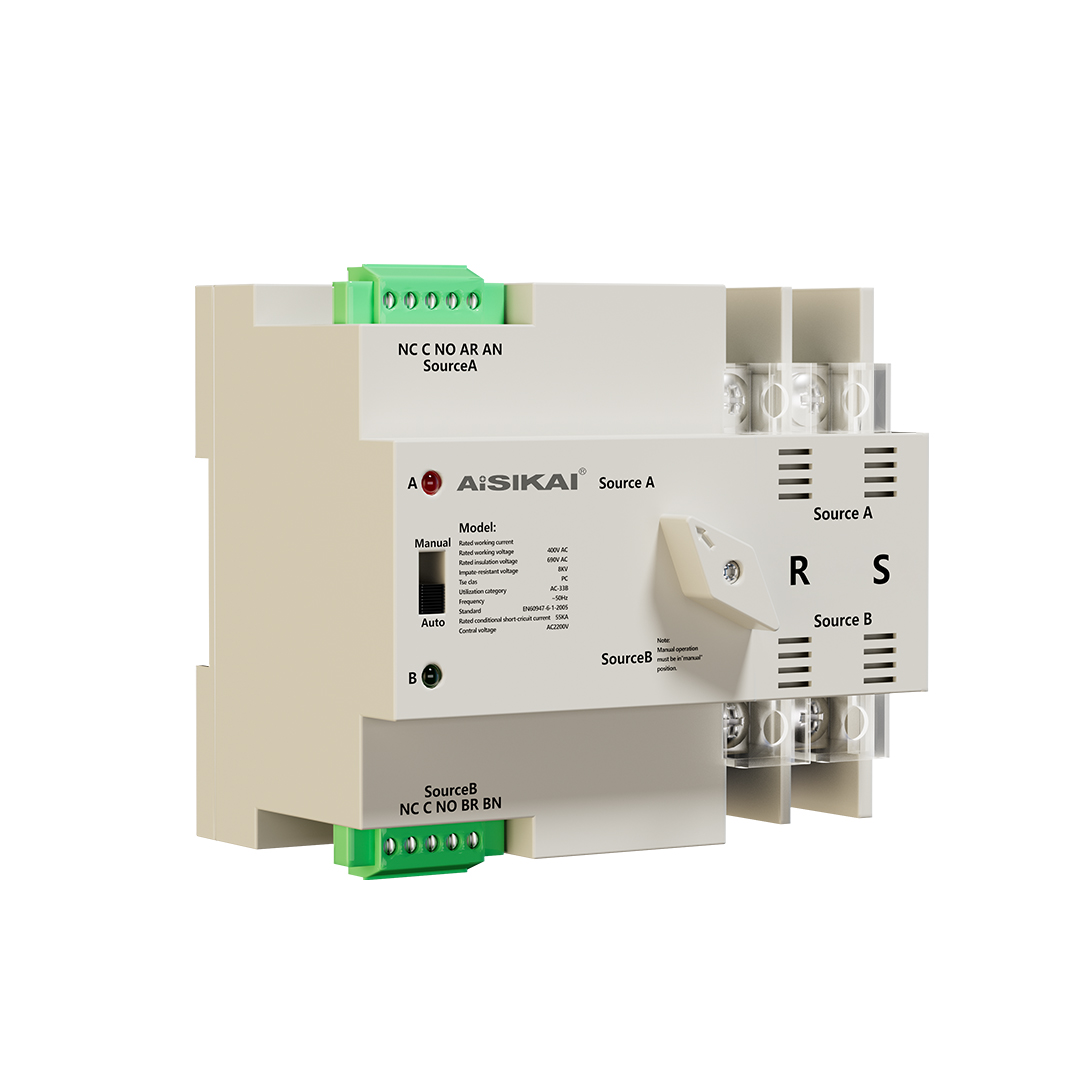

Procuring the right automated switch requires rigorous technical evaluation. You cannot simply pull a model off the shelf. You must match specific electrical characteristics to your building footprint. Proper evaluation prevents premature equipment failure.
The transition type dictates how the switch handles the brief moment between utility and generator power. Selecting the wrong type can damage sensitive equipment. There are three primary configurations to evaluate.
Open Transition (Break-before-make): This is the standard, cost-effective choice. The switch completely breaks the connection to the utility before making the connection to the generator. You experience a brief power interruption during the transfer. It works well for standard lighting and non-critical resistive loads.
Closed Transition (Make-before-break): This configuration provides a seamless transfer without interruption. The switch overlaps both power sources for roughly 100 milliseconds. It is highly critical for sensitive electronics and servers. However, it requires strict utility approval because you temporarily parallel with the grid.
Delayed Transition: This switch incorporates an intentional pause in a neutral position. It disconnects from the utility, waits, and then connects to the generator. This pause prevents massive electrical surges. It is absolutely necessary when dealing with heavy inductive loads like large motors, elevators, and industrial HVAC systems.
Many facility managers make a critical sizing mistake. They size the switch based solely on the generator's output. You must define the necessity of sizing it for the main breaker panel. If your building has a 400-amp service panel, you generally need a 400-amp switch to handle the full load. You must also account for anticipated future load expansions. Undersized switches overheat and fail during maximum load demands.
Modern controllers offer exceptional smart load management capabilities. You should actively evaluate features like load shedding and dynamic prioritization. Load shedding drops non-critical circuits if the generator nears its maximum capacity. This prevents the generator from stalling. Prioritization ensures life-safety systems receive power first. These smart features allow a slightly smaller generator to power a large facility efficiently. They intelligently manage resources when capacity is scarce.
Electrical safety is heavily regulated. You cannot treat compliance as an afterthought. Understanding national standards ensures your facility remains protected from electrical fires and legal penalties.
The National Electrical Code provides strict regulatory baselines. You must detail how your installation fulfills NEC Article 700 and Article 701. Article 700 covers Emergency Systems. These systems govern life-safety operations, such as egress lighting and fire pumps. They demand the highest reliability. Article 701 covers Legally Required Standby Systems. These protect processes that could create hazards if stopped, like sewage disposal or ventilation. Your switch must carry the correct UL ratings to satisfy these distinct articles.
Utility interconnection rules add another layer of complexity. Local grid operators enforce mandatory physical isolation between utility lines and generator power. They require certified mechanical interlocks. This physical barrier ensures both sources can never connect simultaneously under open transition setups. You must submit technical drawings to your local utility before commissioning the system.
We advise viewing compliance through an evidence-oriented standard. Frame compliance not as a bureaucratic hurdle, but as a verifiable standard for system reliability. A fully compliant system guarantees facility safety. It demonstrates due diligence to stakeholders and insurance providers. Inspectors look for clear labeling, proper wire bending space, and adequate fault-current ratings. Meeting these standards proves your backup strategy is structurally sound.
Paper plans often clash with physical realities. Installing a sophisticated electrical mechanism requires careful site preparation. Ignoring environmental constraints leads to delayed deployments and compromised hardware.
Site preparation and footprint evaluation must happen early. Address the physical realities of installation directly. Many electrical rooms suffer from severe space constraints. The switch needs close proximity to the main service panel to reduce cabling runs. You must also verify indoor versus outdoor placement. Outdoor installations mandate strict NEMA 3R or NEMA 4X enclosure ratings. These weatherproof cabinets protect internal components from rain, ice, and windblown dust. Indoor units typically utilize NEMA 1 enclosures.
Integration challenges frequently disrupt projects. Outline potential communication mismatches before buying hardware. Older generators often lack modern digital interfaces. They might not understand signals from modern controllers. You must ensure your generator possesses standard two-wire start capability. Without it, the switch cannot command the engine to crank.
Finally, you must set realistic maintenance assumptions. An automated system is not a "set it and forget it" appliance. You must establish strict monthly exercising protocols. The switch should automatically run the generator under load to verify mechanical readiness. Furthermore, you need annual preventative maintenance checks. Certified technicians must clean the contacts, tighten lug connections, and verify sensor calibration. Neglecting maintenance guarantees the switch will fail exactly when you need it most.
An automated transfer mechanism is the definitive line between a chaotic outage and a smooth operational pivot. It removes human hesitation, isolates dangerous currents, and protects your critical infrastructure from unpredictable grid failures. Without it, your generator is essentially isolated iron.
When finalizing your shortlist logic, you must prioritize technical fit over baseline prices. Select the correct transition type to protect inductive loads and sensitive data. Size the amperage capacity to accommodate future facility expansions. Above all, demand strict adherence to NEC compliance to shield your organization from severe liability.
Your next step action requires professional validation. Do not guess your load requirements. We strongly encourage you to schedule a professional load calculation and site audit. Engage a certified electrical engineer before procuring equipment. They will assess your panels, evaluate your downtime tolerance, and specify the exact hardware needed to guarantee absolute operational resilience.
A: No. An ATS mechanically and electrically isolates the utility line from the generator line, making manual breaker toggling unnecessary and redundant.
A: Yes, but it requires replacing the existing switch mechanism and ensuring your generator has the necessary two-wire start capability to communicate with the ATS.
A: Typically between 10 to 30 seconds, depending on the generator's startup sequence and the programmed time-delay settings of the ATS.
