Power continuity is no longer just a technical requirement. You must view it as a strict risk-management necessity. Unplanned downtime directly impacts your revenue, threatens data integrity, and compromises facility safety. When the grid fails, your backup systems must take over flawlessly. This is where the motorized changeover switch comes in. It stands as a highly reliable, mechanically robust sub-category within the broader spectrum of power transfer solutions. These devices offer exceptional mechanical isolation and durability for critical infrastructure. Moving beyond basic definitions, this article provides a concrete framework. Electrical specifiers, facility managers, and procurement teams will learn exactly how to evaluate, size, and implement these resilient devices. You will discover the mechanics, operational sequences, and key compliance standards necessary to ensure unbroken power continuity. We will help you navigate the complexities of transfer speeds, load types, and facility integration seamlessly.

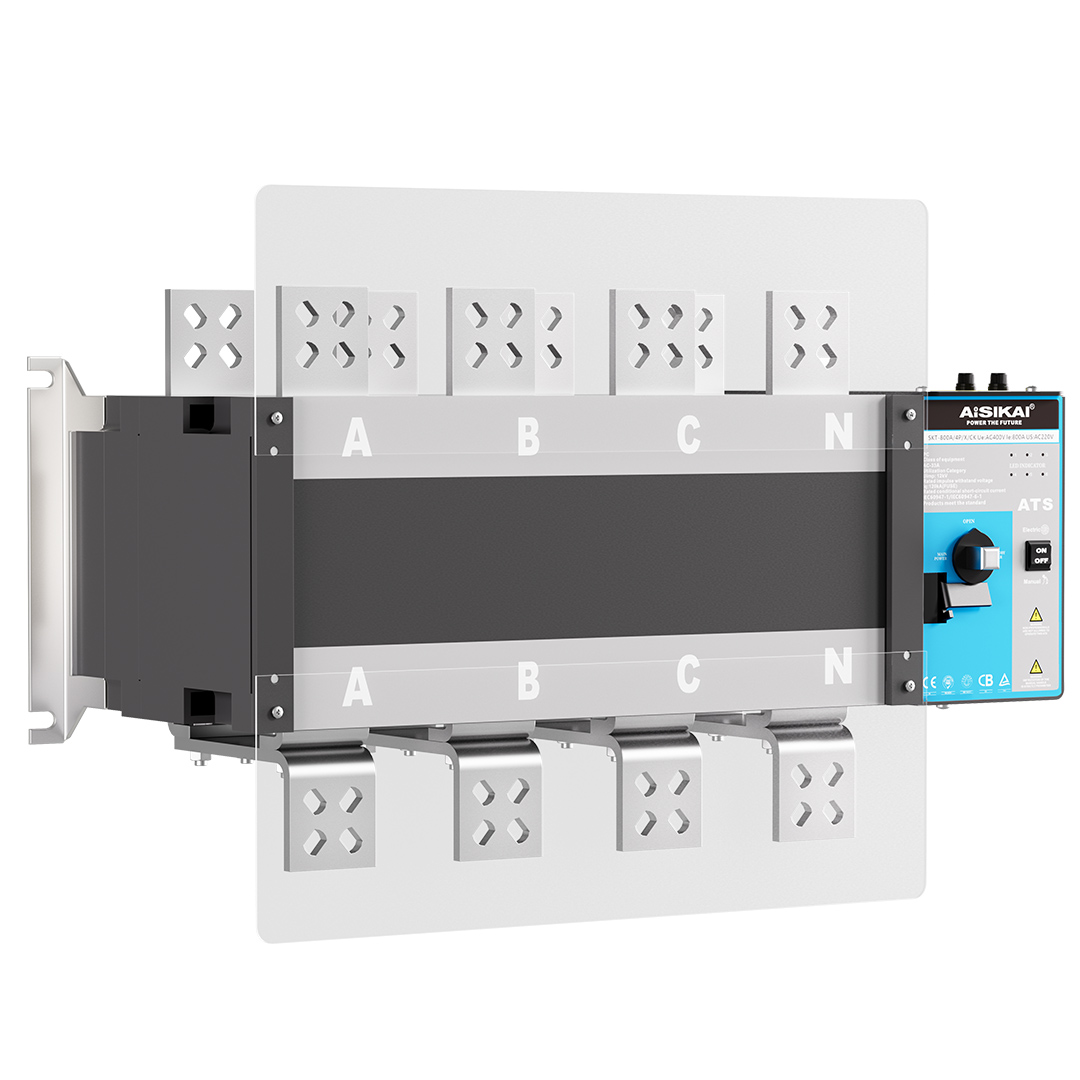

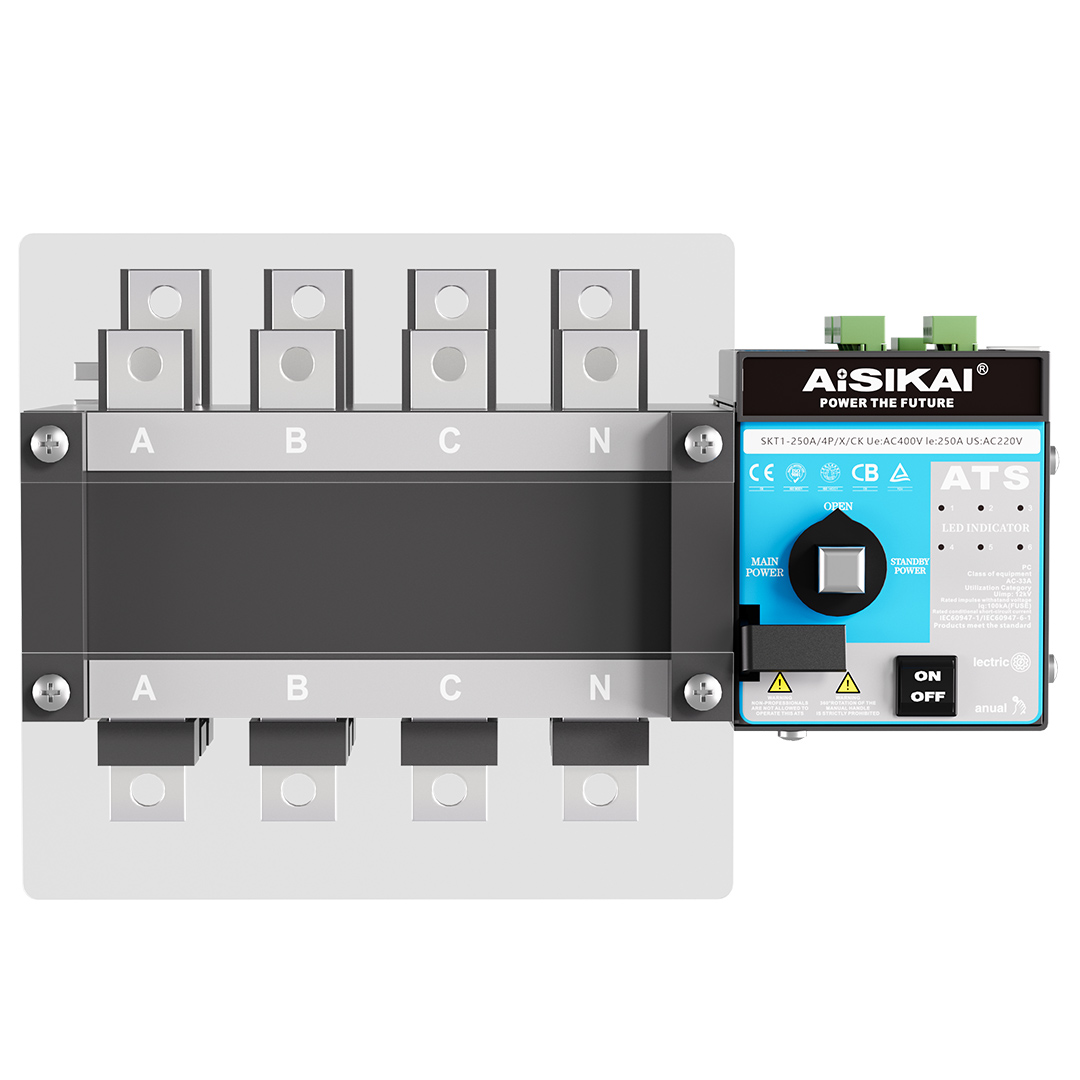

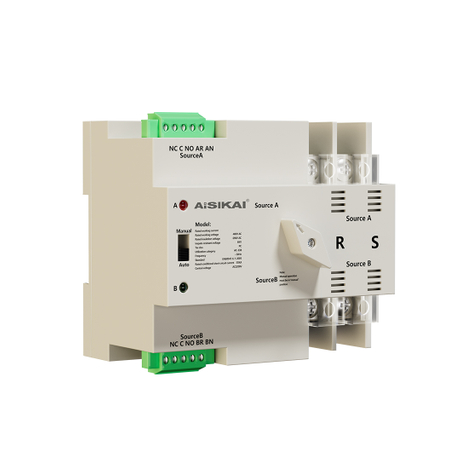

A motorised automatic transfer switch utilizes a motor-driven mechanism to physically move contacts, offering definitive mechanical isolation between power sources.
Unlike contactor-based switches, motorized units typically maintain their position without consuming continuous control power, reducing coil burnout risks.
Evaluation requires balancing transition speed requirements (often 1–3 seconds for motorized) against the need for high fault-current withstand ratings.
Successful implementation requires aligning the switch’s footprint, controller logic, and BMS (Building Management System) integration capabilities with site-specific compliance standards (e.g., UL 1008 or IEC 60947-6-1).
You need to define the equipment clearly before deploying it. It is a specialized switchgear device. It combines a manual changeover switch architecture, an external or integrated motor operator, and an intelligent controller. We situate it securely within the broader Automatic Transfer Switch market. You must understand the core distinctions among available technologies.
Motorized units use a cam or gear-driven mechanism to physically move internal contacts. Contactor-based units rely on a magnetic coil to hold contacts closed. Breaker-based units use standard circuit breakers equipped with motor operators. Each design serves a different engineering purpose.
Let us look through a skeptical lens. Motorized switches offer exceptional mechanical durability. They provide very high short-circuit withstand capabilities. Their robust internal linkages survive extreme electrical stress. However, they are inherently slower to transfer than solid-state or contactor types. You must weigh this specific trade-off. Facility managers often accept a one-second delay to gain superior mechanical longevity.
Transfer Mechanism Comparison Chart | |||
Mechanism Type | Actuation Method | Durability Level | Power Consumption |
|---|---|---|---|
Motorized (Cam/Gear) | Electric Motor | Very High | Only during transfer |
Contactor-Based | Magnetic Coil | Moderate | Continuous holding current |
Breaker-Based | Spring/Motor | High | Intermittent |
How does the switch operate when handling active electrical loads? The entire process follows a precise, automated sequence. A single failure point can compromise the entire facility. Therefore, manufacturers engineer these systems for maximum reliability.
Detection & Logic: The microprocessor controller continuously monitors primary source voltage. It tracks the frequency constantly. The unit detects anomalies quickly. These include sags below a designated threshold, destructive surges, or total power loss.
Signal to Generator: The controller triggers an internal timer. If the anomaly persists past a set delay, it sends a signal. It initiates the generator start sequence automatically.
Motor Activation & Transfer: The physical action is critical. The motor receives control power. This energy often comes from the live alternate source. The motor drives the internal gear mechanism. It breaks the primary connection decisively. It then makes the secondary connection to the backup power.
Mechanical Interlocking: We emphasize this built-in mechanism heavily. It is a non-negotiable safety feature. A steel bar or cam physically prevents the cross-connection of two live sources. It makes a dangerous short circuit mechanically impossible.
Manual Override: This acts as your ultimate failsafe. If the motor or controller fails completely, operators step in. They can manually actuate the switch using an external handle. This physical intervention capability proves crucial for urgent maintenance and emergency recovery.
You must match the switch to your specific load type accurately. Inductive loads behave very differently than resistive loads. HVAC compressors and heavy industrial motors generate massive inrush currents upon startup. Resistive loads like basic heating elements draw steady power. The switch contacts must handle these dynamic electrical forces safely.
Consider continuous current ratings carefully. You need proper amperage sizing to prevent internal overheating. Engineers typically size the unit to handle the total connected load plus a safety margin. Voltage requirements dictate the internal insulation and physical spacing needs. Operating a 480V system requires drastically different arc-quenching capabilities than a standard 240V setup.
Typical Sizing Parameters Table | ||
Parameter | Description | Impact on Selection |
|---|---|---|
Amperage Rating | Continuous current handling capacity. | Dictates the physical size of copper contacts. |
Voltage Rating | Maximum system operating voltage. | Determines insulation and arc-chute requirements. |
Pole Count | Number of switched conductors (2, 3, or 4). | Ensures proper neutral switching if required. |
Withstand Rating | Ability to survive short-circuit faults. | Prevents catastrophic equipment failure during surges. |
Open Transition signifies a break-before-make operation. This remains the absolute standard for most motorized switches. You will experience a brief, intentional power interruption during the transfer. We must ask if this is acceptable for your operations. Standard mechanical loads handle this momentary drop perfectly well. However, sensitive IT loads often require an active Uninterruptible Power Supply (UPS) downstream to bridge the gap.
Delayed Transition incorporates a deliberate center-off position. The mechanism pauses the transfer sequence temporarily. It disconnects the load from the primary source but waits before engaging the backup. This intentional delay allows residual voltages from large spinning motors to decay safely. It connects to the new source only when the electrical phasing stabilizes. This prevents damaging torque spikes on your mechanical equipment.
You must specify units rigorously tested to authoritative industry standards. In North America, UL 1008 is the strict benchmark for safety. Globally, IEC 60947-6-1 dictates the engineering requirements. These tests push the switch to its absolute limits.
Laboratories test them for overload handling, extreme temperature endurance, and short-circuit survivability. Non-compliant switches pose severe fire hazards and significant liability risks. Always verify the certification marks on the equipment nameplate. Never install unrated equipment in a critical life-safety power path.
Let us discuss real-world facility integration properly. Space and physical footprint realities matter greatly. Motorized switches occupy larger physical footprints. They require substantially more wall space than contactor-based alternatives. Address enclosure sizing early in your design phase. You must consider NEMA or IP ratings for environmental protection.
NEMA 3R enclosures protect the gear against outdoor rain. NEMA 4X enclosures resist corrosive industrial environments. Standard indoor setups often utilize basic NEMA 1 enclosures. Retrofitting constraints in existing electrical rooms can delay modernization projects. Measure your available clearances twice.
Next, consider control power dependencies. We must transparently discuss where the motor gets its operating energy. It needs power to execute the physical switch. Usually, it draws from the active incoming alternate source. Unlike magnetic contactors, the motor only consumes power during the brief transfer period. It does not draw a continuous parasitic load to keep the contacts closed.
SCADA and BMS integration addresses your modern networking needs. Facility managers demand constant remote visibility. You should evaluate the controller communication protocols carefully. Modbus RTU and BACnet IP are common industry choices. They enable seamless remote monitoring, real-time status reporting, and predictive maintenance alerts. A smart controller pings your phone if utility voltage drops.
Finally, establish a realistic maintenance cadence. Outline your real-world maintenance steps clearly. You should exercise the switch regularly under a simulated load. Inspect all mechanical linkages for unexpected wear. Verify contact integrity proactively. You can achieve this without shutting down the entire facility. Consider installing a bypass isolation configuration. This allows technicians to isolate the main switch mechanism for safe servicing while routing power directly to the load.
Selecting the right technology demands logical evaluation. You should not guess during procurement. Follow this straightforward decision matrix.
Specify Motorized When:
High fault-current withstand and closing ratings (WCR) are absolutely required.
The installation environment demands high mechanical endurance and a long lifecycle.
Continuous coil power consumption is a strict operational concern.
Manual operation capability via a physical handle is a non-negotiable facility requirement.
The facility operates heavy inductive motor loads requiring delayed transition.
Opt for Contactor-Based When:
Ultra-fast transfer speeds under 50 milliseconds are critical for the application.
Physical wall space is severely constrained inside the electrical room.
Budget is the primary limiting factor for standard, lower-amperage commercial applications.
The load is primarily resistive lighting without heavy motor inrush currents.
We recommend a comprehensive, site-specific load study. You should hire a certified electrical engineer. They will analyze your unique facility needs accurately. Do this before you draft any final procurement specifications. Avoid the costly mistake of over-sizing or under-sizing your transfer gear.
A motorized changeover switch provides a high-durability, safety-first solution for automated power transfer. It stands as a robust mechanical barrier against catastrophic power failures. You now understand the mechanical operation, the evaluation parameters, and the integration risks involved. Do not under-size your Motorised Automatic Transfer Switch under any circumstances. Never compromise on physical mechanical interlocking. We prompt you to consult an electrical infrastructure specialist today. Review your manufacturer product specification sheets carefully. Request a technical sizing audit to ensure your facility maintains unbroken power continuity through every grid outage.
A: Yes. Most motorized units feature a standard manual override using a physical handle. This allows operators to bypass electronic failures safely. You must follow strict safety protocols, such as verifying primary source isolation, before operating it manually to ensure absolute operator safety.
A: Typically, it takes 1 to 3 seconds. This speed depends on the motor drive mechanics and any intentional time delays, like a center-off position. This timing is perfectly adequate for most commercial loads. However, zero-downtime IT systems require additional UPS backing to bridge the interruption.
A: Most modern motorized units include an integrated, programmable microprocessor controller directly on the equipment. You do not strictly need a separate unit. However, you can wire them to accept commands from a central PLC or a master facility control system for advanced integration.
A: An isolator simply disconnects a single electrical circuit to allow for safe physical maintenance. A changeover switch actively routes power between two different electrical sources. It ensures continuous power supply when the primary utility source fails unexpectedly.
