Understanding “Two Incoming Lines + Bus Coupler” vs. “Dual Power Supply” in Low-Voltage Distribution

facebook sharing button
twitter sharing button
linkedin sharing button
sharethis sharing button

When discussing low-voltage power distribution systems, many people assume that “two incoming lines with a bus coupler” and “dual power supply” are mutually exclusive options. In reality, this is not the case.

In practical power systems, these configurations can coexist within the same installation. For example, it is possible to have a high-voltage bus coupler, a low-voltage bus coupler, and a dual power supply system operating together.

To better understand their roles, let’s examine the differences between them.


1. Differences in Definition

Bus Coupler (Two Incoming Lines + Bus Coupler)

In a system with two incoming power lines, each line supplies part of the load.

If one incoming line experiences a power outage or fault, the loads supplied by that line would normally lose power until the supply is restored.

However, when a bus coupler cabinet is installed, it allows the system to connect the faulty bus section to the healthy incoming line, enabling the loads to continue receiving power from the other source.

In other words, when one supply fails, the bus coupler connects the two bus sections so that the remaining power source can temporarily supply both sides.

Dual Power Supply (Automatic Transfer Switch)

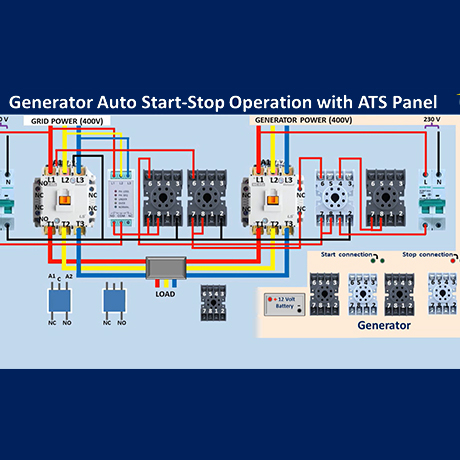

A dual power supply system, typically implemented with an Automatic Transfer Switch (ATS), automatically switches between a normal power source and a backup power source as required.

This ensures high reliability and continuity of power supply.

Dual power systems are widely used in locations where uninterrupted power is critical, such as:

  • High-rise buildings

  • Telecommunications facilities

  • Industrial plants and mines

  • Transportation systems and ships

In summary:

  • Bus couplers connect different power systems to enable power sharing and switching.

  • Dual power supply systems provide redundant power sources to ensure reliable operation.


2. Differences in Function

A bus coupler system mainly improves transformer utilization and operational flexibility. It allows convenient switching during faults, maintenance, or inspection, ensuring that power can be redistributed within the system.

A dual power system, on the other hand, focuses on ensuring continuous power supply for critical loads.


3. System vs Device

Another key distinction is their structural nature:

  • A bus coupler is part of an overall power distribution system design.

  • A dual power supply is typically a standalone device or equipment, such as an ATS.


4. Differences in Practical Application

In real-world applications:

  • Bus coupler breakers usually have larger rated currents, often above 630A.

  • Dual power switches (ATS) generally operate at smaller rated currents.

When designing a system with a bus coupler, two factors must be considered:

  1. Transformer capacity margin When one incoming line fails, the remaining source may need to carry the loads from both sections.

  2. Load classification Loads should be divided into primary, secondary, and tertiary levels. When the bus coupler is closed during an emergency, some tertiary loads may need to be disconnected to prevent overload.


5. Interlocking Methods

Bus Coupler Interlocking

Bus coupler systems usually implement electrical interlocking among three circuit breakers.

Mechanical interlocking is less common because the three breakers are typically located far apart, making mechanical linkage difficult and less effective.

In some cases, a three-lock two-key system may also be used.

Dual Power Interlocking

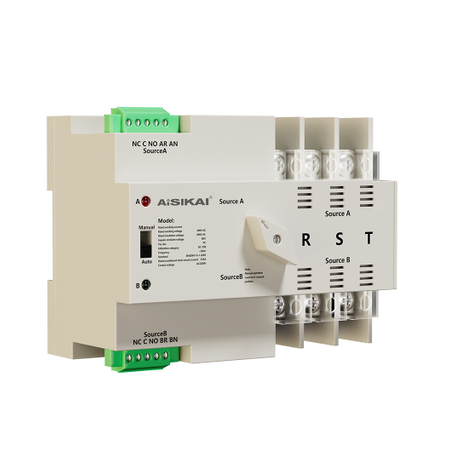

For dual power transfer switches (for example those from Schneider/WAGO-style ATS systems), mechanical interlocking is typically built into the device.

Their transfer modes generally include three types:

1. Automatic Transfer with Automatic Re-transfer

The system normally draws power from the main source. If the main source fails, it switches to the backup source. When the main source returns, the system automatically switches back to the main supply.

2. Automatic Transfer without Automatic Re-transfer

The system switches to the backup source when the main source fails. However, even if the main power returns, the system remains on the backup source until manual intervention.

3. Mutual Standby Mode

Both sources are considered equal, with no priority. If one source fails, the system switches to the other. As long as the current source remains available, it will not switch back automatically.
